Represents a CAM Rotor feature builder. More...

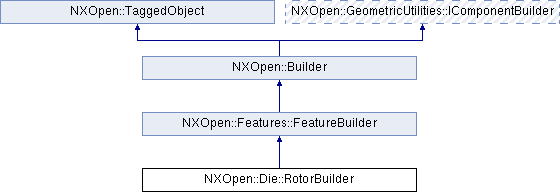

Inheritance diagram for NXOpen::Die::RotorBuilder:

Public Member Functions
NXOpen::Die::PadParentBuilder *	AirCylinderParent ()
	Returns the air cylinder parent builder of the rotor.

double	AngleTolerance ()
	Returns the angle tolerance of the rotor casting.

NXOpen::Die::HoleParentBuilder *	BoltHoleParent ()
	Returns the bolt holes parent builder of the rotor.

bool	DisplayHoles ()
	Returns the display holes of the rotor casting.

double	DistanceTolerance ()
	Returns the distance tolerance of the rotor casting.

NXOpen::Die::HoleParentBuilder *	DowelHoleParent ()
	Returns the dowel holes parent builder of the rotor.

NXOpen::Die::PadParentBuilder *	EndStopsParent ()
	Returns the end stops parent builder of the rotor.

std::vector< NXOpen::IProfile * >	GetEndOfFlangeProfile (NXOpen::Die::DirectionOption *direction)
	Gets the end of flange profile of the die rotor casting.

std::vector< NXOpen::ISurface * >	GetEndOrientation ()
	Gets the end orientation of the rotor casting.

std::vector< NXOpen::IProfile * >	GetFlangeBendProfile (NXOpen::Die::DirectionOption *direction)
	Gets the flange bend profile of the rotor casting.

std::vector< NXOpen::ISurface * >	GetStartOrientation ()
	Gets the start orientation of the rotor casting.

NXOpen::Die::HoleParentBuilder *	HandlingHoleParent ()
	Returns the handling holes parent builder of the rotor.

NXOpen::IReferenceAxis *	PressDirection ()
	Returns the press direction of the rotor casting.

NXOpen::Expression *	RotorRotationAngle ()
	Returns the rotor rotation angle value of the rotor casting.

NXOpen::Body *	RotorSolid ()
	Returns the rotor solid of the rotor casting.

NXOpen::Die::RotorSectionBuilder *	Section ()
	Returns the section builder of the rotor.

NXOpen::Die::PadParentBuilder *	SensorParent ()
	Returns the sensor parent builder of the rotor.

void	SetAngleTolerance (double angleTolerance)
	Sets the angle tolerance of the rotor casting.

void	SetDisplayHoles (bool displayHoles)
	Sets the display holes of the rotor casting.

void	SetDistanceTolerance (double distanceTolerance)
	Sets the distance tolerance of the rotor casting.

void	SetEndOfFlangeProfile (NXOpen::Die::DirectionOption direction, const std::vector< NXOpen::IProfile * > &profileEntries)
	Sets the end of flange profile of the die rotor casting.

void	SetEndOrientation (const std::vector< NXOpen::ISurface * > &endEntries)
	Sets the end orientation of the rotor casting.

void	SetFlangeBendProfile (NXOpen::Die::DirectionOption direction, const std::vector< NXOpen::IProfile * > &profileEntries)
	Sets the flange bend profile of the rotor casting.

void	SetPressDirection (NXOpen::IReferenceAxis *pressDirection)
	Sets the press direction of the rotor casting.

void	SetRotorRotationAngle (const NXString &degrees)
	Created in NX4.0.0.

void	SetRotorRotationAngle (const char *degrees)
	Created in NX4.0.0.

void	SetRotorSolid (NXOpen::Body *rotorSolid)
	Sets the rotor solid of the rotor casting.

void	SetSheetMetal (NXOpen::Body *sheetMetal)
	Sets the sheet metal of the rotor casting.

void	SetStartOrientation (const std::vector< NXOpen::ISurface * > &startEntries)
	Sets the start orientation of the rotor casting.

void	SetThroatOrientation (NXOpen::CartesianCoordinateSystem *throatOrientation)
	Sets the throat orientation of the rotor casting.

NXOpen::Die::PadParentBuilder *	SetupBlocksParent ()
	Returns the setup blocks parent builder of the rotor.

NXOpen::Body *	SheetMetal ()
	Returns the sheet metal of the rotor casting.

NXOpen::Die::HoleParentBuilder *	TbarHoleParent ()
	Returns the T-bar holes parent builder of the rotor.

NXOpen::Die::ThroatParentBuilder *	ThroatDefinitionParent ()
	Returns the throat definition parent builder of the rotor.

NXOpen::CartesianCoordinateSystem *	ThroatOrientation ()
	Returns the throat orientation of the rotor casting.

NXOpen::Die::WearPlateLocParentBuilder *	WearPlateLocatorsParent ()
	Returns the wear plate and locator parent builder of the rotor.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAM Rotor feature builder.

To create a new instance of this class, use Die::DieCollection::Rotor

Created in NX4.0.0.

Member Function Documentation

NXOpen::Die::PadParentBuilder* NXOpen::Die::RotorBuilder::AirCylinderParent ( )

Returns the air cylinder parent builder of the rotor.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

double NXOpen::Die::RotorBuilder::AngleTolerance ( )

Returns the angle tolerance of the rotor casting.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

NXOpen::Die::HoleParentBuilder* NXOpen::Die::RotorBuilder::BoltHoleParent ( )

Returns the bolt holes parent builder of the rotor.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

bool NXOpen::Die::RotorBuilder::DisplayHoles ( )

Returns the display holes of the rotor casting.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

double NXOpen::Die::RotorBuilder::DistanceTolerance ( )

Returns the distance tolerance of the rotor casting.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

NXOpen::Die::HoleParentBuilder* NXOpen::Die::RotorBuilder::DowelHoleParent ( )

Returns the dowel holes parent builder of the rotor.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

NXOpen::Die::PadParentBuilder* NXOpen::Die::RotorBuilder::EndStopsParent ( )

Returns the end stops parent builder of the rotor.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

std::vector<NXOpen::IProfile *> NXOpen::Die::RotorBuilder::GetEndOfFlangeProfile ( NXOpen::Die::DirectionOption * direction )

Gets the end of flange profile of the die rotor casting.

Returns: The profile entries, will be curves, edges, faces, sketches or curve features.
Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

Parameters

direction Profile direction.

std::vector<NXOpen::ISurface *> NXOpen::Die::RotorBuilder::GetEndOrientation ( )

Gets the end orientation of the rotor casting.

Returns: Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

std::vector<NXOpen::IProfile *> NXOpen::Die::RotorBuilder::GetFlangeBendProfile ( NXOpen::Die::DirectionOption * direction )

Gets the flange bend profile of the rotor casting.

Returns: The profile entries, will be curves, edges, faces, sketches or curve features.
Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

Parameters

direction Profile direction.

std::vector<NXOpen::ISurface *> NXOpen::Die::RotorBuilder::GetStartOrientation ( )

Gets the start orientation of the rotor casting.

Returns: Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

NXOpen::Die::HoleParentBuilder* NXOpen::Die::RotorBuilder::HandlingHoleParent ( )

Returns the handling holes parent builder of the rotor.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

NXOpen::IReferenceAxis* NXOpen::Die::RotorBuilder::PressDirection ( )

Returns the press direction of the rotor casting.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

NXOpen::Expression* NXOpen::Die::RotorBuilder::RotorRotationAngle ( )

Returns the rotor rotation angle value of the rotor casting.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

NXOpen::Body* NXOpen::Die::RotorBuilder::RotorSolid ( )

Returns the rotor solid of the rotor casting.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

NXOpen::Die::RotorSectionBuilder* NXOpen::Die::RotorBuilder::Section ( )

Returns the section builder of the rotor.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

NXOpen::Die::PadParentBuilder* NXOpen::Die::RotorBuilder::SensorParent ( )

Returns the sensor parent builder of the rotor.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

void NXOpen::Die::RotorBuilder::SetAngleTolerance ( double angleTolerance )

Sets the angle tolerance of the rotor casting.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

Parameters

angleTolerance angle tolerance

void NXOpen::Die::RotorBuilder::SetDisplayHoles ( bool displayHoles )

Sets the display holes of the rotor casting.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

Parameters

displayHoles display holes

void NXOpen::Die::RotorBuilder::SetDistanceTolerance ( double distanceTolerance )

Sets the distance tolerance of the rotor casting.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

Parameters

distanceTolerance distance tolerance

void NXOpen::Die::RotorBuilder::SetEndOfFlangeProfile	(	NXOpen::Die::DirectionOption	direction,
		const std::vector< NXOpen::IProfile * > &	profileEntries
	)

Sets the end of flange profile of the die rotor casting.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

Parameters

direction	Profile direction.
profileEntries	The profile entries, can be curves, edges, faces, sketches or curve features.

void NXOpen::Die::RotorBuilder::SetEndOrientation ( const std::vector< NXOpen::ISurface * > & endEntries )

Sets the end orientation of the rotor casting.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

Parameters

endEntries end entries

void NXOpen::Die::RotorBuilder::SetFlangeBendProfile	(	NXOpen::Die::DirectionOption	direction,
		const std::vector< NXOpen::IProfile * > &	profileEntries
	)

Sets the flange bend profile of the rotor casting.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

Parameters

direction	Profile direction.
profileEntries	The profile entries, can be curves, edges, faces, sketches or curve features.

void NXOpen::Die::RotorBuilder::SetPressDirection ( NXOpen::IReferenceAxis * pressDirection )

Sets the press direction of the rotor casting.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

Parameters

pressDirection press direction

void NXOpen::Die::RotorBuilder::SetRotorRotationAngle ( const NXString & degrees )

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

Parameters

degrees NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Die::RotorBuilder::SetRotorRotationAngle ( const char * degrees )

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

Parameters

degrees NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Die::RotorBuilder::SetRotorSolid ( NXOpen::Body * rotorSolid )

Sets the rotor solid of the rotor casting.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

Parameters

rotorSolid rotor solid

void NXOpen::Die::RotorBuilder::SetSheetMetal ( NXOpen::Body * sheetMetal )

Sets the sheet metal of the rotor casting.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

Parameters

sheetMetal sheet metal

void NXOpen::Die::RotorBuilder::SetStartOrientation ( const std::vector< NXOpen::ISurface * > & startEntries )

Sets the start orientation of the rotor casting.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

Parameters

startEntries start entries

void NXOpen::Die::RotorBuilder::SetThroatOrientation ( NXOpen::CartesianCoordinateSystem * throatOrientation )

Sets the throat orientation of the rotor casting.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

Parameters

throatOrientation throat orientation

NXOpen::Die::PadParentBuilder* NXOpen::Die::RotorBuilder::SetupBlocksParent ( )

Returns the setup blocks parent builder of the rotor.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

NXOpen::Body* NXOpen::Die::RotorBuilder::SheetMetal ( )

Returns the sheet metal of the rotor casting.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

NXOpen::Die::HoleParentBuilder* NXOpen::Die::RotorBuilder::TbarHoleParent ( )

Returns the T-bar holes parent builder of the rotor.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

NXOpen::Die::ThroatParentBuilder* NXOpen::Die::RotorBuilder::ThroatDefinitionParent ( )

Returns the throat definition parent builder of the rotor.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

NXOpen::CartesianCoordinateSystem* NXOpen::Die::RotorBuilder::ThroatOrientation ( )

Returns the throat orientation of the rotor casting.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

NXOpen::Die::WearPlateLocParentBuilder* NXOpen::Die::RotorBuilder::WearPlateLocatorsParent ( )

Returns the wear plate and locator parent builder of the rotor.

Created in NX4.0.0.

License requirements : ug_die_design ("Die Design")

The documentation for this class was generated from the following file:

Die_RotorBuilder.hxx

Public Member Functions

Detailed Description

Member Function Documentation
