NXOpen::CartesianCoordinateSystem Class Reference

Represents a cartesian coordinate system
To create a new instance of this class, use CoordinateSystemCollection::CreateCoordinateSystem

Created in NX4.0.0. More...

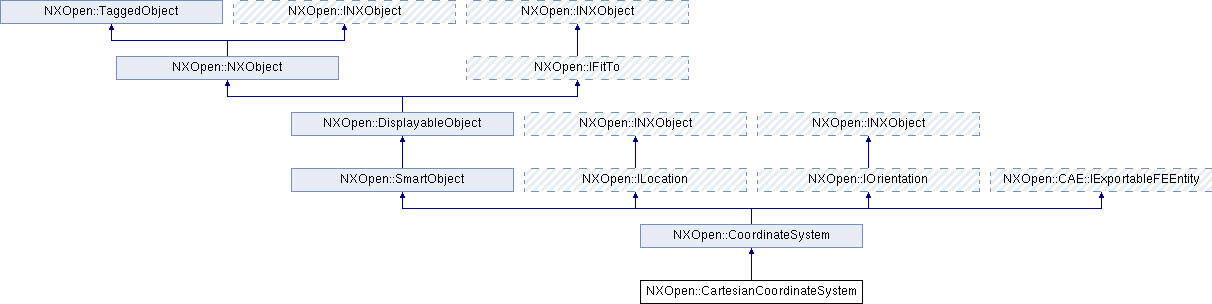

Inheritance diagram for NXOpen::CartesianCoordinateSystem:

Additional Inherited Members
Public Types inherited from NXOpen::SmartObject
enum	UpdateOption {   UpdateOptionDontUpdate, UpdateOptionWithinModeling, UpdateOptionAfterModeling, UpdateOptionAfterParentBody,   UpdateOptionMixed }
	Specifies when the smart object updates. More...
enum	VisibilityOption { VisibilityOptionInvisible, VisibilityOptionVisible, VisibilityOptionVisibleIfParentInvisible }
	Specifies the smart object visibility. More...
Public Member Functions inherited from NXOpen::CoordinateSystem
void	GetDirections (NXOpen::Vector3d *xDirection, NXOpen::Vector3d *yDirection)
	Returns the orientation of the coordinate system Created in NX5.0.0.
virtual std::vector< NXString >	GetSolverCardSyntax ()
	Returns the solver card syntax strings for this entity.
bool	IsTemporary ()
	Returns true if the coordinate system is temporary, which means that the object is not saved in the part file.
int	Label ()
	Returns the label of the coordinate system Created in NX6.0.0.
NXString	Name ()
	Returns the name of the coordinate system Created in NX6.0.0.
NXOpen::NXMatrix *	Orientation ()
	Returns the orientation matrix of the coordinate system Created in NX3.0.0.
NXOpen::Point3d	Origin ()
	Returns the origin of the coordinate system Created in NX3.0.0.
void	SetDirections (const NXOpen::Vector3d &xDirection, const NXOpen::Vector3d &yDirection)
	The orientation of the coordinate system Created in NX5.0.0.
void	SetLabel (int label)
	Sets the label of the coordinate system Created in NX6.0.0.
void	SetName (const NXString &name)
	Sets the name of the coordinate system Created in NX6.0.0.
void	SetName (const char *name)
	Sets the name of the coordinate system Created in NX6.0.0.
void	SetOrigin (const NXOpen::Point3d &origin)
	Sets the origin of the coordinate system Created in NX5.0.0.

Detailed Description

Represents a cartesian coordinate system
To create a new instance of this class, use CoordinateSystemCollection::CreateCoordinateSystem

Created in NX4.0.0.

---

The documentation for this class was generated from the following file:

• CartesianCoordinateSystem.hxx
