Represents a @link Die::KeywayBuilder Die::KeywayBuilder@endlink  builder
 <br> To create a new instance of this class, use @link Die::DieCollection::Keyway  Die::DieCollection::Keyway @endlink  <br>

Default values. More...

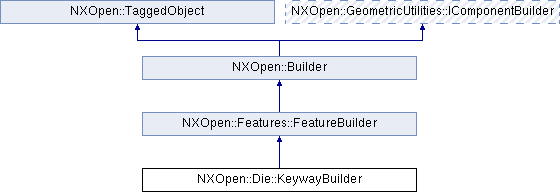

Inheritance diagram for NXOpen::Die::KeywayBuilder:

Public Types
enum	LocationType { LocationTypePositiveX, LocationTypeNegativeX, LocationTypePositiveY, LocationTypeNegativeY }
	Keyway location direction relative to the die centerline coordinate system. More...

enum	Types { TypesRectangular, TypesCircular }
	Keyway runoff types. More...

Public Member Functions
double	AngleTolerance ()
	Returns the angle tolerance Created in NX6.0.0.

NXOpen::Section *	BaseFlange ()
	Returns the closed loop section representing the base flange Created in NX6.0.0.

NXOpen::Die::DiePlaneBuilder *	BaseOrientation ()
	Returns the bottom orientation plane of the keyway pad Created in NX6.0.0.

bool	CreateWithPad ()
	Returns the value, true or false) to decide if the pad should be created for the keyway Created in NX6.0.0.

NXOpen::Expression *	DeckThickness ()
	Returns the expression for the deck thickness Created in NX6.0.0.

NXOpen::SelectCartesianCoordinateSystem *	DieCenterlineCoordinateSystem ()
	Returns the die centerline coordinate system for orienting the keyway Created in NX6.0.0.

double	DistanceTolerance ()
	Returns the distance tolerance Created in NX6.0.0.

NXOpen::Section *	InteriorProfile ()
	Returns the closed loop section representing the interior profile of the casting Created in NX6.0.0.

NXOpen::Die::KeywayBuilder::LocationType	Location ()
	Returns the location for the keyway Created in NX6.0.0.

NXOpen::Expression *	MinimumRibHeight ()
	Returns the expression for the minimum rib height Created in NX6.0.0.

NXOpen::Expression *	Offset ()
	Returns the amount to offset the keyway perpendicular to the slot orientation Created in NX6.0.0.

NXOpen::Die::DieAttributesBuilder *	PadAttributes ()
	Returns the pad attributes Created in NX6.0.0.

NXOpen::Expression *	PadHeight ()
	Returns the expression for the pad height Created in NX6.0.0.

NXOpen::Expression *	PadWidth ()
	Returns the expression for the pad width Created in NX6.0.0.

NXOpen::Expression *	PlacementOffset ()
	Returns the amount to offset the base orientation Created in NX6.0.0.

NXOpen::Expression *	RunoffDepth ()
	Returns the expression for the runoff depth Created in NX6.0.0.

NXOpen::Expression *	RunoffLength ()
	Returns the expression for the runoff length Created in NX6.0.0.

NXOpen::Expression *	RunoffRadius ()
	Returns the expression for the runoff radius Created in NX6.0.0.

NXOpen::Expression *	RunoffWidth ()
	Returns the expression for the runoff width Created in NX6.0.0.

void	SetAngleTolerance (double angleTolerance)
	Sets the angle tolerance Created in NX6.0.0.

void	SetCreateWithPad (bool createWithPad)
	Sets the value, true or false) to decide if the pad should be created for the keyway Created in NX6.0.0.

void	SetDistanceTolerance (double distanceTolerance)
	Sets the distance tolerance Created in NX6.0.0.

void	SetLocation (NXOpen::Die::KeywayBuilder::LocationType location)
	Sets the location for the keyway Created in NX6.0.0.

void	SetType (NXOpen::Die::KeywayBuilder::Types type)
	Sets the type of the keyway runoff Created in NX6.0.0.

NXOpen::SelectNXObject *	SheetMetal ()
	Returns the sheet metal being formed by the casting.

NXOpen::Die::DieAttributesBuilder *	SlotAttributes ()
	Returns the slot attributes Created in NX6.0.0.

NXOpen::Expression *	SlotDepth ()
	Returns the expression for the slot depth Created in NX6.0.0.

NXOpen::Expression *	SlotLength ()
	Returns the expression for the slot length Created in NX6.0.0.

NXOpen::Expression *	SlotWidth ()
	Returns the expression for the slot width Created in NX6.0.0.

NXOpen::SelectNXObject *	Target ()
	Returns the target solid the keyway will be united with Created in NX6.0.0.

NXOpen::Die::KeywayBuilder::Types	Type ()
	Returns the type of the keyway runoff Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a @link Die::KeywayBuilder Die::KeywayBuilder@endlink  builder
 <br> To create a new instance of this class, use @link Die::DieCollection::Keyway  Die::DieCollection::Keyway @endlink  <br>

Default values.

Property

Value

AngleTolerance

0.5

CreateWithPad

1

DeckThickness.Value

0 (millimeters part), 0 (inches part)

DistanceTolerance

0.0254 (millimeters part), 0.001 (inches part)

Location

PositiveX

MinimumRibHeight.Value

200 (millimeters part), 8 (inches part)

Offset.Value

0 (millimeters part), 0 (inches part)

PadHeight.Value

65 (millimeters part), 2.6 (inches part)

PadWidth.Value

60 (millimeters part), 2.4 (inches part)

PlacementOffset.Value

0 (millimeters part), 0 (inches part)

RunoffDepth.Value

40 (millimeters part), 1.6 (inches part)

RunoffLength.Value

60 (millimeters part), 2.4 (inches part)

RunoffRadius.Value

30 (millimeters part), 1.2 (inches part)

RunoffWidth.Value

16 (millimeters part), 0.625 (inches part)

SlotDepth.Value

20 (millimeters part), 0.8 (inches part)

SlotLength.Value

100 (millimeters part), 4 (inches part)

SlotWidth.Value

25 (millimeters part), 1 (inches part)

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Die::KeywayBuilder::LocationType

Keyway location direction relative to the die centerline coordinate system.

Enumerator:

LocationTypePositiveX	+X relative to the center of the coordinate system
LocationTypeNegativeX	-X relative to the center of the coordinate system
LocationTypePositiveY	+Y relative to the center of the coordinate system
LocationTypeNegativeY	-Y relative to the center of the coordinate system

enum NXOpen::Die::KeywayBuilder::Types

Keyway runoff types.

Enumerator:

TypesRectangular	tool runoff is perpendicular to slot
TypesCircular	tool runoff is created using a plunge cut at the end of the slot

Member Function Documentation

double NXOpen::Die::KeywayBuilder::AngleTolerance ( )

Returns the angle tolerance
Created in NX6.0.0.

License requirements : None

NXOpen::Section* NXOpen::Die::KeywayBuilder::BaseFlange ( )

Returns the closed loop section representing the base flange
Created in NX6.0.0.

License requirements : None

NXOpen::Die::DiePlaneBuilder* NXOpen::Die::KeywayBuilder::BaseOrientation ( )

Returns the bottom orientation plane of the keyway pad
Created in NX6.0.0.

License requirements : None

bool NXOpen::Die::KeywayBuilder::CreateWithPad ( )

Returns the value, true or false) to decide if the pad should be created for the keyway
Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Die::KeywayBuilder::DeckThickness ( )

Returns the expression for the deck thickness
Created in NX6.0.0.

License requirements : None

NXOpen::SelectCartesianCoordinateSystem* NXOpen::Die::KeywayBuilder::DieCenterlineCoordinateSystem ( )

Returns the die centerline coordinate system for orienting the keyway
Created in NX6.0.0.

License requirements : None

double NXOpen::Die::KeywayBuilder::DistanceTolerance ( )

Returns the distance tolerance
Created in NX6.0.0.

License requirements : None

NXOpen::Section* NXOpen::Die::KeywayBuilder::InteriorProfile ( )

Returns the closed loop section representing the interior profile of the casting
Created in NX6.0.0.

License requirements : None

NXOpen::Die::KeywayBuilder::LocationType NXOpen::Die::KeywayBuilder::Location ( )

Returns the location for the keyway
Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Die::KeywayBuilder::MinimumRibHeight ( )

Returns the expression for the minimum rib height
Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Die::KeywayBuilder::Offset ( )

Returns the amount to offset the keyway perpendicular to the slot orientation
Created in NX6.0.0.

License requirements : None

NXOpen::Die::DieAttributesBuilder* NXOpen::Die::KeywayBuilder::PadAttributes ( )

Returns the pad attributes
Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Die::KeywayBuilder::PadHeight ( )

Returns the expression for the pad height
Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Die::KeywayBuilder::PadWidth ( )

Returns the expression for the pad width
Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Die::KeywayBuilder::PlacementOffset ( )

Returns the amount to offset the base orientation
Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Die::KeywayBuilder::RunoffDepth ( )

Returns the expression for the runoff depth
Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Die::KeywayBuilder::RunoffLength ( )

Returns the expression for the runoff length
Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Die::KeywayBuilder::RunoffRadius ( )

Returns the expression for the runoff radius
Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Die::KeywayBuilder::RunoffWidth ( )

Returns the expression for the runoff width
Created in NX6.0.0.

License requirements : None

void NXOpen::Die::KeywayBuilder::SetAngleTolerance ( double angleTolerance )

Sets the angle tolerance
Created in NX6.0.0.
