Represents the builder for a CMM Inspection path. More...

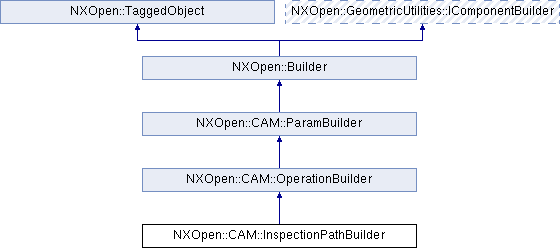

Inheritance diagram for NXOpen::CAM::InspectionPathBuilder:

Public Types
enum	EntryExitType { EntryExitTypeEntry, EntryExitTypeExit }
	the entry/exit flag More...

enum	FirstLastType { FirstLastTypeFirst, FirstLastTypeLast }
	the first/last flag More...

enum	InspectModeType { InspectModeTypeDefault, InspectModeTypeProgram, InspectModeTypeManual, InspectModeTypeAuto }
	the inspection mode More...

enum	SequenceType { SequenceTypeNone, SequenceTypeNearest, SequenceTypeUStrip, SequenceTypeVStrip }
	the path point sequence optimization method More...

Public Types inherited from NXOpen::CAM::OperationBuilder
enum	HoleAxisTypes { HoleAxisTypesVector, HoleAxisTypesRule, HoleAxisTypesRuleIfNoVector }
	Available types for Hole Axis Type in feature milling and hole making. More...

enum	HoleDepthTypes { HoleDepthTypesPoint, HoleDepthTypesRule }
	Available types for Hole Depth Type in feature milling and hole making. More...

enum	OptimizationBasedOnTypes { OptimizationBasedOnTypesDist, OptimizationBasedOnTypesOrient }
	Available types for optimization based on in operation. More...

enum	OptimizationDistanceTypes { OptimizationDistanceTypesDirect, OptimizationDistanceTypesTransition }
	Available types for optimization distance method in operation. More...

enum	OptimizationLevelTypes { OptimizationLevelTypesStandard, OptimizationLevelTypesAdvanced }
	Available types for optimization level in operation. More...

Public Types inherited from NXOpen::CAM::ParamBuilder
enum	OptimizationTypes { OptimizationTypesNone, OptimizationTypesMinimizeTravel, OptimizationTypesBand }
	Available types for Optimization Method in operation. More...

Public Member Functions
bool	CreateEntryPoint ()
	Returns a flag to indicate if an entry point is required Created in NX7.0.0.

bool	CreateExitPoint ()
	Returns a flag to indicate if an exit point is required Created in NX7.0.0.

void	EditEntryExitPoints (bool regenerate)
	Edit entry or exit point Created in NX8.0.0.

void	EditStartEndPoints (bool regenerate)
	Edit first or last point in safe plane Created in NX8.0.0.

NXString	FeatureOpName ()
	Returns the inspection feature operation name Created in NX7.0.0.

void	FlipApproachDirection ()
	Flips the approach direction vector Created in NX7.0.0.

int	GenerateReferenceFeature ()
	Generate the reference feature.

std::vector< double >	GetApproachDirection ()
	Gets the approach direction vector values.

NXOpen::CAM::InspectionMethodBuilder::ReferenceFeatureModeTypes	GetReferenceFeatureModeValue ()
	Get the reference feature mode.

double	GetReferenceFeatureOffsetDistanceValue ()
	Get the reference feature offset distance.

int	GetReferenceFeaturePointCountValue ()
	Get the reference feature point count.

double	GetReferenceFeatureZoneRadiusValue ()
	Get the reference feature zone radius.

NXOpen::CAM::InheritableDoubleBuilder *	HeightAboveFeature ()
	Returns the height above feature for entry and exit points Created in NX7.0.0.

NXOpen::CAM::InspectionPathBuilder::InspectModeType	InspectionMode ()
	Returns the inspection mode setting Created in NX7.0.0.

NXOpen::CAM::InheritableIntBuilder *	NumPoints ()
	Returns the number of points in the path Created in NX7.0.0.

NXString	PathOpName ()
	Returns the inspection path operation name Created in NX7.0.0.

bool	ProjectLastPointToSafePlane ()
	Returns a flag to indicate if last point is created in safe plane Created in NX7.0.0.

bool	ProjectStartPointToSafePlane ()
	Returns a flag to indicate if start point is created in safe plane Created in NX7.0.0.

NXString	ReferenceFeatureAutoName ()
	Returns the automatic reference feature name Created in NX9.0.0.

NXString	ReferenceFeatureName ()
	Returns the reference feature name Created in NX9.0.0.

bool	ReGenerateEntryExit (NXOpen::CAM::InspectionPathBuilder::EntryExitType entryExit)
	ReGenerate entry or exit point.

bool	ReGenerateInSafePlane (NXOpen::CAM::InspectionPathBuilder::FirstLastType firstLast)
	ReGenerate first or last point in safe plane.

int	RemoveReferenceFeature ()
	Remove the reference feature.

NXOpen::NXObject *	SafePlaneXform ()
	Returns the safe plane Created in NX7.0.0.

NXOpen::SelectNXObjectList *	SelectFeature ()
	Returns the selector for the inspection feature Created in NX7.0.0.

NXOpen::SelectNXObjectList *	SelectReferenceFeature ()
	Returns the selector for the reference feature Created in NX9.0.0.

NXOpen::CAM::InspectionPathBuilder::SequenceType	SequenceOptimization ()
	Returns the path point sequence optimization setting Created in NX7.0.0.

void	SetApproachDirection (const std::vector< double > &direction)
	Sets the approach direction vector values Created in NX7.0.0.

void	SetCreateEntryPoint (bool createPoint)
	Sets a flag to indicate if an entry point is required Created in NX7.0.0.

void	SetCreateExitPoint (bool createPoint)
	Sets a flag to indicate if an exit point is required Created in NX7.0.0.

void	SetFeatureOpName (const NXString &featureOpName)
	Sets the inspection feature operation name Created in NX7.0.0.

void	SetFeatureOpName (const char *featureOpName)
	Sets the inspection feature operation name Created in NX7.0.0.

void	SetInspectionMode (NXOpen::CAM::InspectionPathBuilder::InspectModeType inspectMode)
	Sets the inspection mode setting Created in NX7.0.0.

void	SetPathOpName (const NXString &pathOpName)
	Sets the inspection path operation name Created in NX7.0.0.

void	SetPathOpName (const char *pathOpName)
	Sets the inspection path operation name Created in NX7.0.0.

void	SetProjectLastPointToSafePlane (bool projectPoint)
	Sets a flag to indicate if last point is created in safe plane Created in NX7.0.0.

void	SetProjectStartPointToSafePlane (bool projectPoint)
	Sets a flag to indicate if start point is created in safe plane Created in NX7.0.0.

void	SetReferenceFeatureAutoName (const NXString &featureName)
	Sets the automatic reference feature name Created in NX9.0.0.

void	SetReferenceFeatureAutoName (const char *featureName)
	Sets the automatic reference feature name Created in NX9.0.0.

void	SetReferenceFeatureModeValue (NXOpen::CAM::InspectionMethodBuilder::ReferenceFeatureModeTypes mode)
	Set the reference feature mode Created in NX9.0.0.

void	SetReferenceFeatureName (const NXString &featureName)
	Sets the reference feature name Created in NX9.0.0.

void	SetReferenceFeatureName (const char *featureName)
	Sets the reference feature name Created in NX9.0.0.

void	SetReferenceFeatureOffsetDistanceValue (double distance)
	Set the reference feature offset distance Created in NX9.0.0.

void	SetReferenceFeaturePointCountValue (int count)
	Set the reference feature point count Created in NX9.0.0.

void	SetReferenceFeatureZoneRadiusValue (double radius)
	Set the reference feature zone radius Created in NX9.0.0.

void	SetSafePlaneXform (NXOpen::NXObject *planeXform)
	Sets the safe plane Created in NX7.0.0.

void	SetSequenceOptimization (NXOpen::CAM::InspectionPathBuilder::SequenceType sequenceOpt)
	Sets the path point sequence optimization setting Created in NX7.0.0.

void	SetUseEntryAvoidance (bool useAvoidance)
	Sets a flag to indicate if collision avoidance is required at entry Created in NX7.0.0.

void	SetUseExitAvoidance (bool useAvoidance)
	Sets a flag to indicate if collision avoidance is required at exit Created in NX7.0.0.

void	UpdateParameters ()
	Update Inspection path based on selected feature.

void	UpdateReferenceParameters (NXOpen::NXObject *featOpTag)
	Update relative measurement geometry based on selected reference feature.

void	UpdateSensors (NXOpen::CAM::InspectionSetup setup, NXOpen::CAM::InspectionGroup parentProgramGroup, NXOpen::CAM::InspectionGroup parentMethodGroup, NXOpen::CAM::InspectionGroup parentToolGroup, NXOpen::CAM::InspectionGroup *parentGeometryGroup, const NXString &typeName)
	Update sensor definitions Created in NX7.5.1.

void	UpdateSensors (NXOpen::CAM::InspectionSetup setup, NXOpen::CAM::InspectionGroup parentProgramGroup, NXOpen::CAM::InspectionGroup parentMethodGroup, NXOpen::CAM::InspectionGroup parentToolGroup, NXOpen::CAM::InspectionGroup parentGeometryGroup, const char typeName)
	Update sensor definitions Created in NX7.5.1.

bool	UseEntryAvoidance ()
	Returns a flag to indicate if collision avoidance is required at entry Created in NX7.0.0.

bool	UseExitAvoidance ()
	Returns a flag to indicate if collision avoidance is required at exit Created in NX7.0.0.

Public Member Functions inherited from NXOpen::CAM::OperationBuilder
NXString	ChannelName ()
	Returns the channel's name Created in NX7.5.0.

NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::PostEventsCiBuilder *	EndOfPath ()
	Returns the end event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

NXOpen::CAM::GeometryCiBuilder *	Geometry ()
	Returns the geometry builder Created in NX5.0.0.

std::vector< double >	GetHoleAxisValues ()
	Get the Hole Axis values.

bool	GougeChecking ()
	Returns the gouge checking flag Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::HoleAxisTypes	HoleAxisType ()
	Returns the Hole Axis Type Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	HoleDepth ()
	Returns the max depth distance builder Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::HoleDepthTypes	HoleDepthType ()
	Returns the Hole Depth Type Created in NX5.0.0.

NXOpen::CAM::ArcOutputTypeCiBuilder *	MotionOutputBuilder ()
	Returns the motion output builder Created in NX8.0.0.

NXOpen::CAM::Notes *	Notes ()
	Returns the notes builder Created in NX9.0.0.

NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes	OptimizationBasedOn ()
	Returns the optimization based on in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes	OptimizationDistanceMethod ()
	Returns the optimization distance method in operation Created in NX5.0.0.

NXOpen::CAM::OperationBuilder::OptimizationLevelTypes	OptimizationLevel ()
	Returns the optimization level in operation Created in NX5.0.0.

NXOpen::CAM::OperationDisplayOptionsBuilder *	PathDisplayOptions ()
	Returns the path display options builder Created in NX6.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistance ()
	Returns the Retract Distance builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	RetractDistanceOnToolAxisChange ()
	Returns the Retract Distance on Tool Axis Change builder (inheritable double) Created in NX5.0.0.

NXOpen::CAM::InheritableDoubleBuilder *	SafeClearance ()
	Returns the safe clearance builder Created in NX6.0.0.

bool	SelectToolFlag ()
	Returns the user selected tool Created in NX5.0.0.

void	SetChannelName (const NXString &channel)
	Sets the channel's name Created in NX7.5.0.

void	SetChannelName (const char *channel)
	Sets the channel's name Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

void	SetGougeChecking (bool gougeChecking)
	Sets the gouge checking flag Created in NX9.0.0.

void	SetHoleAxisType (NXOpen::CAM::OperationBuilder::HoleAxisTypes types)
	Sets the Hole Axis Type Created in NX5.0.0.

void	SetHoleAxisValues (const std::vector< double > &holeAxis)
	Set the Hole Axis values Created in NX5.0.0.

void	SetHoleDepthType (NXOpen::CAM::OperationBuilder::HoleDepthTypes types)
	Sets the Hole Depth Type Created in NX5.0.0.

void	SetOptimizationBasedOn (NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes optimBasedOn)
	Sets the optimization based on in operation Created in NX5.0.0.

void	SetOptimizationDistanceMethod (NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes optimDistance)
	Sets the optimization distance method in operation Created in NX5.0.0.

void	SetOptimizationLevel (NXOpen::CAM::OperationBuilder::OptimizationLevelTypes optimType)
	Sets the optimization level in operation Created in NX5.0.0.

void	SetSelectToolFlag (bool selToolFlag)
	Sets the user selected tool Created in NX5.0.0.

NXOpen::CAM::PostEventsCiBuilder *	StartOfPath ()
	Returns the start event builder Created in NX5.0.1.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

NXOpen::CAM::ToolChangeCiBuilder *	ToolChangeSetting ()
	Returns the tool change builder Created in NX5.0.0.

NXOpen::CAM::ToolPathSplitParametersBuilder *	ToolPathSplitParametersBuilder ()
	Returns the tool path split Parameters Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents the builder for a CMM Inspection path.

To create a new instance of this class, use CAM::InspectionOperationCollection::CreateInspectionPathBuilder

Created in NX7.0.0.

Member Enumeration Documentation

enum NXOpen::CAM::InspectionPathBuilder::EntryExitType

the entry/exit flag

Enumerator:

EntryExitTypeEntry	Entry Point.
EntryExitTypeExit	Exit Point.

enum NXOpen::CAM::InspectionPathBuilder::FirstLastType

the first/last flag

Enumerator:

FirstLastTypeFirst	First Point.
FirstLastTypeLast	Last Point.

enum NXOpen::CAM::InspectionPathBuilder::InspectModeType

the inspection mode

Enumerator:

InspectModeTypeDefault	Default from method.
InspectModeTypeProgram	Specified by program.
InspectModeTypeManual	Manual.
InspectModeTypeAuto	Auto determined by application.

enum NXOpen::CAM::InspectionPathBuilder::SequenceType

the path point sequence optimization method

Enumerator:

SequenceTypeNone	None.
SequenceTypeNearest	Nearest neighbor.
SequenceTypeUStrip	U strip.
SequenceTypeVStrip	V strip.

Member Function Documentation

bool NXOpen::CAM::InspectionPathBuilder::CreateEntryPoint ( )

Returns a flag to indicate if an entry point is required
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionPathBuilder::CreateExitPoint ( )

Returns a flag to indicate if an exit point is required
Created in NX7.0.0.

License requirements : None

void NXOpen::CAM::InspectionPathBuilder::EditEntryExitPoints ( bool regenerate )

Edit entry or exit point
Created in NX8.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

regenerate regenerate

void NXOpen::CAM::InspectionPathBuilder::EditStartEndPoints ( bool regenerate )

Edit first or last point in safe plane
Created in NX8.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

regenerate regenerate

NXString NXOpen::CAM::InspectionPathBuilder::FeatureOpName ( )

Returns the inspection feature operation name
Created in NX7.0.0.

License requirements : None

void NXOpen::CAM::InspectionPathBuilder::FlipApproachDirection ( )

Flips the approach direction vector
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

int NXOpen::CAM::InspectionPathBuilder::GenerateReferenceFeature ( )

Generate the reference feature.

Returns: Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

std::vector<double> NXOpen::CAM::InspectionPathBuilder::GetApproachDirection ( )

Gets the approach direction vector values.

Returns: the approach direction values
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionMethodBuilder::ReferenceFeatureModeTypes NXOpen::CAM::InspectionPathBuilder::GetReferenceFeatureModeValue ( )

Get the reference feature mode.

Returns: Created in NX9.0.0.

License requirements : None

double NXOpen::CAM::InspectionPathBuilder::GetReferenceFeatureOffsetDistanceValue ( )

Get the reference feature offset distance.

Returns: Created in NX9.0.0.

License requirements : None

int NXOpen::CAM::InspectionPathBuilder::GetReferenceFeaturePointCountValue ( )

Get the reference feature point count.

Returns: Created in NX9.0.0.

License requirements : None

double NXOpen::CAM::InspectionPathBuilder::GetReferenceFeatureZoneRadiusValue ( )

Get the reference feature zone radius.

Returns: Created in NX9.0.0.

License requirements : None

NXOpen::CAM::InheritableDoubleBuilder* NXOpen::CAM::InspectionPathBuilder::HeightAboveFeature ( )

Returns the height above feature for entry and exit points
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionPathBuilder::InspectModeType NXOpen::CAM::InspectionPathBuilder::InspectionMode ( )

Returns the inspection mode setting
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InheritableIntBuilder* NXOpen::CAM::InspectionPathBuilder::NumPoints ( )

Returns the number of points in the path
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionPathBuilder::PathOpName ( )

Returns the inspection path operation name
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionPathBuilder::ProjectLastPointToSafePlane ( )

Returns a flag to indicate if last point is created in safe plane
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionPathBuilder::ProjectStartPointToSafePlane ( )

Returns a flag to indicate if start point is created in safe plane
Created in NX7.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionPathBuilder::ReferenceFeatureAutoName ( )

Returns the automatic reference feature name
Created in NX9.0.0.

License requirements : None

NXString NXOpen::CAM::InspectionPathBuilder::ReferenceFeatureName ( )

Returns the reference feature name
Created in NX9.0.0.

License requirements : None

bool NXOpen::CAM::InspectionPathBuilder::ReGenerateEntryExit ( NXOpen::CAM::InspectionPathBuilder::EntryExitType entryExit )

ReGenerate entry or exit point.

Returns: Created in NX7.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

entryExit Type of point to recreate

bool NXOpen::CAM::InspectionPathBuilder::ReGenerateInSafePlane ( NXOpen::CAM::InspectionPathBuilder::FirstLastType firstLast )

ReGenerate first or last point in safe plane.

Returns: Created in NX7.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

firstLast Type of point to recreate

int NXOpen::CAM::InspectionPathBuilder::RemoveReferenceFeature ( )

Remove the reference feature.

Returns: Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

NXOpen::NXObject* NXOpen::CAM::InspectionPathBuilder::SafePlaneXform ( )

Returns the safe plane
Created in NX7.0.0.

License requirements : None

NXOpen::SelectNXObjectList* NXOpen::CAM::InspectionPathBuilder::SelectFeature ( )

Returns the selector for the inspection feature
Created in NX7.0.0.

License requirements : None

NXOpen::SelectNXObjectList* NXOpen::CAM::InspectionPathBuilder::SelectReferenceFeature ( )

Returns the selector for the reference feature
Created in NX9.0.0.

License requirements : None

NXOpen::CAM::InspectionPathBuilder::SequenceType NXOpen::CAM::InspectionPathBuilder::SequenceOptimization ( )

Returns the path point sequence optimization setting
Created in NX7.0.0.

License requirements : None

void NXOpen::CAM::InspectionPathBuilder::SetApproachDirection ( const std::vector< double > & direction )

Sets the approach direction vector values
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

direction the approach direction values

void NXOpen::CAM::InspectionPathBuilder::SetCreateEntryPoint ( bool createPoint )

Sets a flag to indicate if an entry point is required
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

createPoint createpoint

void NXOpen::CAM::InspectionPathBuilder::SetCreateExitPoint ( bool createPoint )

Sets a flag to indicate if an exit point is required
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

createPoint createpoint

void NXOpen::CAM::InspectionPathBuilder::SetFeatureOpName ( const NXString & featureOpName )

Sets the inspection feature operation name
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

featureOpName featureopname

void NXOpen::CAM::InspectionPathBuilder::SetFeatureOpName ( const char * featureOpName )

Sets the inspection feature operation name
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

featureOpName featureopname

void NXOpen::CAM::InspectionPathBuilder::SetInspectionMode ( NXOpen::CAM::InspectionPathBuilder::InspectModeType inspectMode )

Sets the inspection mode setting
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

inspectMode inspectmode

void NXOpen::CAM::InspectionPathBuilder::SetPathOpName ( const NXString & pathOpName )

Sets the inspection path operation name
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

pathOpName pathopname

void NXOpen::CAM::InspectionPathBuilder::SetPathOpName ( const char * pathOpName )

Sets the inspection path operation name
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

pathOpName pathopname

void NXOpen::CAM::InspectionPathBuilder::SetProjectLastPointToSafePlane ( bool projectPoint )

Sets a flag to indicate if last point is created in safe plane
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

projectPoint projectpoint

void NXOpen::CAM::InspectionPathBuilder::SetProjectStartPointToSafePlane ( bool projectPoint )

Sets a flag to indicate if start point is created in safe plane
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

projectPoint projectpoint

void NXOpen::CAM::InspectionPathBuilder::SetReferenceFeatureAutoName ( const NXString & featureName )

Sets the automatic reference feature name
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

featureName featurename

void NXOpen::CAM::InspectionPathBuilder::SetReferenceFeatureAutoName ( const char * featureName )

Sets the automatic reference feature name
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

featureName featurename

void NXOpen::CAM::InspectionPathBuilder::SetReferenceFeatureModeValue ( NXOpen::CAM::InspectionMethodBuilder::ReferenceFeatureModeTypes mode )

Set the reference feature mode
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

mode mode

void NXOpen::CAM::InspectionPathBuilder::SetReferenceFeatureName ( const NXString & featureName )

Sets the reference feature name
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

featureName featurename

void NXOpen::CAM::InspectionPathBuilder::SetReferenceFeatureName ( const char * featureName )

Sets the reference feature name
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

featureName featurename

void NXOpen::CAM::InspectionPathBuilder::SetReferenceFeatureOffsetDistanceValue ( double distance )

Set the reference feature offset distance
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

distance distance

void NXOpen::CAM::InspectionPathBuilder::SetReferenceFeaturePointCountValue ( int count )

Set the reference feature point count
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

count count

void NXOpen::CAM::InspectionPathBuilder::SetReferenceFeatureZoneRadiusValue ( double radius )

Set the reference feature zone radius
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

radius radius

void NXOpen::CAM::InspectionPathBuilder::SetSafePlaneXform ( NXOpen::NXObject * planeXform )

Sets the safe plane
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

planeXform planexform

void NXOpen::CAM::InspectionPathBuilder::SetSequenceOptimization ( NXOpen::CAM::InspectionPathBuilder::SequenceType sequenceOpt )

Sets the path point sequence optimization setting
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

sequenceOpt sequenceopt

void NXOpen::CAM::InspectionPathBuilder::SetUseEntryAvoidance ( bool useAvoidance )

Sets a flag to indicate if collision avoidance is required at entry
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

useAvoidance useavoidance

void NXOpen::CAM::InspectionPathBuilder::SetUseExitAvoidance ( bool useAvoidance )

Sets a flag to indicate if collision avoidance is required at exit
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

useAvoidance useavoidance

void NXOpen::CAM::InspectionPathBuilder::UpdateParameters ( )

Update Inspection path based on selected feature.

Created in NX7.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

void NXOpen::CAM::InspectionPathBuilder::UpdateReferenceParameters ( NXOpen::NXObject * featOpTag )

Update relative measurement geometry based on selected reference feature.

Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

featOpTag featoptag

void NXOpen::CAM::InspectionPathBuilder::UpdateSensors	(	NXOpen::CAM::InspectionSetup *	setup,
		NXOpen::CAM::InspectionGroup *	parentProgramGroup,
		NXOpen::CAM::InspectionGroup *	parentMethodGroup,
		NXOpen::CAM::InspectionGroup *	parentToolGroup,
		NXOpen::CAM::InspectionGroup *	parentGeometryGroup,
		const NXString &	typeName
	)

Update sensor definitions
Created in NX7.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

setup	the setup
parentProgramGroup	the parent program group
parentMethodGroup	the parent method group
parentToolGroup	the parent tool group
parentGeometryGroup	the parent geometry group
typeName	the name of the template type NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAM::InspectionPathBuilder::UpdateSensors	(	NXOpen::CAM::InspectionSetup *	setup,
		NXOpen::CAM::InspectionGroup *	parentProgramGroup,
		NXOpen::CAM::InspectionGroup *	parentMethodGroup,
		NXOpen::CAM::InspectionGroup *	parentToolGroup,
		NXOpen::CAM::InspectionGroup *	parentGeometryGroup,
		const char *	typeName
	)

Update sensor definitions
Created in NX7.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

setup	the setup
parentProgramGroup	the parent program group
parentMethodGroup	the parent method group
parentToolGroup	the parent tool group
parentGeometryGroup	the parent geometry group
typeName	the name of the template type NOTE: The full Unicode character set is not supported for this parameter.

bool NXOpen::CAM::InspectionPathBuilder::UseEntryAvoidance ( )

Returns a flag to indicate if collision avoidance is required at entry
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionPathBuilder::UseExitAvoidance ( )

Returns a flag to indicate if collision avoidance is required at exit
Created in NX7.0.0.

License requirements : None

The documentation for this class was generated from the following file:

CAM_InspectionPathBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
