NXOpen::CAM::InspectionSetup Class Reference

Inspection setup
Use the Part class to get or create an inspection setup

Created in NX7.0.0. More...

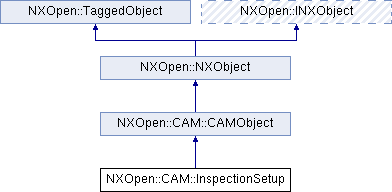

Inheritance diagram for NXOpen::CAM::InspectionSetup:

Public Member Functions
void	BufferObjects (NXOpen::CAM::CAMSetup::View view, const std::vector< NXOpen::CAM::CAMObject * > &objectsToBeBuffered)
	Buffer objects to the clipboard and prepare for copy later Created in NX7.0.0.
NXOpen::CAM::InspectionGroupCollection *	CmmInspectionGroupCollection ()
	Returns the InspectionGroupCollection instance belonging to this setup Created in NX7.0.0.
NXOpen::CAM::InspectionOperationCollection *	CmmInspectionOperationCollection ()
	Returns the InspectionOperationCollection instance belonging to this setup Created in NX7.0.0.
std::vector < NXOpen::CAM::CAMObject * >	CopyObjects (NXOpen::CAM::CAMSetup::View view, const std::vector< NXOpen::CAM::CAMObject * > &objectsToBeMoved, NXOpen::CAM::CAMObject *destinationObject, NXOpen::CAM::CAMSetup::Paste pastePosition)
	Copy objects.
NXOpen::CAM::NcmctPartMountingBuilder *	CreateNcmctPartMountingBuilder (const NXString &libRef)
	Creates a Part Mounting Builder.
NXOpen::CAM::NcmctPartMountingBuilder *	CreateNcmctPartMountingBuilder (const char *libRef)
	Creates a Part Mounting Builder.
void	CutObjects (NXOpen::CAM::CAMSetup::View view, const std::vector< NXOpen::CAM::CAMObject * > &objectsToBeMoved)
	Cut objects Created in NX7.0.0.
void	GenerateToolPath (const std::vector< NXOpen::CAM::CAMObject * > &objects)
	Generate tool path Created in NX7.0.0.
void	LockToolPaths (const std::vector< NXOpen::CAM::CAMObject * > &objects, bool lock)
	Lock Tool Path Created in NX7.5.4.
void	MoveObjects (NXOpen::CAM::CAMSetup::View view, const std::vector< NXOpen::CAM::CAMObject * > &objectsToBeMoved, NXOpen::CAM::CAMObject *destinationObject, NXOpen::CAM::CAMSetup::Paste pastePosition)
	Move objects Created in NX7.0.0.
void	PasteObjects (NXOpen::CAM::CAMSetup::View view, const std::vector< NXOpen::CAM::CAMObject * > &objectsToBeMoved, NXOpen::CAM::CAMObject *destinationObject, NXOpen::CAM::CAMSetup::Paste pastePosition)
	Paste objects after cut Created in NX8.5.1.
void	Postprocess (const std::vector< NXOpen::CAM::CAMObject * > &objects, const NXString &machineType, const NXString &outfileName, NXOpen::CAM::CAMSetup::OutputUnits outputUnits)
	Postprocess Created in NX7.0.0.
void	Postprocess (const std::vector< NXOpen::CAM::CAMObject * > &objects, const char *machineType, const char *outfileName, NXOpen::CAM::CAMSetup::OutputUnits outputUnits)
	Postprocess Created in NX7.0.0.
void	PostprocessWithSetting (const std::vector< NXOpen::CAM::CAMObject * > &objects, const NXString &machineType, const NXString &outfileName, NXOpen::CAM::CAMSetup::OutputUnits outputUnits, NXOpen::CAM::CAMSetup::PostprocessSettingsOutputWarning outputWarning, NXOpen::CAM::CAMSetup::PostprocessSettingsReviewTool reviewTool)
	Postprocess Created in NX8.0.0.
void	PostprocessWithSetting (const std::vector< NXOpen::CAM::CAMObject * > &objects, const char *machineType, const char *outfileName, NXOpen::CAM::CAMSetup::OutputUnits outputUnits, NXOpen::CAM::CAMSetup::PostprocessSettingsOutputWarning outputWarning, NXOpen::CAM::CAMSetup::PostprocessSettingsReviewTool reviewTool)
	Postprocess Created in NX8.0.0.
void	ResequencePaths (const std::vector< NXOpen::CAM::CAMObject * > &paths)
	Resequence selected paths using nearest neighbor order Created in NX9.0.0.
void	ResequenceTols (const std::vector< NXOpen::CAM::CAMObject * > &tols)
	Resequence tolerances Created in NX9.0.0.
NXOpen::CAM::InspectionGroup *	RetrieveDevice (const NXString &libRef)
	Retrieve a device from library.
NXOpen::CAM::InspectionGroup *	RetrieveDevice (const char *libRef)
	Retrieve a device from library.
std::vector< NXString >	RetrievePathMessages (const std::vector< NXOpen::CAM::CAMObject * > &objects)
	Retrieve toolpath validation messages.
NXOpen::CAM::InspectionTool *	RetrieveTool (const NXString &libRef, bool *success)
	Retrieve a tool from library.
NXOpen::CAM::InspectionTool *	RetrieveTool (const char *libRef, bool *success)
	Retrieve a tool from library.
NXOpen::CAM::InspectionTool *	RetrieveTool (const NXString &libRef, NXOpen::CAM::CAMObject *target, NXOpen::CAM::CAMObject **nextTarget, bool *success)
	Retrieve a tool from library to the target.
NXOpen::CAM::InspectionTool *	RetrieveTool (const char *libRef, NXOpen::CAM::CAMObject *target, NXOpen::CAM::CAMObject **nextTarget, bool *success)
	Retrieve a tool from library to the target.
void	SetTemplateStatus (const std::vector< NXOpen::CAM::CAMObject * > &objects, bool useAsParent, bool createIfParentCreated)
	Set Template status Created in NX7.0.0.
Public Member Functions inherited from NXOpen::CAM::CAMObject
bool	GetBooleanValue (const NXString &title)
	Get the boolean value of the parameter index from the object.
bool	GetBooleanValue (const char *title)
	Get the boolean value of the parameter index from the object.
NXOpen::CAM::CAMObject::FeedRateUnit	GetFeedRate (const NXString &title, double *value)
	Get the feed rate value and unit of the parameter index from the object.
NXOpen::CAM::CAMObject::FeedRateUnit	GetFeedRate (const char *title, double *value)
	Get the feed rate value and unit of the parameter index from the object.
int	GetFeedRateColor (const NXString &title)
	Get the feed rate color of the parameter index from the object.
int	GetFeedRateColor (const char *title)
	Get the feed rate color of the parameter index from the object.
std::vector< int >	GetIntegerArrayValue (const NXString &title)
	Get the integer array value of the parameter index from the object.
std::vector< int >	GetIntegerArrayValue (const char *title)
	Get the integer array value of the parameter index from the object.
int	GetIntegerValue (const NXString &title)
	Get the integer value of the parameter index from the object.
int	GetIntegerValue (const char *title)
	Get the integer value of the parameter index from the object.
NXOpen::NXObject *	GetObject (const NXString &title)
	Get the object value of the parameter index from the object.
NXOpen::NXObject *	GetObject (const char *title)
	Get the object value of the parameter index from the object.
std::vector< NXOpen::NXObject * >	GetObjectArrayValue (const NXString &title)
	Get the object array value of the parameter index from the object.
std::vector< NXOpen::NXObject * >	GetObjectArrayValue (const char *title)
	Get the object array value of the parameter index from the object.
std::vector< double >	GetRealArrayValue (const NXString &title)
	Get the real array value of the parameter index from the object.
std::vector< double >	GetRealArrayValue (const char *title)
	Get the real array value of the parameter index from the object.
double	GetRealValue (const NXString &title)
	Get the real value of the parameter index from the object.
double	GetRealValue (const char *title)
	Get the real value of the parameter index from the object.
NXOpen::CAM::CAMObject::Status	GetStatus ()
	Get the status of the input object.
std::vector< NXString >	GetStringArrayValue (const NXString &title)
	Get the string array value of the parameter index from the object.
std::vector< NXString >	GetStringArrayValue (const char *title)
	Get the string array value of the parameter index from the object.
NXString	GetStringValue (const NXString &title)
	Get the string value of the parameter index from the object.
NXString	GetStringValue (const char *title)
	Get the string value of the parameter index from the object.
int	GetWireEdmFeedRate (const NXString &title, double *value)
	Get the feed rate value and side of the parameter index from the object, side is only used in wire edm.
int	GetWireEdmFeedRate (const char *title, double *value)
	Get the feed rate value and side of the parameter index from the object, side is only used in wire edm.
bool	Has911Attribute (NXOpen::CAM::CAMObject::Attr attrId)
	Check if a 911 attribute exists in an object.
void	Remove911Attribute (NXOpen::CAM::CAMObject::Attr attrId)
	Remove a specific 911 attribute from an object.
void	RemoveAll911Attributes ()
	Remove all 911 attributes from an object.
void	SetBooleanValue (const NXString &title, bool value)
	Set a boolean value to the parameter index for the object.
void	SetBooleanValue (const char *title, bool value)
	Set a boolean value to the parameter index for the object.
void	SetFeedRate (const NXString &title, double value, NXOpen::CAM::CAMObject::FeedRateUnit unit)
	Set feed rate value and unit to the parameter index for the object.
void	SetFeedRate (const char *title, double value, NXOpen::CAM::CAMObject::FeedRateUnit unit)
	Set feed rate value and unit to the parameter index for the object.
void	SetFeedRateColor (const NXString &title, int value)
	Set feed rate display color to the parameter index for the object.
void	SetFeedRateColor (const char *title, int value)
	Set feed rate display color to the parameter index for the object.
void	SetIntegerArrayValue (const NXString &title, const std::vector< int > &value)
	Set integer array value to the parameter index for the object.
void	SetIntegerArrayValue (const char *title, const std::vector< int > &value)
	Set integer array value to the parameter index for the object.
void	SetIntegerValue (const NXString &title, int value)
	Set an integer value to the parameter index for the object.
void	SetIntegerValue (const char *title, int value)
	Set an integer value to the parameter index for the object.
void	SetObject (const NXString &title, NXOpen::NXObject *value)
	Set a object to the parameter index for the object.
void	SetObject (const char *title, NXOpen::NXObject *value)
	Set a object to the parameter index for the object.
void	SetObjectArrayValue (const NXString &title, const std::vector< NXOpen::NXObject * > &value)
	Set object array to the parameter index for the object Created in NX4.0.0.
void	SetObjectArrayValue (const char *title, const std::vector< NXOpen::NXObject * > &value)
	Set object array to the parameter index for the object Created in NX4.0.0.
void	SetRealArrayValue (const NXString &title, const std::vector< double > &value)
	Set real array to the parameter index for the object.
void	SetRealArrayValue (const char *title, const std::vector< double > &value)
	Set real array to the parameter index for the object.
void	SetRealValue (const NXString &title, double value)
	Set a real value to the parameter index for the object.
void	SetRealValue (const char *title, double value)
	Set a real value to the parameter index for the object.
void	SetStringArrayValue (const NXString &title, std::vector< NXString > &value)
	Set string array to the parameter index for the object Created in NX4.0.0.
void	SetStringArrayValue (const char *title, std::vector< NXString > &value)
	Set string array to the parameter index for the object Created in NX4.0.0.
void	SetStringValue (const NXString &title, const NXString &value)
	Set a string value to the parameter index for the object.
void	SetStringValue (const char *title, const char *value)
	Set a string value to the parameter index for the object.
void	SetWireEdmFeedRate (const NXString &title, double value, int side)
	Set feed rate value and side to the parameter index for the object, side is only used in wire edm.
void	SetWireEdmFeedRate (const char *title, double value, int side)
	Set feed rate value and side to the parameter index for the object, side is only used in wire edm.
Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.
bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.
bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.
int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.
int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.
int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.
double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.
double	GetRealAttribute (const char *title)
	Gets a real attribute by title.
double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.
double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.
NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.
NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.
NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.
NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.
std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.
virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.
virtual NXString	Name ()
	Returns the custom name of the object.
virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.
virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.
virtual void	Print ()
	Prints a representation of this object to the system log file.
virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.
void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.
void	SetAttribute (const char *title, const char *value)
	Creates or modifies a string attribute.
void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
virtual void	SetName (const NXString &name)
	Sets the custom name of the object.
void	SetName (const char *name)
	Sets the custom name of the object.
void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const char *title, const char *value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const char *title, const char *value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.
Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
void	SetName (const char *name)
	Sets the custom name of the object.

Additional Inherited Members
Public Types inherited from NXOpen::CAM::CAMObject
enum	Attr {   AttrProjDiffTaxis = 1, AttrProfileFlipMside, AttrBndSplineTangent, AttrBlankNormalDiffTaxis,   AttrBndHasSleepObj, AttrClrnrNotParallelTaxis, AttrBndNotParallelFloor, AttrFloorNotUpToDate,   AttrSingleProfileWithFirstCut, AttrCutterConversionProblem, AttrAcceptDrivePosition = 100, AttrReparametrization = 110,   AttrBetweenFromStart = 120, AttrCurveCutRange = 130, AttrFixGssmCornerData = 140, AttrPlmConversion = 150,   AttrPlmFeedcomp, AttrPlmFillet, AttrPlmSlowdown, AttrPlmGeometry,   AttrWedmPoints = 160, AttrCavityMillInheritTrimBnds = 170, AttrRtdObsolete = 1000, AttrZlevelHolderParamChange = 2000,   AttrNcmObsoleteSeqControl = 2100, AttrNcmObsoleteCustomFeed, AttrNcmObsoleteLocalRetract, AttrNcmClearTraversalZero,   AttrNcmObsoleteEngretToClearance, AttrGmcInvalidNxVersion = 2201, AttrProbingInvalidNxVersion, AttrInspPathInvalidNxVersion = 2300,   AttrCustomDataGougingObsolete, AttrCustomDataGougingPartObsolete, AttrCustomDataGougingDriveObsolete, AttrCustomDataIgnoreLoopsObsolete,   AttrCustomDataIgnoreLoopsRemoved, AttrLimitToolRunOn = 2400 }
	Represents the CAM attribute type. More...
enum	FeedRateUnit { FeedRateUnitNone, FeedRateUnitPerMinute, FeedRateUnitPerRevolution }
	The unit of feed rate. More...
enum	Status { StatusComplete, StatusRepost, StatusRegen, StatusApproved = 4 }
	The status of the object. More...

Detailed Description

Inspection setup
Use the Part class to get or create an inspection setup

Created in NX7.0.0.

Member Function Documentation

void NXOpen::CAM::InspectionSetup::BufferObjects	(	NXOpen::CAM::CAMSetup::View	view,
		const std::vector< NXOpen::CAM::CAMObject * > &	objectsToBeBuffered
	)

Buffer objects to the clipboard and prepare for copy later
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

view	view
objectsToBeBuffered	array of objects to be buffered

NXOpen::CAM::InspectionGroupCollection* NXOpen::CAM::InspectionSetup::CmmInspectionGroupCollection

(

)

Returns the InspectionGroupCollection instance belonging to this setup
Created in NX7.0.0.

NXOpen::CAM::InspectionOperationCollection* NXOpen::CAM::InspectionSetup::CmmInspectionOperationCollection

(

)

Returns the InspectionOperationCollection instance belonging to this setup
Created in NX7.0.0.

std::vector<NXOpen::CAM::CAMObject *> NXOpen::CAM::InspectionSetup::CopyObjects	(	NXOpen::CAM::CAMSetup::View	view,
		const std::vector< NXOpen::CAM::CAMObject * > &	objectsToBeMoved,
		NXOpen::CAM::CAMObject *	destinationObject,
		NXOpen::CAM::CAMSetup::Paste	pastePosition
	)

Copy objects.

Returns

array of new objects
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

view	view
objectsToBeMoved	array of objects to be moved
destinationObject	the destination object
pastePosition	paste inside or after the destination object

NXOpen::CAM::NcmctPartMountingBuilder* NXOpen::CAM::InspectionSetup::CreateNcmctPartMountingBuilder

(

const NXString &

libRef

)

Creates a Part Mounting Builder.

   Note: Commit a Part Mounting Builder will perform the Part Mounting and no object is returned.  @return  part mounting builder created

Created in NX8.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

libRef

a unique library reference identifier NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAM::NcmctPartMountingBuilder* NXOpen::CAM::InspectionSetup::CreateNcmctPartMountingBuilder

(

const char *

libRef

)

Creates a Part Mounting Builder.

   Note: Commit a Part Mounting Builder will perform the Part Mounting and no object is returned.  @return  part mounting builder created

Created in NX8.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

libRef

a unique library reference identifier NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAM::InspectionSetup::CutObjects	(	NXOpen::CAM::CAMSetup::View	view,
		const std::vector< NXOpen::CAM::CAMObject * > &	objectsToBeMoved
	)

Cut objects
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

view	view
objectsToBeMoved	array of objects to be moved

void NXOpen::CAM::InspectionSetup::GenerateToolPath

(

const std::vector< NXOpen::CAM::CAMObject * > &

objects

)

Generate tool path
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

objects

array of objects

void NXOpen::CAM::InspectionSetup::LockToolPaths	(	const std::vector< NXOpen::CAM::CAMObject * > &	objects,
		bool	lock
	)

Lock Tool Path
Created in NX7.5.4.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

objects	array of objects
lock	lock the tool path if true, else unlock the tool path

void NXOpen::CAM::InspectionSetup::MoveObjects	(	NXOpen::CAM::CAMSetup::View	view,
		const std::vector< NXOpen::CAM::CAMObject * > &	objectsToBeMoved,
		NXOpen::CAM::CAMObject *	destinationObject,
		NXOpen::CAM::CAMSetup::Paste	pastePosition
	)

Move objects
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

view	view
objectsToBeMoved	array of objects to be moved
destinationObject	the destination object
pastePosition	paste inside or after the destination object

void NXOpen::CAM::InspectionSetup::PasteObjects	(	NXOpen::CAM::CAMSetup::View	view,
		const std::vector< NXOpen::CAM::CAMObject * > &	objectsToBeMoved,
		NXOpen::CAM::CAMObject *	destinationObject,
		NXOpen::CAM::CAMSetup::Paste	pastePosition
	)

Paste objects after cut
Created in NX8.5.1.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

view	view
objectsToBeMoved	array of objects to be pasted
destinationObject	the destination object
pastePosition	paste inside or after the destination object

void NXOpen::CAM::InspectionSetup::Postprocess	(	const std::vector< NXOpen::CAM::CAMObject * > &	objects,
		const NXString &	machineType,
		const NXString &	outfileName,
		NXOpen::CAM::CAMSetup::OutputUnits	outputUnits
	)

Postprocess
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

objects	array of objects
machineType	machine type NOTE: The full Unicode character set is not supported for this parameter.
outfileName	output file name NOTE: The full Unicode character set is not supported for this parameter.
outputUnits	output file unit

void NXOpen::CAM::InspectionSetup::Postprocess	(	const std::vector< NXOpen::CAM::CAMObject * > &	objects,
		const char *	machineType,
		const char *	outfileName,
		NXOpen::CAM::CAMSetup::OutputUnits	outputUnits
	)

Postprocess
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

objects	array of objects
machineType	machine type NOTE: The full Unicode character set is not supported for this parameter.
outfileName	output file name NOTE: The full Unicode character set is not supported for this parameter.
outputUnits	output file unit

void NXOpen::CAM::InspectionSetup::PostprocessWithSetting	(	const std::vector< NXOpen::CAM::CAMObject * > &	objects,
		const NXString &	machineType,
		const NXString &	outfileName,
		NXOpen::CAM::CAMSetup::OutputUnits	outputUnits,
		NXOpen::CAM::CAMSetup::PostprocessSettingsOutputWarning	outputWarning,
		NXOpen::CAM::CAMSetup::PostprocessSettingsReviewTool	reviewTool
	)

Postprocess
Created in NX8.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

objects	array of objects
machineType	machine type NOTE: The full Unicode character set is not supported for this parameter.
outfileName	output file name NOTE: The full Unicode character set is not supported for this parameter.
outputUnits	output file unit
outputWarning	whether ouput warning file
reviewTool	whether active review tool window

void NXOpen::CAM::InspectionSetup::PostprocessWithSetting	(	const std::vector< NXOpen::CAM::CAMObject * > &	objects,
		const char *	machineType,
		const char *	outfileName,
		NXOpen::CAM::CAMSetup::OutputUnits	outputUnits,
		NXOpen::CAM::CAMSetup::PostprocessSettingsOutputWarning	outputWarning,
		NXOpen::CAM::CAMSetup::PostprocessSettingsReviewTool	reviewTool
	)

Postprocess
Created in NX8.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

objects	array of objects
machineType	machine type NOTE: The full Unicode character set is not supported for this parameter.
outfileName	output file name NOTE: The full Unicode character set is not supported for this parameter.
outputUnits	output file unit
outputWarning	whether ouput warning file
reviewTool	whether active review tool window

void NXOpen::CAM::InspectionSetup::ResequencePaths

(

const std::vector< NXOpen::CAM::CAMObject * > &

paths

)

Resequence selected paths using nearest neighbor order
Created in NX9.0.0.

License requirements : None

Parameters

paths

array of paths to resequence

void NXOpen::CAM::InspectionSetup::ResequenceTols

(

const std::vector< NXOpen::CAM::CAMObject * > &

tols

)

Resequence tolerances
Created in NX9.0.0.

License requirements : None

Parameters

tols	array of tolerances to resequence

NXOpen::CAM::InspectionGroup* NXOpen::CAM::InspectionSetup::RetrieveDevice

(

const NXString &

libRef

)

Retrieve a device from library.

Returns

machine device created
Created in NX8.0.0.

License requirements : None

Parameters

libRef

a unique library reference identifier NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAM::InspectionGroup* NXOpen::CAM::InspectionSetup::RetrieveDevice

(

const char *

libRef

)

Retrieve a device from library.

Returns

machine device created
Created in NX8.0.0.

License requirements : None

Parameters

libRef

a unique library reference identifier NOTE: The full Unicode character set is not supported for this parameter.

std::vector<NXString> NXOpen::CAM::InspectionSetup::RetrievePathMessages

(

const std::vector< NXOpen::CAM::CAMObject * > &

objects

)

Retrieve toolpath validation messages.

Returns

array of message strings
Created in NX9.0.0.

License requirements : None

Parameters

objects

array of object tags

NXOpen::CAM::InspectionTool* NXOpen::CAM::InspectionSetup::RetrieveTool	(	const NXString &	libRef,
		bool *	success
	)

Retrieve a tool from library.

Returns

created the tool library
Created in NX7.5.1.

License requirements : None

Parameters

libRef	the library name NOTE: The full Unicode character set is not supported for this parameter.
success	success

NXOpen::CAM::InspectionTool* NXOpen::CAM::InspectionSetup::RetrieveTool	(	const char *	libRef,
		bool *	success
	)

Retrieve a tool from library.

Returns

created the tool library
Created in NX7.5.1.

License requirements : None

Parameters

libRef	the library name NOTE: The full Unicode character set is not supported for this parameter.
success	success

NXOpen::CAM::InspectionTool* NXOpen::CAM::InspectionSetup::RetrieveTool	(	const NXString &	libRef,
		NXOpen::CAM::CAMObject *	target,
		NXOpen::CAM::CAMObject **	nextTarget,
		bool *	success
	)

Retrieve a tool from library to the target.

Returns

created the tool library
Created in NX8.5.0.

License requirements : None

Parameters

libRef	the library name NOTE: The full Unicode character set is not supported for this parameter.
target	the target where the tool is mounted
nextTarget	the next target where the tool can be mounted
success	success

NXOpen::CAM::InspectionTool* NXOpen::CAM::InspectionSetup::RetrieveTool	(	const char *	libRef,
		NXOpen::CAM::CAMObject *	target,
		NXOpen::CAM::CAMObject **	nextTarget,
		bool *	success
	)

Retrieve a tool from library to the target.

Returns

created the tool library
Created in NX8.5.0.

License requirements : None

Parameters

libRef	the library name NOTE: The full Unicode character set is not supported for this parameter.
target	the target where the tool is mounted
nextTarget	the next target where the tool can be mounted
success	success

void NXOpen::CAM::InspectionSetup::SetTemplateStatus	(	const std::vector< NXOpen::CAM::CAMObject * > &	objects,
		bool	useAsParent,
		bool	createIfParentCreated
	)

Set Template status
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

objects	array of objects to adjust
useAsParent	object can be used as a template or not
createIfParentCreated	create if parent is created

---

The documentation for this class was generated from the following file:

• CAM_InspectionSetup.hxx
