NXOpen::CAM::InspectionTool Class Reference

Represents an Inspection group
To obtain an instance of this class use CAM::InspectionGroupCollection

Created in NX7.0.0. More...

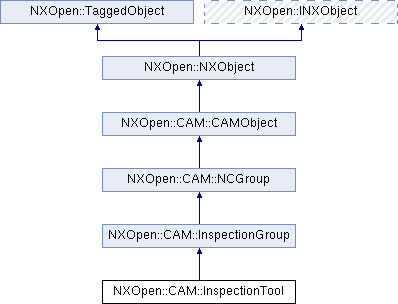

Inheritance diagram for NXOpen::CAM::InspectionTool:

Public Member Functions
NXOpen::CAM::InspectionTrackPointCollection *	CMMInspectionTrackPointCollection ()
	Returns the CMMInspectionTrackPointCollection Created in NX7.0.0.
NXOpen::CAM::InspectionProbeTrackingBuilder *	CreateInspectionProbeTrackingBuilder (NXOpen::CAM::ProbeTrackPoint *csoObject)
	Creates a Probe Trackpoint builder.
NXOpen::CAM::ProbeTrackingBuilder *	CreateProbeTrackingBuilder (NXOpen::CAM::ProbeTrackPoint *csoObject)
	Creates a Probe Trackpoint builder.

Additional Inherited Members
Public Types inherited from NXOpen::CAM::CAMObject
enum	Attr {   AttrProjDiffTaxis = 1, AttrProfileFlipMside, AttrBndSplineTangent, AttrBlankNormalDiffTaxis,   AttrBndHasSleepObj, AttrClrnrNotParallelTaxis, AttrBndNotParallelFloor, AttrFloorNotUpToDate,   AttrSingleProfileWithFirstCut, AttrCutterConversionProblem, AttrAcceptDrivePosition = 100, AttrReparametrization = 110,   AttrBetweenFromStart = 120, AttrCurveCutRange = 130, AttrFixGssmCornerData = 140, AttrPlmConversion = 150,   AttrPlmFeedcomp, AttrPlmFillet, AttrPlmSlowdown, AttrPlmGeometry,   AttrWedmPoints = 160, AttrCavityMillInheritTrimBnds = 170, AttrRtdObsolete = 1000, AttrZlevelHolderParamChange = 2000,   AttrNcmObsoleteSeqControl = 2100, AttrNcmObsoleteCustomFeed, AttrNcmObsoleteLocalRetract, AttrNcmClearTraversalZero,   AttrNcmObsoleteEngretToClearance, AttrGmcInvalidNxVersion = 2201, AttrProbingInvalidNxVersion, AttrInspPathInvalidNxVersion = 2300,   AttrCustomDataGougingObsolete, AttrCustomDataGougingPartObsolete, AttrCustomDataGougingDriveObsolete, AttrCustomDataIgnoreLoopsObsolete,   AttrCustomDataIgnoreLoopsRemoved, AttrLimitToolRunOn = 2400 }
	Represents the CAM attribute type. More...
enum	FeedRateUnit { FeedRateUnitNone, FeedRateUnitPerMinute, FeedRateUnitPerRevolution }
	The unit of feed rate. More...
enum	Status { StatusComplete, StatusRepost, StatusRegen, StatusApproved = 4 }
	The status of the object. More...

Detailed Description

Represents an Inspection group
To obtain an instance of this class use CAM::InspectionGroupCollection

Created in NX7.0.0.

Member Function Documentation

NXOpen::CAM::InspectionTrackPointCollection* NXOpen::CAM::InspectionTool::CMMInspectionTrackPointCollection

(

)

Returns the CMMInspectionTrackPointCollection
Created in NX7.0.0.

NXOpen::CAM::InspectionProbeTrackingBuilder* NXOpen::CAM::InspectionTool::CreateInspectionProbeTrackingBuilder

(

NXOpen::CAM::ProbeTrackPoint *

csoObject

)

Creates a Probe Trackpoint builder.

Returns

probe trackpoint builder created
Created in NX9.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

csoObject

probe tracking point to be edited

NXOpen::CAM::ProbeTrackingBuilder* NXOpen::CAM::InspectionTool::CreateProbeTrackingBuilder

(

NXOpen::CAM::ProbeTrackPoint *

csoObject

)

Creates a Probe Trackpoint builder.

Returns

probe trackpoint builder created
Created in NX7.0.0.

License requirements : insp_programming ("INSPECTION PROGRAMMING")

Parameters

csoObject

probe tracking point to be edited

---

The documentation for this class was generated from the following file:

• CAM_InspectionTool.hxx
