Represents the builder for a CMM Inspection method. More...

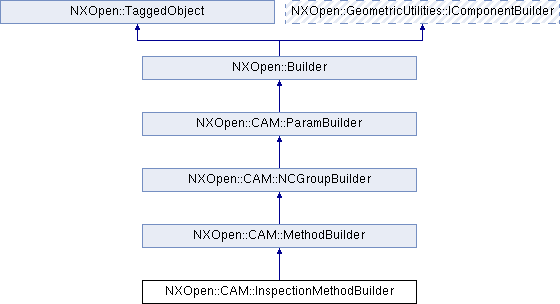

Inheritance diagram for NXOpen::CAM::InspectionMethodBuilder:

Public Types
enum	AxisExtrapolationTypes { AxisExtrapolationTypesOn, AxisExtrapolationTypesOff }
	the analysis axis extrapolation type More...

enum	CylinderFittingTypes { CylinderFittingTypesLeastSquares, CylinderFittingTypesMinimumDeviation, CylinderFittingTypesCrossSectionCenters, CylinderFittingTypesExternalFunction }
	the analysis cylinder/circle fitting type More...

enum	DatumPlaneFittingTypes { DatumPlaneFittingTypesLeastSquares, DatumPlaneFittingTypesHighPoint }
	the analysis datum plane fitting type More...

enum	InspectionModes { InspectionModesProgramDefault, InspectionModesProgram, InspectionModesManual, InspectionModesAuto }
	CMM Inspection modes. More...

enum	LimitsOfSizeTypes { LimitsOfSizeTypesAverage, LimitsOfSizeTypesFunctional, LimitsOfSizeTypesTwoPoint }
	the analysis limits of size fitting type More...

enum	MethodTypes { MethodTypesNone, MethodTypesArc, MethodTypesCircle, MethodTypesPoint, MethodTypesSphere, MethodTypesSurface, MethodTypesPattern, MethodTypesCurve, MethodTypesCylinder, MethodTypesCone, MethodTypesPlane, MethodTypesLine, MethodTypesCParln, MethodTypesSlotTab, MethodTypesSurfaceOfRevolution, MethodTypesTorus, MethodTypesEdgePt }
	CMM Inspection method feature type. More...

enum	OperationTypes { OperationTypesNone, OperationTypesManualPoint, OperationTypesUVGrid, OperationTypesPointHelix, OperationTypesLineScan, OperationTypesCircularScan, OperationTypesCurveScan, OperationTypesHelicalScan, OperationTypesCurveScan5axis, OperationTypesLinearSafeMoveToPoint, OperationTypesDeltaMove, OperationTypesLinear5axisMoveToPoint }
	CMM Inspection operation types. More...

enum	PointSequenceDirectionTypes { PointSequenceDirectionTypesU, PointSequenceDirectionTypesV }
	the point sequence start direction More...

enum	PointSequenceModeTypes { PointSequenceModeTypesZig, PointSequenceModeTypesZigZag, PointSequenceModeTypesNearest }
	the point sequence modes More...

enum	PointSequenceStartTypes { PointSequenceStartTypesUminVmin, PointSequenceStartTypesUminVmax, PointSequenceStartTypesUmaxVmin, PointSequenceStartTypesUmaxVmax }
	the point sequence start location More...

enum	ProfileDispositionTypes { ProfileDispositionTypesStandard, ProfileDispositionTypesUpper, ProfileDispositionTypesLower }
	the analysis profile disposition fitting type More...

enum	ReferenceFeatureModeTypes { ReferenceFeatureModeTypesNone, ReferenceFeatureModeTypesExisting, ReferenceFeatureModeTypesAutomatic }
	the relative measurement mode More...

enum	ScanCurveModeTypes { ScanCurveModeTypesExistingCurve, ScanCurveModeTypesAutoCurve, ScanCurveModeTypesOffsetCurve }
	the scan curve mode More...

enum	ScanHelixTurnDirectionTypes { ScanHelixTurnDirectionTypesRight, ScanHelixTurnDirectionTypesLeft }
	the helix turn direction type More...

enum	ScanHelixTurnTypes { ScanHelixTurnTypesPitch, ScanHelixTurnTypesSweepAngle, ScanHelixTurnTypesRevolutions }
	the helix turn type More...

enum	ScanModeTypes { ScanModeTypesMode3axis, ScanModeTypesMode5axis }
	the scan mode 3-axis, 5-axis type More...

enum	SurfaceProfileTypes { SurfaceProfileTypesMinimumDeviationNormal, SurfaceProfileTypesMinimumDeviation3D, SurfaceProfileTypesLeastSquaresNormal, SurfaceProfileTypesLeastSquares3D }
	the analysis surface profile fitting type More...

enum	ToleranceDegreeOfFreedomMode { ToleranceDegreeOfFreedomModeTolerance, ToleranceDegreeOfFreedomModeOn, ToleranceDegreeOfFreedomModeOff, ToleranceDegreeOfFreedomModeLimits }
	the tolerance degree of freedom mode More...

enum	TransitionTypes { TransitionTypesNone, TransitionTypesManual, TransitionTypesSafePlane }
	CMM Inspection transition modes. More...

enum	UVModeTypes { UVModeTypesPercentage, UVModeTypesDistance, UVModeTypesFull, UVModeTypesDegrees, UVModeTypesSweep }
	the UV modes More...

Public Member Functions
double	AdvanceAngle ()
	Returns the advance angle (degrees) Created in NX8.5.0.

double	ApproachDistance ()
	Returns the approach distance Created in NX7.0.0.

NXOpen::CAM::InspectionMethodBuilder::AxisExtrapolationTypes	AxisExtrapolationMode ()
	Returns the analysis axis extrapolation mode Created in NX8.5.1.

bool	CircularScan ()
	Returns a flag to indicate if scan arc is allowed Created in NX7.0.0.

NXOpen::NXColor *	ColorApproach ()
	Returns the color used for displaying approach elements Created in NX7.0.0.

NXOpen::NXColor *	ColorEntryExit ()
	Returns the color used for displaying entry and exit elements Created in NX7.0.0.

NXOpen::NXColor *	ColorLine ()
	Returns the color used for displaying path lines Created in NX7.0.0.

NXOpen::NXColor *	ColorMeasurePoint ()
	Returns the color used for displaying measured points Created in NX7.0.0.

NXOpen::NXColor *	ColorRetract ()
	Returns the color used for displaying retract elements Created in NX7.0.0.

NXOpen::NXColor *	ColorTransition ()
	Returns the color used for displaying transition elements Created in NX7.0.0.

double	CurvatureFactor ()
	Returns the curvature increase factor Created in NX8.5.0.

bool	CurveScan ()
	Returns a flag to indicate if scan curve is allowed Created in NX7.0.0.

NXOpen::CAM::InspectionMethodBuilder::CylinderFittingTypes	CylinderCircleFitMode ()
	Returns the analysis cylinder/circle fitting mode Created in NX8.5.1.

NXOpen::CAM::InspectionMethodBuilder::DatumPlaneFittingTypes	DatumPlaneFittingMode ()
	Returns the analysis datum plane fitting mode Created in NX8.5.1.

NXOpen::CAM::InspectionMethodBuilder::OperationTypes	DefaultOperationType ()
	Returns the default inspection operation type Created in NX7.0.0.

double	DepthDistance ()
	Returns the depth distance Created in NX9.0.0.

double	EndDistance ()
	Returns the end point offset distance along the scan Created in NX8.5.0.

double	EndPercentage ()
	Returns the end Percentage along the scan Created in NX8.5.0.

bool	EntryAvoidance ()
	Returns a flag to indicate if collision avoidance is required at entry Created in NX7.0.0.

double	EntryExitDistance ()
	Returns the distance from the entry or exit point to safe plane Created in NX7.0.0.

bool	EntryPoint ()
	Returns a flag to indicate if an entry point is required Created in NX7.0.0.

NXOpen::CAM::InspectionMethodBuilder::TransitionTypes	EntryTransition ()
	Returns the type of entry transition Created in NX7.0.0.

bool	ExitAvoidance ()
	Returns a flag to indicate if collision avoidance is required at exit Created in NX7.0.0.

bool	ExitPoint ()
	Returns a flag to indicate if an exit point is required Created in NX7.0.0.

NXOpen::CAM::InspectionMethodBuilder::TransitionTypes	ExitTransition ()
	Returns the type of exit transition Created in NX7.0.0.

double	FeatureOffsetDistance ()
	Returns the offset feature distance Created in NX9.0.0.

NXOpen::CAM::InspectionMethodBuilder::InspectionModes	InspectionMode ()
	Returns the default inspection mode Created in NX7.0.0.

NXOpen::CAM::InspectionMethodBuilder::LimitsOfSizeTypes	LimitsOfSizeMode ()
	Returns the analysis limits of size fitting mode Created in NX8.5.1.

bool	LineScan ()
	Returns a flag to indicate if scan line is allowed Created in NX7.0.0.

bool	ManualPoint ()
	Returns a flag to indicate if manual point creation is allowed Created in NX7.0.0.

double	MaxSpacing ()
	Returns the maximum spacing between scan points Created in NX8.5.0.

NXOpen::CAM::InspectionMethodBuilder::MethodTypes	MethodType ()
	Returns the method feature type Created in NX7.0.0.

double	MinSpacing ()
	Returns the minimum spacing between scan points Created in NX8.5.0.

int	NbScanPoints ()
	Returns the minimum number of scan points Created in NX8.5.0.

double	OffsetDistance ()
	Returns the offset distance Created in NX8.5.0.

double	Pitch ()
	Returns the pitch of the Scan Helix Created in NX8.5.0.

int	PointCount ()
	Returns the number of path points Created in NX7.0.0.

bool	PointHelix ()
	Returns a flag to indicate if point helix is allowed Created in NX7.0.0.

NXOpen::CAM::InspectionMethodBuilder::PointSequenceDirectionTypes	PointSequenceDirection ()
	Returns the point sequence start direction Created in NX7.5.0.

NXOpen::CAM::InspectionMethodBuilder::PointSequenceModeTypes	PointSequenceMode ()
	Returns the point sequence mode Created in NX7.5.0.

NXOpen::CAM::InspectionMethodBuilder::PointSequenceStartTypes	PointSequenceStart ()
	Returns the point sequence start location Created in NX7.5.0.

NXOpen::CAM::InspectionMethodBuilder::ProfileDispositionTypes	ProfileDispositionMode ()
	Returns the analysis profile disposition fitting mode Created in NX8.5.1.

NXOpen::CAM::InspectionMethodBuilder::ReferenceFeatureModeTypes	ReferenceFeatureMode ()
	Returns the relative measurement mode Created in NX9.0.0.

double	ReferenceFeatureOffsetDistance ()
	Returns the offset distance for relative measurement Created in NX9.0.0.

int	ReferenceFeaturePointCount ()
	Returns the number of points for relative measurement Created in NX9.0.0.

double	ReferenceFeatureZoneRadius ()
	Returns the zone radius for relative measurement Created in NX9.0.0.

double	RetractDistance ()
	Returns the retract distance Created in NX7.0.0.

double	Revolutions ()
	Returns the revolutions of the Scan Helix Created in NX8.5.0.

NXOpen::CAM::InspectionMethodBuilder::ScanCurveModeTypes	ScanCurveMode ()
	Returns the scan curve mode Created in NX7.5.3.

double	ScanForce ()
	Returns the scan force Created in NX8.5.0.

NXOpen::CAM::InspectionMethodBuilder::ScanModeTypes	ScanModeType ()
	Returns the 3,5 axis scan mode type Created in NX8.5.0.

double	ScanSpeed ()
	Returns the scan speed Created in NX8.5.0.

NXOpen::CAM::InspectionMoveBuilder::SensorStrategyTypes	SensorStrategy ()
	Returns the sensor selection strategy Created in NX9.0.0.

void	SetAdvanceAngle (double angle)
	Sets the advance angle (degrees) Created in NX8.5.0.

void	SetApproachDistance (double distance)
	Sets the approach distance Created in NX7.0.0.

void	SetAxisExtrapolationMode (NXOpen::CAM::InspectionMethodBuilder::AxisExtrapolationTypes mode)
	Sets the analysis axis extrapolation mode Created in NX8.5.1.

void	SetCircularScan (bool circularScan)
	Sets a flag to indicate if scan arc is allowed Created in NX7.0.0.

void	SetColorApproach (NXOpen::NXColor *colorApproach)
	Sets the color used for displaying approach elements Created in NX7.0.0.

void	SetColorEntryExit (NXOpen::NXColor *colorEntryExit)
	Sets the color used for displaying entry and exit elements Created in NX7.0.0.

void	SetColorLine (NXOpen::NXColor *colorLine)
	Sets the color used for displaying path lines Created in NX7.0.0.

void	SetColorMeasurePoint (NXOpen::NXColor *colorMeasurePoint)
	Sets the color used for displaying measured points Created in NX7.0.0.

void	SetColorRetract (NXOpen::NXColor *colorRetract)
	Sets the color used for displaying retract elements Created in NX7.0.0.

void	SetColorTransition (NXOpen::NXColor *colorTransition)
	Sets the color used for displaying transition elements Created in NX7.0.0.

void	SetCurvatureFactor (double curvatureFactor)
	Sets the curvature increase factor Created in NX8.5.0.

void	SetCurveScan (bool curveScan)
	Sets a flag to indicate if scan curve is allowed Created in NX7.0.0.

void	SetCylinderCircleFitMode (NXOpen::CAM::InspectionMethodBuilder::CylinderFittingTypes mode)
	Sets the analysis cylinder/circle fitting mode Created in NX8.5.1.

void	SetDatumPlaneFittingMode (NXOpen::CAM::InspectionMethodBuilder::DatumPlaneFittingTypes mode)
	Sets the analysis datum plane fitting mode Created in NX8.5.1.

void	SetDefaultOperationType (NXOpen::CAM::InspectionMethodBuilder::OperationTypes operationType)
	Sets the default inspection operation type Created in NX7.0.0.

void	SetDepthDistance (double distance)
	Sets the depth distance Created in NX9.0.0.

void	SetEndDistance (double endDistance)
	Sets the end point offset distance along the scan Created in NX8.5.0.

void	SetEndPercentage (double endPercentage)
	Sets the end Percentage along the scan Created in NX8.5.0.

void	SetEntryAvoidance (bool entryAvoidance)
	Sets a flag to indicate if collision avoidance is required at entry Created in NX7.0.0.

void	SetEntryExitDistance (double entryExitDistance)
	Sets the distance from the entry or exit point to safe plane Created in NX7.0.0.

void	SetEntryPoint (bool entryPoint)
	Sets a flag to indicate if an entry point is required Created in NX7.0.0.

void	SetEntryTransition (NXOpen::CAM::InspectionMethodBuilder::TransitionTypes entryTransition)
	Sets the type of entry transition Created in NX7.0.0.

void	SetExitAvoidance (bool exitAvoidance)
	Sets a flag to indicate if collision avoidance is required at exit Created in NX7.0.0.

void	SetExitPoint (bool exitPoint)
	Sets a flag to indicate if an exit point is required Created in NX7.0.0.

void	SetExitTransition (NXOpen::CAM::InspectionMethodBuilder::TransitionTypes exitTransition)
	Sets the type of exit transition Created in NX7.0.0.

void	SetFeatureOffsetDistance (double distance)
	Sets the offset feature distance Created in NX9.0.0.

void	SetInspectionMode (NXOpen::CAM::InspectionMethodBuilder::InspectionModes inspectionMode)
	Sets the default inspection mode Created in NX7.0.0.

void	SetLimitsOfSizeMode (NXOpen::CAM::InspectionMethodBuilder::LimitsOfSizeTypes mode)
	Sets the analysis limits of size fitting mode Created in NX8.5.1.

void	SetLineScan (bool lineScan)
	Sets a flag to indicate if scan line is allowed Created in NX7.0.0.

void	SetManualPoint (bool manualPoint)
	Sets a flag to indicate if manual point creation is allowed Created in NX7.0.0.

void	SetMaxSpacing (double maxSpacing)
	Sets the maximum spacing between scan points Created in NX8.5.0.

void	SetMethodType (NXOpen::CAM::InspectionMethodBuilder::MethodTypes type)
	Sets the method feature type Created in NX7.0.0.

void	SetMinSpacing (double minSpacing)
	Sets the minimum spacing between scan points Created in NX8.5.0.

void	SetNbScanPoints (int count)
	Sets the minimum number of scan points Created in NX8.5.0.

void	SetOffsetDistance (double offsetDistance)
	Sets the offset distance Created in NX8.5.0.

void	SetPitch (double pitch)
	Sets the pitch of the Scan Helix Created in NX8.5.0.

void	SetPointCount (int pointCount)
	Sets the number of path points Created in NX7.0.0.

void	SetPointHelix (bool pointHelix)
	Sets a flag to indicate if point helix is allowed Created in NX7.0.0.

void	SetPointSequenceDirection (NXOpen::CAM::InspectionMethodBuilder::PointSequenceDirectionTypes ptSeqDir)
	Sets the point sequence start direction Created in NX7.5.0.

void	SetPointSequenceMode (NXOpen::CAM::InspectionMethodBuilder::PointSequenceModeTypes ptSeqMode)
	Sets the point sequence mode Created in NX7.5.0.

void	SetPointSequenceStart (NXOpen::CAM::InspectionMethodBuilder::PointSequenceStartTypes ptSeqStart)
	Sets the point sequence start location Created in NX7.5.0.

void	SetProfileDispositionMode (NXOpen::CAM::InspectionMethodBuilder::ProfileDispositionTypes mode)
	Sets the analysis profile disposition fitting mode Created in NX8.5.1.

void	SetReferenceFeatureMode (NXOpen::CAM::InspectionMethodBuilder::ReferenceFeatureModeTypes mode)
	Sets the relative measurement mode Created in NX9.0.0.

void	SetReferenceFeatureOffsetDistance (double distance)
	Sets the offset distance for relative measurement Created in NX9.0.0.

void	SetReferenceFeaturePointCount (int pointCount)
	Sets the number of points for relative measurement Created in NX9.0.0.

void	SetReferenceFeatureZoneRadius (double radius)
	Sets the zone radius for relative measurement Created in NX9.0.0.

void	SetRetractDistance (double distance)
	Sets the retract distance Created in NX7.0.0.

void	SetRevolutions (double revolutions)
	Sets the revolutions of the Scan Helix Created in NX8.5.0.

void	SetScanCurveMode (NXOpen::CAM::InspectionMethodBuilder::ScanCurveModeTypes mode)
	Sets the scan curve mode Created in NX7.5.3.

void	SetScanForce (double force)
	Sets the scan force Created in NX8.5.0.

void	SetScanModeType (NXOpen::CAM::InspectionMethodBuilder::ScanModeTypes modeType)
	Sets the 3,5 axis scan mode type Created in NX8.5.0.

void	SetScanSpeed (double speed)
	Sets the scan speed Created in NX8.5.0.

void	SetSensorStrategy (NXOpen::CAM::InspectionMoveBuilder::SensorStrategyTypes sensorStrategy)
	Sets the sensor selection strategy Created in NX9.0.0.

void	SetSpeed (int speed)
	Sets the default animation speed setting Created in NX7.0.0.

void	SetStartDistance (double startDistance)
	Sets the start point offset distance along the scan Created in NX8.5.0.

void	SetStartEndMode (NXOpen::CAM::InspectionMethodBuilder::UVModeTypes startEndMode)
	Sets the scan start end mode Created in NX8.5.0.

void	SetStartPercentage (double startPercentage)
	Sets the start percentage along the scan Created in NX8.5.0.

void	SetStepSize (double step)
	Sets the scan step size Created in NX8.5.0.

void	SetStopRadius (double radius)
	Sets the scan stop radius Created in NX8.5.0.

void	SetSurfaceProfileMode (NXOpen::CAM::InspectionMethodBuilder::SurfaceProfileTypes mode)
	Sets the analysis surface profile fitting mode Created in NX8.5.1.

void	SetSweep (double sweep)
	Sets the sweep of the Scan Helix Created in NX8.5.0.

void	SetTiltAngle (double angle)
	Sets the tilt angle (degrees) Created in NX8.5.0.

void	SetTurnDirection (NXOpen::CAM::InspectionMethodBuilder::ScanHelixTurnDirectionTypes turnDirection)
	Sets the turn direction type of the Scan Helix Created in NX8.5.0.

void	SetTurnType (NXOpen::CAM::InspectionMethodBuilder::ScanHelixTurnTypes turnType)
	Sets the turn type of the Scan Helix Created in NX8.5.0.

void	SetUCount (int uCount)
	Sets the number of points in U direction Created in NX7.0.0.

void	SetUEnd (double uEnd)
	Sets the U end parameter Created in NX7.0.0.

void	SetUEndDeg (double uEnd)
	Sets the U end degrees Created in NX7.5.0.

void	SetUEndDist (double uEnd)
	Sets the U end distance Created in NX7.5.0.

void	SetUEndMode (NXOpen::CAM::InspectionMethodBuilder::UVModeTypes uvMode)
	Sets the end U mode Created in NX7.5.0.

void	SetUEndSweep (double uEnd)
	Sets the U sweep degrees Created in NX7.5.0.

void	SetUStart (double uStart)
	Sets the U start parameter Created in NX7.0.0.

void	SetUStartDeg (double uStart)
	Sets the U start degrees Created in NX7.5.0.

void	SetUStartDist (double uStart)
	Sets the U start distance Created in NX7.5.0.

void	SetUStartMode (NXOpen::CAM::InspectionMethodBuilder::UVModeTypes uvMode)
	Sets the start U mode Created in NX7.5.0.

void	SetUStartSweep (double uStart)
	Sets the U start sweep degrees Created in NX7.5.0.

void	SetUVGrid (bool uvGrid)
	Sets a flag to indicate if rectangular UV grid is allowed Created in NX7.0.0.

void	SetVCount (int vCount)
	Sets the number of points in V direction Created in NX7.0.0.

void	SetVEnd (double vEnd)
	Sets the V end parameter Created in NX7.0.0.

void	SetVEndDeg (double vEnd)
	Sets the V end degrees Created in NX7.5.0.

void	SetVEndDist (double vEnd)
	Sets the V end distance Created in NX7.5.0.

void	SetVEndMode (NXOpen::CAM::InspectionMethodBuilder::UVModeTypes uvMode)
	Sets the end V mode Created in NX7.5.0.

void	SetVEndSweep (double vEnd)
	Sets the V sweep degrees Created in NX7.5.0.

void	SetVStart (double vStart)
	Sets the V start parameter Created in NX7.0.0.

void	SetVStartDeg (double vStart)
	Sets the V start degrees Created in NX7.5.0.

void	SetVStartDist (double vStart)
	Sets the V start distance Created in NX7.5.0.

void	SetVStartMode (NXOpen::CAM::InspectionMethodBuilder::UVModeTypes uvMode)
	Sets the start V mode Created in NX7.5.0.

void	SetVStartSweep (double vStart)
	Sets the V start sweep degrees Created in NX7.5.0.

int	Speed ()
	Returns the default animation speed setting Created in NX7.0.0.

double	StartDistance ()
	Returns the start point offset distance along the scan Created in NX8.5.0.

NXOpen::CAM::InspectionMethodBuilder::UVModeTypes	StartEndMode ()
	Returns the scan start end mode Created in NX8.5.0.

double	StartPercentage ()
	Returns the start percentage along the scan Created in NX8.5.0.

double	StepSize ()
	Returns the scan step size Created in NX8.5.0.

double	StopRadius ()
	Returns the scan stop radius Created in NX8.5.0.

NXOpen::CAM::InspectionMethodBuilder::SurfaceProfileTypes	SurfaceProfileMode ()
	Returns the analysis surface profile fitting mode Created in NX8.5.1.

double	Sweep ()
	Returns the sweep of the Scan Helix Created in NX8.5.0.

double	TiltAngle ()
	Returns the tilt angle (degrees) Created in NX8.5.0.

NXOpen::CAM::InspectionMethodBuilder::ScanHelixTurnDirectionTypes	TurnDirection ()
	Returns the turn direction type of the Scan Helix Created in NX8.5.0.

NXOpen::CAM::InspectionMethodBuilder::ScanHelixTurnTypes	TurnType ()
	Returns the turn type of the Scan Helix Created in NX8.5.0.

int	UCount ()
	Returns the number of points in U direction Created in NX7.0.0.

double	UEnd ()
	Returns the U end parameter Created in NX7.0.0.

double	UEndDeg ()
	Returns the U end degrees Created in NX7.5.0.

double	UEndDist ()
	Returns the U end distance Created in NX7.5.0.

NXOpen::CAM::InspectionMethodBuilder::UVModeTypes	UEndMode ()
	Returns the end U mode Created in NX7.5.0.

double	UEndSweep ()
	Returns the U sweep degrees Created in NX7.5.0.

double	UStart ()
	Returns the U start parameter Created in NX7.0.0.

double	UStartDeg ()
	Returns the U start degrees Created in NX7.5.0.

double	UStartDist ()
	Returns the U start distance Created in NX7.5.0.

NXOpen::CAM::InspectionMethodBuilder::UVModeTypes	UStartMode ()
	Returns the start U mode Created in NX7.5.0.

double	UStartSweep ()
	Returns the U start sweep degrees Created in NX7.5.0.

bool	UVGrid ()
	Returns a flag to indicate if rectangular UV grid is allowed Created in NX7.0.0.

int	VCount ()
	Returns the number of points in V direction Created in NX7.0.0.

double	VEnd ()
	Returns the V end parameter Created in NX7.0.0.

double	VEndDeg ()
	Returns the V end degrees Created in NX7.5.0.

double	VEndDist ()
	Returns the V end distance Created in NX7.5.0.

NXOpen::CAM::InspectionMethodBuilder::UVModeTypes	VEndMode ()
	Returns the end V mode Created in NX7.5.0.

double	VEndSweep ()
	Returns the V sweep degrees Created in NX7.5.0.

double	VStart ()
	Returns the V start parameter Created in NX7.0.0.

double	VStartDeg ()
	Returns the V start degrees Created in NX7.5.0.

double	VStartDist ()
	Returns the V start distance Created in NX7.5.0.

NXOpen::CAM::InspectionMethodBuilder::UVModeTypes	VStartMode ()
	Returns the start V mode Created in NX7.5.0.

double	VStartSweep ()
	Returns the V start sweep degrees Created in NX7.5.0.

Public Member Functions inherited from NXOpen::CAM::MethodBuilder
NXOpen::CAM::CutParameters *	CutParameters ()
	Returns the cut parameter object Created in NX6.0.0.

NXString	GetCutMethod ()
	Get cut method.

NXOpen::CAM::DisplayPaint *	PaintDisplay ()
	Returns the sub builder for paint display Created in NX7.5.0.

NXOpen::CAM::DisplayPath *	PathDisplay ()
	Returns the sub builder for path display Created in NX7.5.0.

NXOpen::CAM::PathDisplayColors *	PathDisplayColors ()
	Returns the sub builder for path display colors Created in NX7.5.0.

void	SetCutMethod (const NXString &libRef)
	Set cut method Created in NX8.0.1.

void	SetCutMethod (const char *libRef)
	Set cut method Created in NX8.0.1.

NXOpen::CAM::DisplaySilhouette *	SilhouDisplay ()
	Returns the sub builder for silhou display Created in NX7.5.0.

NXOpen::CAM::DisplayTool *	ToolDisplay ()
	Returns the sub builder for tool display Created in NX7.5.0.

Public Member Functions inherited from NXOpen::CAM::NCGroupBuilder
NXString	Description ()
	Returns the description Created in NX9.0.0.

NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.

NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.

Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.

NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.

NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.

void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents the builder for a CMM Inspection method.

To create a new instance of this class, use CAM::InspectionGroupCollection::CreateInspectionMethodBuilder

Created in NX7.0.0.

Member Enumeration Documentation

enum NXOpen::CAM::InspectionMethodBuilder::AxisExtrapolationTypes

the analysis axis extrapolation type

Enumerator:

AxisExtrapolationTypesOn	Extrapolate.
AxisExtrapolationTypesOff	Do not extrapolate.

enum NXOpen::CAM::InspectionMethodBuilder::CylinderFittingTypes

the analysis cylinder/circle fitting type

Enumerator:

CylinderFittingTypesLeastSquares	Least Squares.
CylinderFittingTypesMinimumDeviation	Minimum Deviation.
CylinderFittingTypesCrossSectionCenters	Cross Section Centers.
CylinderFittingTypesExternalFunction	External Function.

enum NXOpen::CAM::InspectionMethodBuilder::DatumPlaneFittingTypes

the analysis datum plane fitting type

Enumerator:

DatumPlaneFittingTypesLeastSquares	Least Squares.
DatumPlaneFittingTypesHighPoint	High Point.

enum NXOpen::CAM::InspectionMethodBuilder::InspectionModes

CMM Inspection modes.

Enumerator:

InspectionModesProgramDefault	Program Default.
InspectionModesProgram	Program.
InspectionModesManual	Manual.
InspectionModesAuto	Auto.

enum NXOpen::CAM::InspectionMethodBuilder::LimitsOfSizeTypes

the analysis limits of size fitting type

Enumerator:

LimitsOfSizeTypesAverage	Average.
LimitsOfSizeTypesFunctional	Functional.
LimitsOfSizeTypesTwoPoint	Two Point.

enum NXOpen::CAM::InspectionMethodBuilder::MethodTypes

CMM Inspection method feature type.

Enumerator:

MethodTypesNone	None.
MethodTypesArc	Arc.
MethodTypesCircle	Circle.
MethodTypesPoint	Point.
MethodTypesSphere	Sphere.
MethodTypesSurface	Surface.
MethodTypesPattern	Pattern.
MethodTypesCurve	Curve.
MethodTypesCylinder	Cylinder.
MethodTypesCone	Cone.
MethodTypesPlane	Plane.
MethodTypesLine	Line.
MethodTypesCParln	Bounded Slot Tab.
MethodTypesSlotTab	Slot Tab.
MethodTypesSurfaceOfRevolution	Surface of Revolution.
MethodTypesTorus	Torus.
MethodTypesEdgePt	Edge Point.

enum NXOpen::CAM::InspectionMethodBuilder::OperationTypes

CMM Inspection operation types.

Enumerator:

OperationTypesNone	None.
OperationTypesManualPoint	Measured Point.
OperationTypesUVGrid	Point Set (Rectangular UV Grid)
OperationTypesPointHelix	Point Helix.
OperationTypesLineScan	Scan Line.
OperationTypesCircularScan	Scan Arc.
OperationTypesCurveScan	Scan Curve.
OperationTypesHelicalScan	Scan Helix.
OperationTypesCurveScan5axis	5-axis Scan Curve
OperationTypesLinearSafeMoveToPoint	Linear Safe Move To Point.
OperationTypesDeltaMove	Delta Move.
OperationTypesLinear5axisMoveToPoint	Linear 5-axis Move To Point.

enum NXOpen::CAM::InspectionMethodBuilder::PointSequenceDirectionTypes

the point sequence start direction

Enumerator:

PointSequenceDirectionTypesU	Order by U.
PointSequenceDirectionTypesV	Order by V.

enum NXOpen::CAM::InspectionMethodBuilder::PointSequenceModeTypes

the point sequence modes

Enumerator:

PointSequenceModeTypesZig	Zig only.
PointSequenceModeTypesZigZag	Zig and Zag.
PointSequenceModeTypesNearest	Nearest point.

enum NXOpen::CAM::InspectionMethodBuilder::PointSequenceStartTypes

the point sequence start location

Enumerator:

PointSequenceStartTypesUminVmin	Umin - Vmin.
PointSequenceStartTypesUminVmax	Umin - Vmax.
PointSequenceStartTypesUmaxVmin	Umax - Vmin.
PointSequenceStartTypesUmaxVmax	Umax - Vmax.

enum NXOpen::CAM::InspectionMethodBuilder::ProfileDispositionTypes

the analysis profile disposition fitting type

Enumerator:

ProfileDispositionTypesStandard	Standard.
ProfileDispositionTypesUpper	Upper.
ProfileDispositionTypesLower	Lower.

enum NXOpen::CAM::InspectionMethodBuilder::ReferenceFeatureModeTypes

the relative measurement mode

Enumerator:

ReferenceFeatureModeTypesNone	No relative measurement.
ReferenceFeatureModeTypesExisting	Relative measurement to existing feature.
ReferenceFeatureModeTypesAutomatic	Relative measurement to automatically created feature.

enum NXOpen::CAM::InspectionMethodBuilder::ScanCurveModeTypes

the scan curve mode

Enumerator:

ScanCurveModeTypesExistingCurve	Use existing curve.
ScanCurveModeTypesAutoCurve	Autogenerate curves.
ScanCurveModeTypesOffsetCurve	Offset curve.

enum NXOpen::CAM::InspectionMethodBuilder::ScanHelixTurnDirectionTypes

the helix turn direction type

Enumerator:

ScanHelixTurnDirectionTypesRight	Right hand turn.
ScanHelixTurnDirectionTypesLeft	Left hand turn.

enum NXOpen::CAM::InspectionMethodBuilder::ScanHelixTurnTypes

the helix turn type

Enumerator:

ScanHelixTurnTypesPitch	Pitch.
ScanHelixTurnTypesSweepAngle	Sweep Angle.
ScanHelixTurnTypesRevolutions	Revolutions.

enum NXOpen::CAM::InspectionMethodBuilder::ScanModeTypes

the scan mode 3-axis, 5-axis type

Enumerator:

ScanModeTypesMode3axis	3-axis mode
ScanModeTypesMode5axis	5-axis mode

enum NXOpen::CAM::InspectionMethodBuilder::SurfaceProfileTypes

the analysis surface profile fitting type

Enumerator:

SurfaceProfileTypesMinimumDeviationNormal	Minimum Deviation - Normal.
SurfaceProfileTypesMinimumDeviation3D	Minimum Deviation - 3D.
SurfaceProfileTypesLeastSquaresNormal	Least Squares - Normal.
SurfaceProfileTypesLeastSquares3D	Least Squares - 3D.

enum NXOpen::CAM::InspectionMethodBuilder::ToleranceDegreeOfFreedomMode

the tolerance degree of freedom mode

Enumerator:

ToleranceDegreeOfFreedomModeTolerance	From Tolerance Definition.
ToleranceDegreeOfFreedomModeOn	On.
ToleranceDegreeOfFreedomModeOff	Off.
ToleranceDegreeOfFreedomModeLimits	Use Limits.

enum NXOpen::CAM::InspectionMethodBuilder::TransitionTypes

CMM Inspection transition modes.

Enumerator:

TransitionTypesNone	No Transition Point.
TransitionTypesManual	Manual Transition Point.
TransitionTypesSafePlane	Safe Plane Transition Point.

enum NXOpen::CAM::InspectionMethodBuilder::UVModeTypes

the UV modes

Enumerator:

UVModeTypesPercentage	Percentage.
UVModeTypesDistance	Distance from start and end in part units.
UVModeTypesFull	Full circumference.
UVModeTypesDegrees	Angle from start and end.
UVModeTypesSweep	Start angle and sweep angle.

Member Function Documentation

double NXOpen::CAM::InspectionMethodBuilder::AdvanceAngle ( )

Returns the advance angle (degrees)
Created in NX8.5.0.

License requirements : None

double NXOpen::CAM::InspectionMethodBuilder::ApproachDistance ( )

Returns the approach distance
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionMethodBuilder::AxisExtrapolationTypes NXOpen::CAM::InspectionMethodBuilder::AxisExtrapolationMode ( )

Returns the analysis axis extrapolation mode
Created in NX8.5.1.

License requirements : None

bool NXOpen::CAM::InspectionMethodBuilder::CircularScan ( )

Returns a flag to indicate if scan arc is allowed
Created in NX7.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::CAM::InspectionMethodBuilder::ColorApproach ( )

Returns the color used for displaying approach elements
Created in NX7.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::CAM::InspectionMethodBuilder::ColorEntryExit ( )

Returns the color used for displaying entry and exit elements
Created in NX7.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::CAM::InspectionMethodBuilder::ColorLine ( )

Returns the color used for displaying path lines
Created in NX7.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::CAM::InspectionMethodBuilder::ColorMeasurePoint ( )

Returns the color used for displaying measured points
Created in NX7.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::CAM::InspectionMethodBuilder::ColorRetract ( )

Returns the color used for displaying retract elements
Created in NX7.0.0.

License requirements : None

NXOpen::NXColor* NXOpen::CAM::InspectionMethodBuilder::ColorTransition ( )

Returns the color used for displaying transition elements
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionMethodBuilder::CurvatureFactor ( )

Returns the curvature increase factor
Created in NX8.5.0.

License requirements : None

bool NXOpen::CAM::InspectionMethodBuilder::CurveScan ( )

Returns a flag to indicate if scan curve is allowed
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionMethodBuilder::CylinderFittingTypes NXOpen::CAM::InspectionMethodBuilder::CylinderCircleFitMode ( )

Returns the analysis cylinder/circle fitting mode
Created in NX8.5.1.

License requirements : None

NXOpen::CAM::InspectionMethodBuilder::DatumPlaneFittingTypes NXOpen::CAM::InspectionMethodBuilder::DatumPlaneFittingMode ( )

Returns the analysis datum plane fitting mode
Created in NX8.5.1.

License requirements : None

NXOpen::CAM::InspectionMethodBuilder::OperationTypes NXOpen::CAM::InspectionMethodBuilder::DefaultOperationType ( )

Returns the default inspection operation type
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionMethodBuilder::DepthDistance ( )

Returns the depth distance
Created in NX9.0.0.

License requirements : None

double NXOpen::CAM::InspectionMethodBuilder::EndDistance ( )

Returns the end point offset distance along the scan
Created in NX8.5.0.

License requirements : None

double NXOpen::CAM::InspectionMethodBuilder::EndPercentage ( )

Returns the end Percentage along the scan
Created in NX8.5.0.

License requirements : None

bool NXOpen::CAM::InspectionMethodBuilder::EntryAvoidance ( )

Returns a flag to indicate if collision avoidance is required at entry
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionMethodBuilder::EntryExitDistance ( )

Returns the distance from the entry or exit point to safe plane
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionMethodBuilder::EntryPoint ( )

Returns a flag to indicate if an entry point is required
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionMethodBuilder::TransitionTypes NXOpen::CAM::InspectionMethodBuilder::EntryTransition ( )

Returns the type of entry transition
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionMethodBuilder::ExitAvoidance ( )

Returns a flag to indicate if collision avoidance is required at exit
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionMethodBuilder::ExitPoint ( )

Returns a flag to indicate if an exit point is required
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionMethodBuilder::TransitionTypes NXOpen::CAM::InspectionMethodBuilder::ExitTransition ( )

Returns the type of exit transition
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionMethodBuilder::FeatureOffsetDistance ( )

Returns the offset feature distance
Created in NX9.0.0.

License requirements : None

NXOpen::CAM::InspectionMethodBuilder::InspectionModes NXOpen::CAM::InspectionMethodBuilder::InspectionMode ( )

Returns the default inspection mode
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionMethodBuilder::LimitsOfSizeTypes NXOpen::CAM::InspectionMethodBuilder::LimitsOfSizeMode ( )

Returns the analysis limits of size fitting mode
Created in NX8.5.1.

License requirements : None

bool NXOpen::CAM::InspectionMethodBuilder::LineScan ( )

Returns a flag to indicate if scan line is allowed
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionMethodBuilder::ManualPoint ( )

Returns a flag to indicate if manual point creation is allowed
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionMethodBuilder::MaxSpacing ( )

Returns the maximum spacing between scan points
Created in NX8.5.0.

License requirements : None

NXOpen::CAM::InspectionMethodBuilder::MethodTypes NXOpen::CAM::InspectionMethodBuilder::MethodType ( )

Returns the method feature type
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionMethodBuilder::MinSpacing ( )

Returns the minimum spacing between scan points
Created in NX8.5.0.

License requirements : None

int NXOpen::CAM::InspectionMethodBuilder::NbScanPoints ( )

Returns the minimum number of scan points
Created in NX8.5.0.

License requirements : None

double NXOpen::CAM::InspectionMethodBuilder::OffsetDistance ( )

Returns the offset distance
Created in NX8.5.0.

License requirements : None

double NXOpen::CAM::InspectionMethodBuilder::Pitch ( )

Returns the pitch of the Scan Helix
Created in NX8.5.0.

License requirements : None

int NXOpen::CAM::InspectionMethodBuilder::PointCount ( )

Returns the number of path points
Created in NX7.0.0.

License requirements : None

bool NXOpen::CAM::InspectionMethodBuilder::PointHelix ( )

Returns a flag to indicate if point helix is allowed
Created in NX7.0.0.

License requirements : None

NXOpen::CAM::InspectionMethodBuilder::PointSequenceDirectionTypes NXOpen::CAM::InspectionMethodBuilder::PointSequenceDirection ( )

Returns the point sequence start direction
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::InspectionMethodBuilder::PointSequenceModeTypes NXOpen::CAM::InspectionMethodBuilder::PointSequenceMode ( )

Returns the point sequence mode
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::InspectionMethodBuilder::PointSequenceStartTypes NXOpen::CAM::InspectionMethodBuilder::PointSequenceStart ( )

Returns the point sequence start location
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::InspectionMethodBuilder::ProfileDispositionTypes NXOpen::CAM::InspectionMethodBuilder::ProfileDispositionMode ( )

Returns the analysis profile disposition fitting mode
Created in NX8.5.1.

License requirements : None

NXOpen::CAM::InspectionMethodBuilder::ReferenceFeatureModeTypes NXOpen::CAM::InspectionMethodBuilder::ReferenceFeatureMode ( )

Returns the relative measurement mode
Created in NX9.0.0.

License requirements : None

double NXOpen::CAM::InspectionMethodBuilder::ReferenceFeatureOffsetDistance ( )

Returns the offset distance for relative measurement
Created in NX9.0.0.

License requirements : None

int NXOpen::CAM::InspectionMethodBuilder::ReferenceFeaturePointCount ( )

Returns the number of points for relative measurement
Created in NX9.0.0.

License requirements : None

double NXOpen::CAM::InspectionMethodBuilder::ReferenceFeatureZoneRadius ( )

Returns the zone radius for relative measurement
Created in NX9.0.0.

License requirements : None

double NXOpen::CAM::InspectionMethodBuilder::RetractDistance ( )

Returns the retract distance
Created in NX7.0.0.

License requirements : None

double NXOpen::CAM::InspectionMethodBuilder::Revolutions ( )

Returns the revolutions of the Scan Helix
Created in NX8.5.0.

License requirements : None

NXOpen::CAM::InspectionMethodBuilder::ScanCurveModeTypes NXOpen::CAM::InspectionMethodBuilder::ScanCurveMode ( )

Returns the scan curve mode
Created in NX7.5.3.

License requirements : None

double NXOpen::CAM::InspectionMethodBuilder::ScanForce ( )

Returns the scan force
Created in NX8.5.0.

License requirements : None

NXOpen::CAM::InspectionMethodBuilder::ScanModeTypes NXOpen::CAM::InspectionMethodBuilder::ScanModeType ( )

Returns the 3,5 axis scan mode type
Created in NX8.5.0.

License requirements : None

double NXOpen::CAM::InspectionMethodBuilder::ScanSpeed ( )

Returns the scan speed
Created in NX8.5.0.

License requirements : None

NXOpen::CAM::InspectionMoveBuilder::SensorStrategyTypes NXOpen::CAM::InspectionMethodBuilder::SensorStrategy ( )

Returns the sensor selection strategy
Created in NX9.0.0.

License requirements : None

void NXOpen::CAM::InspectionMethodBuilder::SetAdvanceAngle ( double angle )

Sets the advance angle (degrees)
Created in NX8.5.0.
