NXOpen::CAM::MethodBuilder Class Reference

Represents a Method Builder
This is an abstract class, and cannot be instantiated. More...

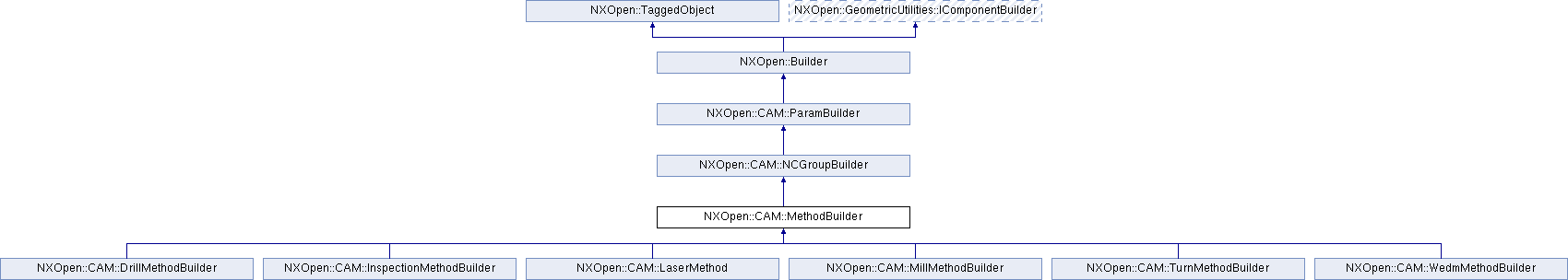

Inheritance diagram for NXOpen::CAM::MethodBuilder:

Public Member Functions
NXOpen::CAM::CutParameters *	CutParameters ()
	Returns the cut parameter object Created in NX6.0.0.
NXString	GetCutMethod ()
	Get cut method.
NXOpen::CAM::DisplayPaint *	PaintDisplay ()
	Returns the sub builder for paint display Created in NX7.5.0.
NXOpen::CAM::DisplayPath *	PathDisplay ()
	Returns the sub builder for path display Created in NX7.5.0.
NXOpen::CAM::PathDisplayColors *	PathDisplayColors ()
	Returns the sub builder for path display colors Created in NX7.5.0.
void	SetCutMethod (const NXString &libRef)
	Set cut method Created in NX8.0.1.
void	SetCutMethod (const char *libRef)
	Set cut method Created in NX8.0.1.
NXOpen::CAM::DisplaySilhouette *	SilhouDisplay ()
	Returns the sub builder for silhou display Created in NX7.5.0.
NXOpen::CAM::DisplayTool *	ToolDisplay ()
	Returns the sub builder for tool display Created in NX7.5.0.
Public Member Functions inherited from NXOpen::CAM::NCGroupBuilder
NXString	Description ()
	Returns the description Created in NX9.0.0.
NXOpen::CAM::UdeSet *	EndUdeSet ()
	Returns the end ude set Created in NX7.5.0.
void	SetDescription (const NXString &description)
	Sets the description Created in NX9.0.0.
void	SetDescription (const char *description)
	Sets the description Created in NX9.0.0.
NXOpen::CAM::UdeSet *	StartUdeSet ()
	Returns the start ude set Created in NX7.5.0.
Public Member Functions inherited from NXOpen::CAM::ParamBuilder
NXOpen::CAM::Ude *	CycleEvent ()
	Returns the cycle event Created in NX7.5.0.
NXOpen::CAM::Cycle *	CycleTable ()
	Returns the cycle Created in NX9.0.0.
NXOpen::CAM::ParamBuilder::OptimizationTypes	OptimizationMethod ()
	Returns the optim method Created in NX5.0.0.
void	SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod)
	Sets the optim method Created in NX5.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Additional Inherited Members
Public Types inherited from NXOpen::CAM::ParamBuilder
enum	OptimizationTypes { OptimizationTypesNone, OptimizationTypesMinimizeTravel, OptimizationTypesBand }
	Available types for Optimization Method in operation. More...

Detailed Description

Represents a Method Builder
This is an abstract class, and cannot be instantiated.

Created in NX5.0.0.

Member Function Documentation

NXOpen::CAM::CutParameters* NXOpen::CAM::MethodBuilder::CutParameters

(

)

Returns the cut parameter object
Created in NX6.0.0.

License requirements : cam_base ("CAM BASE")

NXString NXOpen::CAM::MethodBuilder::GetCutMethod

(

)

Get cut method.

Returns

Created in NX8.0.1.

License requirements : None

NXOpen::CAM::DisplayPaint* NXOpen::CAM::MethodBuilder::PaintDisplay

(

)

Returns the sub builder for paint display
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::DisplayPath* NXOpen::CAM::MethodBuilder::PathDisplay

(

)

Returns the sub builder for path display
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::PathDisplayColors* NXOpen::CAM::MethodBuilder::PathDisplayColors

(

)

Returns the sub builder for path display colors
Created in NX7.5.0.

License requirements : None

void NXOpen::CAM::MethodBuilder::SetCutMethod

(

const NXString &

libRef

)

Set cut method
Created in NX8.0.1.

License requirements : cam_base ("CAM BASE")

Parameters

libRef

NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAM::MethodBuilder::SetCutMethod

(

const char *

libRef

)

Set cut method
Created in NX8.0.1.

License requirements : cam_base ("CAM BASE")

Parameters

libRef

NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAM::DisplaySilhouette* NXOpen::CAM::MethodBuilder::SilhouDisplay

(

)

Returns the sub builder for silhou display
Created in NX7.5.0.

License requirements : None

NXOpen::CAM::DisplayTool* NXOpen::CAM::MethodBuilder::ToolDisplay

(

)

Returns the sub builder for tool display
Created in NX7.5.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• CAM_MethodBuilder.hxx
