Represents a GrooveMillingBuilder
To create a new instance of this class, use CAM::OperationCollection::CreateGrooveMillingBuilder
Created in NX9.0.0.
More...

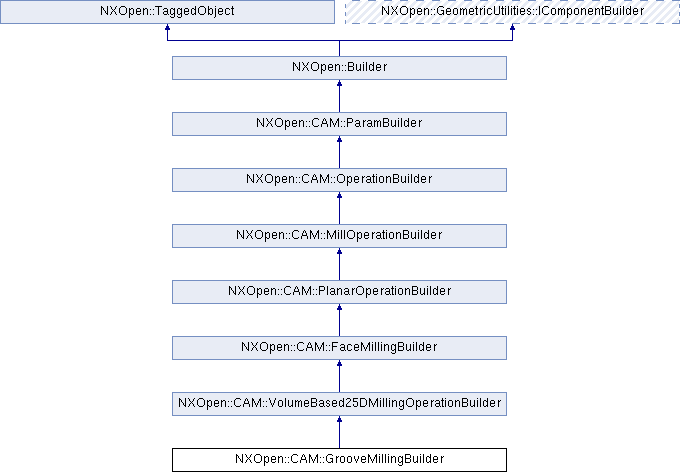

Inheritance diagram for NXOpen::CAM::GrooveMillingBuilder:
Public Types | |
| enum | LevelSequencingType { LevelSequencingTypeCeilingToFloor, LevelSequencingTypeFloorToCeiling, LevelSequencingTypeCenterCeilingFloor, LevelSequencingTypeCenterFloorCeiling, LevelSequencingTypeCenterAlternateCeilingFirst, LevelSequencingTypeCenterAlternateFloorFirst } |
| Available types for level sequencing. More... | |
Public Member Functions | |
| NXOpen::CAM::StepoverBuilder * | AxialStepover () |
| Returns the Axial Stepover Created in NX9.0.0. | |
| NXOpen::CAM::FBM::MachiningFeatureGeometry * | GrooveGeometry () |
| Returns the groove geometry Created in NX9.0.0. | |
| NXOpen::CAM::GrooveMillingBuilder::LevelSequencingType | LevelSequencing () |
| Returns the level sequencing Created in NX9.0.0. | |
| void | SetLevelSequencing (NXOpen::CAM::GrooveMillingBuilder::LevelSequencingType currentValue) |
| Sets the level sequencing Created in NX9.0.0. | |
 Public Member Functions inherited from NXOpen::CAM::VolumeBased25DMillingOperationBuilder | |
| NXOpen::CAM::Geometry * | BlankGeometry () |
| Returns the blank geometry builder Created in NX8.5.0. | |
| bool | ExtendWalls () |
| Returns the extend walls flag Created in NX8.5.0. | |
| bool | FollowNonVerticalWalls () |
| Returns the follow non-vertical walls flag Created in NX8.5.0. | |
| void | SetExtendWalls (bool flag) |
| Sets the extend walls flag Created in NX8.5.0. | |
| void | SetFollowNonVerticalWalls (bool flag) |
| Sets the follow non-vertical walls flag Created in NX8.5.0. | |
| void | SetUseExactPositioning (bool flag) |
| Sets the exact positioning flag Created in NX8.5.0. | |
| bool | UseExactPositioning () |
| Returns the exact positioning flag Created in NX8.5.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | WallBlankThickness () |
| Returns the wall blank thickness Created in NX8.5.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | ZDepthOffset () |
| Returns the z-depth offset Created in NX8.5.0. | |
| Public Member Functions inherited from NXOpen::CAM::FaceMillingBuilder | |
| NXOpen::CAM::Boundary * | BlankBoundary () |
| Returns the blank boundary Created in NX9.0.0. | |
| NXOpen::CAM::Boundary * | CheckBoundary () |
| Returns the check boundary Created in NX9.0.0. | |
| NXOpen::CAM::RoundPointBuilder * | RoundPoint () |
| Returns the Round Point Output builder Created in NX6.0.0. | |
| NXOpen::CAM::Boundary * | TrimBoundary () |
| Returns the trim boundary Created in NX9.0.0. | |
| NXOpen::CAM::Geometry * | WallGeometry () |
| Returns the wall geometry builder Created in NX8.0.0. | |
| Public Member Functions inherited from NXOpen::CAM::PlanarOperationBuilder | |
| int | AdditionalPasses () |
| Returns the Boundary Additional Passes Created in NX5.0.0. | |
| NXOpen::CAM::PlanarOperationBuilder::AutomaticPartBoundaryMethodTypes | AutomaticPartBoundaryMethod () |
| Returns the Automatic Part Boundary Method Created in NX6.0.0. | |
| NXOpen::CAM::StepoverBuilder * | BndStepover () |
| Returns the boundary stepover builder Created in NX5.0.0. | |
| NXOpen::CAM::Geometry * | CheckGeometry () |
| Returns the check geometry builder Created in NX8.0.0. | |
| bool | CornerLoops () |
| Returns the corner loops value Created in NX5.0.0. | |
| NXOpen::CAM::Geometry * | CutAreaGeometry () |
| Returns the cut area geometry builder Created in NX8.0.0. | |
| NXOpen::CAM::CutPatternBuilder * | CutPattern () |
| Returns the cut pattern builder Created in NX6.0.0. | |
| bool | DeferCuttingStatus () |
| Returns the defer cutting status value Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | DepthPerCut () |
| Returns the depth per cut builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::NcmPlanarBuilder * | NonCuttingBuilder () |
| Returns the non-cutting moves builder Created in NX5.0.0. | |
| NXOpen::CAM::Geometry * | PartGeometry () |
| Returns the part geometry builder Created in NX8.0.0. | |
| void | SetAdditionalPasses (int numPasses) |
| Sets the Boundary Additional Passes Created in NX5.0.0. | |
| void | SetAutomaticPartBoundaryMethod (NXOpen::CAM::PlanarOperationBuilder::AutomaticPartBoundaryMethodTypes automaticPartBoundary) |
| Sets the Automatic Part Boundary Method Created in NX6.0.0. | |
| void | SetCornerLoops (bool cornerLoops) |
| Sets the corner loops value Created in NX5.0.0. | |
| void | SetDeferCuttingStatus (bool deferCuttingStatus) |
| Sets the defer cutting status value Created in NX5.0.0. | |
| void | SetToolMinimumLengthUsage (bool toolMinUsage) |
| Sets the tool minimum length usage Created in NX5.0.0. | |
| NXOpen::CAM::ToolAxisFixed * | ToolAxisFix () |
| Returns the pmop tool axis ci builder Created in NX7.5.0. | |
| bool | ToolMinimumLengthUsage () |
| Returns the tool minimum length usage Created in NX5.0.0. | |
| Public Member Functions inherited from NXOpen::CAM::MillOperationBuilder | |
| NXOpen::CAM::MillCutParameters * | CutParameters () |
| Returns the cut parameter object Created in NX6.0.0. | |
| NXOpen::CAM::FeedsBuilder * | FeedsBuilder () |
| Returns the feeds and speeds builder Created in NX5.0.0. | |
| NXOpen::CAM::InheritableToolDepBuilder * | MinCutLength () |
| Returns the min cut length builder (tool dependent double) Created in NX6.0.0. | |
| NXOpen::CAM::ArcOutputTypeCiBuilder * | MotionOutput () |
| Returns the motion output builder Created in NX6.0.0. | |
| NXOpen::CAM::Tool * | ReferenceTool () |
| Returns the reference tool object Created in NX7.5.0. | |
| void | SetReferenceTool (NXOpen::CAM::Tool *refTool) |
| Sets the reference tool object Created in NX7.5.0. | |
| Public Member Functions inherited from NXOpen::CAM::OperationBuilder | |
| NXString | ChannelName () |
| Returns the channel's name Created in NX7.5.0. | |
| NXString | Description () |
| Returns the description Created in NX9.0.0. | |
| NXOpen::CAM::PostEventsCiBuilder * | EndOfPath () |
| Returns the end event builder Created in NX5.0.1. | |
| NXOpen::CAM::UdeSet * | EndUdeSet () |
| Returns the end ude set Created in NX7.5.0. | |
| NXOpen::CAM::GeometryCiBuilder * | Geometry () |
| Returns the geometry builder Created in NX5.0.0. | |
| std::vector< double > | GetHoleAxisValues () |
| Get the Hole Axis values. | |
| bool | GougeChecking () |
| Returns the gouge checking flag Created in NX9.0.0. | |
| NXOpen::CAM::OperationBuilder::HoleAxisTypes | HoleAxisType () |
| Returns the Hole Axis Type Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | HoleDepth () |
| Returns the max depth distance builder Created in NX5.0.0. | |
| NXOpen::CAM::OperationBuilder::HoleDepthTypes | HoleDepthType () |
| Returns the Hole Depth Type Created in NX5.0.0. | |
| NXOpen::CAM::ArcOutputTypeCiBuilder * | MotionOutputBuilder () |
| Returns the motion output builder Created in NX8.0.0. | |
| NXOpen::CAM::Notes * | Notes () |
| Returns the notes builder Created in NX9.0.0. | |
| NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes | OptimizationBasedOn () |
| Returns the optimization based on in operation Created in NX5.0.0. | |
| NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes | OptimizationDistanceMethod () |
| Returns the optimization distance method in operation Created in NX5.0.0. | |
| NXOpen::CAM::OperationBuilder::OptimizationLevelTypes | OptimizationLevel () |
| Returns the optimization level in operation Created in NX5.0.0. | |
| NXOpen::CAM::OperationDisplayOptionsBuilder * | PathDisplayOptions () |
| Returns the path display options builder Created in NX6.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | RetractDistance () |
| Returns the Retract Distance builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | RetractDistanceOnToolAxisChange () |
| Returns the Retract Distance on Tool Axis Change builder (inheritable double) Created in NX5.0.0. | |
| NXOpen::CAM::InheritableDoubleBuilder * | SafeClearance () |
| Returns the safe clearance builder Created in NX6.0.0. | |
| bool | SelectToolFlag () |
| Returns the user selected tool Created in NX5.0.0. | |
| void | SetChannelName (const NXString &channel) |
| Sets the channel's name Created in NX7.5.0. | |
| void | SetChannelName (const char *channel) |
| Sets the channel's name Created in NX7.5.0. | |
| void | SetDescription (const NXString &description) |
| Sets the description Created in NX9.0.0. | |
| void | SetDescription (const char *description) |
| Sets the description Created in NX9.0.0. | |
| void | SetGougeChecking (bool gougeChecking) |
| Sets the gouge checking flag Created in NX9.0.0. | |
| void | SetHoleAxisType (NXOpen::CAM::OperationBuilder::HoleAxisTypes types) |
| Sets the Hole Axis Type Created in NX5.0.0. | |
| void | SetHoleAxisValues (const std::vector< double > &holeAxis) |
| Set the Hole Axis values Created in NX5.0.0. | |
| void | SetHoleDepthType (NXOpen::CAM::OperationBuilder::HoleDepthTypes types) |
| Sets the Hole Depth Type Created in NX5.0.0. | |
| void | SetOptimizationBasedOn (NXOpen::CAM::OperationBuilder::OptimizationBasedOnTypes optimBasedOn) |
| Sets the optimization based on in operation Created in NX5.0.0. | |
| void | SetOptimizationDistanceMethod (NXOpen::CAM::OperationBuilder::OptimizationDistanceTypes optimDistance) |
| Sets the optimization distance method in operation Created in NX5.0.0. | |
| void | SetOptimizationLevel (NXOpen::CAM::OperationBuilder::OptimizationLevelTypes optimType) |
| Sets the optimization level in operation Created in NX5.0.0. | |
| void | SetSelectToolFlag (bool selToolFlag) |
| Sets the user selected tool Created in NX5.0.0. | |
| NXOpen::CAM::PostEventsCiBuilder * | StartOfPath () |
| Returns the start event builder Created in NX5.0.1. | |
| NXOpen::CAM::UdeSet * | StartUdeSet () |
| Returns the start ude set Created in NX7.5.0. | |
| NXOpen::CAM::ToolChangeCiBuilder * | ToolChangeSetting () |
| Returns the tool change builder Created in NX5.0.0. | |
| NXOpen::CAM::ToolPathSplitParametersBuilder * | ToolPathSplitParametersBuilder () |
| Returns the tool path split Parameters Created in NX9.0.0. | |
| Public Member Functions inherited from NXOpen::CAM::ParamBuilder | |
| NXOpen::CAM::Ude * | CycleEvent () |
| Returns the cycle event Created in NX7.5.0. | |
| NXOpen::CAM::Cycle * | CycleTable () |
| Returns the cycle Created in NX9.0.0. | |
| NXOpen::CAM::ParamBuilder::OptimizationTypes | OptimizationMethod () |
| Returns the optim method Created in NX5.0.0. | |
| void | SetOptimizationMethod (NXOpen::CAM::ParamBuilder::OptimizationTypes optimMethod) |
| Sets the optim method Created in NX5.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Represents a GrooveMillingBuilder
To create a new instance of this class, use CAM::OperationCollection::CreateGrooveMillingBuilder
Created in NX9.0.0.
Member Enumeration Documentation
Available types for level sequencing.
- Enumerator:
Member Function Documentation
| NXOpen::CAM::StepoverBuilder* NXOpen::CAM::GrooveMillingBuilder::AxialStepover | ( | ) |
Returns the Axial Stepover
Created in NX9.0.0.
License requirements : None
| NXOpen::CAM::FBM::MachiningFeatureGeometry* NXOpen::CAM::GrooveMillingBuilder::GrooveGeometry | ( | ) |
Returns the groove geometry
Created in NX9.0.0.
License requirements : cam_base ("CAM BASE")
| NXOpen::CAM::GrooveMillingBuilder::LevelSequencingType NXOpen::CAM::GrooveMillingBuilder::LevelSequencing | ( | ) |
Returns the level sequencing
Created in NX9.0.0.
License requirements : None
| void NXOpen::CAM::GrooveMillingBuilder::SetLevelSequencing | ( | NXOpen::CAM::GrooveMillingBuilder::LevelSequencingType | currentValue | ) |
Sets the level sequencing
Created in NX9.0.0.
License requirements : cam_base ("CAM BASE")
- Parameters
-
currentValue currentvalue
The documentation for this class was generated from the following file:
- CAM_GrooveMillingBuilder.hxx
