NXOpen::CAM::Geometry Class Reference

Represents a CAM geometry object
Created in NX8.0.0. More...

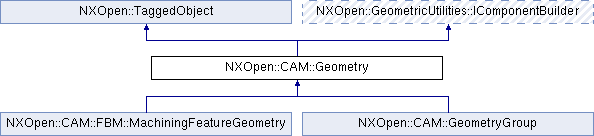

Inheritance diagram for NXOpen::CAM::Geometry:

Public Member Functions
NXOpen::CAM::GeometrySet *	AppendGeometrySet (NXOpen::CAM::GeometrySet *templateSet, const std::vector< NXOpen::DisplayableObject * > &entities)
	Append an geometry set with dumb rules.
NXOpen::CAM::GeometrySet *	CreateGeometrySet ()
	Create an empty geometry set.
void	ExpandSets (const std::vector< NXOpen::CAM::GeometrySet * > &sets)
	Expanding the geometry sets Created in NX8.0.0.
NXOpen::CAM::GeometrySetList *	GeometryList ()
	返回几何列表 Created in NX8.0.0.
void	InitializeData (bool reloadGeometry)
	Prepare and update geometry data Created in NX8.0.0.
void	PreselectGeometry ()
	Pre-select the wall geometry Created in NX8.0.0.
NXOpen::CAM::Topology *	Topology ()
	Returns the topology builder Created in NX8.0.0.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAM geometry object
Created in NX8.0.0.

Member Function Documentation

NXOpen::CAM::GeometrySet* NXOpen::CAM::Geometry::AppendGeometrySet	(	NXOpen::CAM::GeometrySet *	templateSet,
		const std::vector< NXOpen::DisplayableObject * > &	entities
	)

Append an geometry set with dumb rules.

Returns

the appended geometry set object
Created in NX8.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

templateSet	the template set for copying custom data
entities	array of the geometry entities for appending. The entities must be from same component part

NXOpen::CAM::GeometrySet* NXOpen::CAM::Geometry::CreateGeometrySet

(

)

Create an empty geometry set.

Returns

the geometry set object
Created in NX8.0.0.

License requirements : cam_base ("CAM BASE")

void NXOpen::CAM::Geometry::ExpandSets

(

const std::vector< NXOpen::CAM::GeometrySet * > &

sets

)

Expanding the geometry sets
Created in NX8.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

sets	array of sets

NXOpen::CAM::GeometrySetList* NXOpen::CAM::Geometry::GeometryList

(

)

Returns the geometry list
Created in NX8.0.0.

License requirements : None

void NXOpen::CAM::Geometry::InitializeData

(

bool

reloadGeometry

)

Prepare and update geometry data
Created in NX8.0.0.

License requirements : cam_base ("CAM BASE")

Parameters

reloadGeometry

the flag to reload the geometry list if it has been changed somewhere.

void NXOpen::CAM::Geometry::PreselectGeometry

(

)

Pre-select the wall geometry
Created in NX8.0.0.

License requirements : cam_base ("CAM BASE")

NXOpen::CAM::Topology* NXOpen::CAM::Geometry::Topology

(

)

Returns the topology builder
Created in NX8.0.0.

License requirements : None

virtual bool NXOpen::CAM::Geometry::Validate ( )

virtual

Validate whether the inputs to the component are sufficient for commit to be called.

If the component is not in a state to commit then an exception is thrown. For example, if the component requires you to set some property, this method will throw an exception if you haven't set it. This method throws a not-yet-implemented NXException for some components.

Returns

Was self validation successful
Created in NX3.0.1.

License requirements : None

Implements NXOpen::GeometricUtilities::IComponentBuilder.

---

The documentation for this class was generated from the following file:

• CAM_Geometry.hxx
