Represents a CAM topology builder
Use the CAM::Geometry class to get a topology builder

Created in NX8.0.0. More...

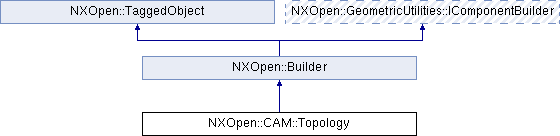

Inheritance diagram for NXOpen::CAM::Topology:

Public Member Functions
double	AngleTolerance ()
	Returns the angle tolerance Created in NX8.0.0.

double	DistanceTolerance ()
	Returns the distance tolerance Created in NX8.0.0.

int	GetShellCount ()
	Get the count of shell anchors.

void	Rebuild ()
	The action of rebuild topology data Created in NX8.0.0.

void	RemoveShell (int shellIndex)
	Remove shell set Created in NX8.0.0.

void	ReverseMaterialSide (int shellIndex)
	The action of reverse material side of one connected shell Created in NX8.0.0.

void	SetAngleTolerance (double newValue)
	Sets the angle tolerance Created in NX8.0.0.

void	SetDistanceTolerance (double newValue)
	Sets the distance tolerance Created in NX8.0.0.

void	UnifyMaterialSide (int shellIndex)
	The action of unify material side of one connected shell Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAM topology builder
Use the CAM::Geometry class to get a topology builder

Created in NX8.0.0.

Member Function Documentation

double NXOpen::CAM::Topology::AngleTolerance ( )

Returns the angle tolerance
Created in NX8.0.0.

License requirements : None

double NXOpen::CAM::Topology::DistanceTolerance ( )

Returns the distance tolerance
Created in NX8.0.0.

License requirements : None

int NXOpen::CAM::Topology::GetShellCount ( )

Get the count of shell anchors.

Returns: Created in NX8.0.0.

License requirements : cam_base ("CAM BASE")

void NXOpen::CAM::Topology::Rebuild ( )

The action of rebuild topology data
Created in NX8.0.0.
