Represents a CAE::ResultsReductionBuilder
To obtain an instance of this class use Session::ResultManager . More...

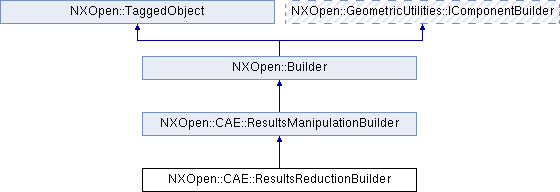

Inheritance diagram for NXOpen::CAE::ResultsReductionBuilder:

Public Types
enum	EvaluationError { EvaluationErrorSkip, EvaluationErrorZeroFill, EvaluationErrorAbort }
	evaluation error options More...

enum	IncompatibleResults { IncompatibleResultsSkip, IncompatibleResultsAbort }
	Incompatible results options. More...

enum	NoData { NoDataSkip, NoDataZeroFill }
	No data options. More...

enum	Output { OutputExportResultFile, OutputCreatePostView, OutputCreateField }
	output types More...

Public Types inherited from NXOpen::CAE::ResultsManipulationBuilder
enum	Action { ActionExport, ActionExportResultsOnly, ActionExportResultsAndModel, ActionCreateImportedResult, ActionCreateCompanionResult, ActionCreateCompanionResultWithModel, ActionCreateImportedSolution }
	Action options More...

enum	ElementValueAtNode { ElementValueAtNodeAverage, ElementValueAtNodeMaximum, ElementValueAtNodeMinimum, ElementValueAtNodeSum }
	Value at Nodes for element nodal values. More...

enum	OutputResultType { OutputResultTypeCompanion, OutputResultTypeFull }
	Output result types. More...

enum	ResultAppendMethod { ResultAppendMethodCreateNewLoadCases, ResultAppendMethodMergeWithPrimaryResultsData }
	Result Append Method options. More...

enum	UnitsSystem { UnitsSystemNone, UnitsSystemFromResult, UnitsSystemUserDefined }
	Units system options. More...

Public Member Functions
void	SetDependentDomainName (const NXString &domainName)
	Set Dependent Domain Name Created in NX9.0.0.

void	SetDependentDomainName (const char *domainName)
	Set Dependent Domain Name Created in NX9.0.0.

void	SetElementValueAtNode (NXOpen::CAE::ResultsManipulationBuilder::ElementValueAtNode value)
	Set element value to be used at a node Created in NX9.0.0.

void	SetEvaluationErrorOption (NXOpen::CAE::ResultsReductionBuilder::EvaluationError evaluationErrorOption)
	Set evaluation error option Created in NX8.5.0.

void	SetFieldName (const NXString &fieldName)
	Set field Name to be created Created in NX9.0.0.

void	SetFieldName (const char *fieldName)
	Set field Name to be created Created in NX9.0.0.

void	SetFormula (const NXString &formula)
	The formula Created in NX8.5.0.

void	SetFormula (const char *formula)
	The formula Created in NX8.5.0.

void	SetIncompatibleResultsOption (NXOpen::CAE::ResultsReductionBuilder::IncompatibleResults incompatibleResultsOption)
	Set incompatible results option Created in NX8.5.0.

void	SetIndependentDomainName (const NXString &domainName)
	Set Independent Domain Name Created in NX9.0.0.

void	SetIndependentDomainName (const char *domainName)
	Set Independent Domain Name Created in NX9.0.0.

void	SetNoDataOption (NXOpen::CAE::ResultsReductionBuilder::NoData noDataOption)
	Set no data option Created in NX8.5.0.

void	SetOutput (NXOpen::CAE::ResultsReductionBuilder::Output output)
	Set output type from result reduction Created in NX9.0.0.

void	SetResults (const std::vector< NXOpen::CAE::Result * > &results, const std::vector< NXOpen::CAE::ResultParameters * > &parameters, std::vector< NXString > &names)
	The result types Created in NX8.5.0.

void	SetResultTypeName (const NXString &resultTypeName)
	Set result type name that will be displayed in postview Created in NX9.0.0.

void	SetResultTypeName (const char *resultTypeName)
	Set result type name that will be displayed in postview Created in NX9.0.0.

void	SetResultUnit (NXOpen::Unit *unit)
	Set result unit for given result type/dependent field variable type Created in NX9.0.0.

void	SetViewIndexForPostView (int viewIndex)
	Set view index where postview will be created Created in NX9.0.0.

Public Member Functions inherited from NXOpen::CAE::ResultsManipulationBuilder
void	SetAction (NXOpen::CAE::ResultsManipulationBuilder::Action action)
	The action

void	SetAppendMethod (NXOpen::CAE::ResultsManipulationBuilder::ResultAppendMethod appendMethod)
	The append method if action is CAE::ResultsManipulationBuilder::ActionCreateCompanionResult Created in NX8.5.0.

void	SetCompanionResultName (const NXString &companionResultName)
	The companion result name if action is CAE::ResultsManipulationBuilder::ActionCreateCompanionResult Created in NX8.5.0.

void	SetCompanionResultName (const char *companionResultName)
	The companion result name if action is CAE::ResultsManipulationBuilder::ActionCreateCompanionResult Created in NX8.5.0.

void	SetCompanionSolution (NXOpen::CAE::SimSolution *solution)
	The companion solution if action is CAE::ResultsManipulationBuilder::ActionCreateCompanionResult Created in NX7.5.2.

void	SetCreateSolution (bool createSolution)
	Specifies whether to create an imported solution Created in NX9.0.0.

void	SetImportedSolutionName (const NXString &importedSolutionName)
	The imported solution name if action is CAE::ResultsManipulationBuilder::ActionCreateImportedSolution Created in NX8.5.0.

void	SetImportedSolutionName (const char *importedSolutionName)
	The imported solution name if action is CAE::ResultsManipulationBuilder::ActionCreateImportedSolution Created in NX8.5.0.

void	SetImportResult (bool importResult)
	Import the result immediately Created in NX8.5.0.

void	SetIncludeModel (bool includeModel)
	Include nodes and elements Created in NX8.5.0.

void	SetLoadcaseName (const NXString &loadcaseName)
	The load case name Created in NX7.5.2.

void	SetLoadcaseName (const char *loadcaseName)
	The load case name Created in NX7.5.2.

void	SetOutputFile (const NXString &outputFile)
	The output file Created in NX7.5.2.

void	SetOutputFile (const char *outputFile)
	The output file Created in NX7.5.2.

void	SetOutputName (const NXString &outputName)
	The output name Created in NX7.5.2.

void	SetOutputName (const char *outputName)
	The output name Created in NX7.5.2.

void	SetOutputQuantity (NXOpen::CAE::Result::Quantity quantity)
	The output quantity Created in NX8.5.0.

void	SetOutputResultType (NXOpen::CAE::ResultsManipulationBuilder::OutputResultType type)
	The result output type Created in NX9.0.0.

void	SetUnitsSystem (NXOpen::CAE::ResultsManipulationBuilder::UnitsSystem unitsSystem)
	The units system Created in NX8.5.0.

void	SetUnitsSystemResult (NXOpen::CAE::Result *result)
	The result to copy the units system from Created in NX8.5.0.

void	SetUserDefinedUnitsSystem (const NXOpen::CAE::Result::ResultBasicUnit &unitsSystem)
	The user-defined units system Created in NX8.5.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAE::ResultsReductionBuilder
To obtain an instance of this class use Session::ResultManager .

Created in NX8.5.0.

Member Enumeration Documentation

enum NXOpen::CAE::ResultsReductionBuilder::EvaluationError

evaluation error options

Enumerator:

EvaluationErrorSkip	skip
EvaluationErrorZeroFill	zero fill
EvaluationErrorAbort	abort

enum NXOpen::CAE::ResultsReductionBuilder::IncompatibleResults

Incompatible results options.

Enumerator:

IncompatibleResultsSkip	skip
IncompatibleResultsAbort	abort

enum NXOpen::CAE::ResultsReductionBuilder::NoData

No data options.

Enumerator:

NoDataSkip	skip
NoDataZeroFill	zero fill

enum NXOpen::CAE::ResultsReductionBuilder::Output

output types

Enumerator:

OutputExportResultFile	export result file
OutputCreatePostView	create post view
OutputCreateField	create field
