Represents the manager of CAE.ResponseSimulation.RSEvent. More...

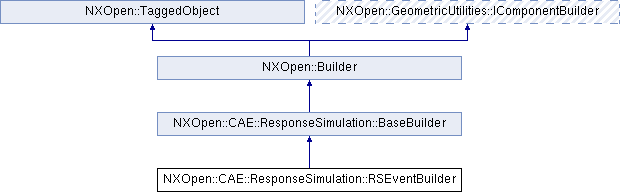

Inheritance diagram for NXOpen::CAE::ResponseSimulation::RSEventBuilder:

Public Member Functions
NXOpen::CAE::ResponseSimulation::RSEventAttributes *	Attributes ()
	Returns the attributes setting Created in NX5.0.0.

NXOpen::CAE::ResponseSimulation::RSEvent::Type	EventType ()
	Returns the event type Created in NX5.0.0.

NXOpen::CAE::ResponseSimulation::InitialConditions *	InitialConditions ()
	Returns the initial condition setting.

NXOpen::CAE::ResponseSimulation::RSEventOutputSetting *	OutputSetting ()
	Returns the output setting Created in NX5.0.0.

NXOpen::CAE::ResponseSimulation::Solution *	ResponseSimulationSolution ()
	Returns the parent response simulation solution Created in NX5.0.0.

void	SetEventType (NXOpen::CAE::ResponseSimulation::RSEvent::Type eventType)
	Sets the event type Created in NX5.0.0.

Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::BaseBuilder
NXOpen::CAE::ResponseSimulation::ObjectLabel *	ObjectLabel ()
	Returns the object label Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents the manager of CAE.ResponseSimulation.RSEvent.

The object of type CAE::ResponseSimulation::RSEvent can be created or deleted only through this class.
To create a new instance of this class, use CAE::ResponseSimulation::RSEventCollection::CreateEventBuilder

Created in NX5.0.0.

Member Function Documentation

NXOpen::CAE::ResponseSimulation::RSEventAttributes* NXOpen::CAE::ResponseSimulation::RSEventBuilder::Attributes ( )

Returns the attributes setting
Created in NX5.0.0.
