NXOpen::CAE::ResponseSimulation::Solution Class Reference

Represents a meta solution providing response analysis functionalities in the .sim file
To create or edit an instance of this class, use CAE::ResponseSimulation::SolutionBuilder

Created in NX5.0.0. More...

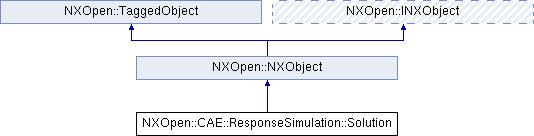

Inheritance diagram for NXOpen::CAE::ResponseSimulation::Solution:

Public Member Functions
NXOpen::CAE::ResponseSimulation::RSEvent *	ActiveEvent ()
	Returns the active event Created in NX5.0.0.
void	CheckObsoleteStatus ()
	Checks status and updates solution properties for the solution which became obsolete because referenced modal shape file was changed.
NXOpen::CAE::ResponseSimulation::RSEvent *	CloneEvent (NXOpen::CAE::ResponseSimulation::RSEvent *sourceEvent, const NXString &suggestedName)
	Clones an event to the solution.
NXOpen::CAE::ResponseSimulation::RSEvent *	CloneEvent (NXOpen::CAE::ResponseSimulation::RSEvent *sourceEvent, const char *suggestedName)
	Clones an event to the solution.
NXOpen::CAE::ResponseSimulation::Sensor *	CloneSensor (NXOpen::CAE::ResponseSimulation::Sensor *sourceSensor, const NXString &suggestedName)
	Clones a sensor to the solution.
NXOpen::CAE::ResponseSimulation::Sensor *	CloneSensor (NXOpen::CAE::ResponseSimulation::Sensor *sourceSensor, const char *suggestedName)
	Clones a sensor to the solution.
NXOpen::CAE::ResponseSimulation::StrainGage *	CloneStrainGage (NXOpen::CAE::ResponseSimulation::StrainGage *sourceGage, const NXString &suggestedName)
	Clones a strain gage to the solution.
NXOpen::CAE::ResponseSimulation::StrainGage *	CloneStrainGage (NXOpen::CAE::ResponseSimulation::StrainGage *sourceGage, const char *suggestedName)
	Clones a strain gage to the solution.
void	Destroy (bool deleteResultFile)
	Deletes a response simulation solution, including all events and excitations under it Created in NX5.0.0.
void	EvaluateFrf (NXOpen::CAE::ResponseSimulation::FrfEvaluationSetting *evaluationSetting)
	Performs evaluation for FRF.
void	EvaluateTransmissibility (NXOpen::CAE::ResponseSimulation::TransmissibilityEvaluationSetting *evaluationSetting)
	Performs evaluation for transimissibility.
NXOpen::CAE::ResponseSimulation::EvaluationParameters *	GetEvaluationParameters ()
	Returns the evaluation parameters of Response Analysis Meta solution.
std::vector < NXOpen::CAE::ResponseSimulation::RSEvent * >	GetEvents ()
	Returns all the events of the solution.
NXOpen::CAE::ResponseSimulation::ModalProperties *	GetModalProperties ()
	Returns the modal properties of Response Analysis Meta solution.
NXString	GetResultFileName ()
	Returns the result file name of solution.
NXString	GetSolutionName ()
	Returns the response simulation solution name.
NXOpen::CAE::ResponseSimulation::RSEvent *	ImportEvent (const NXString &eventDefinitionFile, const NXString &suggestedName)
	Imports an event to the solution.
NXOpen::CAE::ResponseSimulation::RSEvent *	ImportEvent (const char *eventDefinitionFile, const char *suggestedName)
	Imports an event to the solution.
void	SetActiveEvent (NXOpen::CAE::ResponseSimulation::RSEvent *activeEvent)
	Sets the active event Created in NX5.0.0.
void	SetSolutionName (const NXString &solutionName, bool renameResultFile)
	Sets the response simulation solution name Created in NX5.0.0.
void	SetSolutionName (const char *solutionName, bool renameResultFile)
	Sets the response simulation solution name Created in NX5.0.0.
Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.
bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.
bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.
int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.
int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.
int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.
double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.
double	GetRealAttribute (const char *title)
	Gets a real attribute by title.
double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.
double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.
NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.
NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.
NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.
NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.
std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.
virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.
virtual NXString	Name ()
	Returns the custom name of the object.
virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.
virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.
virtual void	Print ()
	Prints a representation of this object to the system log file.
virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.
void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.
void	SetAttribute (const char *title, const char *value)
	Creates or modifies a string attribute.
void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
virtual void	SetName (const NXString &name)
	Sets the custom name of the object.
void	SetName (const char *name)
	Sets the custom name of the object.
void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const char *title, const char *value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const char *title, const char *value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.
Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
void	SetName (const char *name)
	Sets the custom name of the object.

Additional Inherited Members
Public Types inherited from NXOpen::NXObject
enum	AttributeType {   AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger,   AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference,   AttributeTypeAny = 100 }
	Specifies attribute type. More...
enum	DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual }
	Specifies the format of the date and time attribute. More...

Detailed Description

Represents a meta solution providing response analysis functionalities in the .sim file
To create or edit an instance of this class, use CAE::ResponseSimulation::SolutionBuilder

Created in NX5.0.0.

Member Function Documentation

NXOpen::CAE::ResponseSimulation::RSEvent* NXOpen::CAE::ResponseSimulation::Solution::ActiveEvent

(

)

Returns the active event
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

void NXOpen::CAE::ResponseSimulation::Solution::CheckObsoleteStatus

(

)

Checks status and updates solution properties for the solution which became obsolete because referenced modal shape file was changed.

The solution will be reactivated as normal state after status checking.
Created in NX8.0.1.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::ResponseSimulation::RSEvent* NXOpen::CAE::ResponseSimulation::Solution::CloneEvent	(	NXOpen::CAE::ResponseSimulation::RSEvent *	sourceEvent,
		const NXString &	suggestedName
	)

Clones an event to the solution.

Returns

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

sourceEvent	source event
suggestedName	NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAE::ResponseSimulation::RSEvent* NXOpen::CAE::ResponseSimulation::Solution::CloneEvent	(	NXOpen::CAE::ResponseSimulation::RSEvent *	sourceEvent,
		const char *	suggestedName
	)

Clones an event to the solution.

Returns

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

sourceEvent	source event
suggestedName	NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAE::ResponseSimulation::Sensor* NXOpen::CAE::ResponseSimulation::Solution::CloneSensor	(	NXOpen::CAE::ResponseSimulation::Sensor *	sourceSensor,
		const NXString &	suggestedName
	)

Clones a sensor to the solution.

Returns

Created in NX5.0.1.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

sourceSensor	source sensor
suggestedName	NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAE::ResponseSimulation::Sensor* NXOpen::CAE::ResponseSimulation::Solution::CloneSensor	(	NXOpen::CAE::ResponseSimulation::Sensor *	sourceSensor,
		const char *	suggestedName
	)

Clones a sensor to the solution.

Returns

Created in NX5.0.1.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

sourceSensor	source sensor
suggestedName	NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAE::ResponseSimulation::StrainGage* NXOpen::CAE::ResponseSimulation::Solution::CloneStrainGage	(	NXOpen::CAE::ResponseSimulation::StrainGage *	sourceGage,
		const NXString &	suggestedName
	)

Clones a strain gage to the solution.

Returns

Created in NX5.0.1.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

sourceGage	source gage
suggestedName	NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAE::ResponseSimulation::StrainGage* NXOpen::CAE::ResponseSimulation::Solution::CloneStrainGage	(	NXOpen::CAE::ResponseSimulation::StrainGage *	sourceGage,
		const char *	suggestedName
	)

Clones a strain gage to the solution.

Returns

Created in NX5.0.1.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

sourceGage	source gage
suggestedName	NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::ResponseSimulation::Solution::Destroy

(

bool

deleteResultFile

)

Deletes a response simulation solution, including all events and excitations under it
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

deleteResultFile

delete the result files associated with the solution or not

void NXOpen::CAE::ResponseSimulation::Solution::EvaluateFrf

(

NXOpen::CAE::ResponseSimulation::FrfEvaluationSetting *

evaluationSetting

)

Performs evaluation for FRF.

The evaluation results will be stored in an AFU file, which name could be returned by CAE::ResponseSimulation::Solution::GetResultFileName
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

evaluationSetting

evaluation setting

void NXOpen::CAE::ResponseSimulation::Solution::EvaluateTransmissibility

(

NXOpen::CAE::ResponseSimulation::TransmissibilityEvaluationSetting *

evaluationSetting

)

Performs evaluation for transimissibility.

The evaluation results will be stored in an AFU file, which name could be returned by CAE::ResponseSimulation::Solution::GetResultFileName
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

evaluationSetting

evaluation setting

NXOpen::CAE::ResponseSimulation::EvaluationParameters* NXOpen::CAE::ResponseSimulation::Solution::GetEvaluationParameters

(

)

Returns the evaluation parameters of Response Analysis Meta solution.

Returns

Created in NX6.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

std::vector<NXOpen::CAE::ResponseSimulation::RSEvent *> NXOpen::CAE::ResponseSimulation::Solution::GetEvents

(

)

Returns all the events of the solution.

Returns

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::ResponseSimulation::ModalProperties* NXOpen::CAE::ResponseSimulation::Solution::GetModalProperties

(

)

Returns the modal properties of Response Analysis Meta solution.

Returns

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXString NXOpen::CAE::ResponseSimulation::Solution::GetResultFileName

(

)

Returns the result file name of solution.

Returns

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXString NXOpen::CAE::ResponseSimulation::Solution::GetSolutionName

(

)

Returns the response simulation solution name.

Returns

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::ResponseSimulation::RSEvent* NXOpen::CAE::ResponseSimulation::Solution::ImportEvent	(	const NXString &	eventDefinitionFile,
		const NXString &	suggestedName
	)

Imports an event to the solution.

Returns

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

eventDefinitionFile	NOTE: The full Unicode character set is not supported for this parameter.
suggestedName	NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::CAE::ResponseSimulation::RSEvent* NXOpen::CAE::ResponseSimulation::Solution::ImportEvent	(	const char *	eventDefinitionFile,
		const char *	suggestedName
	)

Imports an event to the solution.

Returns

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

eventDefinitionFile	NOTE: The full Unicode character set is not supported for this parameter.
suggestedName	NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::CAE::ResponseSimulation::Solution::SetActiveEvent

(

NXOpen::CAE::ResponseSimulation::RSEvent *

activeEvent

)

Sets the active event
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

activeEvent

active event

void NXOpen::CAE::ResponseSimulation::Solution::SetSolutionName	(	const NXString &	solutionName,
		bool	renameResultFile
	)

Sets the response simulation solution name
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

solutionName	NOTE: The full Unicode character set is not supported for this parameter.
renameResultFile	if there are result files associated with the solution, rename the files or not

void NXOpen::CAE::ResponseSimulation::Solution::SetSolutionName	(	const char *	solutionName,
		bool	renameResultFile
	)

Sets the response simulation solution name
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

solutionName	NOTE: The full Unicode character set is not supported for this parameter.
renameResultFile	if there are result files associated with the solution, rename the files or not

---

The documentation for this class was generated from the following file:

• CAE_ResponseSimulation_Solution.hxx
