NXOpen::CAE::ResponseSimulation::ModalResultsEvaluationSettingBuilder Class Reference

Represents the abstract builder class of evaluation setting for FRF and transmissibility
This is an abstract class, and cannot be created. More...

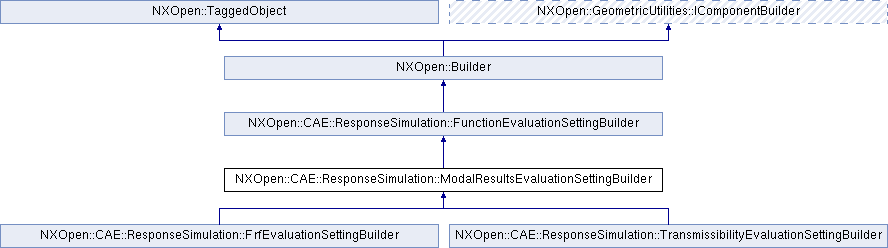

Inheritance diagram for NXOpen::CAE::ResponseSimulation::ModalResultsEvaluationSettingBuilder:

Public Member Functions
NXOpen::CAE::ResponseSimulation::DataLocation *	DataLocation ()
	Returns the frequency setting Created in NX5.0.0.
NXOpen::CAE::ResponseSimulation::FrequencyDefinition *	EvaluationProperty ()
	Returns the frequency setting Created in NX5.0.0.
std::vector < NXOpen::CAE::FEElement * >	GetOutputElements ()
	Returns destination nodes.
std::vector < NXOpen::CAE::FENode * >	GetOutputNodes ()
	Returns destination nodes.
NXOpen::CAE::ResponseSimulation::DirectionDataComponent	InputDirection ()
	Returns the source direction data component Created in NX5.0.0.
NXOpen::CAE::FENode *	InputNode ()
	Returns the source node.
NXOpen::CAE::FENode *	ObservationNode ()
	Returns the observation nodes.
NXOpen::CAE::ResponseSimulation::DirectionDataComponent	OutputRequest ()
	Returns the destination direction data component Created in NX5.0.0.
void	SetInputDirection (NXOpen::CAE::ResponseSimulation::DirectionDataComponent dataComponent)
	Sets the source direction data component Created in NX5.0.0.
void	SetInputNode (NXOpen::CAE::FENode *sourceNode)
	Sets the source node.
void	SetObservationNode (NXOpen::CAE::FENode *observationNode)
	Sets the observation nodes.
void	SetOutputElements (const std::vector< NXOpen::CAE::FEElement * > &destinationElements)
	Sets destination nodes Created in NX5.0.0.
void	SetOutputNodes (const std::vector< NXOpen::CAE::FENode * > &destinationNode)
	Sets destination nodes Created in NX5.0.0.
void	SetOutputRequest (NXOpen::CAE::ResponseSimulation::DirectionDataComponent dataComponent)
	Sets the destination direction data component Created in NX5.0.0.
Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::FunctionEvaluationSettingBuilder
NXOpen::CAE::ResponseSimulation::FunctionEvaluationOutputSettings *	OutputSettings ()
	Returns the output setting.
NXOpen::CAE::ResponseSimulation::EvaluationResultType	ResultType ()
	Returns the result type Created in NX5.0.0.
void	SetResultType (NXOpen::CAE::ResponseSimulation::EvaluationResultType resultType)
	Sets the result type Created in NX5.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents the abstract builder class of evaluation setting for FRF and transmissibility
This is an abstract class, and cannot be created.

Created in NX5.0.0.

Member Function Documentation

NXOpen::CAE::ResponseSimulation::DataLocation* NXOpen::CAE::ResponseSimulation::ModalResultsEvaluationSettingBuilder::DataLocation

(

)

Returns the frequency setting
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::ResponseSimulation::FrequencyDefinition* NXOpen::CAE::ResponseSimulation::ModalResultsEvaluationSettingBuilder::EvaluationProperty

(

)

Returns the frequency setting
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

std::vector<NXOpen::CAE::FEElement *> NXOpen::CAE::ResponseSimulation::ModalResultsEvaluationSettingBuilder::GetOutputElements

(

)

Returns destination nodes.

Only available when result type is CAE::ResponseSimulation::EvaluationResultTypeStress , CAE::ResponseSimulation::EvaluationResultTypeStrain , CAE::ResponseSimulation::EvaluationResultTypeShellStressResultant

Returns

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

std::vector<NXOpen::CAE::FENode *> NXOpen::CAE::ResponseSimulation::ModalResultsEvaluationSettingBuilder::GetOutputNodes

(

)

Returns destination nodes.

Only available when result type is CAE::ResponseSimulation::EvaluationResultTypeDisplacement , CAE::ResponseSimulation::EvaluationResultTypeVelocity , CAE::ResponseSimulation::EvaluationResultTypeAcceleration , CAE::ResponseSimulation::EvaluationResultTypeReactionForce

Returns

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::ResponseSimulation::DirectionDataComponent NXOpen::CAE::ResponseSimulation::ModalResultsEvaluationSettingBuilder::InputDirection

(

)

Returns the source direction data component
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::FENode* NXOpen::CAE::ResponseSimulation::ModalResultsEvaluationSettingBuilder::InputNode

(

)

Returns the source node.

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::FENode* NXOpen::CAE::ResponseSimulation::ModalResultsEvaluationSettingBuilder::ObservationNode

(

)

Returns the observation nodes.

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::ResponseSimulation::DirectionDataComponent NXOpen::CAE::ResponseSimulation::ModalResultsEvaluationSettingBuilder::OutputRequest

(

)

Returns the destination direction data component
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

void NXOpen::CAE::ResponseSimulation::ModalResultsEvaluationSettingBuilder::SetInputDirection

(

NXOpen::CAE::ResponseSimulation::DirectionDataComponent

dataComponent

)

Sets the source direction data component
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

dataComponent

data component

void NXOpen::CAE::ResponseSimulation::ModalResultsEvaluationSettingBuilder::SetInputNode

(

NXOpen::CAE::FENode *

sourceNode

)

Sets the source node.

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

sourceNode

source node

void NXOpen::CAE::ResponseSimulation::ModalResultsEvaluationSettingBuilder::SetObservationNode

(

NXOpen::CAE::FENode *

observationNode

)

Sets the observation nodes.

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

observationNode

observation node

void NXOpen::CAE::ResponseSimulation::ModalResultsEvaluationSettingBuilder::SetOutputElements

(

const std::vector< NXOpen::CAE::FEElement * > &

destinationElements

)

Sets destination nodes
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

destinationElements

destination elements

void NXOpen::CAE::ResponseSimulation::ModalResultsEvaluationSettingBuilder::SetOutputNodes

(

const std::vector< NXOpen::CAE::FENode * > &

destinationNode

)

Sets destination nodes
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

destinationNode

destination node

void NXOpen::CAE::ResponseSimulation::ModalResultsEvaluationSettingBuilder::SetOutputRequest

(

NXOpen::CAE::ResponseSimulation::DirectionDataComponent

dataComponent

)

Sets the destination direction data component
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

dataComponent

data component

---

The documentation for this class was generated from the following file:

• CAE_ResponseSimulation_ModalResultsEvaluationSettingBuilder.hxx
