NXOpen::CAE::ResponseSimulation::ElementalFunctionEvaluationSettingBuilder Class Reference

This is a manager to the CAE::ResponseSimulation::ElementalFunctionEvaluationSetting class. More...

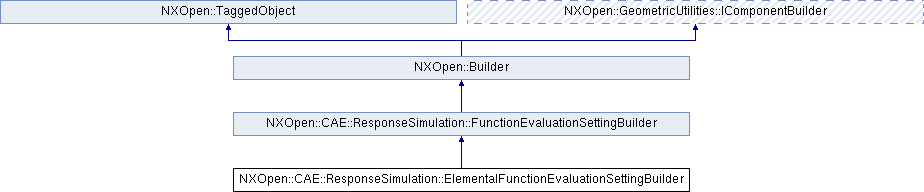

Inheritance diagram for NXOpen::CAE::ResponseSimulation::ElementalFunctionEvaluationSettingBuilder:

Public Member Functions
NXOpen::CAE::ResponseSimulation::ElementalFunctionEvalBeamLocation	BeamDataLocation ()
	Returns the data location of beam element.
NXOpen::CAE::ResponseSimulation::CoordinateSystem	CoordinateSystem ()
	Returns the coordinate system Created in NX5.0.0.
NXOpen::CAE::ResponseSimulation::DirectionDataComponent	DataComponent ()
	Returns the data component of direction Created in NX5.0.0.
NXOpen::CAE::ResponseSimulation::ElementLocation	ElementLocation ()
	Returns the evaluation location of element.
std::vector < NXOpen::CAE::FEElement * >	GetDestinationElements ()
	Returns the destination elements.
void	SetBeamDataLocation (NXOpen::CAE::ResponseSimulation::ElementalFunctionEvalBeamLocation beamLocation)
	Sets the data location of beam element.
void	SetCoordinateSystem (NXOpen::CAE::ResponseSimulation::CoordinateSystem coordinateSystem)
	Sets the coordinate system Created in NX5.0.0.
void	SetDataComponent (NXOpen::CAE::ResponseSimulation::DirectionDataComponent dataComponent)
	Sets the data component of direction Created in NX5.0.0.
void	SetDestinationElements (const std::vector< NXOpen::CAE::FEElement * > &destinationElement)
	Sets the destination elements Created in NX5.0.0.
void	SetElementLocation (NXOpen::CAE::ResponseSimulation::ElementLocation elementLocation)
	Sets the evaluation location of element.
void	SetShellEvaluationLocation (NXOpen::CAE::ResponseSimulation::ShellElementEvaluationLocation shellLocation)
	Sets the evaluation location of shell element.
NXOpen::CAE::ResponseSimulation::ShellElementEvaluationLocation	ShellEvaluationLocation ()
	Returns the evaluation location of shell element.
Public Member Functions inherited from NXOpen::CAE::ResponseSimulation::FunctionEvaluationSettingBuilder
NXOpen::CAE::ResponseSimulation::FunctionEvaluationOutputSettings *	OutputSettings ()
	Returns the output setting.
NXOpen::CAE::ResponseSimulation::EvaluationResultType	ResultType ()
	Returns the result type Created in NX5.0.0.
void	SetResultType (NXOpen::CAE::ResponseSimulation::EvaluationResultType resultType)
	Sets the result type Created in NX5.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This is a manager to the CAE::ResponseSimulation::ElementalFunctionEvaluationSetting class.

Object of type CAE::ResponseSimulation::ElementalFunctionEvaluationSetting can be created and edited only through this class
To create a new instance of this class, use CAE::ResponseSimulation::EvaluationSettingManager::CreateElementalFunctionEvaluationSettingBuilder

Created in NX5.0.0.

Member Function Documentation

NXOpen::CAE::ResponseSimulation::ElementalFunctionEvalBeamLocation NXOpen::CAE::ResponseSimulation::ElementalFunctionEvaluationSettingBuilder::BeamDataLocation

(

)

Returns the data location of beam element.

For more information about beam data location, see the Response Simulatin section of the Gateway help
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::ResponseSimulation::CoordinateSystem NXOpen::CAE::ResponseSimulation::ElementalFunctionEvaluationSettingBuilder::CoordinateSystem

(

)

Returns the coordinate system
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::ResponseSimulation::DirectionDataComponent NXOpen::CAE::ResponseSimulation::ElementalFunctionEvaluationSettingBuilder::DataComponent

(

)

Returns the data component of direction
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

NXOpen::CAE::ResponseSimulation::ElementLocation NXOpen::CAE::ResponseSimulation::ElementalFunctionEvaluationSettingBuilder::ElementLocation

(

)

Returns the evaluation location of element.

Created in NX6.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

std::vector<NXOpen::CAE::FEElement *> NXOpen::CAE::ResponseSimulation::ElementalFunctionEvaluationSettingBuilder::GetDestinationElements

(

)

Returns the destination elements.

Returns

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

void NXOpen::CAE::ResponseSimulation::ElementalFunctionEvaluationSettingBuilder::SetBeamDataLocation

(

NXOpen::CAE::ResponseSimulation::ElementalFunctionEvalBeamLocation

beamLocation

)

Sets the data location of beam element.

For more information about beam data location, see the Response Simulatin section of the Gateway help
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

beamLocation

beam location

void NXOpen::CAE::ResponseSimulation::ElementalFunctionEvaluationSettingBuilder::SetCoordinateSystem

(

NXOpen::CAE::ResponseSimulation::CoordinateSystem

coordinateSystem

)

Sets the coordinate system
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

coordinateSystem

coordinate system

void NXOpen::CAE::ResponseSimulation::ElementalFunctionEvaluationSettingBuilder::SetDataComponent

(

NXOpen::CAE::ResponseSimulation::DirectionDataComponent

dataComponent

)

Sets the data component of direction
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

dataComponent

data component

void NXOpen::CAE::ResponseSimulation::ElementalFunctionEvaluationSettingBuilder::SetDestinationElements

(

const std::vector< NXOpen::CAE::FEElement * > &

destinationElement

)

Sets the destination elements
Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

destinationElement

destination element

void NXOpen::CAE::ResponseSimulation::ElementalFunctionEvaluationSettingBuilder::SetElementLocation

(

NXOpen::CAE::ResponseSimulation::ElementLocation

elementLocation

)

Sets the evaluation location of element.

Created in NX6.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

elementLocation

element location

void NXOpen::CAE::ResponseSimulation::ElementalFunctionEvaluationSettingBuilder::SetShellEvaluationLocation

(

NXOpen::CAE::ResponseSimulation::ShellElementEvaluationLocation

shellLocation

)

Sets the evaluation location of shell element.

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

Parameters

shellLocation

shell location

NXOpen::CAE::ResponseSimulation::ShellElementEvaluationLocation NXOpen::CAE::ResponseSimulation::ElementalFunctionEvaluationSettingBuilder::ShellEvaluationLocation

(

)

Returns the evaluation location of shell element.

Created in NX5.0.0.

License requirements : nx_response_anlys ("NX Response Analysis")

---

The documentation for this class was generated from the following file:

• CAE_ResponseSimulation_ElementalFunctionEvaluationSettingBuilder.hxx
