Represents a CAE::Optimization::DAODesignVariableBuilder . More...

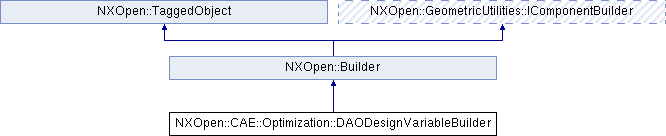

Inheritance diagram for NXOpen::CAE::Optimization::DAODesignVariableBuilder:

Public Types
enum	Variable { VariableSectionProperty, VariableShellProperty, VariableFeatureDimension, VariableSketchDimension, VariableAllExpressions, VariableCount }
	Represents the design variable type. More...

Public Member Functions
NXOpen::NXObject *	AttachedEntity ()
	Returns the entity attached to expression

NXOpen::Expression *	Expression ()
	Returns the expression

void	GetVariable (NXOpen::CAE::Optimization::DAODesignVariableBuilder::Variable variableType, NXOpen::Expression *variableExpression)
	Gets the design variable Created in NX8.0.1.

bool	GlobalSensitivityFlag ()
	Returns the flag if mark current design variable as global sensitivity design variable, only effective for global sensitivity optimization type Created in NX8.0.0.

double	LowerLimit ()
	Returns the lower limit value Created in NX8.0.0.

NXString	Name ()
	Returns the design variable name Created in NX8.0.0.

void	SetAttachedEntity (NXOpen::NXObject *attachedEntity)
	Sets the entity attached to expression

void	SetExpression (NXOpen::Expression *expression)
	Sets the expression

void	SetGlobalSensitivityFlag (bool globalSensitivityFlag)
	Sets the flag if mark current design variable as global sensitivity design variable, only effective for global sensitivity optimization type Created in NX8.0.0.

void	SetLowerLimit (double lowerLimit)
	Sets the lower limit value Created in NX8.0.0.

void	SetName (const NXString &designVariableName)
	Sets the design variable name Created in NX8.0.0.

void	SetName (const char *designVariableName)
	Sets the design variable name Created in NX8.0.0.

void	SetUpperLimit (double upperLimit)
	Sets the upper limit value Created in NX8.0.0.

void	SetVariable (NXOpen::CAE::Optimization::DAODesignVariableBuilder::Variable variableType, NXOpen::Expression *variableExpression)
	Sets the design variable Created in NX8.0.1.

double	UpperLimit ()
	Returns the upper limit value Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a CAE::Optimization::DAODesignVariableBuilder .

To create a new instance of this class, use CAE::Optimization::DAOSolutionCollection::CreateDesignVariableBuilder

Created in NX8.0.0.

Member Enumeration Documentation

enum NXOpen::CAE::Optimization::DAODesignVariableBuilder::Variable

Represents the design variable type.

Enumerator:

VariableSectionProperty	Section property variables.
VariableShellProperty	Shell property variables.
VariableFeatureDimension	Feature dimension variables.
VariableSketchDimension	Sketch dimension variables.
VariableAllExpressions	Variables from FEM, SIM and master part.
VariableCount	Variable type count.

Member Function Documentation

NXOpen::NXObject* NXOpen::CAE::Optimization::DAODesignVariableBuilder::AttachedEntity ( )

Returns the entity attached to expression

Deprecated:: Deprecated in NX8.5.0.

Use CAE::Optimization::DAODesignVariableBuilder::GetVariable instead.

Created in NX8.0.0.

License requirements : None

NXOpen::Expression* NXOpen::CAE::Optimization::DAODesignVariableBuilder::Expression ( )

Returns the expression

Deprecated:: Deprecated in NX8.5.0.

Use CAE::Optimization::DAODesignVariableBuilder::GetVariable instead.

Created in NX8.0.0.

License requirements : None

void NXOpen::CAE::Optimization::DAODesignVariableBuilder::GetVariable	(	NXOpen::CAE::Optimization::DAODesignVariableBuilder::Variable *	variableType,
		NXOpen::Expression **	variableExpression
	)

Gets the design variable
Created in NX8.0.1.

License requirements : None

Parameters

variableType	Variable type
variableExpression	Variable expression

bool NXOpen::CAE::Optimization::DAODesignVariableBuilder::GlobalSensitivityFlag ( )

Returns the flag if mark current design variable as global sensitivity design variable, only effective for global sensitivity optimization type
Created in NX8.0.0.

License requirements : None

double NXOpen::CAE::Optimization::DAODesignVariableBuilder::LowerLimit ( )

Returns the lower limit value
Created in NX8.0.0.

License requirements : None

NXString NXOpen::CAE::Optimization::DAODesignVariableBuilder::Name ( )

Returns the design variable name
Created in NX8.0.0.

License requirements : None

void NXOpen::CAE::Optimization::DAODesignVariableBuilder::SetAttachedEntity ( NXOpen::NXObject * attachedEntity )

Sets the entity attached to expression

Deprecated:: Deprecated in NX8.5.0.

Use CAE::Optimization::DAODesignVariableBuilder::SetVariable instead.

Created in NX8.0.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

attachedEntity Attached entity

void NXOpen::CAE::Optimization::DAODesignVariableBuilder::SetExpression ( NXOpen::Expression * expression )

Sets the expression

Deprecated:: Deprecated in NX8.5.0.

Use CAE::Optimization::DAODesignVariableBuilder::SetVariable instead.

Created in NX8.0.0.

License requirements : nx_design_sim ("NX Design Simulation")

Parameters

expression Expression

void NXOpen::CAE::Optimization::DAODesignVariableBuilder::SetGlobalSensitivityFlag ( bool globalSensitivityFlag )

Sets the flag if mark current design variable as global sensitivity design variable, only effective for global sensitivity optimization type
Created in NX8.0.0.
