This class represents an Assembly Finite Element Model. More...

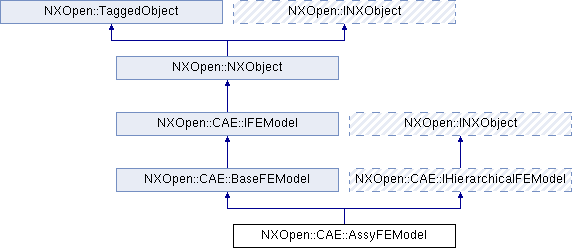

Inheritance diagram for NXOpen::CAE::AssyFEModel:

Public Types
enum	MappedComponentRemovalType { MappedComponentRemovalTypeKeepAsUnmapped, MappedComponentRemovalTypeRemove }
	the unmap types More...

enum	RepositionType { RepositionTypeAlwaysReposition, RepositionTypeNeverReposition, RepositionTypePrompt }
	the reposition types More...

Public Member Functions
NXOpen::TaggedObject *	Find (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::TaggedObject *	Find (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::Assemblies::Component *	GetAssemblyComponentForMappedFemOcc (NXOpen::CAE::FEModelOccurrence *femOcc)
	Returns the Assemblies::Component in the Cad assembly fem that corresponds to an CAE::FEModelOccurrence .

virtual std::vector < NXOpen::CAE::FEModelOccurrence * >	GetChildren ()
	Returns the child components of this component.

bool	GetFreezeOption ()
	Get freeze option.

NXOpen::CAE::AssyFEModel::MappedComponentRemovalType	GetMappedComponentRemovalOption ()
	Get unmap update option.

NXOpen::CAE::FEModelOccurrence *	GetMappedFemOccForAssemblyComponent (NXOpen::Assemblies::Component *cadPartOcc)
	Returns the CAE::FEModelOccurrence in this assembly fem that corresponds to an Assemblies::Component .

NXOpen::CAE::AssyFEModel::RepositionType	GetRepositionOption ()
	Get reposition update option.

NXOpen::CAE::FEModelOccurrence *	MapFemToAssemblyComponent (NXOpen::CAE::BaseFemPart femPart, NXOpen::Assemblies::Component cadPartOcc, bool workLayer)
	Map a fem part to an assembly component in an assembly fem.

virtual NXOpen::CAE::IFEModel *	Parent ()
	Returns the parent fem of this object, can be NULL Created in NX6.0.0.

void	RemoveFemMappedToAssemblyComponent (NXOpen::Assemblies::Component *cadPartOcc)
	Remove fem component mapped to assembly component in an assembly fem.

void	SetFreezeOption (bool freezeOption)
	Sets freeze option.

void	SetMappedComponentRemovalOption (NXOpen::CAE::AssyFEModel::MappedComponentRemovalType remOption)
	Sets unmap update option.

void	SetRepositionOption (NXOpen::CAE::AssyFEModel::RepositionType reposOption)
	Sets reposition update option.

void	UnmapFemFromAssemblyComponent (NXOpen::Assemblies::Component *cadPartOcc)
	Unmap a fem part from an assembly component in an assembly fem.

Public Member Functions inherited from NXOpen::CAE::BaseFEModel
NXOpen::CAE::BeamSectionCollection *	BeamSections ()
	Returns the Beam Section collection belonging to the part Created in NX3.0.0.

NXOpen::CAE::BoltCollection *	Bolts ()
	Returns the connection collector manager belonging to the part Created in NX7.5.0.

NXOpen::CAE::CAEConnectionCollection *	CaeConnections ()
	Returns the connection collector manager belonging to the part Created in NX3.0.0.

NXOpen::Tooling::CaeReuseLibrary *	CaeReuseLibrary ()
	Returns the CaeReuseLibrary belonging to the part Created in NX7.5.2.

NXOpen::CAE::CfdContactPreventionConstraintCollection *	CfdContactPreventionConstraints ()
	Returns the fluid domain contact prevention constraint collection belonging to this fem part Created in NX9.0.0.

NXOpen::CAE::CfdLocalResolutionConstraintCollection *	CfdLocalResolutionConstraints ()
	Returns the fluid domain local resolution constraint collection belonging to this fem part Created in NX9.0.0.

NXOpen::CAE::FluidDomainCollection *	FluidDomains ()
	Returns the fluid domain collection belonging to this fem part Created in NX7.5.2.

NXOpen::CAE::MeshControlCollection *	MeshControls ()
	Returns the mesh control collection belonging to this fem part Created in NX3.0.0.

NXOpen::CAE::NodeElementManager *	NodeElementMgr ()
	Returns the node element manager belonging to this fem part Created in NX3.0.0.

void	UpdateFemodel ()
	This method will update the finite element model so that it is in sync with any underlying changes.

Public Member Functions inherited from NXOpen::CAE::IFEModel
NXOpen::CAE::FEElementLabelMap *	FeelementLabelMap ()
	Returns a CAE::FEElement Label to CAE::FEElement Map for this Interface to the Finite Element Model.

NXOpen::CAE::FENodeLabelMap *	FenodeLabelMap ()
	Returns a CAE::FENode Label to CAE::FENode Map for this Interface to the Finite Element Model.

NXOpen::CAE::IMeshManager *	MeshManager ()
	Returns the IMeshManager Created in NX3.0.0.

Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.

void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.

void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.

virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.

bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.

bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.

int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.

int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.

int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.

double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.

double	GetRealAttribute (const char *title)
	Gets a real attribute by title.

double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.

double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.

NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.

NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.

NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.

NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.

NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.

NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.

NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.

NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.

bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.

std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.

std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.

std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.

bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).

virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.

virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.

virtual NXString	Name ()
	Returns the custom name of the object.

virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.

virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.

virtual void	Print ()
	Prints a representation of this object to the system log file.

virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.

void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.

void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.

void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.

void	SetAttribute (const char title, const char value)
	Creates or modifies a string attribute.

void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.

void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.

virtual void	SetName (const NXString &name)
	Sets the custom name of the object.

void	SetName (const char *name)
	Sets the custom name of the object.

void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const char title, const char value)
	Creates or modifies a string attribute which uses a reference string.

void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetReferenceAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.

void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const char title, const char value)
	Creates or modifies a time attribute.

void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeAttribute (const char title, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.

void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const char title, int index, const char value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.

void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.

void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

This class represents an Assembly Finite Element Model.

             This class will act as the gateway to the
             Finite Element Nodes (@link CAE::FENode CAE::FENode@endlink ) and Elements (@link CAE::FEElement CAE::FEElement@endlink ) in the model.
             Only one instance of this class will exist in each assyfem part file

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::CAE::AssyFEModel::MappedComponentRemovalType

the unmap types

Enumerator:

MappedComponentRemovalTypeKeepAsUnmapped	keep unmapped
MappedComponentRemovalTypeRemove	remove

enum NXOpen::CAE::AssyFEModel::RepositionType

the reposition types

Enumerator:

RepositionTypeAlwaysReposition	always reposition
RepositionTypeNeverReposition	never reposition
RepositionTypePrompt	prompt

Member Function Documentation

NXOpen::TaggedObject* NXOpen::CAE::AssyFEModel::Find ( const NXString & journalIdentifier )

Finds the NXObject with the given identifier as recorded in a journal.

   An object may not return the same value as its JournalIdentifier in different versions of
   the software. However newer versions of the software should find the same object when
   FindObject is passed older versions of its journal identifier. In general, this method
   should not be used in handwritten code and exists to support record and playback of journals.

   An exception will be thrown if no object can be found with the given journal identifier.  @return

Created in NX6.0.0.

License requirements : None

Parameters

journalIdentifier Journal identifier of the object

NXOpen::TaggedObject* NXOpen::CAE::AssyFEModel::Find ( const char * journalIdentifier )

Finds the NXObject with the given identifier as recorded in a journal.

   An object may not return the same value as its JournalIdentifier in different versions of
   the software. However newer versions of the software should find the same object when
   FindObject is passed older versions of its journal identifier. In general, this method
   should not be used in handwritten code and exists to support record and playback of journals.

   An exception will be thrown if no object can be found with the given journal identifier.  @return

Created in NX6.0.0.

License requirements : None

Parameters

journalIdentifier Journal identifier of the object

NXOpen::Assemblies::Component* NXOpen::CAE::AssyFEModel::GetAssemblyComponentForMappedFemOcc ( NXOpen::CAE::FEModelOccurrence * femOcc )

Returns the Assemblies::Component in the Cad assembly fem that corresponds to an CAE::FEModelOccurrence .

       This relationship would have been originally established through a call to @link CAE::AssyFEModel::MapFemToAssemblyComponent CAE::AssyFEModel::MapFemToAssemblyComponent@endlink .
     @return  component in an assembly

Created in NX8.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

femOcc fem occurrence

virtual std::vector<NXOpen::CAE::FEModelOccurrence *> NXOpen::CAE::AssyFEModel::GetChildren ( )

virtual

Returns the child components of this component.

Returns: Created in NX6.0.0.

License requirements : None

Implements NXOpen::CAE::IHierarchicalFEModel.

bool NXOpen::CAE::AssyFEModel::GetFreezeOption ( )

Get freeze option.

     @return  freeze option

Created in NX7.5.0.

License requirements : nx_masterfem ("Finite Element Modeling")

NXOpen::CAE::AssyFEModel::MappedComponentRemovalType NXOpen::CAE::AssyFEModel::GetMappedComponentRemovalOption ( )

Get unmap update option.

     @return  removal option

Created in NX7.5.0.

License requirements : nx_masterfem ("Finite Element Modeling")

NXOpen::CAE::FEModelOccurrence* NXOpen::CAE::AssyFEModel::GetMappedFemOccForAssemblyComponent ( NXOpen::Assemblies::Component * cadPartOcc )

Returns the CAE::FEModelOccurrence in this assembly fem that corresponds to an Assemblies::Component .

       This relationship would have been originally established through a call to @link CAE::AssyFEModel::MapFemToAssemblyComponent CAE::AssyFEModel::MapFemToAssemblyComponent@endlink .
     @return  fem occurrence

Created in NX8.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

cadPartOcc component in an assembly

NXOpen::CAE::AssyFEModel::RepositionType NXOpen::CAE::AssyFEModel::GetRepositionOption ( )

Get reposition update option.

     @return  reposition option

Created in NX7.5.0.

License requirements : nx_masterfem ("Finite Element Modeling")

NXOpen::CAE::FEModelOccurrence* NXOpen::CAE::AssyFEModel::MapFemToAssemblyComponent	(	NXOpen::CAE::BaseFemPart *	femPart,
		NXOpen::Assemblies::Component *	cadPartOcc,
		bool	workLayer
	)

Map a fem part to an assembly component in an assembly fem.

     When a FEM component in an Assembly FEM is mapped to an Assembly Component in another CAD Assembly,
     the mapped FEM component will use the same orientation as the CAD component and will update
     accordingly when the orientation of the CAD component is modified.
     @return  fem model occurrence that represents the fem part in the assembly FEM

Created in NX6.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

femPart	base fem part
cadPartOcc	component in an assembly
workLayer	true = Work layer or false = Original fem layer

virtual NXOpen::CAE::IFEModel* NXOpen::CAE::AssyFEModel::Parent ( )

virtual

Returns the parent fem of this object, can be NULL
Created in NX6.0.0.

License requirements : None

Implements NXOpen::CAE::IHierarchicalFEModel.

void NXOpen::CAE::AssyFEModel::RemoveFemMappedToAssemblyComponent ( NXOpen::Assemblies::Component * cadPartOcc )

Remove fem component mapped to assembly component in an assembly fem.

Created in NX6.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

cadPartOcc component in an assembly

void NXOpen::CAE::AssyFEModel::SetFreezeOption ( bool freezeOption )

Sets freeze option.

Created in NX7.5.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

freezeOption freeze option

void NXOpen::CAE::AssyFEModel::SetMappedComponentRemovalOption ( NXOpen::CAE::AssyFEModel::MappedComponentRemovalType remOption )

Sets unmap update option.

Created in NX7.5.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

remOption removal option

void NXOpen::CAE::AssyFEModel::SetRepositionOption ( NXOpen::CAE::AssyFEModel::RepositionType reposOption )

Sets reposition update option.

Created in NX7.5.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

reposOption reposition option

void NXOpen::CAE::AssyFEModel::UnmapFemFromAssemblyComponent ( NXOpen::Assemblies::Component * cadPartOcc )

Unmap a fem part from an assembly component in an assembly fem.

Created in NX6.0.0.

License requirements : nx_masterfem ("Finite Element Modeling")

Parameters

cadPartOcc component in an assembly

The documentation for this class was generated from the following file:

CAE_AssyFEModel.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
