Represents a @link Annotations::LightweightSection Annotations::LightweightSection@endlink  builder

Default values. More...

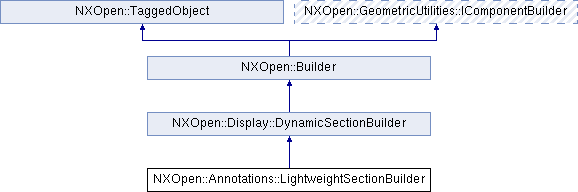

Inheritance diagram for NXOpen::Annotations::LightweightSectionBuilder:

Public Member Functions
bool	AssemblyCrosshatching ()
	Returns the assembly crosshatch option Created in NX9.0.0.

NXOpen::SelectDisplayableObjectList *	BoundingBoxComponents ()
	Returns the objects to define the box section type bounding extents Created in NX8.0.0.

NXOpen::Annotations::HatchFillSettingsBuilder *	CrosshatchSettings ()
	Returns the crosshatch settings Created in NX9.0.0.

NXOpen::Annotations::CuttingPlaneSymbolBuilder *	CuttingPlaneSymbol ()
	Returns the cutting plane symbol Created in NX9.0.0.

bool	DisplayCrosshatch ()
	Returns the display crosshatch option Created in NX9.0.0.

void	GetSectionCurves (std::vector< NXOpen::Curve * > &curves)
	Returns the lightweight section view curves Created in NX7.5.0.

NXOpen::SelectDisplayableObjectList *	ObjectsToSection ()
	Returns the objects to section Created in NX7.5.0.

int	PatternDefinedBy ()
	Returns the crosshatch pattern defined by Created in NX9.0.0.

bool	RestrictCrosshatch ()
	Returns the restrict crosshatch angle to 45 degree option Created in NX9.0.0.

bool	SaveAssociativeCurves ()
	Returns the save associative curves toggle value Created in NX7.5.0.

void	SetAssemblyCrosshatching (bool assemblyCrosshatchingOption)
	Sets the assembly crosshatch option Created in NX9.0.0.

void	SetDisplayCrosshatch (bool displayCrosshatchOption)
	Sets the display crosshatch option Created in NX9.0.0.

void	SetPatternDefinedBy (int patternDefinedBy)
	Sets the crosshatch pattern defined by Created in NX9.0.0.

void	SetRestrictCrosshatch (bool restrictCrosshatchOption)
	Sets the restrict crosshatch angle to 45 degree option Created in NX9.0.0.

void	SetSaveAssociativeCurves (bool saveAssociativeCurvesToggle)
	Sets the save associative curves toggle value Created in NX7.5.0.

void	SetToleranceCrosshatch (double crosshatchAdjacencyTolerance)
	Sets the crosshatch adjacency tolerance Created in NX9.0.0.

void	SetViewName (const NXString &viewName)
	Sets the name of the lightweight section view Created in NX7.5.0.

void	SetViewName (const char *viewName)
	Sets the name of the lightweight section view Created in NX7.5.0.

double	ToleranceCrosshatch ()
	Returns the crosshatch adjacency tolerance Created in NX9.0.0.

NXString	ViewName ()
	Returns the name of the lightweight section view Created in NX7.5.0.

Public Member Functions inherited from NXOpen::Display::DynamicSectionBuilder
void	AlternatePlane ()
	Cycle through planes that are 90 degrees aligned to the current section plane.

NXOpen::NXColor *	CapColor ()
	Returns the cap color.

NXOpen::Display::DynamicSectionTypes::CapColorOption	CapColorOption ()
	Returns the cap color option Created in NX5.0.0.

NXOpen::Display::DynamicSectionTypes::Clip	ClipType ()
	Returns the clip type Created in NX5.0.0.

NXOpen::DatumPlane *	CreateDatumPlane ()
	Creates a datum plane from the active section plane.

NXOpen::Display::DynamicSectionTypes::CoordinateSystem	CsysType ()
	Returns the coordinate system used for creating section plane along X, Y or Z principal planes.

NXOpen::NXColor *	CurveColor ()
	Returns the curve color.

NXOpen::Display::DynamicSectionTypes::CurveColorOption	CurveColorOption ()
	Returns the curve color option Created in NX5.0.0.

bool	DeferCurveUpdate ()
	Returns the defer curve update property.

void	EditView (NXOpen::ModelingView *view)
	Edits the section object in the modeling view.

void	GetActivePlane (NXOpen::Display::DynamicSectionTypes::Axis planeAxis, NXOpen::Display::DynamicSectionTypes::ActivePlane activePlane)
	Gets the active plane in the section.

NXOpen::Display::PlaneGridBuilder *	GetGridSettings ()
	Creates a grid settings builder from the active section plane.

NXString	GetName ()
	Gets the section name.

NXOpen::Vector3d	GetNormal ()
	Gets the normal of the section plane.

double	GetOffset ()
	Gets the the plane offset.

void	GetOffsetLimits (double minimumOffset, double maximumOffset)
	Gets minimum and maximum offset limits.

NXOpen::Point3d	GetOrigin ()
	Gets the section origin.

double	GetPlaneThickness ()
	Gets the thickness between active plane pair.

double	GetRotationAngle (NXOpen::Display::DynamicSectionTypes::Axis rotationAxis)
	Gets rotation angle for specified axis.

NXOpen::Matrix3x3	GetRotationMatrix ()
	Gets the section rotation matrix.

NXOpen::NXColor *	InterferenceColor ()
	Returns the interference color.

bool	IsAssociativitySupported ()
	Determines if an associative section plane is supported.

NXOpen::Display::LayerSettingsBuilder *	LayerSettings ()
	Returns the layer settings builder.

bool	LoadAllIntersecting (NXOpen::PartLoadStatus **loadStatus)
	Loads all components that intersect the current section plane.

bool	LoadNearIntersecting (NXOpen::PartLoadStatus **loadStatus)
	Loads components that intersect the current section plane and are near the section plane origin.

bool	LockPlanes ()
	Returns the lock planes flag.

int	NumberInSeries ()
	Returns the number of requested section planes in the current section series.

void	OffsetOriginInPlane (double xOffset, double yOffset)
	Offsets section origin within current section plane.

void	PlaneX ()
	Creates a plane along X direction.

void	PlaneY ()
	Creates a plane along Y direction.

void	PlaneZ ()
	Creates a plane along Z direction.

void	RestoreView ()
	Restores the section to the saved section in the view database.

void	ReverseDirection ()
	Reverses the plane direction.

bool	ReverseSeries ()
	Returns the reverse series flag Created in NX6.0.0.

void	SaveCurves (const NXString &groupName)
	Creates curves by intersecting all clipping planes of the section with all visible bodies in the scene and adds them to the group created with the specified name.

void	SaveCurves (const char *groupName)
	Creates curves by intersecting all clipping planes of the section with all visible bodies in the scene and adds them to the group created with the specified name.

double	SeriesSpacing ()
	Returns the section plane spacing in the current section series.

void	SetActivePlane (NXOpen::Display::DynamicSectionTypes::Axis planeAxis, NXOpen::Display::DynamicSectionTypes::ActivePlane activePlane)
	Sets the active plane in the section.

void	SetAssociativePlane (NXOpen::Plane *planeTag)
	Makes dynamic section associative to the specified plane The plane must be a smart plane; otherwise an error will be reported.

void	SetCapColor (NXOpen::NXColor *capColor)
	Sets the cap color.

void	SetCapColorOption (NXOpen::Display::DynamicSectionTypes::CapColorOption capColorOption)
	Sets the cap color option Created in NX5.0.0.

void	SetClipType (NXOpen::Display::DynamicSectionTypes::Clip clipType)
	Sets the clip type Created in NX5.0.0.

void	SetCsysType (NXOpen::Display::DynamicSectionTypes::CoordinateSystem csys)
	Sets the coordinate system used for creating section plane along X, Y or Z principal planes.

void	SetCurveColor (NXOpen::NXColor *curveColor)
	Sets the curve color.

void	SetCurveColorOption (NXOpen::Display::DynamicSectionTypes::CurveColorOption curveColorOption)
	Sets the curve color option Created in NX5.0.0.

void	SetDefaultPlane ()
	Set current section plane to its default definition.

void	SetDefaults ()
	Set current section to the default values.

void	SetDeferCurveUpdate (bool deferCurveUpdate)
	Sets the defer curve update property.

void	SetInterferenceColor (NXOpen::NXColor *interferenceColor)
	Sets the interference color.

void	SetLockPlanes (bool lockPlanes)
	Sets the lock planes flag.

bool	SetName (const NXString &sectionName)
	Sets the section name.

bool	SetName (const char *sectionName)
	Sets the section name.

void	SetNormal (const NXOpen::Vector3d &normal)
	Sets the normal of the section plane Section offset and rotation matrix are updated.

void	SetNumberInSeries (int numberSectionsRequested)
	Sets the number of requested section planes in the current section series.

void	SetOffset (double offset)
	Sets the the plane offset.

void	SetOffsetByPoint (const NXOpen::Point3d &point)
	This method offsets the active clipping plane such that the plane passes through the specified point.

void	SetOrigin (const NXOpen::Point3d &origin)
	Sets the section origin.

void	SetPlane (const NXOpen::Point3d &axisOrigin, const NXOpen::Point3d &origin, const NXOpen::Matrix3x3 &rotationMatrix)
	Sets a section plane to be the specified plane The plane is created at the specified origin with the specified rotation matrix.

void	SetPlaneThickness (double planeThickness)
	Sets the thickness between active plane pair.

void	SetReverseSeries (bool reverseSeries)
	Sets the reverse series flag Created in NX6.0.0.

void	SetRotationAngle (NXOpen::Display::DynamicSectionTypes::Axis rotationAxis, double angle)
	Rotates the section about specified axis by the specified angle.

void	SetRotationMatrix (NXOpen::Display::DynamicSectionTypes::Axis rotationAxis, const NXOpen::Matrix3x3 &rotationMatrix)
	Sets the section rotation matrix Specify Display::DynamicSectionTypes::AxisNone if the axis about which rotation was performed is not known.

void	SetSeriesSpacing (double sectionSpacing)
	Sets the section plane spacing in the current section series.

void	SetShowCap (bool showCap)
	Sets the cap on off flag Created in NX5.0.0.

void	SetShowClip (bool showClip)
	Sets the clip on off flag Created in NX5.0.0.

void	SetShowCurves (bool showCurves)
	Sets the curve on off flag.

void	SetShowGrid (bool showGrid)
	Sets the show grid display flag Created in NX6.0.0.

void	SetShowInterference (bool showInterference)
	Sets the interference on off flag.

void	SetShowViewer (bool showViewer)
	Sets the 2D viewer display flag Created in NX6.0.0.

void	SetType (NXOpen::Display::DynamicSectionTypes::Type type)
	Sets the section type Created in NX5.0.0.

void	SetView (NXOpen::ModelingView *view)
	Sets the modeling view in which section object edits are being done.

bool	ShowCap ()
	Returns the cap on off flag Created in NX5.0.0.

bool	ShowClip ()
	Returns the clip on off flag Created in NX5.0.0.

bool	ShowCurves ()
	Returns the curve on off flag.

bool	ShowGrid ()
	Returns the show grid display flag Created in NX6.0.0.

bool	ShowInterference ()
	Returns the interference on off flag.

void	ShowSectionCurves (bool showCurves)
	Shows the section curves in the view associated with the builder.

bool	ShowViewer ()
	Returns the 2D viewer display flag Created in NX6.0.0.

NXOpen::Display::DynamicSectionTypes::Type	Type ()
	Returns the section type Created in NX5.0.0.

NXOpen::ModelingView *	View ()
	Returns the modeling view in which section object edits are being done.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a @link Annotations::LightweightSection Annotations::LightweightSection@endlink  builder

Default values.

Property

Value

CapColorOption

Any

ClipType

Section

CurveColorOption

Any

CuttingPlaneSymbol.DisplayCuttingPlaneSymbol

0

CuttingPlaneSymbol.UseTwoArrows

0

CuttingPlaneSymbol.ViewNameFormat

UserDefined

LockPlanes

true

ShowCap

true

ShowClip

true

ShowCurves (deprecated)

false

ShowGrid

false

ShowInterference

false

ShowViewer

false

Type

OnePlane

Created in NX7.5.0.

Member Function Documentation

bool NXOpen::Annotations::LightweightSectionBuilder::AssemblyCrosshatching ( )

Returns the assembly crosshatch option
Created in NX9.0.0.

License requirements : None

NXOpen::SelectDisplayableObjectList* NXOpen::Annotations::LightweightSectionBuilder::BoundingBoxComponents ( )

Returns the objects to define the box section type bounding extents
Created in NX8.0.0.

License requirements : None

NXOpen::Annotations::HatchFillSettingsBuilder* NXOpen::Annotations::LightweightSectionBuilder::CrosshatchSettings ( )

Returns the crosshatch settings
Created in NX9.0.0.

License requirements : None

NXOpen::Annotations::CuttingPlaneSymbolBuilder* NXOpen::Annotations::LightweightSectionBuilder::CuttingPlaneSymbol ( )

Returns the cutting plane symbol
Created in NX9.0.0.

License requirements : None

bool NXOpen::Annotations::LightweightSectionBuilder::DisplayCrosshatch ( )

Returns the display crosshatch option
Created in NX9.0.0.

License requirements : None

void NXOpen::Annotations::LightweightSectionBuilder::GetSectionCurves ( std::vector< NXOpen::Curve * > & curves )

Returns the lightweight section view curves

Created in NX7.5.0.

License requirements : None

Parameters

curves Array of lightweight section view curves

NXOpen::SelectDisplayableObjectList* NXOpen::Annotations::LightweightSectionBuilder::ObjectsToSection ( )

Returns the objects to section
Created in NX7.5.0.

License requirements : None

int NXOpen::Annotations::LightweightSectionBuilder::PatternDefinedBy ( )

Returns the crosshatch pattern defined by
Created in NX9.0.0.

License requirements : None

bool NXOpen::Annotations::LightweightSectionBuilder::RestrictCrosshatch ( )

Returns the restrict crosshatch angle to 45 degree option
Created in NX9.0.0.

License requirements : None

bool NXOpen::Annotations::LightweightSectionBuilder::SaveAssociativeCurves ( )

Returns the save associative curves toggle value
Created in NX7.5.0.

License requirements : None

void NXOpen::Annotations::LightweightSectionBuilder::SetAssemblyCrosshatching ( bool assemblyCrosshatchingOption )

Sets the assembly crosshatch option
Created in NX9.0.0.
