NXOpen::Annotations::DraftingPointTarget Class Reference

Represents drafting point datum target
To create or edit an instance of this class, use Annotations::DraftingDatumTargetBuilder

Created in NX4.0.0. More...

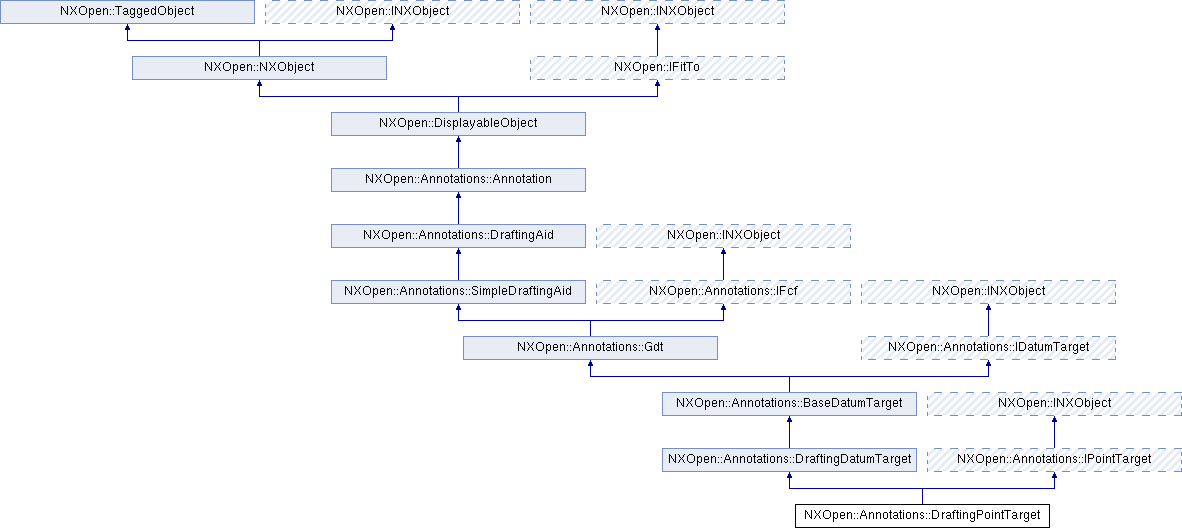

Inheritance diagram for NXOpen::Annotations::DraftingPointTarget:

Public Member Functions
virtual NXOpen::Point3d	PointCoordinates ()
	Returns the target point coordinates Created in NX4.0.0.
Public Member Functions inherited from NXOpen::Annotations::DraftingDatumTarget
NXOpen::Annotations::ArbitraryTarget *	ConvertToAreaTarget ()
	Converts a datum target point, line, or non-rectangular area to a rectangular area.
NXOpen::Annotations::DraftingArbitraryTarget *	ConvertToDraftingAreaTarget ()
	Converts a drafting datum target point, line, or non-rectangular area to a drafting rectangular area.
NXOpen::Annotations::DraftingLineTarget *	ConvertToDraftingLineTarget ()
	Converts a drafting datum target point or area to a drafting datum target line.
NXOpen::Annotations::DraftingPointTarget *	ConvertToDraftingPointTarget ()
	Converts a drafting datum target line or area to a drafting datum target point.
NXOpen::Annotations::LineTarget *	ConvertToLineTarget ()
	Converts a datum target point or area to a datum target line.
NXOpen::Annotations::PointTarget *	ConvertToPointTarget ()
	Converts a datum target line or area to a datum target point.
Public Member Functions inherited from NXOpen::Annotations::BaseDatumTarget
virtual NXString	DatumLabel ()
	Returns the datum target label.
virtual void	SetDatumLabel (const NXString &datumLabel)
	Sets the datum target label.
void	SetDatumLabel (const char *datumLabel)
	Sets the datum target label.
virtual void	SetTargetIndex (int index)
	Sets the datum target index.
virtual int	TargetIndex ()
	Returns the datum target index.
Public Member Functions inherited from NXOpen::Annotations::Gdt
bool	CanChangeLeaderPositionParameter ()
	Returns a flag indicating whether the Annotations::Gdt::LeaderPositionParameter can be changed Created in NX3.0.0.
virtual NXOpen::Annotations::FcfFrameData *	GetFcfFrameData ()
	Returns the single FCF frames data.
virtual std::vector < NXOpen::Annotations::FcfFrameData * >	GetFcfFrameDataArray ()
	Returns the multiple FCF frames data.
bool	HasLeaderPositionParameter ()
	Returns a flag indicating whether this GDT has a leader position parameter.
bool	HasStubbedDatumStyle ()
	Returns a flag indicating whether the leader has a stubbed datum style.
double	LeaderPositionParameter ()
	Returns a parameter which indicates where the leader end point is located on the object that it is attached to.
virtual void	SetFcfFrameData (NXOpen::Annotations::FcfFrameData *data)
	Sets the single FCF frames data.
virtual void	SetFcfFrameData (const std::vector< NXOpen::Annotations::FcfFrameData * > &fcfFrameData)
	Sets the multiple FCF frames data.
void	SetHasStubbedDatumStyle (bool stubbed)
	Sets a flag indicating whether the leader has a stubbed datum style.
void	SetLeaderPositionParameter (double param)
	Sets a parameter which indicates where the leader end point is located on the object that it is attached to.
void	SetSymbolCfw (const NXOpen::Annotations::LineCfw &cfw)
	Sets the symbol color, font, and width.
Public Member Functions inherited from NXOpen::Annotations::SimpleDraftingAid
std::vector< NXString >	GetText ()
	Returns the drafting aid's text.
NXOpen::Annotations::UserSymbolPreferences *	GetUserSymbolPreferences ()
	Returns the user symbol preferences.
void	GetUserSymbolSize (NXOpen::Annotations::UserSymbolPreferences::SizeType *sizeType, double *lengthOrScale, double *heightOrAspectRatio)
	Gets the user symbol size Created in NX3.0.0.
void	SetText (std::vector< NXString > &lines)
	Sets the drafting aid's text.
void	SetUserSymbolPreferences (NXOpen::Annotations::UserSymbolPreferences *usymPrefs)
	Sets the user symbol preferences.
void	SetUserSymbolSize (NXOpen::Annotations::UserSymbolPreferences::SizeType sizeType, double lengthOrScale, double heightOrAspectRatio)
	Sets the user symbol size.
Public Member Functions inherited from NXOpen::Annotations::IDatumTarget
void	SetDatumLabel (const char *datumLabel)
	Sets the datum target label.
Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
void	SetName (const char *name)
	Sets the custom name of the object.

Additional Inherited Members
Public Types inherited from NXOpen::DisplayableObject
enum	ObjectFont {   ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline,   ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed }
	specifies the object font for objects such as lines Created in NX3.0.0. More...
enum	ObjectWidth {   ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5,   ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive,   ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine }
	specifies object width for objects such as lines and text Created in NX3.0.0. More...

Detailed Description

Represents drafting point datum target
To create or edit an instance of this class, use Annotations::DraftingDatumTargetBuilder

Created in NX4.0.0.

Member Function Documentation

virtual NXOpen::Point3d NXOpen::Annotations::DraftingPointTarget::PointCoordinates ( )

virtual

Returns the target point coordinates
Created in NX4.0.0.

License requirements : None

Implements NXOpen::Annotations::IPointTarget.

---

The documentation for this class was generated from the following file:

• Annotations_DraftingPointTarget.hxx
