Represents a datum target
This is an abstract class, and cannot be created. More...

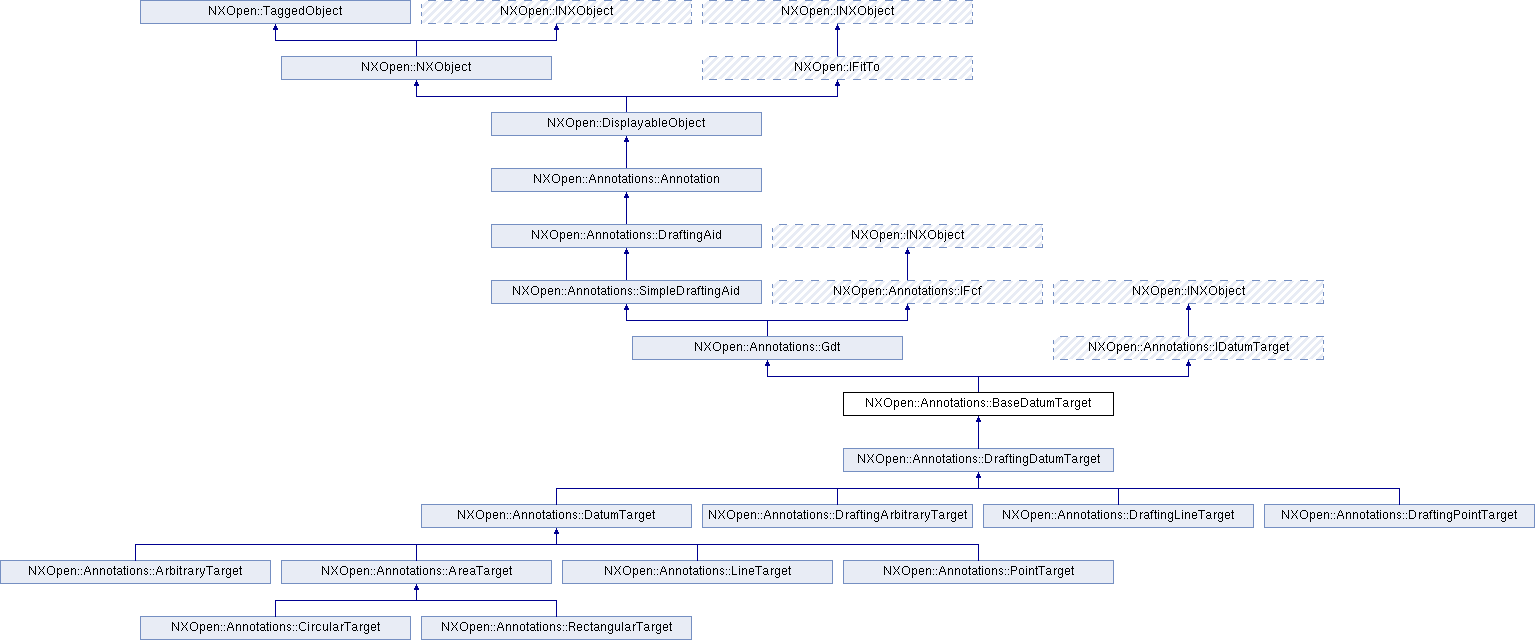

Inheritance diagram for NXOpen::Annotations::BaseDatumTarget:

Public Member Functions
virtual NXString	DatumLabel ()
	Returns the datum target label.

virtual void	SetDatumLabel (const NXString &datumLabel)
	Sets the datum target label.

void	SetDatumLabel (const char *datumLabel)
	Sets the datum target label.

virtual void	SetTargetIndex (int index)
	Sets the datum target index.

virtual int	TargetIndex ()
	Returns the datum target index.

Public Member Functions inherited from NXOpen::Annotations::Gdt
bool	CanChangeLeaderPositionParameter ()
	Returns a flag indicating whether the Annotations::Gdt::LeaderPositionParameter can be changed Created in NX3.0.0.

virtual NXOpen::Annotations::FcfFrameData *	GetFcfFrameData ()
	Returns the single FCF frames data.

virtual std::vector < NXOpen::Annotations::FcfFrameData * >	GetFcfFrameDataArray ()
	Returns the multiple FCF frames data.

bool	HasLeaderPositionParameter ()
	Returns a flag indicating whether this GDT has a leader position parameter.

bool	HasStubbedDatumStyle ()
	Returns a flag indicating whether the leader has a stubbed datum style.

double	LeaderPositionParameter ()
	Returns a parameter which indicates where the leader end point is located on the object that it is attached to.

virtual void	SetFcfFrameData (NXOpen::Annotations::FcfFrameData *data)
	Sets the single FCF frames data.

virtual void	SetFcfFrameData (const std::vector< NXOpen::Annotations::FcfFrameData * > &fcfFrameData)
	Sets the multiple FCF frames data.

void	SetHasStubbedDatumStyle (bool stubbed)
	Sets a flag indicating whether the leader has a stubbed datum style.

void	SetLeaderPositionParameter (double param)
	Sets a parameter which indicates where the leader end point is located on the object that it is attached to.

void	SetSymbolCfw (const NXOpen::Annotations::LineCfw &cfw)
	Sets the symbol color, font, and width.

Public Member Functions inherited from NXOpen::Annotations::SimpleDraftingAid
std::vector< NXString >	GetText ()
	Returns the drafting aid's text.

NXOpen::Annotations::UserSymbolPreferences *	GetUserSymbolPreferences ()
	Returns the user symbol preferences.

void	GetUserSymbolSize (NXOpen::Annotations::UserSymbolPreferences::SizeType sizeType, double lengthOrScale, double *heightOrAspectRatio)
	Gets the user symbol size Created in NX3.0.0.

void	SetText (std::vector< NXString > &lines)
	Sets the drafting aid's text.

void	SetUserSymbolPreferences (NXOpen::Annotations::UserSymbolPreferences *usymPrefs)
	Sets the user symbol preferences.

void	SetUserSymbolSize (NXOpen::Annotations::UserSymbolPreferences::SizeType sizeType, double lengthOrScale, double heightOrAspectRatio)
	Sets the user symbol size.

Public Member Functions inherited from NXOpen::Annotations::IDatumTarget
void	SetDatumLabel (const char *datumLabel)
	Sets the datum target label.

Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.

void	SetName (const char *name)
	Sets the custom name of the object.

Additional Inherited Members
Public Types inherited from NXOpen::DisplayableObject
enum	ObjectFont { ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline, ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed }
	specifies the object font for objects such as lines Created in NX3.0.0. More...

enum	ObjectWidth { ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5, ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive, ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine }
	specifies object width for objects such as lines and text Created in NX3.0.0. More...

Detailed Description

Represents a datum target
This is an abstract class, and cannot be created.

Created in NX7.5.0.

Member Function Documentation

virtual NXString NXOpen::Annotations::BaseDatumTarget::DatumLabel ( )

virtual

Returns the datum target label.

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : None

Implements NXOpen::Annotations::IDatumTarget.

virtual void NXOpen::Annotations::BaseDatumTarget::SetDatumLabel ( const NXString & datumLabel )

virtual

Sets the datum target label.

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

datumLabel New datum label

Implements NXOpen::Annotations::IDatumTarget.

void NXOpen::Annotations::BaseDatumTarget::SetDatumLabel ( const char * datumLabel )

Sets the datum target label.

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

datumLabel New datum label

virtual void NXOpen::Annotations::BaseDatumTarget::SetTargetIndex ( int index )

virtual

Sets the datum target index.

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

index New datum target index

Implements NXOpen::Annotations::IDatumTarget.

virtual int NXOpen::Annotations::BaseDatumTarget::TargetIndex ( )

virtual

Returns the datum target index.

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : None

Implements NXOpen::Annotations::IDatumTarget.

The documentation for this class was generated from the following file:

Annotations_BaseDatumTarget.hxx
