Represents a Geometric Dimensioning and Tolerancing symbol
This is an abstract class, and cannot be instantiated

Created in NX3.0.0. More...

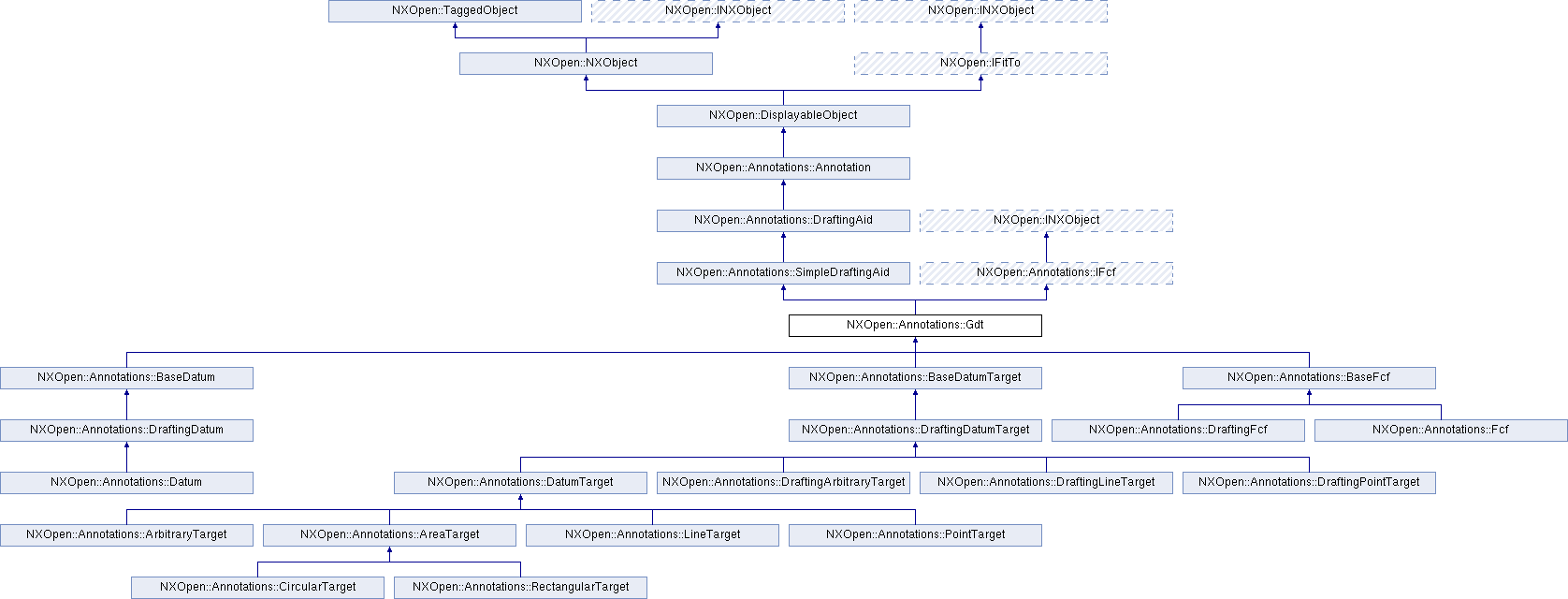

Inheritance diagram for NXOpen::Annotations::Gdt:

Public Member Functions
bool	CanChangeLeaderPositionParameter ()
	Returns a flag indicating whether the Annotations::Gdt::LeaderPositionParameter can be changed Created in NX3.0.0.

virtual NXOpen::Annotations::FcfFrameData *	GetFcfFrameData ()
	Returns the single FCF frames data.

virtual std::vector < NXOpen::Annotations::FcfFrameData * >	GetFcfFrameDataArray ()
	Returns the multiple FCF frames data.

bool	HasLeaderPositionParameter ()
	Returns a flag indicating whether this GDT has a leader position parameter.

bool	HasStubbedDatumStyle ()
	Returns a flag indicating whether the leader has a stubbed datum style.

double	LeaderPositionParameter ()
	Returns a parameter which indicates where the leader end point is located on the object that it is attached to.

virtual void	SetFcfFrameData (NXOpen::Annotations::FcfFrameData *data)
	Sets the single FCF frames data.

virtual void	SetFcfFrameData (const std::vector< NXOpen::Annotations::FcfFrameData * > &fcfFrameData)
	Sets the multiple FCF frames data.

void	SetHasStubbedDatumStyle (bool stubbed)
	Sets a flag indicating whether the leader has a stubbed datum style.

void	SetLeaderPositionParameter (double param)
	Sets a parameter which indicates where the leader end point is located on the object that it is attached to.

void	SetSymbolCfw (const NXOpen::Annotations::LineCfw &cfw)
	Sets the symbol color, font, and width.

Public Member Functions inherited from NXOpen::Annotations::SimpleDraftingAid
std::vector< NXString >	GetText ()
	Returns the drafting aid's text.

NXOpen::Annotations::UserSymbolPreferences *	GetUserSymbolPreferences ()
	Returns the user symbol preferences.

void	GetUserSymbolSize (NXOpen::Annotations::UserSymbolPreferences::SizeType sizeType, double lengthOrScale, double *heightOrAspectRatio)
	Gets the user symbol size Created in NX3.0.0.

void	SetText (std::vector< NXString > &lines)
	Sets the drafting aid's text.

void	SetUserSymbolPreferences (NXOpen::Annotations::UserSymbolPreferences *usymPrefs)
	Sets the user symbol preferences.

void	SetUserSymbolSize (NXOpen::Annotations::UserSymbolPreferences::SizeType sizeType, double lengthOrScale, double heightOrAspectRatio)
	Sets the user symbol size.

Additional Inherited Members
Public Types inherited from NXOpen::DisplayableObject
enum	ObjectFont { ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline, ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed }
	specifies the object font for objects such as lines Created in NX3.0.0. More...

enum	ObjectWidth { ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5, ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive, ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine }
	specifies object width for objects such as lines and text Created in NX3.0.0. More...

Detailed Description

Represents a Geometric Dimensioning and Tolerancing symbol
This is an abstract class, and cannot be instantiated

Created in NX3.0.0.

Member Function Documentation

bool NXOpen::Annotations::Gdt::CanChangeLeaderPositionParameter ( )

Returns a flag indicating whether the Annotations::Gdt::LeaderPositionParameter can be changed
Created in NX3.0.0.

License requirements : None

virtual NXOpen::Annotations::FcfFrameData* NXOpen::Annotations::Gdt::GetFcfFrameData ( )

virtual

Returns the single FCF frames data.

Returns: FCF frame data
Created in NX4.0.0.

License requirements : None

Implements NXOpen::Annotations::IFcf.

virtual std::vector<NXOpen::Annotations::FcfFrameData *> NXOpen::Annotations::Gdt::GetFcfFrameDataArray ( )

virtual

Returns the multiple FCF frames data.

Returns: FCF frame datas
Created in NX5.0.0.

License requirements : None

Implements NXOpen::Annotations::IFcf.

bool NXOpen::Annotations::Gdt::HasLeaderPositionParameter ( )

Returns a flag indicating whether this GDT has a leader position parameter.

   GDTs with the following leader types do not have a leader position
   parameter: plain, around, plain-aligned, around-aligned

Created in NX3.0.0.

License requirements : None

bool NXOpen::Annotations::Gdt::HasStubbedDatumStyle ( )

Returns a flag indicating whether the leader has a stubbed datum style.

   This property is not applicable to GDTs with the following leader
   types: plain, around, plain-aligned, around-aligned, and on-dimension.
   Do not attempt to set this property for these
   leader types.

Created in NX3.0.0.

License requirements : None

double NXOpen::Annotations::Gdt::LeaderPositionParameter ( )

Returns a parameter which indicates where the leader end point is located on the object that it is attached to.

0.0 indicates the start of the object that it is attached to and 1.0 indicates the end of the object. This property is not applicable to GDTs with the following leader types: plain, around, plain-aligned, around-aligned. You should not attempt to read this parameter unless Annotations::Gdt::HasLeaderPositionParameter is true. You should not attempt to change this parameter unless Annotations::Gdt::CanChangeLeaderPositionParameter returns true. This parameter cannot not set for GDTs with the following leader types: plain, around, plain-aligned, around-aligned, on-annotation, and on-stub.

NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object. If it is, the changes will be overridden when the part is updated.
Created in NX3.0.0.

License requirements : None

virtual void NXOpen::Annotations::Gdt::SetFcfFrameData ( NXOpen::Annotations::FcfFrameData * data )

virtual

Sets the single FCF frames data.

       NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

data	FCF frame data

Implements NXOpen::Annotations::IFcf.

virtual void NXOpen::Annotations::Gdt::SetFcfFrameData ( const std::vector< NXOpen::Annotations::FcfFrameData * > & fcfFrameData )

virtual

Sets the multiple FCF frames data.

       NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX5.0.0.

License requirements : geometric_tol ("GDT")

Parameters

fcfFrameData FCF frame datas

Implements NXOpen::Annotations::IFcf.

void NXOpen::Annotations::Gdt::SetHasStubbedDatumStyle ( bool stubbed )

Sets a flag indicating whether the leader has a stubbed datum style.

   This property is not applicable to GDTs with the following leader
   types: plain, around, plain-aligned, around-aligned, and on-dimension.
   Do not attempt to set this property for these
   leader types.

Created in NX3.0.0.

License requirements : drafting ("DRAFTING")

Parameters

stubbed stubbed

void NXOpen::Annotations::Gdt::SetLeaderPositionParameter ( double param )

Sets a parameter which indicates where the leader end point is located on the object that it is attached to.

0.0 indicates the start of the object that it is attached to and 1.0 indicates the end of the object. This property is not applicable to GDTs with the following leader types: plain, around, plain-aligned, around-aligned. You should not attempt to read this parameter unless Annotations::Gdt::HasLeaderPositionParameter is true. You should not attempt to change this parameter unless Annotations::Gdt::CanChangeLeaderPositionParameter returns true. This parameter cannot not set for GDTs with the following leader types: plain, around, plain-aligned, around-aligned, on-annotation, and on-stub.

NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object. If it is, the changes will be overridden when the part is updated.
Created in NX3.0.0.

License requirements : drafting ("DRAFTING")

Parameters

param param

void NXOpen::Annotations::Gdt::SetSymbolCfw ( const NXOpen::Annotations::LineCfw & cfw )

Sets the symbol color, font, and width.

   The changes are not applied to the system until
   an update is performed.  An update can be performed by calling @link Update::DoUpdate Update::DoUpdate@endlink .
       NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX3.0.0.

License requirements : drafting ("DRAFTING")

Parameters

cfw cfw

The documentation for this class was generated from the following file:

Annotations_Gdt.hxx
