NXOpen::Annotations::IDatumTarget Class Reference

Represents interface class for a datum target
Created in NX4.0.0. More...

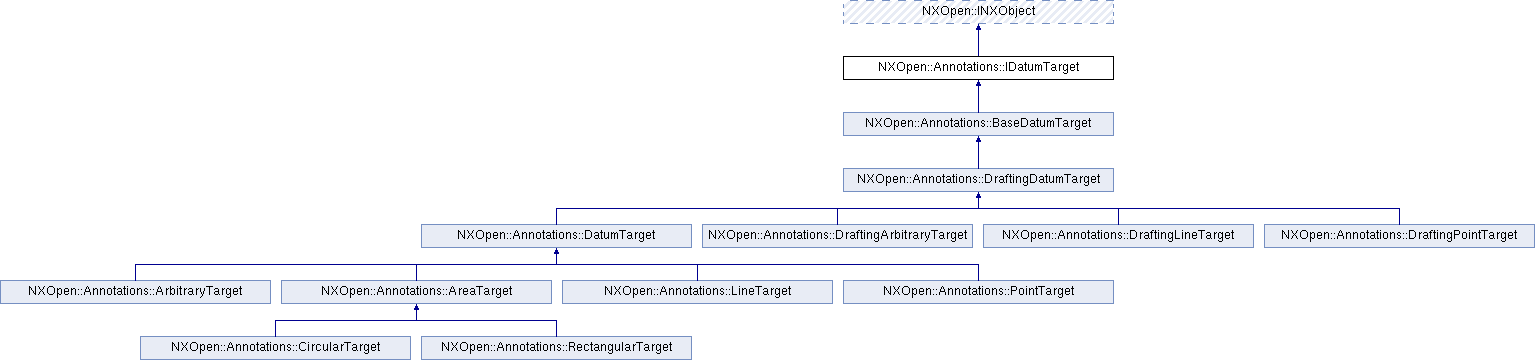

Inheritance diagram for NXOpen::Annotations::IDatumTarget:

Public Member Functions
virtual NXString	DatumLabel ()=0
	Returns the datum target label.
virtual void	SetDatumLabel (const NXString &datumLabel)=0
	Sets the datum target label.
void	SetDatumLabel (const char *datumLabel)
	Sets the datum target label.
virtual void	SetTargetIndex (int index)=0
	Sets the datum target index.
virtual int	TargetIndex ()=0
	Returns the datum target index.
Public Member Functions inherited from NXOpen::INXObject
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)=0
	Finds the NXObject with the given identifier as recorded in a journal.
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
virtual bool	IsOccurrence ()=0
	Returns whether this object is an occurrence or not.
virtual NXString	JournalIdentifier ()=0
	Returns the identifier that would be recorded in a journal for this object.
virtual NXString	Name ()=0
	Returns the custom name of the object.
virtual NXOpen::Assemblies::Component *	OwningComponent ()=0
	Returns the owning component, if this object is an occurrence.
virtual NXOpen::BasePart *	OwningPart ()=0
	Returns the owning part of this object Created in NX3.0.0.
virtual void	Print ()=0
	Prints a representation of this object to the system log file.
virtual NXOpen::INXObject *	Prototype ()=0
	Returns the prototype of this object if it is an occurrence.
virtual void	SetName (const NXString &name)=0
	Sets the custom name of the object.
void	SetName (const char *name)
	Sets the custom name of the object.

Detailed Description

Represents interface class for a datum target
Created in NX4.0.0.

Member Function Documentation

virtual NXString NXOpen::Annotations::IDatumTarget::DatumLabel ( )

pure virtual

Returns the datum target label.

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : None

Implemented in NXOpen::Annotations::BaseDatumTarget.

virtual void NXOpen::Annotations::IDatumTarget::SetDatumLabel ( const NXString &  datumLabel )

pure virtual

Sets the datum target label.

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

datumLabel

New datum label

Implemented in NXOpen::Annotations::BaseDatumTarget.

void NXOpen::Annotations::IDatumTarget::SetDatumLabel

(

const char *

datumLabel

)

Sets the datum target label.

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

datumLabel

New datum label

virtual void NXOpen::Annotations::IDatumTarget::SetTargetIndex ( int  index )

pure virtual

Sets the datum target index.

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

index

New datum target index

Implemented in NXOpen::Annotations::BaseDatumTarget.

virtual int NXOpen::Annotations::IDatumTarget::TargetIndex ( )

pure virtual

Returns the datum target index.

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : None

Implemented in NXOpen::Annotations::BaseDatumTarget.

---

The documentation for this class was generated from the following file:

• Annotations_IDatumTarget.hxx
