Represents a Datum target Builder
This is an abstract class, and cannot be instantiated. More...

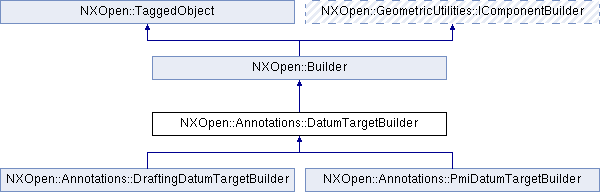

Inheritance diagram for NXOpen::Annotations::DatumTargetBuilder:

Public Types
enum	Types { TypesPoint, TypesLine, TypesRectangular, TypesCircular, TypesAnnular, TypesSpherical, TypesCylindrical, TypesArbitrary }
	datum symbol type More...

Public Member Functions
NXString	AreaSize ()
	Returns the area size Created in NX6.0.0.

bool	DrawX ()
	Returns the draw x Created in NX6.0.0.

NXOpen::Expression *	Height ()
	Returns the height Created in NX6.0.0.

int	Index ()
	Returns the index Created in NX6.0.0.

void	InheritFrom (NXOpen::Annotations::BaseDatumTarget *inheritTag)
	The datum target is inherited form existing datum target.

NXOpen::Expression *	InnerDiameter ()
	Returns the inner diameter Created in NX6.0.0.

NXString	Label ()
	Returns the label Created in NX6.0.0.

NXOpen::Annotations::LeaderBuilder *	Leader ()
	Returns the Annotations::LeaderBuilder for the annotation Created in NX6.0.0.

NXOpen::Annotations::OriginBuilder *	Origin ()
	Returns the origin Created in NX6.0.0.

NXOpen::Expression *	OuterDiameter ()
	Returns the outer diameter Created in NX6.0.0.

void	SetAreaSize (const NXString &areaSize)
	Sets the area size Created in NX6.0.0.

void	SetAreaSize (const char *areaSize)
	Sets the area size Created in NX6.0.0.

void	SetDrawX (bool flag)
	Sets the draw x Created in NX6.0.0.

void	SetIndex (int index)
	Sets the index Created in NX6.0.0.

void	SetLabel (const NXString &label)
	Sets the label Created in NX6.0.0.

void	SetLabel (const char *label)
	Sets the label Created in NX6.0.0.

void	SetType (NXOpen::Annotations::DatumTargetBuilder::Types type)
	Sets the type Created in NX6.0.0.

NXOpen::Annotations::StyleBuilder *	Style ()
	Returns the style Created in NX6.0.0.

NXOpen::Annotations::DatumTargetBuilder::Types	Type ()
	Returns the type Created in NX6.0.0.

NXOpen::Expression *	Width ()
	Returns the width Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Datum target Builder
This is an abstract class, and cannot be instantiated.

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Annotations::DatumTargetBuilder::Types

datum symbol type

Enumerator:

TypesPoint	point
TypesLine	point
TypesRectangular	rectangular
TypesCircular	circular
TypesAnnular	annular
TypesSpherical	spherical
TypesCylindrical	cylindrical
TypesArbitrary	arbitrary

Member Function Documentation

NXString NXOpen::Annotations::DatumTargetBuilder::AreaSize ( )

Returns the area size
Created in NX6.0.0.

License requirements : None

bool NXOpen::Annotations::DatumTargetBuilder::DrawX ( )

Returns the draw x
Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Annotations::DatumTargetBuilder::Height ( )

Returns the height
Created in NX6.0.0.

License requirements : None

int NXOpen::Annotations::DatumTargetBuilder::Index ( )

Returns the index
Created in NX6.0.0.

License requirements : None

void NXOpen::Annotations::DatumTargetBuilder::InheritFrom ( NXOpen::Annotations::BaseDatumTarget * inheritTag )

The datum target is inherited form existing datum target.

Created in NX8.5.0.

License requirements : None

Parameters

inheritTag inherittag

NXOpen::Expression* NXOpen::Annotations::DatumTargetBuilder::InnerDiameter ( )

Returns the inner diameter
Created in NX6.0.0.

License requirements : None

NXString NXOpen::Annotations::DatumTargetBuilder::Label ( )

Returns the label
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::LeaderBuilder* NXOpen::Annotations::DatumTargetBuilder::Leader ( )

Returns the Annotations::LeaderBuilder for the annotation
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::OriginBuilder* NXOpen::Annotations::DatumTargetBuilder::Origin ( )

Returns the origin
Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Annotations::DatumTargetBuilder::OuterDiameter ( )

Returns the outer diameter
Created in NX6.0.0.

License requirements : None

void NXOpen::Annotations::DatumTargetBuilder::SetAreaSize ( const NXString & areaSize )

Sets the area size
Created in NX6.0.0.
