NXOpen::Annotations::StyleBuilder Class Reference

Represents a Annotations::StyleBuilder . More...

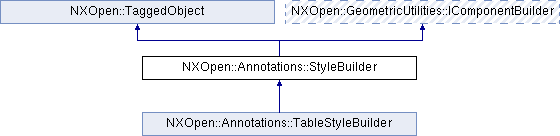

Inheritance diagram for NXOpen::Annotations::StyleBuilder:

Public Member Functions
NXOpen::Annotations::DimensionStyleBuilder *	DimensionStyle ()
	Returns the dimension style builder Created in NX6.0.0.
NXOpen::Annotations::FrameBarStyleBuilder *	FrameBarStyle ()
	Returns the frame bar builder Created in NX8.0.0.
NXOpen::Annotations::HatchStyleBuilder *	HatchStyle ()
	Returns the hatch style builder Created in NX6.0.0.
NXOpen::Annotations::HoleCalloutSettingsBuilder *	HoleCalloutSettings ()
	Returns the hole callout settings builder Created in NX9.0.0.
void	InheritSettingsFromCustomerDefault ()
	Inherit Settings From Customer Default Created in NX9.0.0.
void	InheritSettingsFromPreferences ()
	Inherit Settings From Preference Created in NX9.0.0.
void	InheritSettingsFromSelectedObjects (NXOpen::DisplayableObject *selectedObject)
	Inherit Settings From Selected Objects Created in NX9.0.0.
NXOpen::Annotations::LetteringStyleBuilder *	LetteringStyle ()
	Returns the lettering style builder Created in NX6.0.0.
NXOpen::Annotations::LineArrowStyleBuilder *	LineArrowStyle ()
	Returns the line/arrow style builder Created in NX6.0.0.
NXOpen::Annotations::OrdinateStyleBuilder *	OrdinateStyle ()
	Returns the ordinate style builder Created in NX6.0.0.
NXOpen::Annotations::RadialStyleBuilder *	RadialStyle ()
	Returns the radial style builder Created in NX6.0.0.
NXOpen::Annotations::SymbolStyleBuilder *	SymbolStyle ()
	Returns the symbol style builder Created in NX6.0.0.
NXOpen::Annotations::UnitsStyleBuilder *	UnitsStyle ()
	Returns the units style builder Created in NX6.0.0.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Annotations::StyleBuilder .

This class is used to set Annotation preferences when creating or editing an annotation.

Created in NX6.0.0.

Member Function Documentation

NXOpen::Annotations::DimensionStyleBuilder* NXOpen::Annotations::StyleBuilder::DimensionStyle

(

)

Returns the dimension style builder
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::FrameBarStyleBuilder* NXOpen::Annotations::StyleBuilder::FrameBarStyle

(

)

Returns the frame bar builder
Created in NX8.0.0.

License requirements : None

NXOpen::Annotations::HatchStyleBuilder* NXOpen::Annotations::StyleBuilder::HatchStyle

(

)

Returns the hatch style builder
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::HoleCalloutSettingsBuilder* NXOpen::Annotations::StyleBuilder::HoleCalloutSettings

(

)

Returns the hole callout settings builder
Created in NX9.0.0.

License requirements : None

void NXOpen::Annotations::StyleBuilder::InheritSettingsFromCustomerDefault

(

)

Inherit Settings From Customer Default
Created in NX9.0.0.

License requirements : drafting ("DRAFTING")

void NXOpen::Annotations::StyleBuilder::InheritSettingsFromPreferences

(

)

Inherit Settings From Preference
Created in NX9.0.0.

License requirements : drafting ("DRAFTING")

void NXOpen::Annotations::StyleBuilder::InheritSettingsFromSelectedObjects

(

NXOpen::DisplayableObject *

selectedObject

)

Inherit Settings From Selected Objects
Created in NX9.0.0.

License requirements : drafting ("DRAFTING")

Parameters

selectedObject

The selected annotation or table instance object. NULL is not allowed.

NXOpen::Annotations::LetteringStyleBuilder* NXOpen::Annotations::StyleBuilder::LetteringStyle

(

)

Returns the lettering style builder
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::LineArrowStyleBuilder* NXOpen::Annotations::StyleBuilder::LineArrowStyle

(

)

Returns the line/arrow style builder
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::OrdinateStyleBuilder* NXOpen::Annotations::StyleBuilder::OrdinateStyle

(

)

Returns the ordinate style builder
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::RadialStyleBuilder* NXOpen::Annotations::StyleBuilder::RadialStyle

(

)

Returns the radial style builder
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::SymbolStyleBuilder* NXOpen::Annotations::StyleBuilder::SymbolStyle

(

)

Returns the symbol style builder
Created in NX6.0.0.

License requirements : None

NXOpen::Annotations::UnitsStyleBuilder* NXOpen::Annotations::StyleBuilder::UnitsStyle

(

)

Returns the units style builder
Created in NX6.0.0.

License requirements : None

virtual bool NXOpen::Annotations::StyleBuilder::Validate ( )

virtual

Validate whether the inputs to the component are sufficient for commit to be called.

If the component is not in a state to commit then an exception is thrown. For example, if the component requires you to set some property, this method will throw an exception if you haven't set it. This method throws a not-yet-implemented NXException for some components.

Returns

Was self validation successful
Created in NX3.0.1.

License requirements : None

Implements NXOpen::GeometricUtilities::IComponentBuilder.

---

The documentation for this class was generated from the following file:

• Annotations_StyleBuilder.hxx
