NXOpen::Annotations::Annotation Class Reference

Represents an annotation / PMI (Product and Manufacturing Information) display instance object. More...

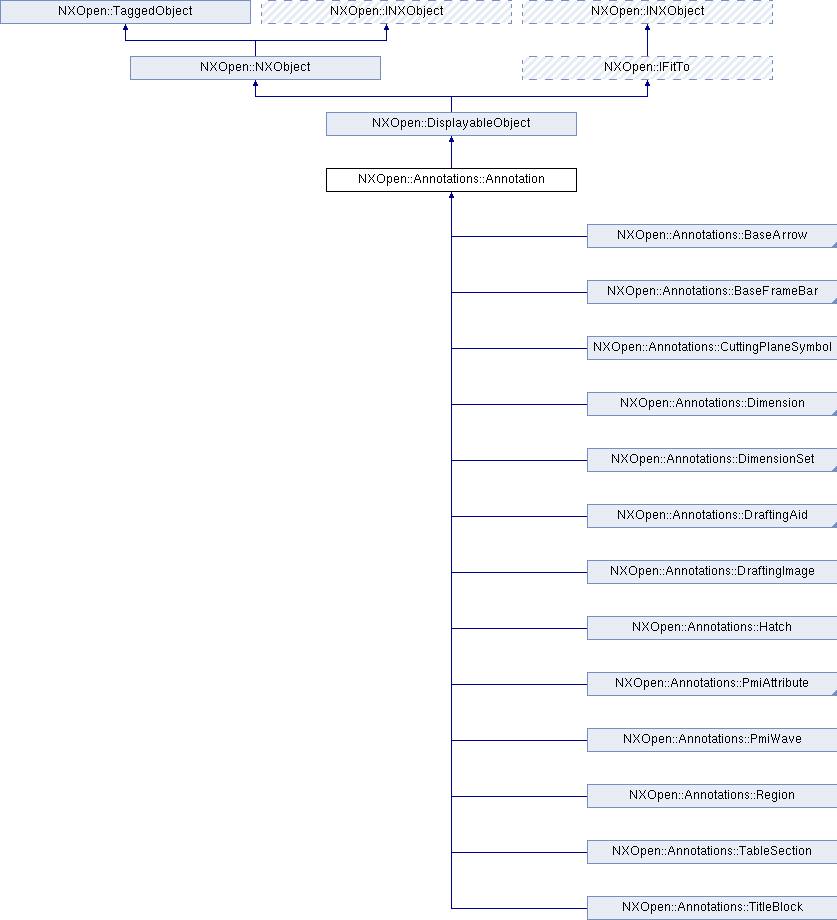

Inheritance diagram for NXOpen::Annotations::Annotation:

Classes
struct	AssociativeOriginData
	Describes the geometry that an annotation's origin is associated with. More...

Public Member Functions
NXOpen::Point3d	AnnotationOrigin ()
	Returns the origin (location) of the annotation.
NXOpen::Xform *	AnnotationPlane ()
	Returns the annotation plane.
NXOpen::Annotations::Annotation::AssociativeOriginData	GetAssociativeOrigin (NXOpen::Point3d *origin)
	Gets data that specifies the origin's associativity.
NXOpen::Annotations::Associativity *	GetAssociativity (int associativityIndex)
	Returns the associativity at specified index.
NXOpen::Xform *	GetInferredAnnotationPlane (NXOpen::Annotations::PmiDefaultPlane jaDefaultPlane)
	Returns the inferred annotation plane.
NXOpen::Annotations::LetteringPreferences *	GetLetteringPreferences ()
	Returns the lettering preferences for the annotation.
NXOpen::Annotations::LineAndArrowPreferences *	GetLineAndArrowPreferences ()
	Returns the line and arrow preferences for the annotation.
NXOpen::Annotations::SymbolPreferences *	GetSymbolPreferences ()
	Returns the symbol preferences for the annotation.
std::vector< NXOpen::View * >	GetViews ()
	Returns the views that the PMI display instance object is displayed in NOTE: This method is only valid for PMI display instance objects.
bool	HasAssociativeOrigin ()
	Returns a flag indicating whether the origin is associative Created in NX3.0.0.
void	InsertIntoStack (NXOpen::Annotations::Annotation *stack, NXOpen::Annotations::StackAlignmentPosition position)
	Inserts the annotation into a stack.
bool	IsRetained ()
	Returns a flag indicating whether the annotation is retained Created in NX3.0.0.
NXOpen::Annotations::LeaderOrientation	LeaderOrientation ()
	Returns the leader orientation for the annotation.
int	NumberOfAssociativities ()
	Returns the number of associativities for the annotation.
void	SetAnnotationOrigin (const NXOpen::Point3d &origin)
	Sets the origin (location) of the annotation.
void	SetAnnotationPlane (NXOpen::Xform *annotationPlane)
	Sets the annotation plane.
void	SetAssociativeOrigin (const NXOpen::Annotations::Annotation::AssociativeOriginData &assocOrigin, const NXOpen::Point3d &origin)
	Associates the annotation's origin to the specified geometry.
void	SetAssociativity (int associativityIndex, NXOpen::Annotations::Associativity *associativity)
	Sets the associativity at specified index.
void	SetLeaderOrientation (NXOpen::Annotations::LeaderOrientation leaderOrientation)
	Sets the leader orientation for the annotation.
void	SetLetteringPreferences (NXOpen::Annotations::LetteringPreferences *letteringPrefs)
	Sets the lettering preferences for the annotation.
void	SetLineAndArrowPreferences (NXOpen::Annotations::LineAndArrowPreferences *lineArrowPrefs)
	Sets the line and arrow preferences for the annotation.
void	SetSymbolPreferences (NXOpen::Annotations::SymbolPreferences *symbolPrefs)
	Sets the symbol preferences for the annotation.
void	SetViews (const std::vector< NXOpen::View * > &modelViews)
	Sets the views that the PMI display instance object is displayed in.
Public Member Functions inherited from NXOpen::DisplayableObject
void	Blank ()
	Blanks the object.
int	Color ()
	Returns the color of the object.
void	Highlight ()
	Highlights the object.
bool	IsBlanked ()
	Returns the blank status of this object.
int	Layer ()
	Returns the layer that the object is in.
NXOpen::DisplayableObject::ObjectFont	LineFont ()
	Returns the line font of the object.
NXOpen::DisplayableObject::ObjectWidth	LineWidth ()
	Returns the line width of the object.
NXOpen::Point3d	NameLocation ()
	Returns the location of the object's name.
void	RedisplayObject ()
	Redisplays the object in all views.
void	SetColor (int color)
	Sets the color of the object.
void	SetLayer (int layer)
	Sets the layer that the object is in.
void	SetLineFont (NXOpen::DisplayableObject::ObjectFont font)
	Sets the line font of the object.
void	SetLineWidth (NXOpen::DisplayableObject::ObjectWidth width)
	Sets the line width of the object.
void	SetNameLocation (const NXOpen::Point3d &location)
	Sets the location of the object's name.
void	Unblank ()
	Unblanks the object.
void	Unhighlight ()
	Unhighlights the object.
Public Member Functions inherited from NXOpen::NXObject
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type)
	Deletes all attributes of a specific type.
void	DeleteAllAttributesByType (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes all attributes of a specific type with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title)
	Deletes an attribute by type and title.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const NXString &title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteAttributeByTypeAndTitle (NXOpen::NXObject::AttributeType type, const char *title, NXOpen::Update::Option option)
	Deletes an attribute by type and title with the option to update or not.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const NXString &title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttribute (NXOpen::NXObject::AttributeType type, const char *title, bool deleteEntireArray, NXOpen::Update::Option option)
	Deletes the first attribute encountered with the given Type, Title and Index.
void	DeleteUserAttributes (NXOpen::NXObject::AttributeType type, NXOpen::Update::Option option)
	Deletes the attributes encountered with the given Type with option to update or not.
virtual NXOpen::INXObject *	FindObject (const NXString &journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
std::vector < NXOpen::NXObject::AttributeInformation >	GetAttributeTitlesByType (NXOpen::NXObject::AttributeType type)
	Gets all the attribute titles of a specific type.
bool	GetBooleanUserAttribute (const NXString &title, int index)
	Gets a boolean attribute by Title and array Index.
bool	GetBooleanUserAttribute (const char *title, int index)
	Gets a boolean attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::ComputationalTime	GetComputationalTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
int	GetIntegerAttribute (const NXString &title)
	Gets an integer attribute by title.
int	GetIntegerAttribute (const char *title)
	Gets an integer attribute by title.
int	GetIntegerUserAttribute (const NXString &title, int index)
	Gets an integer attribute by Title and array Index.
int	GetIntegerUserAttribute (const char *title, int index)
	Gets an integer attribute by Title and array Index.
double	GetRealAttribute (const NXString &title)
	Gets a real attribute by title.
double	GetRealAttribute (const char *title)
	Gets a real attribute by title.
double	GetRealUserAttribute (const NXString &title, int index)
	Gets a real attribute by Title and array Index.
double	GetRealUserAttribute (const char *title, int index)
	Gets a real attribute by Title and array Index.
NXString	GetReferenceAttribute (const NXString &title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetReferenceAttribute (const char *title)
	Gets the reference string (not the calculated value) of a string attribute that uses a reference string.
NXString	GetStringAttribute (const NXString &title)
	Gets a string attribute value by title.
NXString	GetStringAttribute (const char *title)
	Gets a string attribute value by title.
NXString	GetStringUserAttribute (const NXString &title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetStringUserAttribute (const char *title, int index)
	Gets a string attribute by Title and array Index.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const NXString &title)
	Gets a time attribute by title.
NXString	GetTimeAttribute (NXOpen::NXObject::DateAndTimeFormat format, const char *title)
	Gets a time attribute by title.
NXString	GetTimeUserAttribute (const NXString &title, int index)
	Gets a time attribute by Title and array Index.
NXString	GetTimeUserAttribute (const char *title, int index)
	Gets a time attribute by Title and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXOpen::NXObject::AttributeInformation	GetUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given Title, Type and array Index.
NXString	GetUserAttributeAsString (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
NXString	GetUserAttributeAsString (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Gets the first attribute encountered on the object, if any, with a given title, type and array index.
bool	GetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
bool	GetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type)
	Determine the lock of the given attribute.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes ()
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset)
	Gets all the attributes that have been set on the given object.
std::vector < NXOpen::NXObject::AttributeInformation >	GetUserAttributes (bool includeUnset, bool addStringValues)
	Gets all the attributes that have been set on the given object.
std::vector< NXString >	GetUserAttributesAsStrings ()
	Gets all the attributes that have been set on the given object.
std::vector< NXOpen::NXObject * >	GetUserAttributeSourceObjects ()
	Returns an array of objects from which this object presents attributes.
bool	HasUserAttribute (const NXString &title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
bool	HasUserAttribute (const char *title, NXOpen::NXObject::AttributeType type, int index)
	Determines if an attribute with the given Title, Type and array Index is present on the object If the attribute is not an array, the Index is ignored (if this is known beforehand, we recommend setting the Index to -1 to save time).
virtual bool	IsOccurrence ()
	Returns whether this object is an occurrence or not.
virtual NXString	JournalIdentifier ()
	Returns the identifier that would be recorded in a journal for this object.
virtual NXString	Name ()
	Returns the custom name of the object.
virtual NXOpen::Assemblies::Component *	OwningComponent ()
	Returns the owning component, if this object is an occurrence.
virtual NXOpen::BasePart *	OwningPart ()
	Returns the owning part of this object Created in NX3.0.0.
virtual void	Print ()
	Prints a representation of this object to the system log file.
virtual NXOpen::INXObject *	Prototype ()
	Returns the prototype of this object if it is an occurrence.
void	SetAttribute (const NXString &title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const char *title, int value)
	Creates or modifies an integer attribute.
void	SetAttribute (const NXString &title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const char *title, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetAttribute (const NXString &title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const char *title, double value)
	Creates or modifies a real attribute.
void	SetAttribute (const NXString &title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const char *title, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute.
void	SetAttribute (const char *title, const char *value)
	Creates or modifies a string attribute.
void	SetAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetAttribute (const NXString &title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const char *title)
	Creates or modifies a null attribute which is an attribute with a title and no value.
void	SetAttribute (const NXString &title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetAttribute (const char *title, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetBooleanUserAttribute (const NXString &title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
void	SetBooleanUserAttribute (const char *title, int index, bool value, NXOpen::Update::Option option)
	Creates or modifies a boolean attribute with the option to update or not.
virtual void	SetName (const NXString &name)
	Sets the custom name of the object.
void	SetName (const char *name)
	Sets the custom name of the object.
void	SetReferenceAttribute (const NXString &title, const NXString &value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const char *title, const char *value)
	Creates or modifies a string attribute which uses a reference string.
void	SetReferenceAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetReferenceAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute which uses a reference string, with the option to update or not.
void	SetTimeAttribute (const NXString &title, const NXString &value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const char *title, const char *value)
	Creates or modifies a time attribute.
void	SetTimeAttribute (const NXString &title, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeAttribute (const char *title, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const NXString &title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetTimeUserAttribute (const char *title, int index, const NXOpen::NXObject::ComputationalTime &value, NXOpen::Update::Option option)
	Creates or modifies a time attribute with the option to update or not.
void	SetUserAttribute (const NXOpen::NXObject::AttributeInformation &info, NXOpen::Update::Option option)
	Creates or modifies an attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, int value, NXOpen::Update::Option option)
	Creates or modifies an integer attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, double value, NXOpen::Update::Option option)
	Creates or modifies a real attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, const NXString &value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, const char *value, NXOpen::Update::Option option)
	Creates or modifies a string attribute with the option to update or not.
void	SetUserAttribute (const NXString &title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttribute (const char *title, int index, NXOpen::Update::Option option)
	Creates or modifies a null attribute with the option to update or not.
void	SetUserAttributeLock (const NXString &title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
void	SetUserAttributeLock (const char *title, NXOpen::NXObject::AttributeType type, bool lock)
	Lock or unlock the given attribute.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.
Public Member Functions inherited from NXOpen::INXObject
NXOpen::INXObject *	FindObject (const char *journalIdentifier)
	Finds the NXObject with the given identifier as recorded in a journal.
void	SetName (const char *name)
	Sets the custom name of the object.

Additional Inherited Members
Public Types inherited from NXOpen::DisplayableObject
enum	ObjectFont {   ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline,   ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed }
	specifies the object font for objects such as lines Created in NX3.0.0. More...
enum	ObjectWidth {   ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5,   ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive,   ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine }
	specifies object width for objects such as lines and text Created in NX3.0.0. More...

Detailed Description

Represents an annotation / PMI (Product and Manufacturing Information) display instance object.

    <br>
   Creation of drafting annotation objects is controlled by drafting license.  <br>
    <br>
   Creation of PMI display instance objects is controlled by geometric_tol license.  <br>
    <br>
   In all edit methods, the changes are not applied to the system until
   an update is performed.  An update can be performed by calling @link Update::DoUpdate Update::DoUpdate@endlink (). <br>
<br> This is an abstract class.  <br>

Created in NX3.0.0.

Member Function Documentation

NXOpen::Point3d NXOpen::Annotations::Annotation::AnnotationOrigin

(

)

Returns the origin (location) of the annotation.

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX3.0.0.

License requirements : None

NXOpen::Xform* NXOpen::Annotations::Annotation::AnnotationPlane

(

)

Returns the annotation plane.

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : None

NXOpen::Annotations::Annotation::AssociativeOriginData NXOpen::Annotations::Annotation::GetAssociativeOrigin

(

NXOpen::Point3d *

origin

)

Gets data that specifies the origin's associativity.

Returns

associativity data
Created in NX3.0.0.

License requirements : None

Parameters

origin

coordinates of the origin

NXOpen::Annotations::Associativity* NXOpen::Annotations::Annotation::GetAssociativity

(

int

associativityIndex

)

Returns the associativity at specified index.

Returns

Associativity object
Created in NX4.0.0.

License requirements : None

Parameters

associativityIndex

Associativity index

NXOpen::Xform* NXOpen::Annotations::Annotation::GetInferredAnnotationPlane

(

NXOpen::Annotations::PmiDefaultPlane

jaDefaultPlane

)

Returns the inferred annotation plane.

Returns

Created in NX4.0.0.

License requirements : None

Parameters

jaDefaultPlane

ja default plane

NXOpen::Annotations::LetteringPreferences* NXOpen::Annotations::Annotation::GetLetteringPreferences

(

)

Returns the lettering preferences for the annotation.

Returns

Created in NX3.0.0.

License requirements : None

NXOpen::Annotations::LineAndArrowPreferences* NXOpen::Annotations::Annotation::GetLineAndArrowPreferences

(

)

Returns the line and arrow preferences for the annotation.

Returns

Created in NX3.0.0.

License requirements : None

NXOpen::Annotations::SymbolPreferences* NXOpen::Annotations::Annotation::GetSymbolPreferences

(

)

Returns the symbol preferences for the annotation.

Returns

Created in NX5.0.0.

License requirements : None

std::vector<NXOpen::View *> NXOpen::Annotations::Annotation::GetViews

(

)

Returns the views that the PMI display instance object is displayed in NOTE: This method is only valid for PMI display instance objects.

             This method will return an empty view list for non-PMI display instance objects.
             This method will return an empty view list if the PMI object is displayed in all views.  @return  List of views that PMI display instance object is displayed in

Created in NX4.0.0.

License requirements : None

bool NXOpen::Annotations::Annotation::HasAssociativeOrigin

(

)

Returns a flag indicating whether the origin is associative
Created in NX3.0.0.

License requirements : None

void NXOpen::Annotations::Annotation::InsertIntoStack	(	NXOpen::Annotations::Annotation *	stack,
		NXOpen::Annotations::StackAlignmentPosition	position
	)

Inserts the annotation into a stack.

Annotations that already reside within a stack cannot be inserted into another stack (or the same stack) without first being removed from the stack they are in (attempting to do so will result in no changes to the annotation). The "position" parameter controls where in the stack the annotation will be inserted relative to the "stack" parameter. It is important to note that stacks have a primary column of members. Each member in the primary column can have up to three children (left, right, and below). If you stack an annotation above an existing stack member, the existing member becomes a child of the newly added member. The top most element in the primary column is the "owner" of the stack and all other annotations in the stack move relative to it. NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object. If it is, the changes will be overridden when the part is updated.
Created in NX6.0.1.

License requirements : geometric_tol ("GDT") OR drafting ("DRAFTING")

Parameters

stack	Annotation in the stack
position	Alignment position

bool NXOpen::Annotations::Annotation::IsRetained

(

)

Returns a flag indicating whether the annotation is retained
Created in NX3.0.0.

License requirements : None

NXOpen::Annotations::LeaderOrientation NXOpen::Annotations::Annotation::LeaderOrientation

(

)

Returns the leader orientation for the annotation.

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX3.0.0.

License requirements : None

int NXOpen::Annotations::Annotation::NumberOfAssociativities

(

)

Returns the number of associativities for the annotation.

Created in NX4.0.0.

License requirements : None

void NXOpen::Annotations::Annotation::SetAnnotationOrigin

(

const NXOpen::Point3d &

origin

)

Sets the origin (location) of the annotation.

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX3.0.0.

License requirements : geometric_tol ("GDT") OR drafting ("DRAFTING")

Parameters

origin

the new location

void NXOpen::Annotations::Annotation::SetAnnotationPlane

(

NXOpen::Xform *

annotationPlane

)

Sets the annotation plane.

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

annotationPlane

annotation plane

void NXOpen::Annotations::Annotation::SetAssociativeOrigin	(	const NXOpen::Annotations::Annotation::AssociativeOriginData &	assocOrigin,
		const NXOpen::Point3d &	origin
	)

Associates the annotation's origin to the specified geometry.

       NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX3.0.0.

License requirements : geometric_tol ("GDT") OR drafting ("DRAFTING")

Parameters

assocOrigin	associativity data
origin	coordinates of the origin

void NXOpen::Annotations::Annotation::SetAssociativity	(	int	associativityIndex,
		NXOpen::Annotations::Associativity *	associativity
	)

Sets the associativity at specified index.

       NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT") OR drafting ("DRAFTING")

Parameters

associativityIndex	Associativity index
associativity	Associativity object

void NXOpen::Annotations::Annotation::SetLeaderOrientation

(

NXOpen::Annotations::LeaderOrientation

leaderOrientation

)

Sets the leader orientation for the annotation.

       NOTE: The set method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX3.0.0.

License requirements : geometric_tol ("GDT") OR drafting ("DRAFTING")

Parameters

leaderOrientation

leader orientation

void NXOpen::Annotations::Annotation::SetLetteringPreferences

(

NXOpen::Annotations::LetteringPreferences *

letteringPrefs

)

Sets the lettering preferences for the annotation.

       NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX3.0.0.

License requirements : geometric_tol ("GDT") OR drafting ("DRAFTING")

Parameters

letteringPrefs

lettering prefs

void NXOpen::Annotations::Annotation::SetLineAndArrowPreferences

(

NXOpen::Annotations::LineAndArrowPreferences *

lineArrowPrefs

)

Sets the line and arrow preferences for the annotation.

       NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX3.0.0.

License requirements : geometric_tol ("GDT") OR drafting ("DRAFTING")

Parameters

lineArrowPrefs

line arrow prefs

void NXOpen::Annotations::Annotation::SetSymbolPreferences

(

NXOpen::Annotations::SymbolPreferences *

symbolPrefs

)

Sets the symbol preferences for the annotation.

       NOTE: This method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX5.0.0.

License requirements : geometric_tol ("GDT") OR drafting ("DRAFTING")

Parameters

symbolPrefs

symbol prefs

void NXOpen::Annotations::Annotation::SetViews

(

const std::vector< NXOpen::View * > &

modelViews

)

Sets the views that the PMI display instance object is displayed in.

       NOTE: This method is only valid for PMI display instance objects.
             This method should not be used to edit a read-only object such as a Mirrored PMI object.
             If it is, the changes will be overridden when the part is updated.

Created in NX4.0.0.

License requirements : geometric_tol ("GDT")

Parameters

modelViews

List of new views to display PMI display instance object in

---

The documentation for this class was generated from the following file:

• Annotations_Annotation.hxx
