NXOpen::CAE::DurabilityTransientEventBuilder Class Reference

Represents the builder for the transient durability event. More...

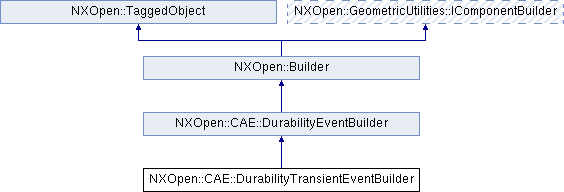

Inheritance diagram for NXOpen::CAE::DurabilityTransientEventBuilder:

Public Member Functions
NXOpen::CAE::DurabilityDataControlBuilder *	DataControl ()
	Returns the data control.
NXString	MdfFileName ()
	Returns the mdfFileName.
void	SetMdfFileName (const NXString &filename)
	Sets the mdfFileName.
void	SetMdfFileName (const char *filename)
	Sets the mdfFileName.
void	SetSort2Access (bool sort2Access)
	Sets the sort2 access.
void	SetStaticOffset (NXOpen::NXObject *staticOffset)
	Sets the static offset for the event.
void	SetSubcase (int subcase)
	Sets the subcase index.
bool	Sort2Access ()
	Returns the sort2 access.
NXOpen::NXObject *	StaticOffset ()
	Returns the static offset for the event.
int	Subcase ()
	Returns the subcase index.
Public Member Functions inherited from NXOpen::CAE::DurabilityEventBuilder
NXOpen::CAE::DurabilityEventFatigueSettingsBuilder *	EventFatigueSettings ()
	Returns the event fatigue settings.
NXString	EventName ()
	Returns the event name.
NXOpen::CAE::DurabilityEventOverridesBuilder *	EventOverrides ()
	Returns the event overrides.
NXOpen::CAE::DurabilityEventStrengthSettingsBuilder *	EventStrengthSettings ()
	Returns the event strength settings.
NXOpen::NXObject *	ResultSourceTag ()
	Returns the source of results for the event.
void	SetAxissearch (NXOpen::CAE::DurabilityAxisSearch *axisSearch)
	The stress axes stored inside the event.
void	SetEventName (const NXString &title)
	Sets the event name.
void	SetEventName (const char *title)
	Sets the event name.
void	SetFatigue (NXOpen::CAE::DurabilityFatigue *fatigue)
	The event fatigue settings stored inside the event.
void	SetResultSourceTag (NXOpen::NXObject *resultSourceTag)
	Sets the source of results for the event.
void	SetSolveoptions (NXOpen::CAE::DurabilitySolveOptions *solveOption)
	The event overrides.
void	SetStrength (NXOpen::CAE::DurabilityStrength *strength)
	The event strength settings stored inside the event.
NXOpen::CAE::DurabilityStressAxesBuilder *	StressAxes ()
	Returns the stress axes.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents the builder for the transient durability event.

There is no kf creator for this.

Created in NX7.5.0.

Member Function Documentation

NXOpen::CAE::DurabilityDataControlBuilder* NXOpen::CAE::DurabilityTransientEventBuilder::DataControl

(

)

Returns the data control.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

NXString NXOpen::CAE::DurabilityTransientEventBuilder::MdfFileName

(

)

Returns the mdfFileName.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

void NXOpen::CAE::DurabilityTransientEventBuilder::SetMdfFileName

(

const NXString &

filename

)

Sets the mdfFileName.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

filename

filename

void NXOpen::CAE::DurabilityTransientEventBuilder::SetMdfFileName

(

const char *

filename

)

Sets the mdfFileName.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

filename

filename

void NXOpen::CAE::DurabilityTransientEventBuilder::SetSort2Access

(

bool

sort2Access

)

Sets the sort2 access.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

sort2Access

sort2access

void NXOpen::CAE::DurabilityTransientEventBuilder::SetStaticOffset

(

NXOpen::NXObject *

staticOffset

)

Sets the static offset for the event.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

staticOffset

staticoffset

void NXOpen::CAE::DurabilityTransientEventBuilder::SetSubcase

(

int

subcase

)

Sets the subcase index.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

subcase

subcase

bool NXOpen::CAE::DurabilityTransientEventBuilder::Sort2Access

(

)

Returns the sort2 access.

Created in NX8.0.0.

License requirements : None

NXOpen::NXObject* NXOpen::CAE::DurabilityTransientEventBuilder::StaticOffset

(

)

Returns the static offset for the event.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

int NXOpen::CAE::DurabilityTransientEventBuilder::Subcase

(

)

Returns the subcase index.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

---

The documentation for this class was generated from the following file:

• CAE_DurabilityTransientEventBuilder.hxx
