NXOpen::CAE::DurabilityEventFatigueSettingsBuilder Class Reference

Represents a builder class for the event fatigue settings. More...

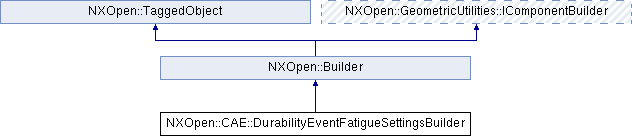

Inheritance diagram for NXOpen::CAE::DurabilityEventFatigueSettingsBuilder:

Public Types
enum	BwiWeldClassEnum {   BwiWeldClassEnumB, BwiWeldClassEnumC, BwiWeldClassEnumD, BwiWeldClassEnumE,   BwiWeldClassEnumF, BwiWeldClassEnumF2, BwiWeldClassEnumG, BwiWeldClassEnumW }
	the BWi Weld Class Enum. More...
enum	CyclicStressStrainModelEnum { CyclicStressStrainModelEnumLinear, CyclicStressStrainModelEnumPowerHardening, CyclicStressStrainModelEnumRambergOsgood }
	the cyclic stress strain model enum. More...
enum	EquivalentStressMethodEnum {   EquivalentStressMethodEnumNone, EquivalentStressMethodEnumGoodman, EquivalentStressMethodEnumSoderberg, EquivalentStressMethodEnumGerber,   EquivalentStressMethodEnumMorrow }
	the equivalent stress method enum. More...
enum	FatigueLifeCriterionEnum {   FatigueLifeCriterionEnumSmithWatsonTopper, FatigueLifeCriterionEnumStrainLifeMaximumPrincipal, FatigueLifeCriterionEnumStrainLifeMaximumShear, FatigueLifeCriterionEnumStressLife,   FatigueLifeCriterionEnumBwi, FatigueLifeCriterionEnumTwi }
	the fatigue life criterion enum. More...
enum	FatigueSafetyFactorMethodEnum { FatigueSafetyFactorMethodEnumAmplitudeandMean, FatigueSafetyFactorMethodEnumAmplitude, FatigueSafetyFactorMethodEnumMean }
	the Fatigue Safety Factor Method Enum. More...
enum	FatigueSafetyFactorOutputEnum { FatigueSafetyFactorOutputEnumGoodman, FatigueSafetyFactorOutputEnumGerber, FatigueSafetyFactorOutputEnumDangVan }
	the Fatigue Safety Factor Output Enum. More...
enum	MaximumAlternatingStressEnum { MaximumAlternatingStressEnumCalculate, MaximumAlternatingStressEnumKeyin }
	the Maximum Alternating Stress Enum. More...
enum	OrthotropicFatigueCriterionEnum { OrthotropicFatigueCriterionEnumHill, OrthotropicFatigueCriterionEnumTsaiWu, OrthotropicFatigueCriterionEnumMaximumStress }
	the Orthotropic Fatigue Criterion. More...
enum	OrthotropicMeanStressEnum { OrthotropicMeanStressEnumNone, OrthotropicMeanStressEnumGoodman, OrthotropicMeanStressEnumGerber, OrthotropicMeanStressEnumMorrow }
	the Orthotropic Mean Stress. More...
enum	ProbabilityOptionEnum { ProbabilityOptionEnumNumberOfStandardDeviations, ProbabilityOptionEnumProbabilityOfFailure }
	the Probability Option. More...

Public Member Functions
NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::BwiWeldClassEnum	BwiWeldClass ()
	Returns the bwi weld class.
double	CyclesToFailure ()
	Returns the cycles to failure.
NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::CyclicStressStrainModelEnum	CyclicStressStrainModel ()
	Returns the cyclic stress strain model.
NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::EquivalentStressMethodEnum	EquivalentStressMethod ()
	Returns the equivalent stress method.
bool	EventDamage ()
	Returns the event damage.
bool	EventDamageDirection ()
	Returns the event damage direction.
bool	EventLife ()
	Returns the event life.
bool	FailureIndex ()
	Returns the failure index.
NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::FatigueLifeCriterionEnum	FatigueLifeCriterion ()
	Returns the fatigue life criterion.
double	FatigueSafetyFactorKeyin ()
	Returns the fatigue safety factor keyin.
NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::FatigueSafetyFactorMethodEnum	FatigueSafetyFactorMethod ()
	Returns the fatigue safety factor method.
NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::FatigueSafetyFactorOutputEnum	FatigueSafetyFactorOutput ()
	Returns the fatigue safety factor output.
bool	FatigueSafetyFactorToggle ()
	Returns the fatigue safety factor toggle.
bool	FreeFaceIndicator ()
	Returns the free face indicator.
bool	IncludeMeanStressEffects ()
	Returns the include mean stress effects.
bool	LoadProportionality ()
	Returns the load proportionality.
NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::MaximumAlternatingStressEnum	MaximumAlternatingStress ()
	Returns the maximum alternating stress.
NXOpen::Expression *	MaximumAlternatingStressKeyin ()
	Returns the maximum alternating stress keyin.
NXString	Name ()
	Returns the name.
double	NotchFactor ()
	Returns the notch factor.
int	NumberOfElementsInHysterisisLoop ()
	Returns the number of elements in hysterisis loop.
int	NumberOfOccurrences ()
	Returns the number of occurrences.
double	NumberOfStandardDeviations ()
	Returns the number of standard deviations.
NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::OrthotropicFatigueCriterionEnum	OrthotropicFatigueCriterion ()
	Returns the orthotropic fatigue criterion.
NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::OrthotropicMeanStressEnum	OrthotropicMeanStress ()
	Returns the orthotropic mean stress.
bool	PerformOrthotropicAnalysis ()
	Returns the perform orthropic analysis.
double	PlateThicknessExponent ()
	Returns the plate thickness exponent.
double	PlateThicknessRatio ()
	Returns the plate thickness ratio.
bool	PrincipalAxisStability ()
	Returns the principal axis stability.
double	ProbabilityOfFailure ()
	Returns the probability of failure.
NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::ProbabilityOptionEnum	ProbabilityOption ()
	Returns the probability distribution.
void	SetBwiWeldClass (NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::BwiWeldClassEnum bwiWeldClass)
	Sets the bwi weld class.
void	SetCyclesToFailure (double cyclesToFailure)
	Sets the cycles to failure.
void	SetCyclicStressStrainModel (NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::CyclicStressStrainModelEnum cyclicStressStrainModel)
	Sets the cyclic stress strain model.
void	SetEquivalentStressMethod (NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::EquivalentStressMethodEnum equivalentStressMethod)
	Sets the equivalent stress method.
void	SetEventDamage (bool eventDamage)
	Sets the event damage.
void	SetEventDamageDirection (bool eventDamageDirection)
	Sets the event damage direction.
void	SetEventLife (bool eventLife)
	Sets the event life.
void	SetFailureIndex (bool failureIndex)
	Sets the failure index.
void	SetFatigueLifeCriterion (NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::FatigueLifeCriterionEnum fatigueLifeCriterion)
	Sets the fatigue life criterion.
void	SetFatigueSafetyFactorKeyin (double fatigueSafetyFactorKeyin)
	Sets the fatigue safety factor keyin.
void	SetFatigueSafetyFactorMethod (NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::FatigueSafetyFactorMethodEnum fatigueSafetyFactorMethod)
	Sets the fatigue safety factor method.
void	SetFatigueSafetyFactorOutput (NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::FatigueSafetyFactorOutputEnum fatigueSafetyFactorOutput)
	Sets the fatigue safety factor output.
void	SetFatigueSafetyFactorToggle (bool fatigueSafetyFactorToggle)
	Sets the fatigue safety factor toggle.
void	SetFreeFaceIndicator (bool freeFaceIndicator)
	Sets the free face indicator.
void	SetIncludeMeanStressEffects (bool includeMeanStressEffects)
	Sets the include mean stress effects.
void	SetLoadProportionality (bool loadProportionality)
	Sets the load proportionality.
void	SetMaximumAlternatingStress (NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::MaximumAlternatingStressEnum maximumAlternatingStress)
	Sets the maximum alternating stress.
void	SetName (const NXString &title)
	Sets the name.
void	SetName (const char *title)
	Sets the name.
void	SetNotchFactor (double notchFactor)
	Sets the notch factor.
void	SetNumberOfElementsInHysterisisLoop (int numberOfElementsInHysterisisLoop)
	Sets the number of elements in hysterisis loop.
void	SetNumberOfOccurrences (int numberOfOccurrences)
	Sets the number of occurrences.
void	SetNumberOfStandardDeviations (double numberOfStandardDeviations)
	Sets the number of standard deviations.
void	SetOrthotropicFatigueCriterion (NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::OrthotropicFatigueCriterionEnum orthotropicFatigueCriterion)
	Sets the orthotropic fatigue criterion.
void	SetOrthotropicMeanStress (NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::OrthotropicMeanStressEnum orthotropicMeanStress)
	Sets the orthotropic mean stress.
void	SetPerformOrthotropicAnalysis (bool performOrthotropicAnalysis)
	Sets the perform orthropic analysis.
void	SetPlateThicknessExponent (double plateThicknessExponent)
	Sets the plate thickness exponent.
void	SetPlateThicknessRatio (double plateThicknessRatio)
	Sets the plate thickness ratio.
void	SetPrincipalAxisStability (bool principalAxisStability)
	Sets the principal axis stability.
void	SetProbabilityOfFailure (double probabilityOfFailure)
	Sets the probability of failure.
void	SetProbabilityOption (NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::ProbabilityOptionEnum probabilityOption)
	Sets the probability distribution.
void	SetTwiHighCycleCutoff (double twiHighCycleCutoff)
	Sets the twi high cycle cutoff.
void	SetTwiHighCycleSlopeChange (double twiHighCycleSlopeChange)
	Sets the twi high cycle slope change.
void	SetTwiLowCycleStressCutoff (double twiLowCycleStressCutoff)
	Sets the twi low cycle stress cutoff.
void	SetTwiLowCycleStressExtension (double twiLowCycleStressExtension)
	Sets the twi low cycle stress extension.
void	SetUseNotchFactor (bool useNotchFactor)
	Sets the use notch factor.
void	SetUsePlateThicknessCorrection (bool usePlateThicknessCorrection)
	Sets the plate thickness correction usage.
double	TwiHighCycleCutoff ()
	Returns the twi high cycle cutoff.
double	TwiHighCycleSlopeChange ()
	Returns the twi high cycle slope change.
double	TwiLowCycleStressCutoff ()
	Returns the twi low cycle stress cutoff.
double	TwiLowCycleStressExtension ()
	Returns the twi low cycle stress extension.
bool	UseNotchFactor ()
	Returns the use notch factor.
bool	UsePlateThicknessCorrection ()
	Returns the plate thickness correction usage.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a builder class for the event fatigue settings.

   The fatigue settings help the user control the fatigue/durability
   parameters in the event. <br> To create a new instance of this class, use @link CAE::DurabilityFatigueCollection::CreateEventfatiguesettingsBuilder  CAE::DurabilityFatigueCollection::CreateEventfatiguesettingsBuilder @endlink  <br>

Created in NX7.5.0.

Member Enumeration Documentation

enum NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::BwiWeldClassEnum

the BWi Weld Class Enum.

Enumerator:

BwiWeldClassEnumB	B.
BwiWeldClassEnumC	C.
BwiWeldClassEnumD	D.
BwiWeldClassEnumE	E.
BwiWeldClassEnumF	F.
BwiWeldClassEnumF2	F2.
BwiWeldClassEnumG	G.
BwiWeldClassEnumW	W.

enum NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::CyclicStressStrainModelEnum

the cyclic stress strain model enum.

Enumerator:

CyclicStressStrainModelEnumLinear	Linear.
CyclicStressStrainModelEnumPowerHardening	PowerHardening.
CyclicStressStrainModelEnumRambergOsgood	RambergOsgood.

enum NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::EquivalentStressMethodEnum

the equivalent stress method enum.

Enumerator:

EquivalentStressMethodEnumNone	None.
EquivalentStressMethodEnumGoodman	Goodman.
EquivalentStressMethodEnumSoderberg	Soderberg.
EquivalentStressMethodEnumGerber	Gerber.
EquivalentStressMethodEnumMorrow	Morrow.

enum NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::FatigueLifeCriterionEnum

the fatigue life criterion enum.

Enumerator:

FatigueLifeCriterionEnumSmithWatsonTopper	SWT.
FatigueLifeCriterionEnumStrainLifeMaximumPrincipal	Maximum Principal.
FatigueLifeCriterionEnumStrainLifeMaximumShear	Maximum Shear.
FatigueLifeCriterionEnumStressLife	Stress Life.
FatigueLifeCriterionEnumBwi	BWI.
FatigueLifeCriterionEnumTwi	TWI.

enum NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::FatigueSafetyFactorMethodEnum

the Fatigue Safety Factor Method Enum.

Enumerator:

FatigueSafetyFactorMethodEnumAmplitudeandMean	AmplitudeandMean.
FatigueSafetyFactorMethodEnumAmplitude	Amplitude.
FatigueSafetyFactorMethodEnumMean	Mean.

enum NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::FatigueSafetyFactorOutputEnum

the Fatigue Safety Factor Output Enum.

Enumerator:

FatigueSafetyFactorOutputEnumGoodman	Goodman.
FatigueSafetyFactorOutputEnumGerber	Gerber.
FatigueSafetyFactorOutputEnumDangVan	Dang Van.

enum NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::MaximumAlternatingStressEnum

the Maximum Alternating Stress Enum.

Enumerator:

MaximumAlternatingStressEnumCalculate	Calculate.
MaximumAlternatingStressEnumKeyin	Keyin.

enum NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::OrthotropicFatigueCriterionEnum

the Orthotropic Fatigue Criterion.

Enumerator:

OrthotropicFatigueCriterionEnumHill	hill
OrthotropicFatigueCriterionEnumTsaiWu	tsai wu
OrthotropicFatigueCriterionEnumMaximumStress	maximum stress

enum NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::OrthotropicMeanStressEnum

the Orthotropic Mean Stress.

Enumerator:

OrthotropicMeanStressEnumNone	none
OrthotropicMeanStressEnumGoodman	goodman
OrthotropicMeanStressEnumGerber	gerber
OrthotropicMeanStressEnumMorrow	morrow

enum NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::ProbabilityOptionEnum

the Probability Option.

Enumerator:

ProbabilityOptionEnumNumberOfStandardDeviations	Number Of Standard Deviations.
ProbabilityOptionEnumProbabilityOfFailure	Probability Of Failure.

Member Function Documentation

NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::BwiWeldClassEnum NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::BwiWeldClass

(

)

Returns the bwi weld class.

Created in NX7.5.2.

License requirements : None

double NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::CyclesToFailure

(

)

Returns the cycles to failure.

Created in NX7.5.0.

License requirements : None

NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::CyclicStressStrainModelEnum NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::CyclicStressStrainModel

(

)

Returns the cyclic stress strain model.

Created in NX7.5.0.

License requirements : None

NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::EquivalentStressMethodEnum NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::EquivalentStressMethod

(

)

Returns the equivalent stress method.

Created in NX7.5.0.

License requirements : None

bool NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::EventDamage

(

)

Returns the event damage.

Created in NX7.5.0.

License requirements : None

bool NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::EventDamageDirection

(

)

Returns the event damage direction.

Created in NX9.0.0.

License requirements : None

bool NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::EventLife

(

)

Returns the event life.

Created in NX7.5.0.

License requirements : None

bool NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::FailureIndex

(

)

Returns the failure index.

Created in NX7.5.0.

License requirements : None

NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::FatigueLifeCriterionEnum NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::FatigueLifeCriterion

(

)

Returns the fatigue life criterion.

Created in NX7.5.0.

License requirements : None

double NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::FatigueSafetyFactorKeyin

(

)

Returns the fatigue safety factor keyin.

Created in NX7.5.0.

License requirements : None

NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::FatigueSafetyFactorMethodEnum NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::FatigueSafetyFactorMethod

(

)

Returns the fatigue safety factor method.

Created in NX7.5.0.

License requirements : None

NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::FatigueSafetyFactorOutputEnum NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::FatigueSafetyFactorOutput

(

)

Returns the fatigue safety factor output.

Created in NX7.5.0.

License requirements : None

bool NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::FatigueSafetyFactorToggle

(

)

Returns the fatigue safety factor toggle.

Created in NX7.5.0.

License requirements : None

bool NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::FreeFaceIndicator

(

)

Returns the free face indicator.

Created in NX9.0.0.

License requirements : None

bool NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::IncludeMeanStressEffects

(

)

Returns the include mean stress effects.

Created in NX7.5.0.

License requirements : None

bool NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::LoadProportionality

(

)

Returns the load proportionality.

Created in NX9.0.0.

License requirements : None

NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::MaximumAlternatingStressEnum NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::MaximumAlternatingStress

(

)

Returns the maximum alternating stress.

Created in NX7.5.0.

License requirements : None

NXOpen::Expression* NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::MaximumAlternatingStressKeyin

(

)

Returns the maximum alternating stress keyin.

Created in NX7.5.0.

License requirements : None

NXString NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::Name

(

)

Returns the name.

Created in NX8.5.0.

License requirements : None

double NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::NotchFactor

(

)

Returns the notch factor.

Created in NX7.5.0.

License requirements : None

int NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::NumberOfElementsInHysterisisLoop

(

)

Returns the number of elements in hysterisis loop.

Created in NX7.5.0.

License requirements : None

int NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::NumberOfOccurrences

(

)

Returns the number of occurrences.

Created in NX7.5.0.

License requirements : None

double NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::NumberOfStandardDeviations

(

)

Returns the number of standard deviations.

Created in NX7.5.2.

License requirements : None

NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::OrthotropicFatigueCriterionEnum NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::OrthotropicFatigueCriterion

(

)

Returns the orthotropic fatigue criterion.

Created in NX9.0.0.

License requirements : None

NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::OrthotropicMeanStressEnum NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::OrthotropicMeanStress

(

)

Returns the orthotropic mean stress.

Created in NX9.0.0.

License requirements : None

bool NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::PerformOrthotropicAnalysis

(

)

Returns the perform orthropic analysis.

Created in NX9.0.0.

License requirements : None

double NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::PlateThicknessExponent

(

)

Returns the plate thickness exponent.

Created in NX7.5.2.

License requirements : None

double NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::PlateThicknessRatio

(

)

Returns the plate thickness ratio.

Created in NX7.5.2.

License requirements : None

bool NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::PrincipalAxisStability

(

)

Returns the principal axis stability.

Created in NX9.0.0.

License requirements : None

double NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::ProbabilityOfFailure

(

)

Returns the probability of failure.

Created in NX8.0.0.

License requirements : None

NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::ProbabilityOptionEnum NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::ProbabilityOption

(

)

Returns the probability distribution.

Created in NX8.0.0.

License requirements : None

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetBwiWeldClass

(

NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::BwiWeldClassEnum

bwiWeldClass

)

Sets the bwi weld class.

Created in NX7.5.2.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

bwiWeldClass

bwiweldclass

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetCyclesToFailure

(

double

cyclesToFailure

)

Sets the cycles to failure.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

cyclesToFailure

cyclestofailure

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetCyclicStressStrainModel

(

NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::CyclicStressStrainModelEnum

cyclicStressStrainModel

)

Sets the cyclic stress strain model.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

cyclicStressStrainModel

cyclicstressstrainmodel

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetEquivalentStressMethod

(

NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::EquivalentStressMethodEnum

equivalentStressMethod

)

Sets the equivalent stress method.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

equivalentStressMethod

equivalentstressmethod

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetEventDamage

(

bool

eventDamage

)

Sets the event damage.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

eventDamage

eventdamage

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetEventDamageDirection

(

bool

eventDamageDirection

)

Sets the event damage direction.

Created in NX9.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

eventDamageDirection

eventdamagedirection

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetEventLife

(

bool

eventLife

)

Sets the event life.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

eventLife

eventlife

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetFailureIndex

(

bool

failureIndex

)

Sets the failure index.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

failureIndex

failureindex

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetFatigueLifeCriterion

(

NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::FatigueLifeCriterionEnum

fatigueLifeCriterion

)

Sets the fatigue life criterion.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

fatigueLifeCriterion

fatiguelifecriterion

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetFatigueSafetyFactorKeyin

(

double

fatigueSafetyFactorKeyin

)

Sets the fatigue safety factor keyin.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

fatigueSafetyFactorKeyin

fatiguesafetyfactorkeyin

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetFatigueSafetyFactorMethod

(

NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::FatigueSafetyFactorMethodEnum

fatigueSafetyFactorMethod

)

Sets the fatigue safety factor method.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

fatigueSafetyFactorMethod

fatiguesafetyfactormethod

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetFatigueSafetyFactorOutput

(

NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::FatigueSafetyFactorOutputEnum

fatigueSafetyFactorOutput

)

Sets the fatigue safety factor output.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

fatigueSafetyFactorOutput

fatiguesafetyfactoroutput

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetFatigueSafetyFactorToggle

(

bool

fatigueSafetyFactorToggle

)

Sets the fatigue safety factor toggle.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

fatigueSafetyFactorToggle

fatiguesafetyfactortoggle

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetFreeFaceIndicator

(

bool

freeFaceIndicator

)

Sets the free face indicator.

Created in NX9.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

freeFaceIndicator

freefaceindicator

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetIncludeMeanStressEffects

(

bool

includeMeanStressEffects

)

Sets the include mean stress effects.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

includeMeanStressEffects

includemeanstresseffects

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetLoadProportionality

(

bool

loadProportionality

)

Sets the load proportionality.

Created in NX9.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

loadProportionality

loadproportionality

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetMaximumAlternatingStress

(

NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::MaximumAlternatingStressEnum

maximumAlternatingStress

)

Sets the maximum alternating stress.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

maximumAlternatingStress

maximumalternatingstress

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetName

(

const NXString &

title

)

Sets the name.

Created in NX8.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

title

title

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetName

(

const char *

title

)

Sets the name.

Created in NX8.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

title

title

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetNotchFactor

(

double

notchFactor

)

Sets the notch factor.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

notchFactor

notchfactor

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetNumberOfElementsInHysterisisLoop

(

int

numberOfElementsInHysterisisLoop

)

Sets the number of elements in hysterisis loop.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

numberOfElementsInHysterisisLoop

numberofelementsinhysterisisloop

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetNumberOfOccurrences

(

int

numberOfOccurrences

)

Sets the number of occurrences.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

numberOfOccurrences

numberofoccurrences

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetNumberOfStandardDeviations

(

double

numberOfStandardDeviations

)

Sets the number of standard deviations.

Created in NX7.5.2.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

numberOfStandardDeviations

numberofstandarddeviations

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetOrthotropicFatigueCriterion

(

NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::OrthotropicFatigueCriterionEnum

orthotropicFatigueCriterion

)

Sets the orthotropic fatigue criterion.

Created in NX9.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

orthotropicFatigueCriterion

orthotropicfatiguecriterion

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetOrthotropicMeanStress

(

NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::OrthotropicMeanStressEnum

orthotropicMeanStress

)

Sets the orthotropic mean stress.

Created in NX9.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

orthotropicMeanStress

orthotropicmeanstress

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetPerformOrthotropicAnalysis

(

bool

performOrthotropicAnalysis

)

Sets the perform orthropic analysis.

Created in NX9.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

performOrthotropicAnalysis

performorthotropicanalysis

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetPlateThicknessExponent

(

double

plateThicknessExponent

)

Sets the plate thickness exponent.

Created in NX7.5.2.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

plateThicknessExponent

platethicknessexponent

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetPlateThicknessRatio

(

double

plateThicknessRatio

)

Sets the plate thickness ratio.

Created in NX7.5.2.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

plateThicknessRatio

platethicknessratio

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetPrincipalAxisStability

(

bool

principalAxisStability

)

Sets the principal axis stability.

Created in NX9.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

principalAxisStability

principalaxisstability

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetProbabilityOfFailure

(

double

probabilityOfFailure

)

Sets the probability of failure.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

probabilityOfFailure

probabilityoffailure

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetProbabilityOption

(

NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::ProbabilityOptionEnum

probabilityOption

)

Sets the probability distribution.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

probabilityOption

probabilityoption

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetTwiHighCycleCutoff

(

double

twiHighCycleCutoff

)

Sets the twi high cycle cutoff.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

twiHighCycleCutoff

twihighcyclecutoff

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetTwiHighCycleSlopeChange

(

double

twiHighCycleSlopeChange

)

Sets the twi high cycle slope change.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

twiHighCycleSlopeChange

twihighcycleslopechange

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetTwiLowCycleStressCutoff

(

double

twiLowCycleStressCutoff

)

Sets the twi low cycle stress cutoff.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

twiLowCycleStressCutoff

twilowcyclestresscutoff

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetTwiLowCycleStressExtension

(

double

twiLowCycleStressExtension

)

Sets the twi low cycle stress extension.

Created in NX8.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

twiLowCycleStressExtension

twilowcyclestressextension

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetUseNotchFactor

(

bool

useNotchFactor

)

Sets the use notch factor.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

useNotchFactor

usenotchfactor

void NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::SetUsePlateThicknessCorrection

(

bool

usePlateThicknessCorrection

)

Sets the plate thickness correction usage.

Created in NX7.5.2.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

usePlateThicknessCorrection

useplatethicknesscorrection

double NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::TwiHighCycleCutoff

(

)

Returns the twi high cycle cutoff.

Created in NX8.0.0.

License requirements : None

double NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::TwiHighCycleSlopeChange

(

)

Returns the twi high cycle slope change.

Created in NX8.0.0.

License requirements : None

double NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::TwiLowCycleStressCutoff

(

)

Returns the twi low cycle stress cutoff.

Created in NX8.0.0.

License requirements : None

double NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::TwiLowCycleStressExtension

(

)

Returns the twi low cycle stress extension.

Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::UseNotchFactor

(

)

Returns the use notch factor.

Created in NX8.0.0.

License requirements : None

bool NXOpen::CAE::DurabilityEventFatigueSettingsBuilder::UsePlateThicknessCorrection

(

)

Returns the plate thickness correction usage.

Created in NX7.5.2.

License requirements : None

---

The documentation for this class was generated from the following file:

• CAE_DurabilityEventFatigueSettingsBuilder.hxx
