Represents a builder class for Event Overrides. More...

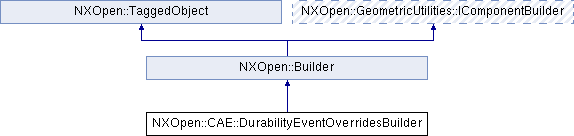

Inheritance diagram for NXOpen::CAE::DurabilityEventOverridesBuilder:

Public Types
enum	UseElementsEnum { UseElementsEnumAll, UseElementsEnumSelect }
	the use elements enum. More...

Public Member Functions
NXOpen::Expression *	DefaultMaterialTemperature ()
	Returns the default material temperature.

NXOpen::CAE::SelectElementsBuilder *	Elements ()
	Returns the select elements.

NXOpen::PhysicalMaterial *	MaterialTag ()
	Returns the material.

NXString	Name ()
	Returns the name.

bool	OverrideMaterial ()
	Returns the override material.

void	SetMaterialTag (NXOpen::PhysicalMaterial *materialTag)
	Sets the material.

void	SetName (const NXString &title)
	Sets the name.

void	SetName (const char *title)
	Sets the name.

void	SetOverrideMaterial (bool overrideMaterial)
	Sets the override material.

void	SetUseElements (NXOpen::CAE::DurabilityEventOverridesBuilder::UseElementsEnum useElements)
	Sets the use selected elements.

void	SetUseNonLinear (bool useNonLinear)
	Sets the override material.

NXOpen::CAE::DurabilityEventOverridesBuilder::UseElementsEnum	UseElements ()
	Returns the use selected elements.

bool	UseNonLinear ()
	Returns the override material.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a builder class for Event Overrides.

   The user can override the set of elements and/or the material to be used
   for the computation of durability data for a certain event using Event Overrides. <br> To create a new instance of this class, use @link CAE::DurabilitySolveOptionsCollection::CreateEventoverridesBuilder  CAE::DurabilitySolveOptionsCollection::CreateEventoverridesBuilder @endlink  <br>

Created in NX7.5.0.

Member Enumeration Documentation

enum NXOpen::CAE::DurabilityEventOverridesBuilder::UseElementsEnum

the use elements enum.

Enumerator:

UseElementsEnumAll	All.
UseElementsEnumSelect	Select.

Member Function Documentation

NXOpen::Expression* NXOpen::CAE::DurabilityEventOverridesBuilder::DefaultMaterialTemperature ( )

Returns the default material temperature.

Created in NX8.5.0.

License requirements : None

NXOpen::CAE::SelectElementsBuilder* NXOpen::CAE::DurabilityEventOverridesBuilder::Elements ( )

Returns the select elements.

Created in NX7.5.0.

License requirements : None

NXOpen::PhysicalMaterial* NXOpen::CAE::DurabilityEventOverridesBuilder::MaterialTag ( )

Returns the material.

Created in NX7.5.0.

License requirements : None

NXString NXOpen::CAE::DurabilityEventOverridesBuilder::Name ( )

Returns the name.

Created in NX8.5.0.

License requirements : None

bool NXOpen::CAE::DurabilityEventOverridesBuilder::OverrideMaterial ( )

Returns the override material.

Created in NX7.5.0.

License requirements : None

void NXOpen::CAE::DurabilityEventOverridesBuilder::SetMaterialTag ( NXOpen::PhysicalMaterial * materialTag )

Sets the material.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

materialTag materialtag

void NXOpen::CAE::DurabilityEventOverridesBuilder::SetName ( const NXString & title )

Sets the name.

Created in NX8.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

title title

void NXOpen::CAE::DurabilityEventOverridesBuilder::SetName ( const char * title )

Sets the name.

Created in NX8.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

title title

void NXOpen::CAE::DurabilityEventOverridesBuilder::SetOverrideMaterial ( bool overrideMaterial )

Sets the override material.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

overrideMaterial overridematerial

void NXOpen::CAE::DurabilityEventOverridesBuilder::SetUseElements ( NXOpen::CAE::DurabilityEventOverridesBuilder::UseElementsEnum useElements )

Sets the use selected elements.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

useElements useelements

void NXOpen::CAE::DurabilityEventOverridesBuilder::SetUseNonLinear ( bool useNonLinear )

Sets the override material.

Created in NX9.0.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

useNonLinear usenonlinear

NXOpen::CAE::DurabilityEventOverridesBuilder::UseElementsEnum NXOpen::CAE::DurabilityEventOverridesBuilder::UseElements ( )

Returns the use selected elements.

Created in NX7.5.0.

License requirements : None

bool NXOpen::CAE::DurabilityEventOverridesBuilder::UseNonLinear ( )

Returns the override material.

Created in NX9.0.0.

License requirements : None

The documentation for this class was generated from the following file:

CAE_DurabilityEventOverridesBuilder.hxx
