NXOpen::CAE::DurabilityEventBuilder Class Reference

Represents the abstract builder class for all durability events. More...

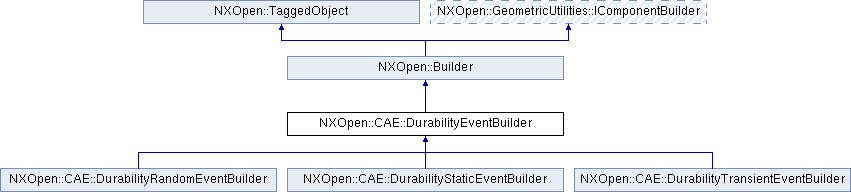

Inheritance diagram for NXOpen::CAE::DurabilityEventBuilder:

Public Member Functions
NXOpen::CAE::DurabilityEventFatigueSettingsBuilder *	EventFatigueSettings ()
	Returns the event fatigue settings.
NXString	EventName ()
	Returns the event name.
NXOpen::CAE::DurabilityEventOverridesBuilder *	EventOverrides ()
	Returns the event overrides.
NXOpen::CAE::DurabilityEventStrengthSettingsBuilder *	EventStrengthSettings ()
	Returns the event strength settings.
NXOpen::NXObject *	ResultSourceTag ()
	Returns the source of results for the event.
void	SetAxissearch (NXOpen::CAE::DurabilityAxisSearch *axisSearch)
	The stress axes stored inside the event.
void	SetEventName (const NXString &title)
	Sets the event name.
void	SetEventName (const char *title)
	Sets the event name.
void	SetFatigue (NXOpen::CAE::DurabilityFatigue *fatigue)
	The event fatigue settings stored inside the event.
void	SetResultSourceTag (NXOpen::NXObject *resultSourceTag)
	Sets the source of results for the event.
void	SetSolveoptions (NXOpen::CAE::DurabilitySolveOptions *solveOption)
	The event overrides.
void	SetStrength (NXOpen::CAE::DurabilityStrength *strength)
	The event strength settings stored inside the event.
NXOpen::CAE::DurabilityStressAxesBuilder *	StressAxes ()
	Returns the stress axes.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents the abstract builder class for all durability events.

This is an abstract class, and cannot be created.

Created in NX7.5.0.

Member Function Documentation

NXOpen::CAE::DurabilityEventFatigueSettingsBuilder* NXOpen::CAE::DurabilityEventBuilder::EventFatigueSettings

(

)

Returns the event fatigue settings.

Deprecated:

Deprecated in NX8.5.0. This functionality is no longer supported.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

NXString NXOpen::CAE::DurabilityEventBuilder::EventName

(

)

Returns the event name.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

NXOpen::CAE::DurabilityEventOverridesBuilder* NXOpen::CAE::DurabilityEventBuilder::EventOverrides

(

)

Returns the event overrides.

Deprecated:

Deprecated in NX8.5.0. This functionality is no longer supported.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

NXOpen::CAE::DurabilityEventStrengthSettingsBuilder* NXOpen::CAE::DurabilityEventBuilder::EventStrengthSettings

(

)

Returns the event strength settings.

Deprecated:

Deprecated in NX8.5.0. This functionality is no longer supported.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

NXOpen::NXObject* NXOpen::CAE::DurabilityEventBuilder::ResultSourceTag

(

)

Returns the source of results for the event.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

void NXOpen::CAE::DurabilityEventBuilder::SetAxissearch

(

NXOpen::CAE::DurabilityAxisSearch *

axisSearch

)

The stress axes stored inside the event.

Created in NX8.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

axisSearch

axissearch

void NXOpen::CAE::DurabilityEventBuilder::SetEventName

(

const NXString &

title

)

Sets the event name.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

title

title

void NXOpen::CAE::DurabilityEventBuilder::SetEventName

(

const char *

title

)

Sets the event name.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

title

title

void NXOpen::CAE::DurabilityEventBuilder::SetFatigue

(

NXOpen::CAE::DurabilityFatigue *

fatigue

)

The event fatigue settings stored inside the event.

Created in NX8.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

fatigue

fatigue

void NXOpen::CAE::DurabilityEventBuilder::SetResultSourceTag

(

NXOpen::NXObject *

resultSourceTag

)

Sets the source of results for the event.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

resultSourceTag

resultsourcetag

void NXOpen::CAE::DurabilityEventBuilder::SetSolveoptions

(

NXOpen::CAE::DurabilitySolveOptions *

solveOption

)

The event overrides.

Created in NX8.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

solveOption

solveoption

void NXOpen::CAE::DurabilityEventBuilder::SetStrength

(

NXOpen::CAE::DurabilityStrength *

strength

)

The event strength settings stored inside the event.

Created in NX8.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

Parameters

strength

strength

NXOpen::CAE::DurabilityStressAxesBuilder* NXOpen::CAE::DurabilityEventBuilder::StressAxes

(

)

Returns the stress axes.

Deprecated:

Deprecated in NX8.5.0. This functionality is no longer supported.

Created in NX7.5.0.

License requirements : nx_adv_durability ("NX Advanced Durability")

---

The documentation for this class was generated from the following file:

• CAE_DurabilityEventBuilder.hxx
