NXOpen::Step203Importer Class Reference

Represents a Step203Importer to be used when importing the STEP203 Data This class is created using DexManager . More...

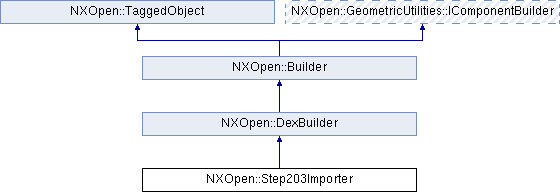

Inheritance diagram for NXOpen::Step203Importer:

Public Types
enum	ImportToOption { ImportToOptionWorkPart, ImportToOptionNewPart }
	Create the builder. More...

Public Member Functions
bool	FileOpenFlag ()
	Returns the file open flag - set this to false if doing file import Created in NX6.0.0.
bool	FlattenAssembly ()
	Returns the flatten assembly - if set to true then assembly structure will not be retained Created in NX7.5.0.
NXOpen::Step203Importer::ImportToOption	ImportTo ()
	Returns the import to - this option will determine the destination for imported iges file.
bool	ImportToTeamcenter ()
	Returns the ImportToTeamcenter command - if set to true then the assembly will be imported into Teamcenter Created in NX7.0.0.
NXString	InputFile ()
	Returns the input file - name of a file which is being imported Created in NX6.0.0.
int	LayerDefault ()
	Returns the layer default for level 0 Created in NX6.0.0.
NXOpen::ObjectTypeSelector *	ObjectTypes ()
	Returns the objectTypes - this is subcomponent being used to set object types filters.
bool	Optimize ()
	Returns the optimize - if set to true Optimizes geometry Created in NX6.0.0.
NXString	OutputFile ()
	Returns the output file - if iges file is imported to new part then this name will be used to write the output.
void	SaveSettings (const NXString &filename)
	Saves the save settings - this will save the settings to a file specified Created in NX6.0.0.
void	SaveSettings (const char *filename)
	Saves the save settings - this will save the settings to a file specified Created in NX6.0.0.
void	SetFileOpenFlag (bool doingFileOpen)
	Sets the file open flag - set this to false if doing file import Created in NX6.0.0.
void	SetFlattenAssembly (bool flattenAssembly)
	Sets the flatten assembly - if set to true then assembly structure will not be retained Created in NX7.5.0.
void	SetImportTo (NXOpen::Step203Importer::ImportToOption importTo)
	Sets the import to - this option will determine the destination for imported iges file.
void	SetImportToTeamcenter (bool importToTeamcenter)
	Sets the ImportToTeamcenter command - if set to true then the assembly will be imported into Teamcenter Created in NX7.0.0.
void	SetInputFile (const NXString &filename)
	Sets the input file - name of a file which is being imported Created in NX6.0.0.
void	SetInputFile (const char *filename)
	Sets the input file - name of a file which is being imported Created in NX6.0.0.
void	SetLayerDefault (int layerDefault)
	Sets the layer default for level 0 Created in NX6.0.0.
void	SetOptimize (bool optimize)
	Sets the optimize - if set to true Optimizes geometry Created in NX6.0.0.
void	SetOutputFile (const NXString &filename)
	Sets the output file - if iges file is imported to new part then this name will be used to write the output.
void	SetOutputFile (const char *filename)
	Sets the output file - if iges file is imported to new part then this name will be used to write the output.
void	SetSettingsFile (const NXString &filename)
	Sets the settings file - definition file for default options Created in NX6.0.0.
void	SetSettingsFile (const char *filename)
	Sets the settings file - definition file for default options Created in NX6.0.0.
void	SetSewSurfaces (bool sewSurfaces)
	Sets the sew surfaces - if set to true surfaces will be sewed automatically Created in NX6.0.0.
void	SetSimplifyGeometry (bool simplifyGeometry)
	Sets the simplify geometry - if set to true geometry will be simplified automatically Created in NX6.0.0.
void	SetSmoothBSurfaces (bool smoothBSurfaces)
	Sets the Smooth B-Surfaces - if set to true smooth B-Surfaces Created in NX6.0.0.
NXString	SettingsFile ()
	Returns the settings file - definition file for default options Created in NX6.0.0.
bool	SewSurfaces ()
	Returns the sew surfaces - if set to true surfaces will be sewed automatically Created in NX6.0.0.
bool	SimplifyGeometry ()
	Returns the simplify geometry - if set to true geometry will be simplified automatically Created in NX6.0.0.
bool	SmoothBSurfaces ()
	Returns the Smooth B-Surfaces - if set to true smooth B-Surfaces Created in NX6.0.0.
Public Member Functions inherited from NXOpen::DexBuilder
bool	ProcessHoldFlag ()
	Returns the process hold flag - set to true if user wants to wait until transaltion process gets completed Created in NX8.0.0.
void	SetProcessHoldFlag (bool doingFileSave)
	Sets the process hold flag - set to true if user wants to wait until transaltion process gets completed Created in NX8.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Step203Importer to be used when importing the STEP203 Data This class is created using DexManager .

NULL object will be returned from Commit()  <br> To create a new instance of this class, use @link DexManager::CreateStep203Importer  DexManager::CreateStep203Importer @endlink  <br>

Default values.

Property	Value
FlattenAssembly	0
ImportTo	WorkPart
ImportToTeamcenter	0
LayerDefault	0
Optimize	0
ProcessHoldFlag	0
SewSurfaces	0
SimplifyGeometry	0
SmoothBSurfaces	1

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Step203Importer::ImportToOption

Create the builder.

Enumerator:

ImportToOptionWorkPart	import iges file to work part
ImportToOptionNewPart	import iges file to new part

Member Function Documentation

bool NXOpen::Step203Importer::FileOpenFlag

(

)

Returns the file open flag - set this to false if doing file import
Created in NX6.0.0.

License requirements : None

bool NXOpen::Step203Importer::FlattenAssembly

(

)

Returns the flatten assembly - if set to true then assembly structure will not be retained
Created in NX7.5.0.

License requirements : None

NXOpen::Step203Importer::ImportToOption NXOpen::Step203Importer::ImportTo

(

)

Returns the import to - this option will determine the destination for imported iges file.

it can either be new part or work part.
Created in NX6.0.0.

License requirements : None

bool NXOpen::Step203Importer::ImportToTeamcenter

(

)

Returns the ImportToTeamcenter command - if set to true then the assembly will be imported into Teamcenter
Created in NX7.0.0.

License requirements : None

NXString NXOpen::Step203Importer::InputFile

(

)

Returns the input file - name of a file which is being imported
Created in NX6.0.0.

License requirements : None

int NXOpen::Step203Importer::LayerDefault

(

)

Returns the layer default for level 0
Created in NX6.0.0.

License requirements : None

NXOpen::ObjectTypeSelector* NXOpen::Step203Importer::ObjectTypes

(

)

Returns the objectTypes - this is subcomponent being used to set object types filters.

This will be used to filter objects based on the types
Created in NX6.0.0.

License requirements : None

bool NXOpen::Step203Importer::Optimize

(

)

Returns the optimize - if set to true Optimizes geometry
Created in NX6.0.0.

License requirements : None

NXString NXOpen::Step203Importer::OutputFile

(

)

Returns the output file - if iges file is imported to new part then this name will be used to write the output.

Created in NX6.0.0.

License requirements : None

void NXOpen::Step203Importer::SaveSettings

(

const NXString &

filename

)

Saves the save settings - this will save the settings to a file specified
Created in NX6.0.0.

License requirements : None

Parameters

filename

NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Step203Importer::SaveSettings

(

const char *

filename

)

Saves the save settings - this will save the settings to a file specified
Created in NX6.0.0.

License requirements : None

Parameters

filename

NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Step203Importer::SetFileOpenFlag

(

bool

doingFileOpen

)

Sets the file open flag - set this to false if doing file import
Created in NX6.0.0.

License requirements : None

Parameters

doingFileOpen

doingfileopen

void NXOpen::Step203Importer::SetFlattenAssembly

(

bool

flattenAssembly

)

Sets the flatten assembly - if set to true then assembly structure will not be retained
Created in NX7.5.0.

License requirements : None

Parameters

flattenAssembly

flattenassembly

void NXOpen::Step203Importer::SetImportTo

(

NXOpen::Step203Importer::ImportToOption

importTo

)

Sets the import to - this option will determine the destination for imported iges file.

it can either be new part or work part.
Created in NX6.0.0.

License requirements : None

Parameters

importTo

importto

void NXOpen::Step203Importer::SetImportToTeamcenter

(

bool

importToTeamcenter

)

Sets the ImportToTeamcenter command - if set to true then the assembly will be imported into Teamcenter
Created in NX7.0.0.

License requirements : None

Parameters

importToTeamcenter

importtoteamcenter

void NXOpen::Step203Importer::SetInputFile

(

const NXString &

filename

)

Sets the input file - name of a file which is being imported
Created in NX6.0.0.

License requirements : None

Parameters

filename

filename

void NXOpen::Step203Importer::SetInputFile

(

const char *

filename

)

Sets the input file - name of a file which is being imported
Created in NX6.0.0.

License requirements : None

Parameters

filename

filename

void NXOpen::Step203Importer::SetLayerDefault

(

int

layerDefault

)

Sets the layer default for level 0
Created in NX6.0.0.

License requirements : None

Parameters

layerDefault

layerdefault

void NXOpen::Step203Importer::SetOptimize

(

bool

optimize

)

Sets the optimize - if set to true Optimizes geometry
Created in NX6.0.0.

License requirements : None

Parameters

optimize

optimize

void NXOpen::Step203Importer::SetOutputFile

(

const NXString &

filename

)

Sets the output file - if iges file is imported to new part then this name will be used to write the output.

Created in NX6.0.0.

License requirements : None

Parameters

filename

filename

void NXOpen::Step203Importer::SetOutputFile

(

const char *

filename

)

Sets the output file - if iges file is imported to new part then this name will be used to write the output.

Created in NX6.0.0.

License requirements : None

Parameters

filename

filename

void NXOpen::Step203Importer::SetSettingsFile

(

const NXString &

filename

)

Sets the settings file - definition file for default options
Created in NX6.0.0.

License requirements : None

Parameters

filename

filename

void NXOpen::Step203Importer::SetSettingsFile

(

const char *

filename

)

Sets the settings file - definition file for default options
Created in NX6.0.0.

License requirements : None

Parameters

filename

filename

void NXOpen::Step203Importer::SetSewSurfaces

(

bool

sewSurfaces

)

Sets the sew surfaces - if set to true surfaces will be sewed automatically
Created in NX6.0.0.

License requirements : None

Parameters

sewSurfaces

sewsurfaces

void NXOpen::Step203Importer::SetSimplifyGeometry

(

bool

simplifyGeometry

)

Sets the simplify geometry - if set to true geometry will be simplified automatically
Created in NX6.0.0.

License requirements : None

Parameters

simplifyGeometry

simplifygeometry

void NXOpen::Step203Importer::SetSmoothBSurfaces

(

bool

smoothBSurfaces

)

Sets the Smooth B-Surfaces - if set to true smooth B-Surfaces
Created in NX6.0.0.

License requirements : None

Parameters

smoothBSurfaces

smoothbsurfaces

NXString NXOpen::Step203Importer::SettingsFile

(

)

Returns the settings file - definition file for default options
Created in NX6.0.0.

License requirements : None

bool NXOpen::Step203Importer::SewSurfaces

(

)

Returns the sew surfaces - if set to true surfaces will be sewed automatically
Created in NX6.0.0.

License requirements : None

bool NXOpen::Step203Importer::SimplifyGeometry

(

)

Returns the simplify geometry - if set to true geometry will be simplified automatically
Created in NX6.0.0.

License requirements : None

bool NXOpen::Step203Importer::SmoothBSurfaces

(

)

Returns the Smooth B-Surfaces - if set to true smooth B-Surfaces
Created in NX6.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Step203Importer.hxx
