Represents a ObjectTypeSelector to be used when filter out the objects based on the type during import/export. More...

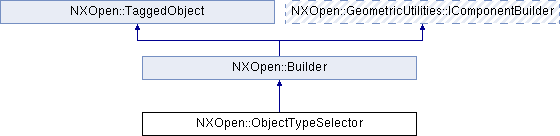

Inheritance diagram for NXOpen::ObjectTypeSelector:

Public Member Functions
bool	Annotations ()
	Returns the annotations - This should be set to true if annotations are desired in the output file Created in NX5.0.0.

bool	Csys ()
	Returns the csys - This should be set to true if coordinate systems are desired in the output file Created in NX5.0.0.

bool	Curves ()
	Returns the curves - This should be set to true if curves are desired in the output file Created in NX5.0.0.

bool	PmiData ()
	Returns the pmi data - This should be set to true if pmi data are desired in the output file Created in NX8.0.0.

bool	ProductData ()
	Returns the product data - This should be set to true if product data are desired in the output file Created in NX5.0.0.

void	SetAnnotations (bool annotations)
	Sets the annotations - This should be set to true if annotations are desired in the output file Created in NX5.0.0.

void	SetCsys (bool csys)
	Sets the csys - This should be set to true if coordinate systems are desired in the output file Created in NX5.0.0.

void	SetCurves (bool curves)
	Sets the curves - This should be set to true if curves are desired in the output file Created in NX5.0.0.

void	SetPmiData (bool pmiData)
	Sets the pmi data - This should be set to true if pmi data are desired in the output file Created in NX8.0.0.

void	SetProductData (bool productData)
	Sets the product data - This should be set to true if product data are desired in the output file Created in NX5.0.0.

void	SetSolids (bool solids)
	Sets the solids - This should be set to true if solids are desired in the output file Created in NX5.0.0.

void	SetStructures (bool structures)
	Sets the structures - This should be set to true if structures are desired in the output file Created in NX5.0.0.

void	SetSurfaces (bool surfaces)
	Sets the surfaces - This should be set to true if surfaces are desired in the output file Created in NX5.0.0.

bool	Solids ()
	Returns the solids - This should be set to true if solids are desired in the output file Created in NX5.0.0.

bool	Structures ()
	Returns the structures - This should be set to true if structures are desired in the output file Created in NX5.0.0.

bool	Surfaces ()
	Returns the surfaces - This should be set to true if surfaces are desired in the output file Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a ObjectTypeSelector to be used when filter out the objects based on the type during import/export.

This can be curves, solids,etc.This class is created using DexManager .
Creator not available in KF.

Created in NX5.0.0.

Member Function Documentation

bool NXOpen::ObjectTypeSelector::Annotations ( )

Returns the annotations - This should be set to true if annotations are desired in the output file
Created in NX5.0.0.

License requirements : None

bool NXOpen::ObjectTypeSelector::Csys ( )

Returns the csys - This should be set to true if coordinate systems are desired in the output file
Created in NX5.0.0.

License requirements : None

bool NXOpen::ObjectTypeSelector::Curves ( )

Returns the curves - This should be set to true if curves are desired in the output file
Created in NX5.0.0.

License requirements : None

bool NXOpen::ObjectTypeSelector::PmiData ( )

Returns the pmi data - This should be set to true if pmi data are desired in the output file
Created in NX8.0.0.

License requirements : None

bool NXOpen::ObjectTypeSelector::ProductData ( )

Returns the product data - This should be set to true if product data are desired in the output file
Created in NX5.0.0.

License requirements : None

void NXOpen::ObjectTypeSelector::SetAnnotations ( bool annotations )

Sets the annotations - This should be set to true if annotations are desired in the output file
Created in NX5.0.0.

License requirements : None

Parameters

annotations annotations

void NXOpen::ObjectTypeSelector::SetCsys ( bool csys )

Sets the csys - This should be set to true if coordinate systems are desired in the output file
Created in NX5.0.0.

License requirements : None

Parameters

csys csys

void NXOpen::ObjectTypeSelector::SetCurves ( bool curves )

Sets the curves - This should be set to true if curves are desired in the output file
Created in NX5.0.0.

License requirements : None

Parameters

curves curves

void NXOpen::ObjectTypeSelector::SetPmiData ( bool pmiData )

Sets the pmi data - This should be set to true if pmi data are desired in the output file
Created in NX8.0.0.

License requirements : None

Parameters

pmiData pmidata

void NXOpen::ObjectTypeSelector::SetProductData ( bool productData )

Sets the product data - This should be set to true if product data are desired in the output file
Created in NX5.0.0.

License requirements : None

Parameters

productData productdata

void NXOpen::ObjectTypeSelector::SetSolids ( bool solids )

Sets the solids - This should be set to true if solids are desired in the output file
Created in NX5.0.0.

License requirements : None

Parameters

solids solids

void NXOpen::ObjectTypeSelector::SetStructures ( bool structures )

Sets the structures - This should be set to true if structures are desired in the output file
Created in NX5.0.0.

License requirements : None

Parameters

structures structures

void NXOpen::ObjectTypeSelector::SetSurfaces ( bool surfaces )

Sets the surfaces - This should be set to true if surfaces are desired in the output file
Created in NX5.0.0.

License requirements : None

Parameters

surfaces surfaces

bool NXOpen::ObjectTypeSelector::Solids ( )

Returns the solids - This should be set to true if solids are desired in the output file
Created in NX5.0.0.

License requirements : None

bool NXOpen::ObjectTypeSelector::Structures ( )

Returns the structures - This should be set to true if structures are desired in the output file
Created in NX5.0.0.

License requirements : None

bool NXOpen::ObjectTypeSelector::Surfaces ( )

Returns the surfaces - This should be set to true if surfaces are desired in the output file
Created in NX5.0.0.

License requirements : None

The documentation for this class was generated from the following file:

ObjectTypeSelector.hxx
