This is an abstract class that provides the basic functionality common to all dex builders. More...

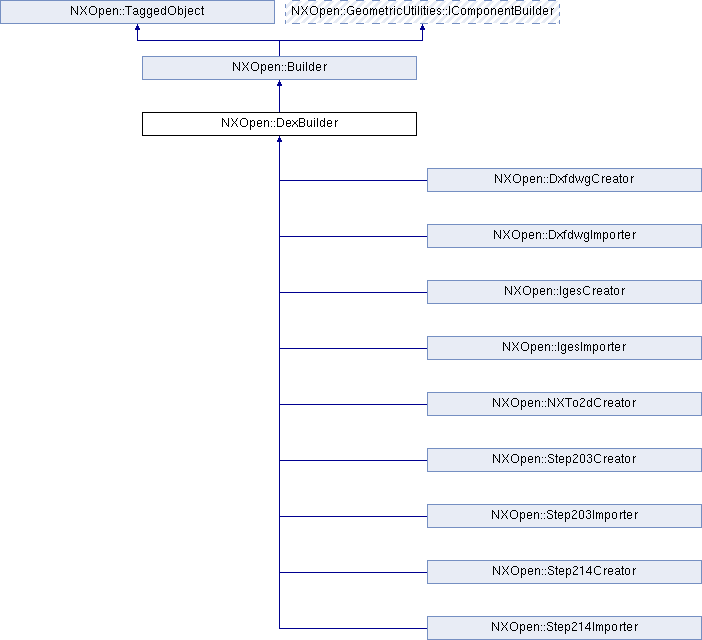

Inheritance diagram for NXOpen::DexBuilder:

Public Member Functions
bool	ProcessHoldFlag ()
	Returns the process hold flag - set to true if user wants to wait until transaltion process gets completed Created in NX8.0.0.

void	SetProcessHoldFlag (bool doingFileSave)
	Sets the process hold flag - set to true if user wants to wait until transaltion process gets completed Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

This is an abstract class that provides the basic functionality common to all dex builders.

See the Builder subclasses for details of application-specific builders.
This is an abstract class, and cannot be instantiated.

Created in NX8.0.0.

Member Function Documentation

bool NXOpen::DexBuilder::ProcessHoldFlag ( )

Returns the process hold flag - set to true if user wants to wait until transaltion process gets completed
Created in NX8.0.0.

License requirements : None

void NXOpen::DexBuilder::SetProcessHoldFlag ( bool doingFileSave )

Sets the process hold flag - set to true if user wants to wait until transaltion process gets completed
Created in NX8.0.0.

License requirements : None

Parameters

doingFileSave doingfilesave

The documentation for this class was generated from the following file:
