Represents a Step203Creator to be used when exporting the STEP203 Data This class is created using DexManager . More...

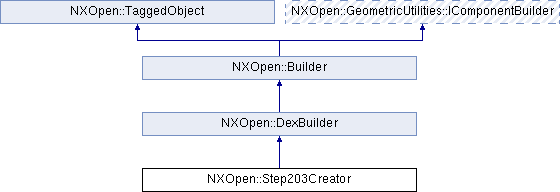

Inheritance diagram for NXOpen::Step203Creator:

Public Types
enum	EntityNameOption { EntityNameOptionLongName, EntityNameOptionShortName }
	Entity Name Option. More...

enum	ExportFromOption { ExportFromOptionDisplayPart, ExportFromOptionExistingPart }
	Create the builder. More...

enum	ExternalReferenceOption { ExternalReferenceOptionStep, ExternalReferenceOptionNx }
	External Reference Option. More...

Public Member Functions
NXString	Author ()
	Returns the author Created in NX6.0.0.

NXString	Authorization ()
	Returns the authorization Created in NX6.0.0.

double	BsplineTol ()
	Returns the bspline tolerance Created in NX6.0.0.

bool	ColorAndLayers ()
	Returns the color and layers - if set to true then NX color and layers will be preserverd Created in NX6.0.0.

NXString	Company ()
	Returns the company Created in NX6.0.0.

NXString	Description ()
	Returns the description Created in NX6.0.0.

NXOpen::Step203Creator::EntityNameOption	EntityNames ()
	Returns the entity names types long or short Created in NX6.0.0.

bool	ExportExtRef ()
	Returns the export ext ref - if set to true NX data can be output as external reference Created in NX6.0.0.

NXOpen::Step203Creator::ExternalReferenceOption	ExportExtRefAs ()
	Returns the export ext ref as - specifiy the external reference type Created in NX6.0.0.

NXOpen::Step203Creator::ExportFromOption	ExportFrom ()
	Returns the export from - this option will determine if data from display part or existing part is exported Created in NX6.0.0.

NXOpen::ObjectSelector *	ExportSelectionBlock ()
	Returns the export selection block - the object selection will be done by this block.

bool	FileSaveFlag ()
	Returns the file save flag - set to false if doing file export Created in NX6.0.0.

NXString	InputFile ()
	Returns the input file - name of file which is being exported.

NXString	LayerMask ()
	Returns the layerMask - You can limit the data you export by only specifying the layers that contain the appropriate information.

NXOpen::ObjectTypeSelector *	ObjectTypes ()
	Returns the objectTypes - this is subcomponent being used to set object types filters.

NXString	OutputFile ()
	Returns the output file - the name of step file where output is being written Created in NX6.0.0.

void	SaveSettings (const NXString &filename)
	The save settings - this will save the settings to a file sepcified Created in NX6.0.0.

void	SaveSettings (const char *filename)
	The save settings - this will save the settings to a file sepcified Created in NX6.0.0.

void	SetAuthor (const NXString &author)
	Sets the author Created in NX6.0.0.

void	SetAuthor (const char *author)
	Sets the author Created in NX6.0.0.

void	SetAuthorization (const NXString &authorization)
	Sets the authorization Created in NX6.0.0.

void	SetAuthorization (const char *authorization)
	Sets the authorization Created in NX6.0.0.

void	SetBsplineTol (double bsplineTol)
	Sets the bspline tolerance Created in NX6.0.0.

void	SetColorAndLayers (bool colorAndLayers)
	Sets the color and layers - if set to true then NX color and layers will be preserverd Created in NX6.0.0.

void	SetCompany (const NXString &company)
	Sets the company Created in NX6.0.0.

void	SetCompany (const char *company)
	Sets the company Created in NX6.0.0.

void	SetDescription (const NXString &description)
	Sets the description Created in NX6.0.0.

void	SetDescription (const char *description)
	Sets the description Created in NX6.0.0.

void	SetEntityNames (NXOpen::Step203Creator::EntityNameOption entityNames)
	Sets the entity names types long or short Created in NX6.0.0.

void	SetExportExtRef (bool exportExtRef)
	Sets the export ext ref - if set to true NX data can be output as external reference Created in NX6.0.0.

void	SetExportExtRefAs (NXOpen::Step203Creator::ExternalReferenceOption exportExtRefAs)
	Sets the export ext ref as - specifiy the external reference type Created in NX6.0.0.

void	SetExportFrom (NXOpen::Step203Creator::ExportFromOption exportFrom)
	Sets the export from - this option will determine if data from display part or existing part is exported Created in NX6.0.0.

void	SetFileSaveFlag (bool doingFileSave)
	Sets the file save flag - set to false if doing file export Created in NX6.0.0.

void	SetInputFile (const NXString &filename)
	Sets the input file - name of file which is being exported.

void	SetInputFile (const char *filename)
	Sets the input file - name of file which is being exported.

void	SetLayerMask (const NXString &layerMask)
	Sets the layerMask - You can limit the data you export by only specifying the layers that contain the appropriate information.

void	SetLayerMask (const char *layerMask)
	Sets the layerMask - You can limit the data you export by only specifying the layers that contain the appropriate information.

void	SetOutputFile (const NXString &filename)
	Sets the output file - the name of step file where output is being written Created in NX6.0.0.

void	SetOutputFile (const char *filename)
	Sets the output file - the name of step file where output is being written Created in NX6.0.0.

void	SetSettingsFile (const NXString &filename)
	Sets the Settings File to read the default settings Created in NX6.0.0.

void	SetSettingsFile (const char *filename)
	Sets the Settings File to read the default settings Created in NX6.0.0.

NXString	SettingsFile ()
	Returns the Settings File to read the default settings Created in NX6.0.0.

void	SetValidationProperties (bool validationProperties)
	Sets the validation properties - if set to true validation properties will be created Created in NX6.0.0.

bool	ValidationProperties ()
	Returns the validation properties - if set to true validation properties will be created Created in NX6.0.0.

Public Member Functions inherited from NXOpen::DexBuilder
bool	ProcessHoldFlag ()
	Returns the process hold flag - set to true if user wants to wait until transaltion process gets completed Created in NX8.0.0.

void	SetProcessHoldFlag (bool doingFileSave)
	Sets the process hold flag - set to true if user wants to wait until transaltion process gets completed Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Step203Creator to be used when exporting the STEP203 Data This class is created using DexManager .

NULL object will be returned from Commit().
    The workpart should be present in the session before calling commit().  <br> To create a new instance of this class, use @link DexManager::CreateStep203Creator  DexManager::CreateStep203Creator @endlink  <br>

Default values.

Property

Value

BsplineTol

0.0254

ColorAndLayers

0

EntityNames

LongName

ExportExtRef

0

ExportExtRefAs

Step

ExportFrom

DisplayPart

ProcessHoldFlag

0

ValidationProperties

0

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Step203Creator::EntityNameOption

Entity Name Option.

Enumerator:

EntityNameOptionLongName	create long names
EntityNameOptionShortName	create short names

enum NXOpen::Step203Creator::ExportFromOption

Create the builder.

Enumerator:

ExportFromOptionDisplayPart	export data from displayed part
ExportFromOptionExistingPart	export data from existing part which is on disk

enum NXOpen::Step203Creator::ExternalReferenceOption

External Reference Option.

Enumerator:

ExternalReferenceOptionStep	output external reference as STEP file
ExternalReferenceOptionNx	output external reference as NX file

Member Function Documentation

NXString NXOpen::Step203Creator::Author ( )

Returns the author
Created in NX6.0.0.

License requirements : None

NXString NXOpen::Step203Creator::Authorization ( )

Returns the authorization
Created in NX6.0.0.

License requirements : None

double NXOpen::Step203Creator::BsplineTol ( )

Returns the bspline tolerance
Created in NX6.0.0.

License requirements : None

bool NXOpen::Step203Creator::ColorAndLayers ( )

Returns the color and layers - if set to true then NX color and layers will be preserverd
Created in NX6.0.0.

License requirements : None

NXString NXOpen::Step203Creator::Company ( )

Returns the company
Created in NX6.0.0.

License requirements : None

NXString NXOpen::Step203Creator::Description ( )

Returns the description
Created in NX6.0.0.

License requirements : None

NXOpen::Step203Creator::EntityNameOption NXOpen::Step203Creator::EntityNames ( )

Returns the entity names types long or short
Created in NX6.0.0.

License requirements : None

bool NXOpen::Step203Creator::ExportExtRef ( )

Returns the export ext ref - if set to true NX data can be output as external reference
Created in NX6.0.0.

License requirements : None

NXOpen::Step203Creator::ExternalReferenceOption NXOpen::Step203Creator::ExportExtRefAs ( )

Returns the export ext ref as - specifiy the external reference type
Created in NX6.0.0.

License requirements : None

NXOpen::Step203Creator::ExportFromOption NXOpen::Step203Creator::ExportFrom ( )

Returns the export from - this option will determine if data from display part or existing part is exported
Created in NX6.0.0.

License requirements : None

NXOpen::ObjectSelector* NXOpen::Step203Creator::ExportSelectionBlock ( )

Returns the export selection block - the object selection will be done by this block.

Created in NX6.0.0.

License requirements : None

bool NXOpen::Step203Creator::FileSaveFlag ( )

Returns the file save flag - set to false if doing file export
Created in NX6.0.0.

License requirements : None

NXString NXOpen::Step203Creator::InputFile ( )

Returns the input file - name of file which is being exported.

Created in NX6.0.0.

License requirements : None

NXString NXOpen::Step203Creator::LayerMask ( )

Returns the layerMask - You can limit the data you export by only specifying the layers that contain the appropriate information.

You can enter layer numbers or layers ranges separated by commas. For example, 1, 5, 88-109,190-199, 201, 206-210 is a legal specification. The default setting for Layers to Export is 1-256.
Created in NX6.0.0.

License requirements : None

NXOpen::ObjectTypeSelector* NXOpen::Step203Creator::ObjectTypes ( )

Returns the objectTypes - this is subcomponent being used to set object types filters.

This will be used to filter objects based on the types
Created in NX6.0.0.

License requirements : None

NXString NXOpen::Step203Creator::OutputFile ( )

Returns the output file - the name of step file where output is being written
Created in NX6.0.0.

License requirements : None

void NXOpen::Step203Creator::SaveSettings ( const NXString & filename )

The save settings - this will save the settings to a file sepcified
Created in NX6.0.0.

License requirements : None

Parameters

filename NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Step203Creator::SaveSettings ( const char * filename )

The save settings - this will save the settings to a file sepcified
Created in NX6.0.0.

License requirements : None

Parameters

filename NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Step203Creator::SetAuthor ( const NXString & author )

Sets the author
Created in NX6.0.0.

License requirements : None

Parameters

author author

void NXOpen::Step203Creator::SetAuthor ( const char * author )

Sets the author
Created in NX6.0.0.

License requirements : None

Parameters

author author

void NXOpen::Step203Creator::SetAuthorization ( const NXString & authorization )

Sets the authorization
Created in NX6.0.0.

License requirements : None

Parameters

authorization authorization

void NXOpen::Step203Creator::SetAuthorization ( const char * authorization )

Sets the authorization
Created in NX6.0.0.

License requirements : None

Parameters

authorization authorization

void NXOpen::Step203Creator::SetBsplineTol ( double bsplineTol )

Sets the bspline tolerance
Created in NX6.0.0.

License requirements : None

Parameters

bsplineTol bsplinetol

void NXOpen::Step203Creator::SetColorAndLayers ( bool colorAndLayers )

Sets the color and layers - if set to true then NX color and layers will be preserverd
Created in NX6.0.0.

License requirements : None

Parameters

colorAndLayers colorandlayers

void NXOpen::Step203Creator::SetCompany ( const NXString & company )

Sets the company
Created in NX6.0.0.

License requirements : None

Parameters

company company

void NXOpen::Step203Creator::SetCompany ( const char * company )

Sets the company
Created in NX6.0.0.

License requirements : None

Parameters

company company

void NXOpen::Step203Creator::SetDescription ( const NXString & description )

Sets the description
Created in NX6.0.0.

License requirements : None

Parameters

description description

void NXOpen::Step203Creator::SetDescription ( const char * description )

Sets the description
Created in NX6.0.0.

License requirements : None

Parameters

description description

void NXOpen::Step203Creator::SetEntityNames ( NXOpen::Step203Creator::EntityNameOption entityNames )

Sets the entity names types long or short
Created in NX6.0.0.

License requirements : None

Parameters

entityNames entitynames

void NXOpen::Step203Creator::SetExportExtRef ( bool exportExtRef )

Sets the export ext ref - if set to true NX data can be output as external reference
Created in NX6.0.0.

License requirements : None

Parameters

exportExtRef exportextref

void NXOpen::Step203Creator::SetExportExtRefAs ( NXOpen::Step203Creator::ExternalReferenceOption exportExtRefAs )

Sets the export ext ref as - specifiy the external reference type
Created in NX6.0.0.

License requirements : None

Parameters

exportExtRefAs exportextrefas

void NXOpen::Step203Creator::SetExportFrom ( NXOpen::Step203Creator::ExportFromOption exportFrom )

Sets the export from - this option will determine if data from display part or existing part is exported
Created in NX6.0.0.

License requirements : None

Parameters

exportFrom exportfrom

void NXOpen::Step203Creator::SetFileSaveFlag ( bool doingFileSave )

Sets the file save flag - set to false if doing file export
Created in NX6.0.0.

License requirements : None

Parameters

doingFileSave doingfilesave

void NXOpen::Step203Creator::SetInputFile ( const NXString & filename )

Sets the input file - name of file which is being exported.

Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::Step203Creator::SetInputFile ( const char * filename )

Sets the input file - name of file which is being exported.

Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::Step203Creator::SetLayerMask ( const NXString & layerMask )

Sets the layerMask - You can limit the data you export by only specifying the layers that contain the appropriate information.

You can enter layer numbers or layers ranges separated by commas. For example, 1, 5, 88-109,190-199, 201, 206-210 is a legal specification. The default setting for Layers to Export is 1-256.
Created in NX6.0.0.

License requirements : None

Parameters

layerMask layermask

void NXOpen::Step203Creator::SetLayerMask ( const char * layerMask )

Sets the layerMask - You can limit the data you export by only specifying the layers that contain the appropriate information.

You can enter layer numbers or layers ranges separated by commas. For example, 1, 5, 88-109,190-199, 201, 206-210 is a legal specification. The default setting for Layers to Export is 1-256.
Created in NX6.0.0.

License requirements : None

Parameters

layerMask layermask

void NXOpen::Step203Creator::SetOutputFile ( const NXString & filename )

Sets the output file - the name of step file where output is being written
Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::Step203Creator::SetOutputFile ( const char * filename )

Sets the output file - the name of step file where output is being written
Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::Step203Creator::SetSettingsFile ( const NXString & filename )

Sets the Settings File to read the default settings
Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::Step203Creator::SetSettingsFile ( const char * filename )

Sets the Settings File to read the default settings
Created in NX6.0.0.

License requirements : None

Parameters

filename filename

NXString NXOpen::Step203Creator::SettingsFile ( )

Returns the Settings File to read the default settings
Created in NX6.0.0.

License requirements : None

void NXOpen::Step203Creator::SetValidationProperties ( bool validationProperties )

Sets the validation properties - if set to true validation properties will be created
Created in NX6.0.0.

License requirements : None

Parameters

validationProperties validationproperties

bool NXOpen::Step203Creator::ValidationProperties ( )

Returns the validation properties - if set to true validation properties will be created
Created in NX6.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Step203Creator.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
