Represents a SketchAngularDimensionBuilder
To create a new instance of this class, use SketchCollection::CreateAngularDimensionBuilder
Created in NX9.0.0.
More...

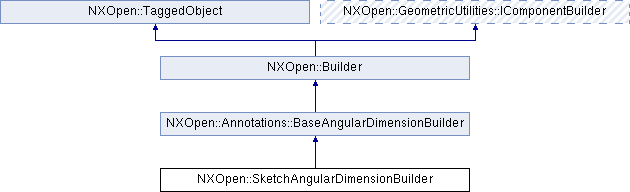

Inheritance diagram for NXOpen::SketchAngularDimensionBuilder:
Public Member Functions | |
| NXOpen::Annotations::DrivingValueBuilder * | Driving () |
| Returns the driving value builder, which manages driving dimension values Created in NX9.0.0. | |
 Public Member Functions inherited from NXOpen::Annotations::BaseAngularDimensionBuilder | |
| void | AlternateAngle () |
| Alternate angle Created in NX9.0.0. | |
| NXOpen::Annotations::AppendedTextBuilder * | AppendedText () |
| Returns the appended text Created in NX9.0.0. | |
| NXOpen::SelectDisplayableObject * | FirstAssociativity () |
| Returns the first associativity Created in NX9.0.0. | |
| NXOpen::Direction * | FirstVector () |
| Returns the first vector Created in NX9.0.0. | |
| NXOpen::View * | FirstVectorView () |
| Returns the first vector view Created in NX9.0.0. | |
| bool | GetFirstAssociativityVectorFlipped () |
| First associativity vector flipped. | |
| bool | GetSecondAssociativityVectorFlipped () |
| Second associativity vector flipped. | |
| NXOpen::Annotations::SelectDimension * | Inherit () |
| Returns the inherit Created in NX9.0.0. | |
| NXOpen::Annotations::OriginBuilder * | Origin () |
| Returns the origin Created in NX9.0.0. | |
| NXOpen::SelectDisplayableObject * | SecondAssociativity () |
| Returns the second associativity Created in NX9.0.0. | |
| NXOpen::Direction * | SecondVector () |
| Returns the second vector Created in NX9.0.0. | |
| NXOpen::View * | SecondVectorView () |
| Returns the second vector view Created in NX9.0.0. | |
| void | SetFirstAssociativityVectorFlipped (bool firstVectorFlipped) |
| First associativity vector flipped Created in NX9.0.0. | |
| void | SetFirstVector (NXOpen::Direction *firstVector) |
| Sets the first vector Created in NX9.0.0. | |
| void | SetFirstVectorView (NXOpen::View *firstVectorView) |
| Sets the first vector view Created in NX9.0.0. | |
| void | SetSecondAssociativityVectorFlipped (bool secondVectorFlipped) |
| Second associativity vector flipped Created in NX9.0.0. | |
| void | SetSecondVector (NXOpen::Direction *secondVector) |
| Sets the second vector Created in NX9.0.0. | |
| void | SetSecondVectorView (NXOpen::View *firstVectorView) |
| Sets the second vector view Created in NX9.0.0. | |
| NXOpen::Annotations::StyleBuilder * | Style () |
| Returns the style Created in NX9.0.0. | |
| Public Member Functions inherited from NXOpen::Builder | |
| NXOpen::NXObject * | Commit () |
| Commits any edits that have been applied to the builder. | |
| void | Destroy () |
| Deletes the builder, and cleans up any objects created by the builder. | |
| std::vector< NXOpen::NXObject * > | GetCommittedObjects () |
| For builders that create more than one object, this method returns the objects that are created by commit. | |
| NXOpen::NXObject * | GetObject () |
| Returns the object currently being edited by this builder. | |
| void | ShowResults () |
| Updates the model to reflect the result of an edit to the model for all builders that support showing results. | |
| virtual bool | Validate () |
| Validate whether the inputs to the component are sufficient for commit to be called. | |
| Public Member Functions inherited from NXOpen::TaggedObject | |
| tag_t | GetTag () const |
<b>Deprecated</b>:<br> Use Tag instead. | |
| tag_t | Tag () const |
| Returns the tag of this object. | |
Detailed Description
Represents a SketchAngularDimensionBuilder
To create a new instance of this class, use SketchCollection::CreateAngularDimensionBuilder
Created in NX9.0.0.
Member Function Documentation
| NXOpen::Annotations::DrivingValueBuilder* NXOpen::SketchAngularDimensionBuilder::Driving | ( | ) |
Returns the driving value builder, which manages driving dimension values
Created in NX9.0.0.
License requirements : None
The documentation for this class was generated from the following file:
- SketchAngularDimensionBuilder.hxx
