Represents a Annotations::AngularDimension builder
This is an abstract class and cannot be instantiated. More...

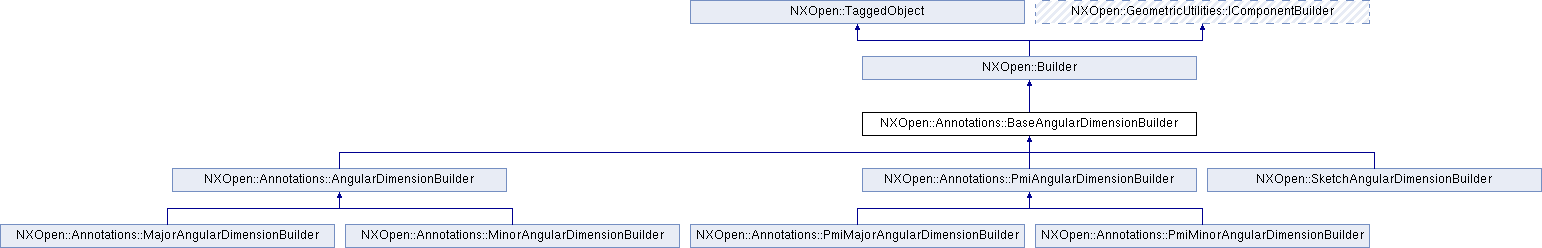

Inheritance diagram for NXOpen::Annotations::BaseAngularDimensionBuilder:

Public Member Functions
void	AlternateAngle ()
	Alternate angle Created in NX9.0.0.

NXOpen::Annotations::AppendedTextBuilder *	AppendedText ()
	Returns the appended text Created in NX9.0.0.

NXOpen::SelectDisplayableObject *	FirstAssociativity ()
	Returns the first associativity Created in NX9.0.0.

NXOpen::Direction *	FirstVector ()
	Returns the first vector Created in NX9.0.0.

NXOpen::View *	FirstVectorView ()
	Returns the first vector view Created in NX9.0.0.

bool	GetFirstAssociativityVectorFlipped ()
	First associativity vector flipped.

bool	GetSecondAssociativityVectorFlipped ()
	Second associativity vector flipped.

NXOpen::Annotations::SelectDimension *	Inherit ()
	Returns the inherit Created in NX9.0.0.

NXOpen::Annotations::OriginBuilder *	Origin ()
	Returns the origin Created in NX9.0.0.

NXOpen::SelectDisplayableObject *	SecondAssociativity ()
	Returns the second associativity Created in NX9.0.0.

NXOpen::Direction *	SecondVector ()
	Returns the second vector Created in NX9.0.0.

NXOpen::View *	SecondVectorView ()
	Returns the second vector view Created in NX9.0.0.

void	SetFirstAssociativityVectorFlipped (bool firstVectorFlipped)
	First associativity vector flipped Created in NX9.0.0.

void	SetFirstVector (NXOpen::Direction *firstVector)
	Sets the first vector Created in NX9.0.0.

void	SetFirstVectorView (NXOpen::View *firstVectorView)
	Sets the first vector view Created in NX9.0.0.

void	SetSecondAssociativityVectorFlipped (bool secondVectorFlipped)
	Second associativity vector flipped Created in NX9.0.0.

void	SetSecondVector (NXOpen::Direction *secondVector)
	Sets the second vector Created in NX9.0.0.

void	SetSecondVectorView (NXOpen::View *firstVectorView)
	Sets the second vector view Created in NX9.0.0.

NXOpen::Annotations::StyleBuilder *	Style ()
	Returns the style Created in NX9.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Annotations::AngularDimension builder
This is an abstract class and cannot be instantiated.

Created in NX9.0.0.

Member Function Documentation

void NXOpen::Annotations::BaseAngularDimensionBuilder::AlternateAngle ( )

Alternate angle
Created in NX9.0.0.

License requirements : geometric_tol ("GDT") OR drafting ("DRAFTING") OR solid_modeling ("SOLIDS MODELING")

NXOpen::Annotations::AppendedTextBuilder* NXOpen::Annotations::BaseAngularDimensionBuilder::AppendedText ( )

Returns the appended text
Created in NX9.0.0.

License requirements : None

NXOpen::SelectDisplayableObject* NXOpen::Annotations::BaseAngularDimensionBuilder::FirstAssociativity ( )

Returns the first associativity
Created in NX9.0.0.

License requirements : None

NXOpen::Direction* NXOpen::Annotations::BaseAngularDimensionBuilder::FirstVector ( )

Returns the first vector
Created in NX9.0.0.

License requirements : None

NXOpen::View* NXOpen::Annotations::BaseAngularDimensionBuilder::FirstVectorView ( )

Returns the first vector view
Created in NX9.0.0.

License requirements : None

bool NXOpen::Annotations::BaseAngularDimensionBuilder::GetFirstAssociativityVectorFlipped ( )

First associativity vector flipped.

Returns: Created in NX9.0.0.

License requirements : None

bool NXOpen::Annotations::BaseAngularDimensionBuilder::GetSecondAssociativityVectorFlipped ( )

Second associativity vector flipped.

Returns: Created in NX9.0.0.

License requirements : None

NXOpen::Annotations::SelectDimension* NXOpen::Annotations::BaseAngularDimensionBuilder::Inherit ( )

Returns the inherit
Created in NX9.0.0.

License requirements : None

NXOpen::Annotations::OriginBuilder* NXOpen::Annotations::BaseAngularDimensionBuilder::Origin ( )

Returns the origin
Created in NX9.0.0.

License requirements : None

NXOpen::SelectDisplayableObject* NXOpen::Annotations::BaseAngularDimensionBuilder::SecondAssociativity ( )

Returns the second associativity
Created in NX9.0.0.

License requirements : None

NXOpen::Direction* NXOpen::Annotations::BaseAngularDimensionBuilder::SecondVector ( )

Returns the second vector
Created in NX9.0.0.

License requirements : None

NXOpen::View* NXOpen::Annotations::BaseAngularDimensionBuilder::SecondVectorView ( )

Returns the second vector view
Created in NX9.0.0.

License requirements : None

void NXOpen::Annotations::BaseAngularDimensionBuilder::SetFirstAssociativityVectorFlipped ( bool firstVectorFlipped )

First associativity vector flipped
Created in NX9.0.0.

License requirements : geometric_tol ("GDT") OR drafting ("DRAFTING") OR solid_modeling ("SOLIDS MODELING")

Parameters

firstVectorFlipped firstvectorflipped

void NXOpen::Annotations::BaseAngularDimensionBuilder::SetFirstVector ( NXOpen::Direction * firstVector )

Sets the first vector
Created in NX9.0.0.

License requirements : drafting ("DRAFTING")

Parameters

firstVector firstvector

void NXOpen::Annotations::BaseAngularDimensionBuilder::SetFirstVectorView ( NXOpen::View * firstVectorView )

Sets the first vector view
Created in NX9.0.0.

License requirements : drafting ("DRAFTING")

Parameters

firstVectorView firstvectorview

void NXOpen::Annotations::BaseAngularDimensionBuilder::SetSecondAssociativityVectorFlipped ( bool secondVectorFlipped )

Second associativity vector flipped
Created in NX9.0.0.

License requirements : geometric_tol ("GDT") OR drafting ("DRAFTING") OR solid_modeling ("SOLIDS MODELING")

Parameters

secondVectorFlipped secondvectorflipped

void NXOpen::Annotations::BaseAngularDimensionBuilder::SetSecondVector ( NXOpen::Direction * secondVector )

Sets the second vector
Created in NX9.0.0.

License requirements : drafting ("DRAFTING")

Parameters

secondVector secondvector

void NXOpen::Annotations::BaseAngularDimensionBuilder::SetSecondVectorView ( NXOpen::View * firstVectorView )

Sets the second vector view
Created in NX9.0.0.

License requirements : drafting ("DRAFTING")

Parameters

firstVectorView firstvectorview

NXOpen::Annotations::StyleBuilder* NXOpen::Annotations::BaseAngularDimensionBuilder::Style ( )

Returns the style
Created in NX9.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Annotations_BaseAngularDimensionBuilder.hxx
