Represents an angular dimension
Abstract class
Created in NX4.0.0.
More...

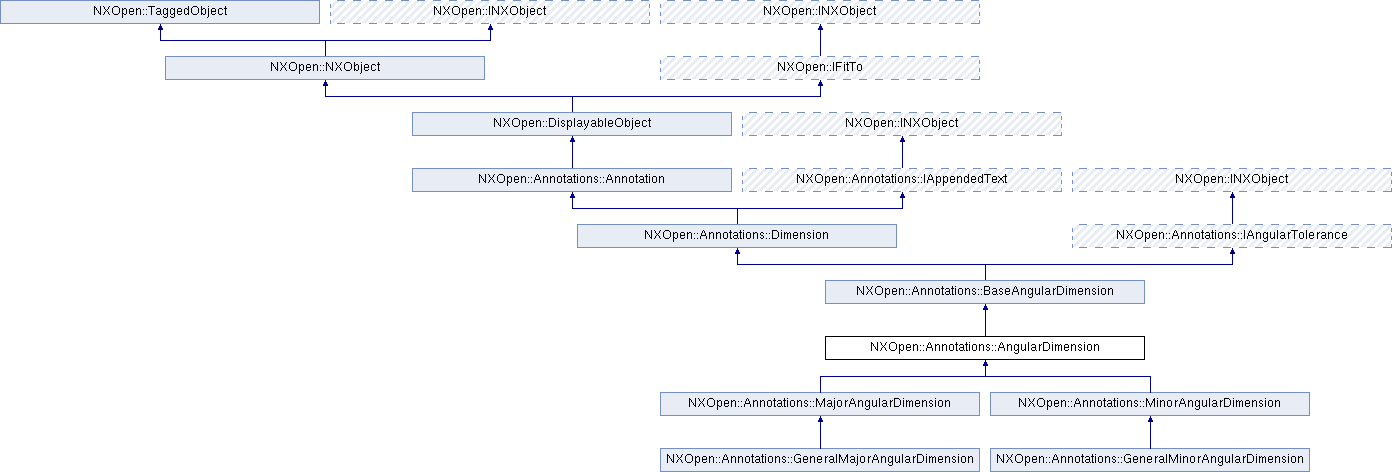

Inheritance diagram for NXOpen::Annotations::AngularDimension:
Additional Inherited Members | |
 Public Types inherited from NXOpen::DisplayableObject | |
| enum | ObjectFont { ObjectFontSolid = 1, ObjectFontDashed, ObjectFontPhantom, ObjectFontCenterline, ObjectFontDotted, ObjectFontLongDashed, ObjectFontDottedDashed } |
| specifies the object font for objects such as lines Created in NX3.0.0. More... | |
| enum | ObjectWidth { ObjectWidthNormal, ObjectWidthThick, ObjectWidthThin, ObjectWidthOne = 5, ObjectWidthTwo, ObjectWidthThree, ObjectWidthFour, ObjectWidthFive, ObjectWidthSix, ObjectWidthSeven, ObjectWidthEight, ObjectWidthNine } |
| specifies object width for objects such as lines and text Created in NX3.0.0. More... | |
| Public Member Functions inherited from NXOpen::Annotations::BaseAngularDimension | |
| virtual NXOpen::Annotations::AngularTolerance * | GetTolerance () |
| Returns the tolerance. | |
| virtual void | SetTolerance (NXOpen::Annotations::AngularTolerance *tolerances) |
| Sets the tolerance. | |
Detailed Description
Represents an angular dimension
Abstract class
Created in NX4.0.0.
The documentation for this class was generated from the following file:
- Annotations_AngularDimension.hxx
