Represents Routing::StockTransition object. More...

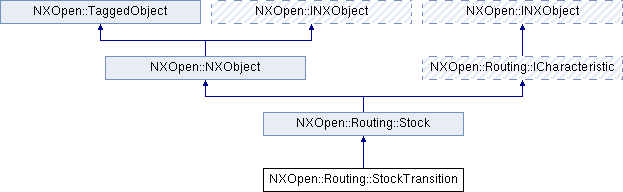

Inheritance diagram for NXOpen::Routing::StockTransition:
Additional Inherited Members | |
 Public Types inherited from NXOpen::NXObject | |
| enum | AttributeType { AttributeTypeInvalid, AttributeTypeNull, AttributeTypeBoolean, AttributeTypeInteger, AttributeTypeReal, AttributeTypeString, AttributeTypeTime, AttributeTypeReference, AttributeTypeAny = 100 } |
| Specifies attribute type. More... | |
| enum | DateAndTimeFormat { DateAndTimeFormatNumeric, DateAndTimeFormatTextual } |
| Specifies the format of the date and time attribute. More... | |
| Public Member Functions inherited from NXOpen::Routing::Stock | |
| void | AddSegments (const std::vector< NXOpen::Curve * > &segments) |
| Adds new segments to this object. | |
| void | AlignStock (const NXOpen::Vector3d &vector) |
| Align stock to new rotation vector. | |
| void | ColorBodies () |
| Colors the solid bodies of the stock based on the COLOR characteristic specified in the Routing::StockData of the stock. | |
| virtual void | DeleteCharacterstics (NXOpen::Routing::CharacteristicList *values) |
| Removes the input list of characteristics from this object. | |
| void | EnableFeatures () |
| Makes the stock "featurable" by generating a sweep feature over every segment of the stock, with a boolean feature uniting all of the sweeps to form a single body. | |
| NXOpen::Routing::Anchor * | GetAnchor () |
| Gets the Routing::Anchor that currently modifies the profile for the stock. | |
| virtual NXOpen::Routing::CharacteristicList * | GetCharacteristics () |
| Get all of the characteristics values on the this object. | |
| NXOpen::Assemblies::Component * | GetComponent () |
| Returns the Assemblies::Component created and controlled by the stock for a Stock as Components stock. | |
| NXOpen::Routing::CrossSection * | GetCrossSection () |
| Gets the Routing::CrossSection that currently defines the profile for the stock. | |
| virtual NXOpen::Routing::CharacteristicList * | GetDestinationCharacteristics () |
| Returns the destination characteristics from the input object. | |
| std::vector < NXOpen::Features::Feature * > | GetFeatures () |
| Returns the sweep features that are created and controlled by this object. | |
| NXOpen::Routing::Flip | GetFlippedStatus () |
| Gets whether or not the profile is flipped. | |
| virtual int | GetIntegerCharacteristic (const NXString &name) |
| Get the value of an integer characteristic associated with the input name. | |
| int | GetIntegerCharacteristic (const char *name) |
| Get the value of an integer characteristic associated with the input name. | |
| NXOpen::Routing::ComponentName | GetNameStatus () |
| Returns whether or not the component associated with a Stock as Components Stock has a permanent or temporary name. | |
| double | GetOriginalLength () |
| Returns the original length for a stock that has been deformed (it's use is Routing::StockUseDeformed ). | |
| void | GetPorts (NXOpen::Routing::StockPort **startPort, NXOpen::Routing::StockPort **endPort) |
| Returns the Routing::StockPort at each end of the stock. | |
| NXOpen::Routing::ProfileFrom | GetProfileEnd () |
| Gets the end that defines profile. | |
| virtual double | GetRealCharacteristic (const NXString &name) |
| Get the value of a real characteristic associated with the input name. | |
| double | GetRealCharacteristic (const char *name) |
| Get the value of a real characteristic associated with the input name. | |
| double | GetRotationAngle () |
| Gets the rotation angle applied to the profile. | |
| std::vector< NXOpen::Curve * > | GetSegments () |
| Gets the segments that the Routing::Stock object is placed on top of. | |
| NXOpen::Routing::StockData * | GetStockData () |
| Gets the Routing::StockData . | |
| NXOpen::Routing::StockStyle | GetStockStyle () |
| Gets the Routing::StockStyle of the Routing::Stock . | |
| NXOpen::Routing::StockUse | GetStockUse () |
| Returns the use of the stock. | |
| virtual NXString | GetStringCharacteristic (const NXString &name) |
| Get the value of a string characteristic associated with the input name. | |
| NXString | GetStringCharacteristic (const char *name) |
| Get the value of a string characteristic associated with the input name. | |
| double | GetTwistAngle () |
| Gets the twist angle applied to the profile. | |
| bool | NegateOffsetsFlag () |
| Returns the negate offsets flag of this Routing::Stock . | |
| void | RemoveSegments (const std::vector< NXOpen::Curve * > &segments) |
| Removes segments from this object. | |
| void | RenameStockComponent (const NXString &partName) |
| Renames the stock component part with given name Created in NX7.5.4. | |
| void | RenameStockComponent (const char *partName) |
| Renames the stock component part with given name Created in NX7.5.4. | |
| void | SetAnchor (NXOpen::Routing::Anchor *anchor) |
| Sets the Routing::Anchor . | |
| virtual void | SetCharacteristic (const NXString &name, int value) |
| Set the value of an integer characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already. | |
| void | SetCharacteristic (const char *name, int value) |
| Set the value of an integer characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already. | |
| virtual void | SetCharacteristic (const NXString &name, double value) |
| Set the value of an real characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already. | |
| void | SetCharacteristic (const char *name, double value) |
| Set the value of an real characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already. | |
| virtual void | SetCharacteristic (const NXString &name, const NXString &value) |
| Set the value of an string characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already. | |
| void | SetCharacteristic (const char *name, const char *value) |
| Set the value of an string characteristic associated with the input name, adds a new characteristic to the list if one doesn't exist already. | |
| virtual void | SetCharacteristics (NXOpen::Routing::CharacteristicList *values) |
| Set all of the characteristics values on this object. | |
| void | SetCrossSection (NXOpen::Routing::CrossSection *crossSection) |
| Sets the Routing::CrossSection . | |
| void | SetFlippedStatus (NXOpen::Routing::Flip flipped) |
| Sets whether or not the profile is flipped. | |
| void | SetNegateOffsetsFlag (bool offsetFlag) |
| Sets the negate offsets flag of this Routing::Stock . | |
| void | SetProfileEnd (NXOpen::Routing::ProfileFrom profileEnd) |
| Sets the end that defines profile. | |
| void | SetRotationAngle (double rotationAngle) |
| Sets the rotation angle applied to the profile. | |
| void | SetStockData (NXOpen::Routing::StockData *stockData) |
| Sets the Routing::StockData . | |
| void | SetStockStyle (NXOpen::Routing::StockStyle style) |
| Sets the Routing::StockStyle of the Routing::Stock . | |
| void | SetTwistAngle (double twistAngle) |
| Sets the twist angle applied to the profile. | |
| void | SyncComponentAttrs (bool isNewPart) |
| Set the characteristics of the given stock's component so that it has the same characteristics as the Routing::Stock and its stock data. | |
Detailed Description
Represents Routing::StockTransition object.
Routing::StockTransition covers C1 continuous Routing::ISegment in between two stocks. It acts as transition from Routing::CrossSection of one Routing::Stock to another. When two different Routing::Stock are connected with set of segments, then a stockTransition can be used to cover it in such a way that Routing::CrossSection at each end of this segments matches with the stock at that location. These segments can be a routing path, or just a collection of segments. Routing::Stock covers segments, and Routing::StockTransition inherits that behavior. However, Routing::StockTransition refers to two end Routing::Stock and the Routing::CrossSection of Routing::StockTransition object varies from one end to another.
Creator not available in KF because transient objects are not supported.
Created in NX7.5.0.
The documentation for this class was generated from the following file:
- Routing_StockTransition.hxx
