Represents a RoutingMeasureDistanceBuilder
Creator not available in KF because transient objects are not supported. More...

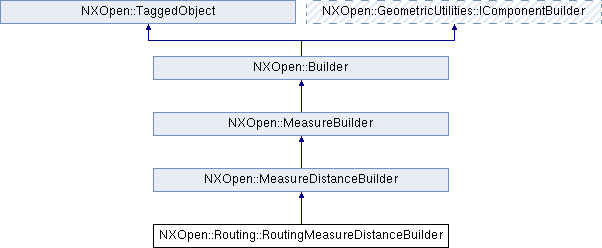

Inheritance diagram for NXOpen::Routing::RoutingMeasureDistanceBuilder:

Public Member Functions
std::vector< NXOpen::NXObject * >	GetRoutingObjects ()
	The routing objects used for path length.

NXOpen::Routing::RouteObjectCollector *	RoutingSelection ()
	Returns the Routing::RouteObjectCollector Created in NX6.0.0.

void	SetRoutingObjects (const std::vector< NXOpen::NXObject * > &routingObjects)
	The routing objects used for path length Created in NX6.0.0.

void	SetRoutingSelection (NXOpen::Routing::RouteObjectCollector *selectionBuilder)
	Sets the Routing::RouteObjectCollector Created in NX6.0.0.

Public Member Functions inherited from NXOpen::MeasureDistanceBuilder
NXOpen::SelectDisplayableObject *	DiameterObjects ()
	Returns the diameter objects Created in NX8.5.0.

NXOpen::ScCollector *	DistanceCollector1 ()
	Returns the first collector of objects for distance between two collectors Created in NX8.5.0.

NXOpen::ScCollector *	DistanceCollector2 ()
	Returns the second collector of objects for distance between two collectors Created in NX8.5.0.

bool	IsExact ()
	Returns the exact flag Created in NX7.5.0.

NXOpen::ScCollector *	LengthCollector ()
	Returns the length collector of objects Created in NX8.5.0.

NXOpen::SelectDisplayableObjectList *	LengthObjects ()
	Returns the length objects Created in NX5.0.0.

NXOpen::MeasureDistanceBuilder::MeasureType	Mtype ()
	Returns the mtype Created in NX5.0.0.

NXOpen::SelectDisplayableObject *	Object1 ()
	Returns the object1 Created in NX5.0.0.

NXOpen::SelectDisplayableObject *	Object2 ()
	Returns the object2 Created in NX5.0.0.

NXOpen::Direction *	ProjectionVector ()
	Returns the projection vector Created in NX5.0.0.

NXOpen::SelectDisplayableObject *	RadiusObjects ()
	Returns the radius objects Created in NX5.0.0.

NXOpen::SelectDisplayableObjectList *	Set1 ()
	Returns the set1 Created in NX5.0.0.

NXOpen::SelectDisplayableObjectList *	Set2 ()
	Returns the set2 Created in NX5.0.0.

void	SetExact (bool isExact)
	Sets the exact flag Created in NX7.5.0.

void	SetMtype (NXOpen::MeasureDistanceBuilder::MeasureType mtype)
	Sets the mtype Created in NX5.0.0.

void	SetProjectionVector (NXOpen::Direction *projectionVector)
	Sets the projection vector Created in NX5.0.0.

Public Member Functions inherited from NXOpen::MeasureBuilder
NXOpen::MeasureBuilder::AnnotationType	AnnotationMode ()
	Returns the annotation mode Created in NX5.0.0.

bool	InfoWindow ()
	Returns the info window Created in NX5.0.0.

NXOpen::MeasureBuilder::RequirementType	RequirementMode ()
	Returns the requirement mode Created in NX5.0.0.

void	SetAnnotationMode (NXOpen::MeasureBuilder::AnnotationType atype)
	Sets the annotation mode Created in NX5.0.0.

void	SetInfoWindow (bool infoWindow)
	Sets the info window Created in NX5.0.0.

void	SetRequirementMode (NXOpen::MeasureBuilder::RequirementType rtype)
	Sets the requirement mode Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Additional Inherited Members
Public Types inherited from NXOpen::MeasureDistanceBuilder
enum	DistanceType { DistanceTypeDistance, DistanceTypeSmartDistance, DistanceTypeProjectedDistance, DistanceTypeSmartProjectedDistance, DistanceTypeScreenDistance, DistanceTypeLength, DistanceTypeRadius, DistanceTypeDiameter, DistanceTypePointsOnCurves, DistanceTypeRoutingPathLength, DistanceTypeBetweenSets }
	the type of distance measurement More...

enum	MeasureType { MeasureTypeToAPoint, MeasureTypeMinimum, MeasureTypeLocalMinimum, MeasureTypeMaximum, MeasureTypeMinClearance, MeasureTypeMaxClearance }
	the subtype of distance measurement More...

Detailed Description

Represents a RoutingMeasureDistanceBuilder
Creator not available in KF because transient objects are not supported.

Created in NX6.0.0.

Member Function Documentation

std::vector<NXOpen::NXObject *> NXOpen::Routing::RoutingMeasureDistanceBuilder::GetRoutingObjects ( )

The routing objects used for path length.

Returns: the routing objects used for path length
Created in NX6.0.0.

License requirements : None

NXOpen::Routing::RouteObjectCollector* NXOpen::Routing::RoutingMeasureDistanceBuilder::RoutingSelection ( )

Returns the Routing::RouteObjectCollector
Created in NX6.0.0.

License requirements : None

void NXOpen::Routing::RoutingMeasureDistanceBuilder::SetRoutingObjects ( const std::vector< NXOpen::NXObject * > & routingObjects )

The routing objects used for path length
Created in NX6.0.0.

License requirements : None

Parameters

routingObjects the routing objects to set for path length

void NXOpen::Routing::RoutingMeasureDistanceBuilder::SetRoutingSelection ( NXOpen::Routing::RouteObjectCollector * selectionBuilder )

Sets the Routing::RouteObjectCollector
Created in NX6.0.0.

License requirements : None

Parameters

selectionBuilder selectionbuilder

The documentation for this class was generated from the following file:

Routing_RoutingMeasureDistanceBuilder.hxx
