Represents a MeasureBuilder
This is an abstract class, and cannot be instantiated. More...

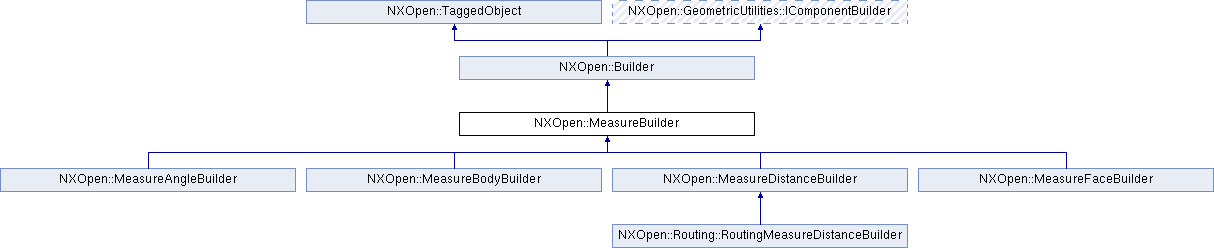

Inheritance diagram for NXOpen::MeasureBuilder:

Public Types
enum	AnnotationType { AnnotationTypeNone, AnnotationTypeShowDimension, AnnotationTypeCreateLine, AnnotationTypeCreateCsys }
	Represents the annotation type. More...

enum	RequirementType { RequirementTypeNone, RequirementTypeNew, RequirementTypeExisting }
	Represents the requirement type. More...

Public Member Functions
NXOpen::MeasureBuilder::AnnotationType	AnnotationMode ()
	Returns the annotation mode Created in NX5.0.0.

bool	InfoWindow ()
	Returns the info window Created in NX5.0.0.

NXOpen::MeasureBuilder::RequirementType	RequirementMode ()
	Returns the requirement mode Created in NX5.0.0.

void	SetAnnotationMode (NXOpen::MeasureBuilder::AnnotationType atype)
	Sets the annotation mode Created in NX5.0.0.

void	SetInfoWindow (bool infoWindow)
	Sets the info window Created in NX5.0.0.

void	SetRequirementMode (NXOpen::MeasureBuilder::RequirementType rtype)
	Sets the requirement mode Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a MeasureBuilder
This is an abstract class, and cannot be instantiated.

Created in NX5.0.0.

Member Enumeration Documentation

Represents the annotation type.

Enumerator:

AnnotationTypeNone	none
AnnotationTypeShowDimension	show dimension
AnnotationTypeCreateLine	create line
AnnotationTypeCreateCsys	create csys

Represents the requirement type.

Enumerator:

NXOpen::MeasureBuilder::AnnotationType NXOpen::MeasureBuilder::AnnotationMode ( )

Returns the annotation mode
Created in NX5.0.0.

License requirements : None

bool NXOpen::MeasureBuilder::InfoWindow ( )

Returns the info window
Created in NX5.0.0.

License requirements : None

NXOpen::MeasureBuilder::RequirementType NXOpen::MeasureBuilder::RequirementMode ( )

Returns the requirement mode
Created in NX5.0.0.

License requirements : None

void NXOpen::MeasureBuilder::SetAnnotationMode ( NXOpen::MeasureBuilder::AnnotationType atype )

Sets the annotation mode
Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

atype atype

void NXOpen::MeasureBuilder::SetInfoWindow ( bool infoWindow )

Sets the info window
Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

infoWindow infowindow

void NXOpen::MeasureBuilder::SetRequirementMode ( NXOpen::MeasureBuilder::RequirementType rtype )

Sets the requirement mode
Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

rtype rtype
