Represents a MeasureDistanceBuilder
To create a new instance of this class, use MeasureManager::CreateMeasureDistanceBuilder

Created in NX5.0.0. More...

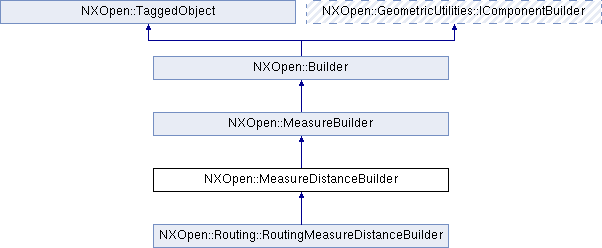

Inheritance diagram for NXOpen::MeasureDistanceBuilder:

Public Types
enum	DistanceType { DistanceTypeDistance, DistanceTypeSmartDistance, DistanceTypeProjectedDistance, DistanceTypeSmartProjectedDistance, DistanceTypeScreenDistance, DistanceTypeLength, DistanceTypeRadius, DistanceTypeDiameter, DistanceTypePointsOnCurves, DistanceTypeRoutingPathLength, DistanceTypeBetweenSets }
	the type of distance measurement More...

enum	MeasureType { MeasureTypeToAPoint, MeasureTypeMinimum, MeasureTypeLocalMinimum, MeasureTypeMaximum, MeasureTypeMinClearance, MeasureTypeMaxClearance }
	the subtype of distance measurement More...

Public Types inherited from NXOpen::MeasureBuilder
enum	AnnotationType { AnnotationTypeNone, AnnotationTypeShowDimension, AnnotationTypeCreateLine, AnnotationTypeCreateCsys }
	Represents the annotation type. More...

enum	RequirementType { RequirementTypeNone, RequirementTypeNew, RequirementTypeExisting }
	Represents the requirement type. More...

Public Member Functions
NXOpen::SelectDisplayableObject *	DiameterObjects ()
	Returns the diameter objects Created in NX8.5.0.

NXOpen::ScCollector *	DistanceCollector1 ()
	Returns the first collector of objects for distance between two collectors Created in NX8.5.0.

NXOpen::ScCollector *	DistanceCollector2 ()
	Returns the second collector of objects for distance between two collectors Created in NX8.5.0.

bool	IsExact ()
	Returns the exact flag Created in NX7.5.0.

NXOpen::ScCollector *	LengthCollector ()
	Returns the length collector of objects Created in NX8.5.0.

NXOpen::SelectDisplayableObjectList *	LengthObjects ()
	Returns the length objects Created in NX5.0.0.

NXOpen::MeasureDistanceBuilder::MeasureType	Mtype ()
	Returns the mtype Created in NX5.0.0.

NXOpen::SelectDisplayableObject *	Object1 ()
	Returns the object1 Created in NX5.0.0.

NXOpen::SelectDisplayableObject *	Object2 ()
	Returns the object2 Created in NX5.0.0.

NXOpen::Direction *	ProjectionVector ()
	Returns the projection vector Created in NX5.0.0.

NXOpen::SelectDisplayableObject *	RadiusObjects ()
	Returns the radius objects Created in NX5.0.0.

NXOpen::SelectDisplayableObjectList *	Set1 ()
	Returns the set1 Created in NX5.0.0.

NXOpen::SelectDisplayableObjectList *	Set2 ()
	Returns the set2 Created in NX5.0.0.

void	SetExact (bool isExact)
	Sets the exact flag Created in NX7.5.0.

void	SetMtype (NXOpen::MeasureDistanceBuilder::MeasureType mtype)
	Sets the mtype Created in NX5.0.0.

void	SetProjectionVector (NXOpen::Direction *projectionVector)
	Sets the projection vector Created in NX5.0.0.

Public Member Functions inherited from NXOpen::MeasureBuilder
NXOpen::MeasureBuilder::AnnotationType	AnnotationMode ()
	Returns the annotation mode Created in NX5.0.0.

bool	InfoWindow ()
	Returns the info window Created in NX5.0.0.

NXOpen::MeasureBuilder::RequirementType	RequirementMode ()
	Returns the requirement mode Created in NX5.0.0.

void	SetAnnotationMode (NXOpen::MeasureBuilder::AnnotationType atype)
	Sets the annotation mode Created in NX5.0.0.

void	SetInfoWindow (bool infoWindow)
	Sets the info window Created in NX5.0.0.

void	SetRequirementMode (NXOpen::MeasureBuilder::RequirementType rtype)
	Sets the requirement mode Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a MeasureDistanceBuilder
To create a new instance of this class, use MeasureManager::CreateMeasureDistanceBuilder

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::MeasureDistanceBuilder::DistanceType

the type of distance measurement

Enumerator:

DistanceTypeDistance	distance
DistanceTypeSmartDistance	smart distance
DistanceTypeProjectedDistance	projected distance
DistanceTypeSmartProjectedDistance	smart projected distance
DistanceTypeScreenDistance	screen distance
DistanceTypeLength	length
DistanceTypeRadius	radius
DistanceTypeDiameter	diameter
DistanceTypePointsOnCurves	points on curves
DistanceTypeRoutingPathLength	routing path length
DistanceTypeBetweenSets	between sets

enum NXOpen::MeasureDistanceBuilder::MeasureType

the subtype of distance measurement

Enumerator:

MeasureTypeToAPoint	to apoint
MeasureTypeMinimum	minimum
MeasureTypeLocalMinimum	local minimum
MeasureTypeMaximum	maximum
MeasureTypeMinClearance	min clearance
MeasureTypeMaxClearance	max clearance

Member Function Documentation

NXOpen::SelectDisplayableObject* NXOpen::MeasureDistanceBuilder::DiameterObjects ( )

Returns the diameter objects
Created in NX8.5.0.

License requirements : None

NXOpen::ScCollector* NXOpen::MeasureDistanceBuilder::DistanceCollector1 ( )

Returns the first collector of objects for distance between two collectors
Created in NX8.5.0.

License requirements : None

NXOpen::ScCollector* NXOpen::MeasureDistanceBuilder::DistanceCollector2 ( )

Returns the second collector of objects for distance between two collectors
Created in NX8.5.0.

License requirements : None

bool NXOpen::MeasureDistanceBuilder::IsExact ( )

Returns the exact flag
Created in NX7.5.0.

License requirements : None

NXOpen::ScCollector* NXOpen::MeasureDistanceBuilder::LengthCollector ( )

Returns the length collector of objects
Created in NX8.5.0.

License requirements : None

NXOpen::SelectDisplayableObjectList* NXOpen::MeasureDistanceBuilder::LengthObjects ( )

Returns the length objects
Created in NX5.0.0.

License requirements : None

NXOpen::MeasureDistanceBuilder::MeasureType NXOpen::MeasureDistanceBuilder::Mtype ( )

Returns the mtype
Created in NX5.0.0.

License requirements : None

NXOpen::SelectDisplayableObject* NXOpen::MeasureDistanceBuilder::Object1 ( )

Returns the object1
Created in NX5.0.0.

License requirements : None

NXOpen::SelectDisplayableObject* NXOpen::MeasureDistanceBuilder::Object2 ( )

Returns the object2
Created in NX5.0.0.

License requirements : None

NXOpen::Direction* NXOpen::MeasureDistanceBuilder::ProjectionVector ( )

Returns the projection vector
Created in NX5.0.0.

License requirements : None

NXOpen::SelectDisplayableObject* NXOpen::MeasureDistanceBuilder::RadiusObjects ( )

Returns the radius objects
Created in NX5.0.0.

License requirements : None

NXOpen::SelectDisplayableObjectList* NXOpen::MeasureDistanceBuilder::Set1 ( )

Returns the set1
Created in NX5.0.0.

License requirements : None

NXOpen::SelectDisplayableObjectList* NXOpen::MeasureDistanceBuilder::Set2 ( )

Returns the set2
Created in NX5.0.0.

License requirements : None

void NXOpen::MeasureDistanceBuilder::SetExact ( bool isExact )

Sets the exact flag
Created in NX7.5.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

isExact isexact

void NXOpen::MeasureDistanceBuilder::SetMtype ( NXOpen::MeasureDistanceBuilder::MeasureType mtype )

Sets the mtype
Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

mtype mtype

void NXOpen::MeasureDistanceBuilder::SetProjectionVector ( NXOpen::Direction * projectionVector )

Sets the projection vector
Created in NX5.0.0.

License requirements : solid_modeling ("SOLIDS MODELING")

Parameters

projectionVector projectionvector

The documentation for this class was generated from the following file:

MeasureDistanceBuilder.hxx
