Represents a SpringBuilder
 <br> To create a new instance of this class, use @link Motion::SpringCollection::CreateSpringBuilder  Motion::SpringCollection::CreateSpringBuilder @endlink  <br>

Default values. More...

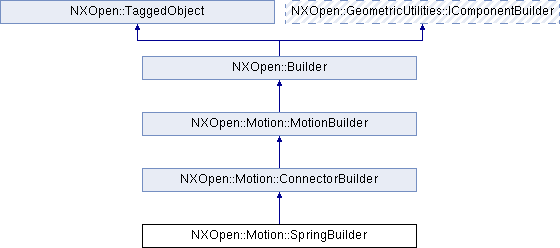

Inheritance diagram for NXOpen::Motion::SpringBuilder:

Public Member Functions
NXOpen::Expression *	CoefficientExpression ()
	Returns the translational coefficient expression Created in NX8.5.0.

NXOpen::CAE::Function *	CoefficientFunction ()
	Returns the function tag.

NXOpen::Motion::ConnectorCoefficientTypes	CoefficientType ()
	Returns the coefficient type Created in NX8.5.0.

bool	CreateDamper ()
	Returns the create damper toggle Created in NX8.5.0.

NXString	DamperName ()
	Returns the damper dname Created in NX8.5.0.

NXOpen::Expression *	FreeAngleExpression ()
	Returns the free angle expression Created in NX8.0.0.

double	FreeLength ()
	Returns the free length

NXOpen::Expression *	FreeLengthExpression ()
	Returns the free length expression Created in NX8.0.0.

double	InitialLength ()
	Returns the initial length used for spring attached to slide joint

NXOpen::Expression *	InitialLengthExpression ()
	Returns the initial length expression for spring which attachs to slide joint Created in NX8.0.0.

bool	LengthFlag ()
	Returns the length flag, if this flag is set to true, it will not update the preloaded length, if this flag is set to false, it will update the preloaded length according to the installed length Created in NX8.5.0.

NXString	Name ()
	Returns the name Created in NX6.0.0.

NXOpen::Expression *	PreloadAngleExpression ()
	Returns the preload expression Created in NX8.5.0.

NXOpen::Expression *	PreloadExpression ()
	Returns the preload expression Created in NX8.5.0.

void	SetCoefficientFunction (NXOpen::CAE::Function *function)
	Sets the function tag.

void	SetCoefficientType (NXOpen::Motion::ConnectorCoefficientTypes coefficientType)
	Sets the coefficient type Created in NX8.5.0.

void	SetCreateDamper (bool createDamper)
	Sets the create damper toggle Created in NX8.5.0.

void	SetDamperName (const NXString &damperName)
	Sets the damper dname Created in NX8.5.0.

void	SetDamperName (const char *damperName)
	Sets the damper dname Created in NX8.5.0.

void	SetFreeLength (double freeLength)
	Sets the free length

void	SetInitialLength (double initialLength)
	Sets the initial length used for spring attached to slide joint

void	SetLengthFlag (bool lengthFlag)
	Sets the length flag, if this flag is set to true, it will not update the preloaded length, if this flag is set to false, it will update the preloaded length according to the installed length Created in NX8.5.0.

void	SetName (const NXString &name)
	Sets the name Created in NX6.0.0.

void	SetName (const char *name)
	Sets the name Created in NX6.0.0.

void	SetStiffness (double stiffness)
	Sets the stiffness.

void	SetStiffnessFunction (NXOpen::CAE::Function *function)
	Sets the function tag.

void	SetStiffnessType (NXOpen::Motion::ConnectorCoefficientTypes stiffnessType)
	Sets the stiffness type Created in NX6.0.0.

double	Stiffness ()
	Returns the stiffness.

NXOpen::Expression *	StiffnessExpression ()
	Returns the stiffness expression Created in NX8.0.0.

NXOpen::CAE::Function *	StiffnessFunction ()
	Returns the function tag.

NXOpen::Motion::ConnectorCoefficientTypes	StiffnessType ()
	Returns the stiffness type Created in NX6.0.0.

NXOpen::Expression *	TorsionalCoefficientExpression ()
	Returns the torsional coefficient expression Created in NX8.5.0.

NXOpen::Expression *	TorsionalStiffnessExpression ()
	Returns the torsional stiffness expression Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Motion::ConnectorBuilder
NXOpen::Motion::SelectLink *	ActionLink ()
	Returns the action link.

NXOpen::Point *	ActionPoint ()
	Returns the action point.

NXOpen::Motion::ConnectorBuilder::AttachmentType	Attachment ()
	Returns the attachment type Created in NX6.0.0.

NXOpen::Motion::SelectJoint *	Joint ()
	Returns the joint .

NXOpen::Motion::SelectLink *	ReactionLink ()
	Returns the reaction link.

NXOpen::Point *	ReactionPoint ()
	Returns the reaction point.

void	SetActionPoint (NXOpen::Point *actionPoint)
	Sets the action point.

void	SetAttachment (NXOpen::Motion::ConnectorBuilder::AttachmentType attachment)
	Sets the attachment type Created in NX6.0.0.

void	SetReactionPoint (NXOpen::Point *reactionPoint)
	Sets the reaction point.

Public Member Functions inherited from NXOpen::Motion::MotionBuilder
double	DisplayScale ()
	Returns the icon display scale Created in NX5.0.0.

NXString	GroupName ()
	Returns the group name Created in NX5.0.0.

NXOpen::Motion::MotionObject::GroupType	GroupType ()
	Returns the group type Created in NX5.0.0.

void	SetDisplayScale (double displayScale)
	Sets the icon display scale Created in NX5.0.0.

void	SetGroupName (const NXString &groupName)
	Sets the group name Created in NX5.0.0.

void	SetGroupName (const char *groupName)
	Sets the group name Created in NX5.0.0.

void	SetGroupType (NXOpen::Motion::MotionObject::GroupType groupType)
	Sets the group type Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Additional Inherited Members
Public Types inherited from NXOpen::Motion::ConnectorBuilder
enum	AttachmentType { AttachmentTypeLink, AttachmentTypeSliderJoint, AttachmentTypeRevoluteJoint }
	Definitions of connector attachment type. More...

Detailed Description

Represents a SpringBuilder
 <br> To create a new instance of this class, use @link Motion::SpringCollection::CreateSpringBuilder  Motion::SpringCollection::CreateSpringBuilder @endlink  <br>

Default values.

Property

Value

FreeLength (deprecated)

0.0

InitialLength (deprecated)

0.0

Stiffness (deprecated)

1.0

StiffnessType

Constant

Created in NX6.0.0.

Member Function Documentation

NXOpen::Expression* NXOpen::Motion::SpringBuilder::CoefficientExpression ( )

Returns the translational coefficient expression
Created in NX8.5.0.

License requirements : None

NXOpen::CAE::Function* NXOpen::Motion::SpringBuilder::CoefficientFunction ( )

Returns the function tag.

Only valid if Motion::ConnectorCoefficientTypesSpline is set
Created in NX8.5.0.

License requirements : None

NXOpen::Motion::ConnectorCoefficientTypes NXOpen::Motion::SpringBuilder::CoefficientType ( )

Returns the coefficient type
Created in NX8.5.0.

License requirements : None

bool NXOpen::Motion::SpringBuilder::CreateDamper ( )

Returns the create damper toggle
Created in NX8.5.0.

License requirements : None

NXString NXOpen::Motion::SpringBuilder::DamperName ( )

Returns the damper dname
Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::SpringBuilder::FreeAngleExpression ( )

Returns the free angle expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::SpringBuilder::FreeLength ( )

Returns the free length

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::SpringBuilder::FreeLengthExpression or Motion::SpringBuilder::FreeLengthExpression to query or edit it.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::SpringBuilder::FreeLengthExpression ( )

Returns the free length expression
Created in NX8.0.0.

License requirements : None

double NXOpen::Motion::SpringBuilder::InitialLength ( )

Returns the initial length used for spring attached to slide joint

Deprecated:: Deprecated in NX8.0.0.

Obtian the expression using Motion::SpringBuilder::InitialLengthExpression to query or edit it.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::SpringBuilder::InitialLengthExpression ( )

Returns the initial length expression for spring which attachs to slide joint
Created in NX8.0.0.

License requirements : None

bool NXOpen::Motion::SpringBuilder::LengthFlag ( )

Returns the length flag, if this flag is set to true, it will not update the preloaded length, if this flag is set to false, it will update the preloaded length according to the installed length
Created in NX8.5.0.

License requirements : None

NXString NXOpen::Motion::SpringBuilder::Name ( )

Returns the name
Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::SpringBuilder::PreloadAngleExpression ( )

Returns the preload expression
Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::SpringBuilder::PreloadExpression ( )

Returns the preload expression
Created in NX8.5.0.

License requirements : None

void NXOpen::Motion::SpringBuilder::SetCoefficientFunction ( NXOpen::CAE::Function * function )

Sets the function tag.

Only valid if Motion::ConnectorCoefficientTypesSpline is set
Created in NX8.5.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

function function

void NXOpen::Motion::SpringBuilder::SetCoefficientType ( NXOpen::Motion::ConnectorCoefficientTypes coefficientType )

Sets the coefficient type
Created in NX8.5.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

coefficientType coefficienttype

void NXOpen::Motion::SpringBuilder::SetCreateDamper ( bool createDamper )

Sets the create damper toggle
Created in NX8.5.0.

License requirements : None

Parameters

createDamper createdamper

void NXOpen::Motion::SpringBuilder::SetDamperName ( const NXString & damperName )

Sets the damper dname
Created in NX8.5.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

damperName dampername

void NXOpen::Motion::SpringBuilder::SetDamperName ( const char * damperName )

Sets the damper dname
Created in NX8.5.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

damperName dampername

void NXOpen::Motion::SpringBuilder::SetFreeLength ( double freeLength )

Sets the free length

Deprecated:: Deprecated in NX8.0.0.

Obtain the expression using Motion::SpringBuilder::FreeLengthExpression or Motion::SpringBuilder::FreeLengthExpression to query or edit it.

Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

freeLength freelength

void NXOpen::Motion::SpringBuilder::SetInitialLength ( double initialLength )

Sets the initial length used for spring attached to slide joint

Deprecated:: Deprecated in NX8.0.0.

Obtian the expression using Motion::SpringBuilder::InitialLengthExpression to query or edit it.

Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

initialLength initiallength

void NXOpen::Motion::SpringBuilder::SetLengthFlag ( bool lengthFlag )

Sets the length flag, if this flag is set to true, it will not update the preloaded length, if this flag is set to false, it will update the preloaded length according to the installed length
Created in NX8.5.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

lengthFlag lengthflag

void NXOpen::Motion::SpringBuilder::SetName ( const NXString & name )

Sets the name
Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

name name

void NXOpen::Motion::SpringBuilder::SetName ( const char * name )

Sets the name
Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

name name

void NXOpen::Motion::SpringBuilder::SetStiffness ( double stiffness )

Sets the stiffness.

Only valid if Motion::ConnectorCoefficientTypesConstant is set

Deprecated:: Deprecated in NX8.0.0. Obtain the expression using Motion::SpringBuilder::Stiffness and Motion::SpringBuilder::TorsionalStiffnessExpression to query or edit it.

Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

stiffness stiffness

void NXOpen::Motion::SpringBuilder::SetStiffnessFunction ( NXOpen::CAE::Function * function )

Sets the function tag.

Only valid if Motion::ConnectorCoefficientTypesSpline is set
Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

function function

void NXOpen::Motion::SpringBuilder::SetStiffnessType ( NXOpen::Motion::ConnectorCoefficientTypes stiffnessType )

Sets the stiffness type
Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

stiffnessType stiffnesstype

double NXOpen::Motion::SpringBuilder::Stiffness ( )

Returns the stiffness.

Only valid if Motion::ConnectorCoefficientTypesConstant is set

Deprecated:: Deprecated in NX8.0.0. Obtain the expression using Motion::SpringBuilder::Stiffness and Motion::SpringBuilder::TorsionalStiffnessExpression to query or edit it.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::SpringBuilder::StiffnessExpression ( )

Returns the stiffness expression
Created in NX8.0.0.

License requirements : None

NXOpen::CAE::Function* NXOpen::Motion::SpringBuilder::StiffnessFunction ( )

Returns the function tag.

Only valid if Motion::ConnectorCoefficientTypesSpline is set
Created in NX6.0.0.

License requirements : None

NXOpen::Motion::ConnectorCoefficientTypes NXOpen::Motion::SpringBuilder::StiffnessType ( )

Returns the stiffness type
Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::SpringBuilder::TorsionalCoefficientExpression ( )

Returns the torsional coefficient expression
Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Motion::SpringBuilder::TorsionalStiffnessExpression ( )

Returns the torsional stiffness expression
Created in NX8.0.0.

License requirements : None

The documentation for this class was generated from the following file:

Motion_SpringBuilder.hxx

Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation
