Represents ConnectorBuilder
This is an abstract class, and cannot be created. More...

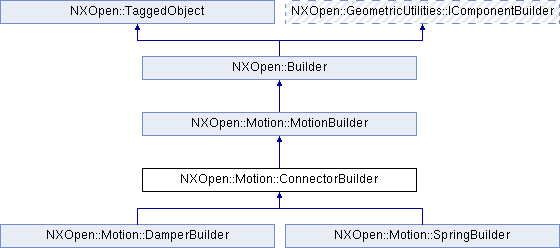

Inheritance diagram for NXOpen::Motion::ConnectorBuilder:

Public Types
enum	AttachmentType { AttachmentTypeLink, AttachmentTypeSliderJoint, AttachmentTypeRevoluteJoint }
	Definitions of connector attachment type. More...

Public Member Functions
NXOpen::Motion::SelectLink *	ActionLink ()
	Returns the action link.

NXOpen::Point *	ActionPoint ()
	Returns the action point.

NXOpen::Motion::ConnectorBuilder::AttachmentType	Attachment ()
	Returns the attachment type Created in NX6.0.0.

NXOpen::Motion::SelectJoint *	Joint ()
	Returns the joint .

NXOpen::Motion::SelectLink *	ReactionLink ()
	Returns the reaction link.

NXOpen::Point *	ReactionPoint ()
	Returns the reaction point.

void	SetActionPoint (NXOpen::Point *actionPoint)
	Sets the action point.

void	SetAttachment (NXOpen::Motion::ConnectorBuilder::AttachmentType attachment)
	Sets the attachment type Created in NX6.0.0.

void	SetReactionPoint (NXOpen::Point *reactionPoint)
	Sets the reaction point.

Public Member Functions inherited from NXOpen::Motion::MotionBuilder
double	DisplayScale ()
	Returns the icon display scale Created in NX5.0.0.

NXString	GroupName ()
	Returns the group name Created in NX5.0.0.

NXOpen::Motion::MotionObject::GroupType	GroupType ()
	Returns the group type Created in NX5.0.0.

void	SetDisplayScale (double displayScale)
	Sets the icon display scale Created in NX5.0.0.

void	SetGroupName (const NXString &groupName)
	Sets the group name Created in NX5.0.0.

void	SetGroupName (const char *groupName)
	Sets the group name Created in NX5.0.0.

void	SetGroupType (NXOpen::Motion::MotionObject::GroupType groupType)
	Sets the group type Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents ConnectorBuilder
This is an abstract class, and cannot be created.

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Motion::ConnectorBuilder::AttachmentType

Definitions of connector attachment type.

Enumerator:

AttachmentTypeLink	connector is attacted to links
AttachmentTypeSliderJoint	connector is attacted to slider joint
AttachmentTypeRevoluteJoint	connector is attacted to revolute joint

Member Function Documentation

NXOpen::Motion::SelectLink* NXOpen::Motion::ConnectorBuilder::ActionLink ( )

Returns the action link.

Only valid if Motion::ConnectorBuilder::AttachmentTypeLink is set.
Created in NX6.0.0.

License requirements : None

NXOpen::Point* NXOpen::Motion::ConnectorBuilder::ActionPoint ( )

Returns the action point.

Only valid if Motion::ConnectorBuilder::AttachmentTypeLink is set.
Created in NX6.0.0.

License requirements : None

NXOpen::Motion::ConnectorBuilder::AttachmentType NXOpen::Motion::ConnectorBuilder::Attachment ( )

Returns the attachment type
Created in NX6.0.0.

License requirements : None

NXOpen::Motion::SelectJoint* NXOpen::Motion::ConnectorBuilder::Joint ( )

Returns the joint .

Only valid if Motion::ConnectorBuilder::AttachmentTypeSliderJoint or Motion::ConnectorBuilder::AttachmentTypeRevoluteJoint is set.
Created in NX6.0.0.

License requirements : None

NXOpen::Motion::SelectLink* NXOpen::Motion::ConnectorBuilder::ReactionLink ( )

Returns the reaction link.

Only valid if Motion::ConnectorBuilder::AttachmentTypeLink is set.
Created in NX6.0.0.

License requirements : None

NXOpen::Point* NXOpen::Motion::ConnectorBuilder::ReactionPoint ( )

Returns the reaction point.

Only valid if Motion::ConnectorBuilder::AttachmentTypeLink is set.
Created in NX6.0.0.

License requirements : None

void NXOpen::Motion::ConnectorBuilder::SetActionPoint ( NXOpen::Point * actionPoint )

Sets the action point.

Only valid if Motion::ConnectorBuilder::AttachmentTypeLink is set.
Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

actionPoint actionpoint

void NXOpen::Motion::ConnectorBuilder::SetAttachment ( NXOpen::Motion::ConnectorBuilder::AttachmentType attachment )

Sets the attachment type
Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

attachment attachment

void NXOpen::Motion::ConnectorBuilder::SetReactionPoint ( NXOpen::Point * reactionPoint )

Sets the reaction point.

Only valid if Motion::ConnectorBuilder::AttachmentTypeLink is set.
Created in NX6.0.0.

License requirements : mechanisms ("MECHANISMS")

Parameters

reactionPoint reactionpoint

The documentation for this class was generated from the following file:

Motion_ConnectorBuilder.hxx
