Represents a Mechatronics::Cam builder. More...

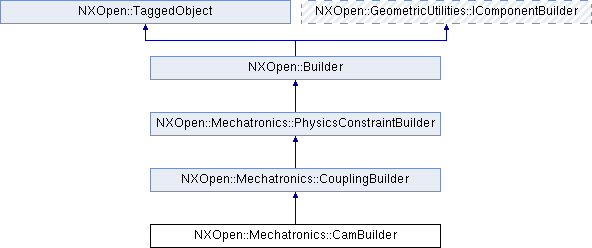

Inheritance diagram for NXOpen::Mechatronics::CamBuilder:

Public Types
enum	AxisJointType { AxisJointTypeLinear, AxisJointTypeAngular }
	Represents the axis joint type. More...

Public Member Functions
NXOpen::Mechatronics::CamProfile *	CamProfile ()
	Returns the cam profile.

NXOpen::Mechatronics::CamBuilder::AxisJointType	MasterAxisType ()
	Returns the master axis type.

NXOpen::Expression *	MasterOffset ()
	Returns the master offset.

NXOpen::Expression *	MasterScaleFactor ()
	Returns the master scale factor.

NXOpen::Mechatronics::MotionProfile *	MotionProfile ()
	Returns the motion profile.

void	SetCamProfile (NXOpen::Mechatronics::CamProfile *profile)
	Sets the cam profile.

void	SetMasterAxisType (NXOpen::Mechatronics::CamBuilder::AxisJointType masterAxisType)
	Sets the master axis type.

void	SetMotionProfile (NXOpen::Mechatronics::MotionProfile *profile)
	Sets the motion profile.

void	SetSlaveAxisType (NXOpen::Mechatronics::CamBuilder::AxisJointType slaveAxisType)
	Sets the slave axis type.

NXOpen::Mechatronics::CamBuilder::AxisJointType	SlaveAxisType ()
	Returns the slave axis type.

NXOpen::Expression *	SlaveOffset ()
	Returns the slave offset.

NXOpen::Expression *	SlaveScaleFactor ()
	Returns the slave scale factor.

Public Member Functions inherited from NXOpen::Mechatronics::CouplingBuilder
bool	AllowSlip ()
	Returns the coulping can slip or not.

NXOpen::Mechatronics::SelectPhysicsJoint *	MasterAxisJoint ()
	Returns the master axis joint.

void	SetAllowSlip (bool allowSlip)
	Sets the coulping can slip or not.

void	SetMasterAxisJoint (NXOpen::Mechatronics::PhysicsJoint *master)
	Sets the master axis.

void	SetSlaveAxisJoint (NXOpen::Mechatronics::PhysicsJoint *slave)
	Sets the slave axis.

NXOpen::Mechatronics::SelectPhysicsJoint *	SlaveAxisJoint ()
	Returns the slave axis joint.

Public Member Functions inherited from NXOpen::Mechatronics::PhysicsConstraintBuilder
NXString	Name ()
	Returns the name.

void	SetName (const NXString &name)
	Sets the name.

void	SetName (const char *name)
	Sets the name.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Mechatronics::Cam builder.

To create a new instance of this class, use Mechatronics::CamCollection::CreateCamBuilder

Created in NX7.5.1.

Member Enumeration Documentation

enum NXOpen::Mechatronics::CamBuilder::AxisJointType

Represents the axis joint type.

Enumerator:

AxisJointTypeLinear	Linear.
AxisJointTypeAngular	Angular.

Member Function Documentation

NXOpen::Mechatronics::CamProfile* NXOpen::Mechatronics::CamBuilder::CamProfile ( )

Returns the cam profile.

This can be CamProfile .
Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Mechatronics::CamBuilder::AxisJointType NXOpen::Mechatronics::CamBuilder::MasterAxisType ( )

Returns the master axis type.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Expression* NXOpen::Mechatronics::CamBuilder::MasterOffset ( )

Returns the master offset.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Expression* NXOpen::Mechatronics::CamBuilder::MasterScaleFactor ( )

Returns the master scale factor.

Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Mechatronics::MotionProfile* NXOpen::Mechatronics::CamBuilder::MotionProfile ( )

Returns the motion profile.

This can be MotionProfile .
Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

void NXOpen::Mechatronics::CamBuilder::SetCamProfile ( NXOpen::Mechatronics::CamProfile * profile )

Sets the cam profile.

This can be CamProfile .
Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

profile profile

void NXOpen::Mechatronics::CamBuilder::SetMasterAxisType ( NXOpen::Mechatronics::CamBuilder::AxisJointType masterAxisType )

Sets the master axis type.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

masterAxisType masteraxistype

void NXOpen::Mechatronics::CamBuilder::SetMotionProfile ( NXOpen::Mechatronics::MotionProfile * profile )

Sets the motion profile.

This can be MotionProfile .
Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

profile profile

void NXOpen::Mechatronics::CamBuilder::SetSlaveAxisType ( NXOpen::Mechatronics::CamBuilder::AxisJointType slaveAxisType )

Sets the slave axis type.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

Parameters

slaveAxisType slaveaxistype

NXOpen::Mechatronics::CamBuilder::AxisJointType NXOpen::Mechatronics::CamBuilder::SlaveAxisType ( )

Returns the slave axis type.

Created in NX7.5.1.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Expression* NXOpen::Mechatronics::CamBuilder::SlaveOffset ( )

Returns the slave offset.

Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

NXOpen::Expression* NXOpen::Mechatronics::CamBuilder::SlaveScaleFactor ( )

Returns the slave scale factor.

Created in NX9.0.0.

License requirements : nx_mcd_core ("MECHATRONICS CONCEPT DESIGNER")

The documentation for this class was generated from the following file:

Mechatronics_CamBuilder.hxx
