Represents a IgesImporter to be used when importing the IGES Data This class is created using DexManager . More...

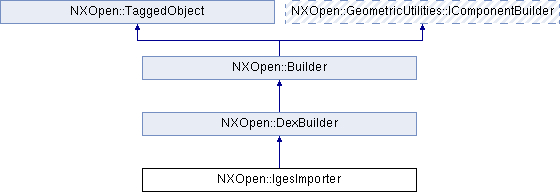

Inheritance diagram for NXOpen::IgesImporter:

Public Types
enum	CopiousDataEnum { CopiousDataEnumCubicNURBBestfitSpline, CopiousDataEnumLinearNURBSpline, CopiousDataEnumGroupofLines }
	Copious Data Option. More...

enum	ImportToEnum { ImportToEnumWorkPart, ImportToEnumNewPart }
	Import To Option. More...

Public Member Functions
NXOpen::IgesImporter::CopiousDataEnum	CopiousData ()
	Returns the copious data mapping Created in NX6.0.0.

bool	FileOpenFlag ()
	Returns the file open flag - set this to false if doing file import Created in NX6.0.0.

bool	FlattenAssembly ()
	Returns the flatten assembly - if set to true then assembly structure will not be retained Created in NX6.0.0.

double	GeomFixupTol ()
	Returns the geometry fixup tol Created in NX6.0.0.

NXOpen::IgesImporter::ImportToEnum	ImportTo ()
	Returns the import to - this option will determine the destination for imported iges file.

bool	ImportToTeamcenter ()
	Returns the flatten assembly - if set to true then assembly structure will not be retained Created in NX7.0.0.

NXString	InputFile ()
	Returns the input file - name of a file which is being imported Created in NX6.0.0.

int	LayerDefault ()
	Returns the layer default for level 0 in iges Created in NX6.0.0.

NXString	LayerMask ()
	Returns the layerMask - comma spearate list of enabled layers Created in NX6.0.0.

bool	MapViewDep ()
	Returns the map view dep - set to true if you want to map view dependent/modified entity to model object Created in NX6.0.0.

NXOpen::ObjectTypeSelector *	ObjectTypes ()
	Returns the objectTypes - this is subcomponent being used to set object types filters.

bool	Optimize ()
	Returns the optimize - set this to true if automatic optimize geometry Created in NX6.0.0.

NXString	OutputFile ()
	Returns the output file - if iges file is imported to new part then this name will be used to write the output.

void	SaveSettings (const NXString &filename)
	Returns the save settings - this will save the settings to a file specified Created in NX6.0.0.

void	SaveSettings (const char *filename)
	Returns the save settings - this will save the settings to a file specified Created in NX6.0.0.

void	SetCopiousData (NXOpen::IgesImporter::CopiousDataEnum copiousData)
	Sets the copious data mapping Created in NX6.0.0.

void	SetFileOpenFlag (bool doingFileOpen)
	Sets the file open flag - set this to false if doing file import Created in NX6.0.0.

void	SetFlattenAssembly (bool flattenAssembly)
	Sets the flatten assembly - if set to true then assembly structure will not be retained Created in NX6.0.0.

void	SetGeomFixupTol (double geomFixupTol)
	Sets the geometry fixup tol Created in NX6.0.0.

void	SetImportTo (NXOpen::IgesImporter::ImportToEnum importTo)
	Sets the import to - this option will determine the destination for imported iges file.

void	SetImportToTeamcenter (bool importToTeamcenter)
	Sets the flatten assembly - if set to true then assembly structure will not be retained Created in NX7.0.0.

void	SetInputFile (const NXString &filename)
	Sets the input file - name of a file which is being imported Created in NX6.0.0.

void	SetInputFile (const char *filename)
	Sets the input file - name of a file which is being imported Created in NX6.0.0.

void	SetLayerDefault (int layerDefault)
	Sets the layer default for level 0 in iges Created in NX6.0.0.

void	SetLayerMask (const NXString &layerMask)
	Sets the layerMask - comma spearate list of enabled layers Created in NX6.0.0.

void	SetLayerMask (const char *layerMask)
	Sets the layerMask - comma spearate list of enabled layers Created in NX6.0.0.

void	SetMapViewDep (bool mapViewDep)
	Sets the map view dep - set to true if you want to map view dependent/modified entity to model object Created in NX6.0.0.

void	SetOptimize (bool optimize)
	Sets the optimize - set this to true if automatic optimize geometry Created in NX6.0.0.

void	SetOutputFile (const NXString &filename)
	Sets the output file - if iges file is imported to new part then this name will be used to write the output.

void	SetOutputFile (const char *filename)
	Sets the output file - if iges file is imported to new part then this name will be used to write the output.

void	SetSettingsFile (const NXString &filename)
	Sets the settings file - definition file for default options Created in NX6.0.0.

void	SetSettingsFile (const char *filename)
	Sets the settings file - definition file for default options Created in NX6.0.0.

void	SetSewSurfaces (bool sewSurfaces)
	Sets the sew surfaces - set this to true if automatic sewing of surfaces is desired Created in NX6.0.0.

void	SetSimplifyGeometry (bool simplifyGeometry)
	Sets the simplify geometry - set this to true if automatic simplification of geometry is desired Created in NX6.0.0.

void	SetSmoothBSurf (bool smoothBSurf)
	Sets the smooth bsurf - set the flag to true if b-surfaced are required to be smoothed Created in NX6.0.0.

void	SetSurfTrimTol (double surfTrimTol)
	Sets the surf trim tol - surface trimming tolerance Created in NX6.0.0.

NXString	SettingsFile ()
	Returns the settings file - definition file for default options Created in NX6.0.0.

bool	SewSurfaces ()
	Returns the sew surfaces - set this to true if automatic sewing of surfaces is desired Created in NX6.0.0.

bool	SimplifyGeometry ()
	Returns the simplify geometry - set this to true if automatic simplification of geometry is desired Created in NX6.0.0.

bool	SmoothBSurf ()
	Returns the smooth bsurf - set the flag to true if b-surfaced are required to be smoothed Created in NX6.0.0.

double	SurfTrimTol ()
	Returns the surf trim tol - surface trimming tolerance Created in NX6.0.0.

Public Member Functions inherited from NXOpen::DexBuilder
bool	ProcessHoldFlag ()
	Returns the process hold flag - set to true if user wants to wait until transaltion process gets completed Created in NX8.0.0.

void	SetProcessHoldFlag (bool doingFileSave)
	Sets the process hold flag - set to true if user wants to wait until transaltion process gets completed Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a IgesImporter to be used when importing the IGES Data This class is created using DexManager .

NULL object will be returned from Commit()  <br> To create a new instance of this class, use @link DexManager::CreateIgesImporter  DexManager::CreateIgesImporter @endlink  <br>

Default values.

Property

Value

CopiousData

CubicNURBBestfitSpline

FlattenAssembly

0

GeomFixupTol

0

ImportTo

WorkPart

ImportToTeamcenter

0

LayerDefault

0

MapViewDep

0

Optimize

0

ProcessHoldFlag

0

SewSurfaces

0

SimplifyGeometry

0

SmoothBSurf

0

SurfTrimTol

0.0254

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::IgesImporter::CopiousDataEnum

Copious Data Option.

Enumerator:

CopiousDataEnumCubicNURBBestfitSpline	map copious data to Cubic Nurb best fit spline
CopiousDataEnumLinearNURBSpline	map copious data to Linear Nurb spline
CopiousDataEnumGroupofLines	Group of lines.

enum NXOpen::IgesImporter::ImportToEnum

Import To Option.

Enumerator:

ImportToEnumWorkPart	import iges file to work part
ImportToEnumNewPart	import iges file to new part

Member Function Documentation

NXOpen::IgesImporter::CopiousDataEnum NXOpen::IgesImporter::CopiousData ( )

Returns the copious data mapping
Created in NX6.0.0.

License requirements : None

bool NXOpen::IgesImporter::FileOpenFlag ( )

Returns the file open flag - set this to false if doing file import
Created in NX6.0.0.

License requirements : None

bool NXOpen::IgesImporter::FlattenAssembly ( )

Returns the flatten assembly - if set to true then assembly structure will not be retained
Created in NX6.0.0.

License requirements : None

double NXOpen::IgesImporter::GeomFixupTol ( )

Returns the geometry fixup tol
Created in NX6.0.0.

License requirements : None

NXOpen::IgesImporter::ImportToEnum NXOpen::IgesImporter::ImportTo ( )

Returns the import to - this option will determine the destination for imported iges file.

it can either be new part or work part.
Created in NX6.0.0.

License requirements : None

bool NXOpen::IgesImporter::ImportToTeamcenter ( )

Returns the flatten assembly - if set to true then assembly structure will not be retained
Created in NX7.0.0.

License requirements : None

NXString NXOpen::IgesImporter::InputFile ( )

Returns the input file - name of a file which is being imported
Created in NX6.0.0.

License requirements : None

int NXOpen::IgesImporter::LayerDefault ( )

Returns the layer default for level 0 in iges
Created in NX6.0.0.

License requirements : None

NXString NXOpen::IgesImporter::LayerMask ( )

Returns the layerMask - comma spearate list of enabled layers
Created in NX6.0.0.

License requirements : None

bool NXOpen::IgesImporter::MapViewDep ( )

Returns the map view dep - set to true if you want to map view dependent/modified entity to model object
Created in NX6.0.0.

License requirements : None

NXOpen::ObjectTypeSelector* NXOpen::IgesImporter::ObjectTypes ( )

Returns the objectTypes - this is subcomponent being used to set object types filters.

This will be used to filter objects based on the types
Created in NX6.0.0.

License requirements : None

bool NXOpen::IgesImporter::Optimize ( )

Returns the optimize - set this to true if automatic optimize geometry
Created in NX6.0.0.

License requirements : None

NXString NXOpen::IgesImporter::OutputFile ( )

Returns the output file - if iges file is imported to new part then this name will be used to write the output.

Created in NX6.0.0.

License requirements : None

void NXOpen::IgesImporter::SaveSettings ( const NXString & filename )

Returns the save settings - this will save the settings to a file specified
Created in NX6.0.0.

License requirements : None

Parameters

filename NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::IgesImporter::SaveSettings ( const char * filename )

Returns the save settings - this will save the settings to a file specified
Created in NX6.0.0.

License requirements : None

Parameters

filename NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::IgesImporter::SetCopiousData ( NXOpen::IgesImporter::CopiousDataEnum copiousData )

Sets the copious data mapping
Created in NX6.0.0.

License requirements : None

Parameters

copiousData copiousdata

void NXOpen::IgesImporter::SetFileOpenFlag ( bool doingFileOpen )

Sets the file open flag - set this to false if doing file import
Created in NX6.0.0.

License requirements : None

Parameters

doingFileOpen doingfileopen

void NXOpen::IgesImporter::SetFlattenAssembly ( bool flattenAssembly )

Sets the flatten assembly - if set to true then assembly structure will not be retained
Created in NX6.0.0.

License requirements : None

Parameters

flattenAssembly flattenassembly

void NXOpen::IgesImporter::SetGeomFixupTol ( double geomFixupTol )

Sets the geometry fixup tol
Created in NX6.0.0.

License requirements : None

Parameters

geomFixupTol geomfixuptol

void NXOpen::IgesImporter::SetImportTo ( NXOpen::IgesImporter::ImportToEnum importTo )

Sets the import to - this option will determine the destination for imported iges file.

it can either be new part or work part.
Created in NX6.0.0.

License requirements : None

Parameters

importTo importto

void NXOpen::IgesImporter::SetImportToTeamcenter ( bool importToTeamcenter )

Sets the flatten assembly - if set to true then assembly structure will not be retained
Created in NX7.0.0.

License requirements : None

Parameters

importToTeamcenter importtoteamcenter

void NXOpen::IgesImporter::SetInputFile ( const NXString & filename )

Sets the input file - name of a file which is being imported
Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::IgesImporter::SetInputFile ( const char * filename )

Sets the input file - name of a file which is being imported
Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::IgesImporter::SetLayerDefault ( int layerDefault )

Sets the layer default for level 0 in iges
Created in NX6.0.0.

License requirements : None

Parameters

layerDefault layerdefault

void NXOpen::IgesImporter::SetLayerMask ( const NXString & layerMask )

Sets the layerMask - comma spearate list of enabled layers
Created in NX6.0.0.

License requirements : None

Parameters

layerMask layermask

void NXOpen::IgesImporter::SetLayerMask ( const char * layerMask )

Sets the layerMask - comma spearate list of enabled layers
Created in NX6.0.0.

License requirements : None

Parameters

layerMask layermask

void NXOpen::IgesImporter::SetMapViewDep ( bool mapViewDep )

Sets the map view dep - set to true if you want to map view dependent/modified entity to model object
Created in NX6.0.0.

License requirements : None

Parameters

mapViewDep mapviewdep

void NXOpen::IgesImporter::SetOptimize ( bool optimize )

Sets the optimize - set this to true if automatic optimize geometry
Created in NX6.0.0.

License requirements : None

Parameters

optimize optimize

void NXOpen::IgesImporter::SetOutputFile ( const NXString & filename )

Sets the output file - if iges file is imported to new part then this name will be used to write the output.

Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::IgesImporter::SetOutputFile ( const char * filename )

Sets the output file - if iges file is imported to new part then this name will be used to write the output.

Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::IgesImporter::SetSettingsFile ( const NXString & filename )

Sets the settings file - definition file for default options
Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::IgesImporter::SetSettingsFile ( const char * filename )

Sets the settings file - definition file for default options
Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::IgesImporter::SetSewSurfaces ( bool sewSurfaces )

Sets the sew surfaces - set this to true if automatic sewing of surfaces is desired
Created in NX6.0.0.

License requirements : None

Parameters

sewSurfaces sewsurfaces

void NXOpen::IgesImporter::SetSimplifyGeometry ( bool simplifyGeometry )

Sets the simplify geometry - set this to true if automatic simplification of geometry is desired
Created in NX6.0.0.

License requirements : None

Parameters

simplifyGeometry simplifygeometry

void NXOpen::IgesImporter::SetSmoothBSurf ( bool smoothBSurf )

Sets the smooth bsurf - set the flag to true if b-surfaced are required to be smoothed
Created in NX6.0.0.

License requirements : None

Parameters

smoothBSurf smoothbsurf

void NXOpen::IgesImporter::SetSurfTrimTol ( double surfTrimTol )

Sets the surf trim tol - surface trimming tolerance
Created in NX6.0.0.

License requirements : None

Parameters

surfTrimTol surftrimtol

NXString NXOpen::IgesImporter::SettingsFile ( )

Returns the settings file - definition file for default options
Created in NX6.0.0.

License requirements : None

bool NXOpen::IgesImporter::SewSurfaces ( )

Returns the sew surfaces - set this to true if automatic sewing of surfaces is desired
Created in NX6.0.0.

License requirements : None

bool NXOpen::IgesImporter::SimplifyGeometry ( )

Returns the simplify geometry - set this to true if automatic simplification of geometry is desired
Created in NX6.0.0.

License requirements : None

bool NXOpen::IgesImporter::SmoothBSurf ( )

Returns the smooth bsurf - set the flag to true if b-surfaced are required to be smoothed
Created in NX6.0.0.

License requirements : None

double NXOpen::IgesImporter::SurfTrimTol ( )

Returns the surf trim tol - surface trimming tolerance
Created in NX6.0.0.

License requirements : None

The documentation for this class was generated from the following file:

IgesImporter.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
