Represents a IgesCreator to be used when exporting the IGES Data This class is created using DexManager . More...

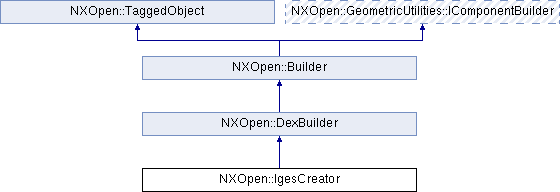

Inheritance diagram for NXOpen::IgesCreator:

Public Types
enum	CrossHatchMapEnum { CrossHatchMapEnumSectionArea, CrossHatchMapEnumCopiousData }
	Cross Hatch Map Option. More...

enum	CsysrefEnum { CsysrefEnumAbsolute, CsysrefEnumWcs, CsysrefEnumSpecifiedCsys }
	Cysref Option. More...

enum	ExportFromOption { ExportFromOptionDisplayPart, ExportFromOptionExistingPart }
	Export From Option. More...

enum	MapRevolvedFacesOption { MapRevolvedFacesOptionBSurfaces, MapRevolvedFacesOptionSurfaceOfRevolution }
	Map Option. More...

Public Member Functions
NXString	Author ()
	Returns the author - name of the author Created in NX5.0.0.

double	BcurveTol ()
	Returns the bcurve tol - tolerance for creating b-spline curves Created in NX6.0.0.

NXString	Company ()
	Returns the company - company name Created in NX6.0.0.

NXOpen::CoordinateSystem *	Csys ()
	Returns the csys - reference coordinate system for exported data Created in NX5.0.0.

NXString	DrawingList ()
	Returns the drawing list - comma separated list of drawings Created in NX6.0.0.

bool	ExportDrawings ()
	Returns the Export drawings to IGES - if set to ture drawings will be exported to IGES Created in NX6.0.0.

NXOpen::IgesCreator::ExportFromOption	ExportFrom ()
	Returns the export from - this option will determine if data from display part or existing part is exported Created in NX6.0.0.

bool	ExportModelData ()
	Returns the Export NX model data to IGES - if set to true model data will be exported to IGES Created in NX6.0.0.

NXOpen::ObjectSelector *	ExportSelectionBlock ()
	Returns the export selection block - the object selection will be done by this block.

bool	FileSaveFlag ()
	Returns the file save flag - set to false if doing file export Created in NX6.0.0.

bool	FlattenAssembly ()
	Returns the flatten assembly - if set to true the assembly structure will not be retained Created in NX6.0.0.

double	IdenticalPointResolution ()
	Returns the identical point resolution - if not using system defined tolerance for identical points then specify new value Created in NX6.0.0.

NXString	InputFile ()
	Returns the input file - name of file which is being exported.

bool	Jama ()
	Returns the jama - if set to true the exported data will be Japanese Automotive compliant Created in NX6.0.0.

NXString	LayerMask ()
	Returns the layerMask - You can limit the data you export by only specifying the layers that contain the appropriate information.

NXOpen::IgesCreator::CrossHatchMapEnum	MapCrossHatchTo ()
	Returns the map cross hatch to section area or copious data Created in NX6.0.0.

NXOpen::IgesCreator::MapRevolvedFacesOption	MapRevolvedFacesTo ()
	Returns the Map revolved faces in NX to IGES b-surfaces/surface of revolution Created in NX6.0.0.

bool	MapTabCylToBSurf ()
	Returns the map tabulated cylinder to b-spline surface Created in NX6.0.0.

double	MaxLineThickness ()
	Returns the max line thickness - maximum line thickness in resulting iges file Created in NX6.0.0.

double	MaxThreeDMdlSpace ()
	Returns the maxThree dmdl space - if not using system defined maximum 3D model space then specifiy the new value Created in NX6.0.0.

NXOpen::ObjectTypeSelector *	ObjectTypes ()
	Returns the objectTypes - this is subcomponent being used to set object types filters.

NXString	OutputFile ()
	Returns the output file - the name of iges file where output is being written Created in NX6.0.0.

NXString	ReceiverID ()
	Returns the receiver id Created in NX6.0.0.

NXOpen::IgesCreator::CsysrefEnum	ReferenceType ()
	Returns the reference type - reference coordinate system for export Created in NX6.0.0.

void	SaveSettings (const NXString &filename)
	The save settings - this will save the settings to a file sepcified Created in NX6.0.0.

void	SaveSettings (const char *filename)
	The save settings - this will save the settings to a file sepcified Created in NX6.0.0.

void	SetAuthor (const NXString &author)
	Sets the author - name of the author Created in NX6.0.0.

void	SetAuthor (const char *author)
	Sets the author - name of the author Created in NX6.0.0.

void	SetBcurveTol (double bcurveTol)
	Sets the bcurve tol - tolerance for creating b-spline curves Created in NX6.0.0.

void	SetCompany (const NXString &company)
	Sets the company - company name Created in NX6.0.0.

void	SetCompany (const char *company)
	Sets the company - company name Created in NX6.0.0.

void	SetCsys (NXOpen::CoordinateSystem *csys)
	Sets the csys - reference coordinate system for exported data Created in NX5.0.0.

void	SetDrawingArray (const std::vector< NXOpen::TaggedObject * > &objects)
	Sets the drawings - the list of drawings to translate Created in NX6.0.0.

void	SetDrawingList (const NXString &drawingList)
	Sets the drawing list - comma separated list of drawings Created in NX6.0.0.

void	SetDrawingList (const char *drawingList)
	Sets the drawing list - comma separated list of drawings Created in NX6.0.0.

void	SetExportDrawings (bool drawings)
	Sets the Export drawings to IGES - if set to ture drawings will be exported to IGES Created in NX6.0.0.

void	SetExportFrom (NXOpen::IgesCreator::ExportFromOption exportFrom)
	Sets the export from - this option will determine if data from display part or existing part is exported Created in NX6.0.0.

void	SetExportModelData (bool modelData)
	Sets the Export NX model data to IGES - if set to true model data will be exported to IGES Created in NX6.0.0.

void	SetFileSaveFlag (bool doingFileSave)
	Sets the file save flag - set to false if doing file export Created in NX6.0.0.

void	SetFlattenAssembly (bool flattenAssembly)
	Sets the flatten assembly - if set to true the assembly structure will not be retained Created in NX6.0.0.

void	SetIdenticalPointResolution (double identicalPointResolution)
	Sets the identical point resolution - if not using system defined tolerance for identical points then specify new value Created in NX6.0.0.

void	SetInputFile (const NXString &filename)
	Sets the input file - name of file which is being exported.

void	SetInputFile (const char *filename)
	Sets the input file - name of file which is being exported.

void	SetJama (bool jama)
	Sets the jama - if set to true the exported data will be Japanese Automotive compliant Created in NX6.0.0.

void	SetLayerMask (const NXString &layerMask)
	Sets the layerMask - You can limit the data you export by only specifying the layers that contain the appropriate information.

void	SetLayerMask (const char *layerMask)
	Sets the layerMask - You can limit the data you export by only specifying the layers that contain the appropriate information.

void	SetMapCrossHatchTo (NXOpen::IgesCreator::CrossHatchMapEnum mapCrossHatchTo)
	Sets the map cross hatch to section area or copious data Created in NX6.0.0.

void	SetMapRevolvedFacesTo (NXOpen::IgesCreator::MapRevolvedFacesOption revolvedFacesTo)
	Sets the Map revolved faces in NX to IGES b-surfaces/surface of revolution Created in NX6.0.0.

void	SetMapTabCylToBSurf (bool mapTabCylToBSurf)
	Sets the map tabulated cylinder to b-spline surface Created in NX6.0.0.

void	SetMaxLineThickness (double maxLineThickness)
	Sets the max line thickness - maximum line thickness in resulting iges file Created in NX6.0.0.

void	SetMaxThreeDMdlSpace (double maxThreeDMdlSpace)
	Sets the maxThree dmdl space - if not using system defined maximum 3D model space then specifiy the new value Created in NX6.0.0.

void	SetOutputFile (const NXString &filename)
	Sets the output file - the name of iges file where output is being written Created in NX6.0.0.

void	SetOutputFile (const char *filename)
	Sets the output file - the name of iges file where output is being written Created in NX6.0.0.

void	SetReceiverID (const NXString &receiverID)
	Sets the receiver id Created in NX6.0.0.

void	SetReceiverID (const char *receiverID)
	Sets the receiver id Created in NX6.0.0.

void	SetReferenceType (NXOpen::IgesCreator::CsysrefEnum referenceType)
	Sets the reference type - reference coordinate system for export Created in NX6.0.0.

void	SetSettingsFile (const NXString &filename)
	Sets the Settings File to read the default settings Created in NX6.0.0.

void	SetSettingsFile (const char *filename)
	Sets the Settings File to read the default settings Created in NX6.0.0.

void	SetStartSectionFile (const NXString &filename)
	Sets the start section file - name of the file to provide start section Created in NX6.0.0.

void	SetStartSectionFile (const char *filename)
	Sets the start section file - name of the file to provide start section Created in NX6.0.0.

void	SetSysDefidenticalPointResolution (bool sysDefidenticalPointResolution)
	Sets the sys defidentical point resolution - if set to true then system defined tolerance will be used to find identical points Created in NX6.0.0.

void	SetSysDefmaxThreeDMdlSpace (bool sysDefmaxThreeDMdlSpace)
	Sets the sys defmaxThreeDmdl space - if set to true then system defined maximum 3D model space will be used Created in NX6.0.0.

NXString	SettingsFile ()
	Returns the Settings File to read the default settings Created in NX6.0.0.

void	SetUseStartSectionFile (bool useStartSectionFile)
	Sets the use start section file - set to true if want to specify text file for start section Created in NX6.0.0.

void	SetViewList (const NXString &viewList)
	Sets the view list - comma separated list of views Created in NX6.0.0.

void	SetViewList (const char *viewList)
	Sets the view list - comma separated list of views Created in NX6.0.0.

NXString	StartSectionFile ()
	Returns the start section file - name of the file to provide start section Created in NX6.0.0.

bool	SysDefidenticalPointResolution ()
	Returns the sys defidentical point resolution - if set to true then system defined tolerance will be used to find identical points Created in NX6.0.0.

bool	SysDefmaxThreeDMdlSpace ()
	Returns the sys defmaxThreeDmdl space - if set to true then system defined maximum 3D model space will be used Created in NX6.0.0.

bool	UseStartSectionFile ()
	Returns the use start section file - set to true if want to specify text file for start section Created in NX6.0.0.

NXString	ViewList ()
	Returns the view list - comma separated list of views Created in NX6.0.0.

Public Member Functions inherited from NXOpen::DexBuilder
bool	ProcessHoldFlag ()
	Returns the process hold flag - set to true if user wants to wait until transaltion process gets completed Created in NX8.0.0.

void	SetProcessHoldFlag (bool doingFileSave)
	Sets the process hold flag - set to true if user wants to wait until transaltion process gets completed Created in NX8.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a IgesCreator to be used when exporting the IGES Data This class is created using DexManager .

NULL object will be returned from Commit().
    The workpart should be present in the session before calling commit().  <br> To create a new instance of this class, use @link DexManager::CreateIgesCreator  DexManager::CreateIgesCreator @endlink  <br>

Default values.

Property

Value

BcurveTol

0.058

ExportDrawings

0

ExportFrom

DisplayPart

ExportModelData

0

FlattenAssembly

0

IdenticalPointResolution

0

Jama

0

MapCrossHatchTo

SectionArea

MapRevolvedFacesTo

BSurfaces

MapTabCylToBSurf

0

MaxLineThickness

0

MaxThreeDMdlSpace

0

ProcessHoldFlag

0

ReferenceType

Absolute

SysDefidenticalPointResolution

0

SysDefmaxThreeDMdlSpace

0

UseStartSectionFile

0

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::IgesCreator::CrossHatchMapEnum

Cross Hatch Map Option.

Enumerator:

CrossHatchMapEnumSectionArea	map cross hatch as section area
CrossHatchMapEnumCopiousData	map cross hatch as copious data

enum NXOpen::IgesCreator::CsysrefEnum

Cysref Option.

Enumerator:

CsysrefEnumAbsolute	export data with respect to absolute CSYS
CsysrefEnumWcs	export data with respect to working CSYS
CsysrefEnumSpecifiedCsys	export data with respect to specified CSYS

enum NXOpen::IgesCreator::ExportFromOption

Export From Option.

Enumerator:

ExportFromOptionDisplayPart	export data from displayed part
ExportFromOptionExistingPart	export data from existing part which is on disk

enum NXOpen::IgesCreator::MapRevolvedFacesOption

Map Option.

Enumerator:

MapRevolvedFacesOptionBSurfaces	export revolved faces as b-surfaces
MapRevolvedFacesOptionSurfaceOfRevolution	exported revolved faces as surface of revolution

Member Function Documentation

NXString NXOpen::IgesCreator::Author ( )

Returns the author - name of the author
Created in NX5.0.0.

License requirements : None

double NXOpen::IgesCreator::BcurveTol ( )

Returns the bcurve tol - tolerance for creating b-spline curves
Created in NX6.0.0.

License requirements : None

NXString NXOpen::IgesCreator::Company ( )

Returns the company - company name
Created in NX6.0.0.

License requirements : None

NXOpen::CoordinateSystem* NXOpen::IgesCreator::Csys ( )

Returns the csys - reference coordinate system for exported data
Created in NX5.0.0.

License requirements : None

NXString NXOpen::IgesCreator::DrawingList ( )

Returns the drawing list - comma separated list of drawings
Created in NX6.0.0.

License requirements : None

bool NXOpen::IgesCreator::ExportDrawings ( )

Returns the Export drawings to IGES - if set to ture drawings will be exported to IGES
Created in NX6.0.0.

License requirements : None

NXOpen::IgesCreator::ExportFromOption NXOpen::IgesCreator::ExportFrom ( )

Returns the export from - this option will determine if data from display part or existing part is exported
Created in NX6.0.0.

License requirements : None

bool NXOpen::IgesCreator::ExportModelData ( )

Returns the Export NX model data to IGES - if set to true model data will be exported to IGES
Created in NX6.0.0.

License requirements : None

NXOpen::ObjectSelector* NXOpen::IgesCreator::ExportSelectionBlock ( )

Returns the export selection block - the object selection will be done by this block.

Created in NX6.0.0.

License requirements : None

bool NXOpen::IgesCreator::FileSaveFlag ( )

Returns the file save flag - set to false if doing file export
Created in NX6.0.0.

License requirements : None

bool NXOpen::IgesCreator::FlattenAssembly ( )

Returns the flatten assembly - if set to true the assembly structure will not be retained
Created in NX6.0.0.

License requirements : None

double NXOpen::IgesCreator::IdenticalPointResolution ( )

Returns the identical point resolution - if not using system defined tolerance for identical points then specify new value
Created in NX6.0.0.

License requirements : None

NXString NXOpen::IgesCreator::InputFile ( )

Returns the input file - name of file which is being exported.

Created in NX6.0.0.

License requirements : None

bool NXOpen::IgesCreator::Jama ( )

Returns the jama - if set to true the exported data will be Japanese Automotive compliant
Created in NX6.0.0.

License requirements : None

NXString NXOpen::IgesCreator::LayerMask ( )

Returns the layerMask - You can limit the data you export by only specifying the layers that contain the appropriate information.

You can enter layer numbers or layers ranges separated by commas. For example, 1, 5, 88-109,190-199, 201, 206-210 is a legal specification. The default setting for Layers to Export is 1-256.
Created in NX6.0.0.

License requirements : None

NXOpen::IgesCreator::CrossHatchMapEnum NXOpen::IgesCreator::MapCrossHatchTo ( )

Returns the map cross hatch to section area or copious data
Created in NX6.0.0.

License requirements : None

NXOpen::IgesCreator::MapRevolvedFacesOption NXOpen::IgesCreator::MapRevolvedFacesTo ( )

Returns the Map revolved faces in NX to IGES b-surfaces/surface of revolution
Created in NX6.0.0.

License requirements : None

bool NXOpen::IgesCreator::MapTabCylToBSurf ( )

Returns the map tabulated cylinder to b-spline surface
Created in NX6.0.0.

License requirements : None

double NXOpen::IgesCreator::MaxLineThickness ( )

Returns the max line thickness - maximum line thickness in resulting iges file
Created in NX6.0.0.

License requirements : None

double NXOpen::IgesCreator::MaxThreeDMdlSpace ( )

Returns the maxThree dmdl space - if not using system defined maximum 3D model space then specifiy the new value
Created in NX6.0.0.

License requirements : None

NXOpen::ObjectTypeSelector* NXOpen::IgesCreator::ObjectTypes ( )

Returns the objectTypes - this is subcomponent being used to set object types filters.

This will be used to filter objects based on the types
Created in NX6.0.0.

License requirements : None

NXString NXOpen::IgesCreator::OutputFile ( )

Returns the output file - the name of iges file where output is being written
Created in NX6.0.0.

License requirements : None

NXString NXOpen::IgesCreator::ReceiverID ( )

Returns the receiver id
Created in NX6.0.0.

License requirements : None

NXOpen::IgesCreator::CsysrefEnum NXOpen::IgesCreator::ReferenceType ( )

Returns the reference type - reference coordinate system for export
Created in NX6.0.0.

License requirements : None

void NXOpen::IgesCreator::SaveSettings ( const NXString & filename )

The save settings - this will save the settings to a file sepcified
Created in NX6.0.0.

License requirements : None

Parameters

filename NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::IgesCreator::SaveSettings ( const char * filename )

The save settings - this will save the settings to a file sepcified
Created in NX6.0.0.

License requirements : None

Parameters

filename NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::IgesCreator::SetAuthor ( const NXString & author )

Sets the author - name of the author
Created in NX6.0.0.

License requirements : None

Parameters

author author

void NXOpen::IgesCreator::SetAuthor ( const char * author )

Sets the author - name of the author
Created in NX6.0.0.

License requirements : None

Parameters

author author

void NXOpen::IgesCreator::SetBcurveTol ( double bcurveTol )

Sets the bcurve tol - tolerance for creating b-spline curves
Created in NX6.0.0.

License requirements : None

Parameters

bcurveTol bcurvetol

void NXOpen::IgesCreator::SetCompany ( const NXString & company )

Sets the company - company name
Created in NX6.0.0.

License requirements : None

Parameters

company company

void NXOpen::IgesCreator::SetCompany ( const char * company )

Sets the company - company name
Created in NX6.0.0.

License requirements : None

Parameters

company company

void NXOpen::IgesCreator::SetCsys ( NXOpen::CoordinateSystem * csys )

Sets the csys - reference coordinate system for exported data
Created in NX5.0.0.

License requirements : None

Parameters

csys csys

void NXOpen::IgesCreator::SetDrawingArray ( const std::vector< NXOpen::TaggedObject * > & objects )

Sets the drawings - the list of drawings to translate
Created in NX6.0.0.

License requirements : None

Parameters

objects items in list

void NXOpen::IgesCreator::SetDrawingList ( const NXString & drawingList )

Sets the drawing list - comma separated list of drawings
Created in NX6.0.0.

License requirements : None

Parameters

drawingList drawinglist

void NXOpen::IgesCreator::SetDrawingList ( const char * drawingList )

Sets the drawing list - comma separated list of drawings
Created in NX6.0.0.

License requirements : None

Parameters

drawingList drawinglist

void NXOpen::IgesCreator::SetExportDrawings ( bool drawings )

Sets the Export drawings to IGES - if set to ture drawings will be exported to IGES
Created in NX6.0.0.

License requirements : None

Parameters

drawings drawings

void NXOpen::IgesCreator::SetExportFrom ( NXOpen::IgesCreator::ExportFromOption exportFrom )

Sets the export from - this option will determine if data from display part or existing part is exported
Created in NX6.0.0.

License requirements : None

Parameters

exportFrom exportfrom

void NXOpen::IgesCreator::SetExportModelData ( bool modelData )

Sets the Export NX model data to IGES - if set to true model data will be exported to IGES
Created in NX6.0.0.

License requirements : None

Parameters

modelData modeldata

void NXOpen::IgesCreator::SetFileSaveFlag ( bool doingFileSave )

Sets the file save flag - set to false if doing file export
Created in NX6.0.0.

License requirements : None

Parameters

doingFileSave doingfilesave

void NXOpen::IgesCreator::SetFlattenAssembly ( bool flattenAssembly )

Sets the flatten assembly - if set to true the assembly structure will not be retained
Created in NX6.0.0.

License requirements : None

Parameters

flattenAssembly flattenassembly

void NXOpen::IgesCreator::SetIdenticalPointResolution ( double identicalPointResolution )

Sets the identical point resolution - if not using system defined tolerance for identical points then specify new value
Created in NX6.0.0.

License requirements : None

Parameters

identicalPointResolution identicalpointresolution

void NXOpen::IgesCreator::SetInputFile ( const NXString & filename )

Sets the input file - name of file which is being exported.

Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::IgesCreator::SetInputFile ( const char * filename )

Sets the input file - name of file which is being exported.

Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::IgesCreator::SetJama ( bool jama )

Sets the jama - if set to true the exported data will be Japanese Automotive compliant
Created in NX6.0.0.

License requirements : None

Parameters

jama jama

void NXOpen::IgesCreator::SetLayerMask ( const NXString & layerMask )

Sets the layerMask - You can limit the data you export by only specifying the layers that contain the appropriate information.

You can enter layer numbers or layers ranges separated by commas. For example, 1, 5, 88-109,190-199, 201, 206-210 is a legal specification. The default setting for Layers to Export is 1-256.
Created in NX6.0.0.

License requirements : None

Parameters

layerMask layermask

void NXOpen::IgesCreator::SetLayerMask ( const char * layerMask )

Sets the layerMask - You can limit the data you export by only specifying the layers that contain the appropriate information.

You can enter layer numbers or layers ranges separated by commas. For example, 1, 5, 88-109,190-199, 201, 206-210 is a legal specification. The default setting for Layers to Export is 1-256.
Created in NX6.0.0.

License requirements : None

Parameters

layerMask layermask

void NXOpen::IgesCreator::SetMapCrossHatchTo ( NXOpen::IgesCreator::CrossHatchMapEnum mapCrossHatchTo )

Sets the map cross hatch to section area or copious data
Created in NX6.0.0.

License requirements : None

Parameters

mapCrossHatchTo mapcrosshatchto

void NXOpen::IgesCreator::SetMapRevolvedFacesTo ( NXOpen::IgesCreator::MapRevolvedFacesOption revolvedFacesTo )

Sets the Map revolved faces in NX to IGES b-surfaces/surface of revolution
Created in NX6.0.0.

License requirements : None

Parameters

revolvedFacesTo revolvedfacesto

void NXOpen::IgesCreator::SetMapTabCylToBSurf ( bool mapTabCylToBSurf )

Sets the map tabulated cylinder to b-spline surface
Created in NX6.0.0.

License requirements : None

Parameters

mapTabCylToBSurf maptabcyltobsurf

void NXOpen::IgesCreator::SetMaxLineThickness ( double maxLineThickness )

Sets the max line thickness - maximum line thickness in resulting iges file
Created in NX6.0.0.

License requirements : None

Parameters

maxLineThickness maxlinethickness

void NXOpen::IgesCreator::SetMaxThreeDMdlSpace ( double maxThreeDMdlSpace )

Sets the maxThree dmdl space - if not using system defined maximum 3D model space then specifiy the new value
Created in NX6.0.0.

License requirements : None

Parameters

maxThreeDMdlSpace maxthreedmdlspace

void NXOpen::IgesCreator::SetOutputFile ( const NXString & filename )

Sets the output file - the name of iges file where output is being written
Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::IgesCreator::SetOutputFile ( const char * filename )

Sets the output file - the name of iges file where output is being written
Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::IgesCreator::SetReceiverID ( const NXString & receiverID )

Sets the receiver id
Created in NX6.0.0.

License requirements : None

Parameters

receiverID receiverid

void NXOpen::IgesCreator::SetReceiverID ( const char * receiverID )

Sets the receiver id
Created in NX6.0.0.

License requirements : None

Parameters

receiverID receiverid

void NXOpen::IgesCreator::SetReferenceType ( NXOpen::IgesCreator::CsysrefEnum referenceType )

Sets the reference type - reference coordinate system for export
Created in NX6.0.0.

License requirements : None

Parameters

referenceType referencetype

void NXOpen::IgesCreator::SetSettingsFile ( const NXString & filename )

Sets the Settings File to read the default settings
Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::IgesCreator::SetSettingsFile ( const char * filename )

Sets the Settings File to read the default settings
Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::IgesCreator::SetStartSectionFile ( const NXString & filename )

Sets the start section file - name of the file to provide start section
Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::IgesCreator::SetStartSectionFile ( const char * filename )

Sets the start section file - name of the file to provide start section
Created in NX6.0.0.

License requirements : None

Parameters

filename filename

void NXOpen::IgesCreator::SetSysDefidenticalPointResolution ( bool sysDefidenticalPointResolution )

Sets the sys defidentical point resolution - if set to true then system defined tolerance will be used to find identical points
Created in NX6.0.0.

License requirements : None

Parameters

sysDefidenticalPointResolution sysdefidenticalpointresolution

void NXOpen::IgesCreator::SetSysDefmaxThreeDMdlSpace ( bool sysDefmaxThreeDMdlSpace )

Sets the sys defmaxThreeDmdl space - if set to true then system defined maximum 3D model space will be used
Created in NX6.0.0.

License requirements : None

Parameters

sysDefmaxThreeDMdlSpace sysdefmaxthreedmdlspace

NXString NXOpen::IgesCreator::SettingsFile ( )

Returns the Settings File to read the default settings
Created in NX6.0.0.

License requirements : None

void NXOpen::IgesCreator::SetUseStartSectionFile ( bool useStartSectionFile )

Sets the use start section file - set to true if want to specify text file for start section
Created in NX6.0.0.

License requirements : None

Parameters

useStartSectionFile usestartsectionfile

void NXOpen::IgesCreator::SetViewList ( const NXString & viewList )

Sets the view list - comma separated list of views
Created in NX6.0.0.

License requirements : None

Parameters

viewList viewlist

void NXOpen::IgesCreator::SetViewList ( const char * viewList )

Sets the view list - comma separated list of views
Created in NX6.0.0.

License requirements : None

Parameters

viewList viewlist

NXString NXOpen::IgesCreator::StartSectionFile ( )

Returns the start section file - name of the file to provide start section
Created in NX6.0.0.

License requirements : None

bool NXOpen::IgesCreator::SysDefidenticalPointResolution ( )

Returns the sys defidentical point resolution - if set to true then system defined tolerance will be used to find identical points
Created in NX6.0.0.

License requirements : None

bool NXOpen::IgesCreator::SysDefmaxThreeDMdlSpace ( )

Returns the sys defmaxThreeDmdl space - if set to true then system defined maximum 3D model space will be used
Created in NX6.0.0.

License requirements : None

bool NXOpen::IgesCreator::UseStartSectionFile ( )

Returns the use start section file - set to true if want to specify text file for start section
Created in NX6.0.0.

License requirements : None

NXString NXOpen::IgesCreator::ViewList ( )

Returns the view list - comma separated list of views
Created in NX6.0.0.

License requirements : None

The documentation for this class was generated from the following file:

IgesCreator.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
