GapFlushnessBuilder class   <br> To create a new instance of this class, use @link GeometricAnalysis::AnalysisObjectCollection::CreateGapFlushnessBuilder  GeometricAnalysis::AnalysisObjectCollection::CreateGapFlushnessBuilder @endlink  <br>

Default values. More...

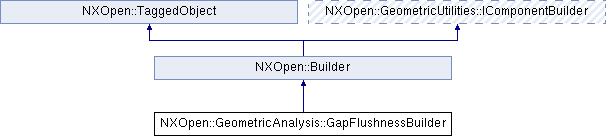

Inheritance diagram for NXOpen::GeometricAnalysis::GapFlushnessBuilder:

Public Types
enum	DisplayOptions { DisplayOptionsGapOnly, DisplayOptionsFlushnessOnly, DisplayOptionsBoth }
	This enum represents Label Display Option type. More...

enum	EvaluationModes { EvaluationModesPoint, EvaluationModesCurveNumber, EvaluationModesCurve }
	This enum represents evaluation mode. More...

enum	EvaluationTypes { EvaluationTypesAbsolute, EvaluationTypesVisual }
	This enum represents the Gap and Flushness Analysis Object evaluation types. More...

enum	PanelTypes { PanelTypesHem, PanelTypesFlange, PanelTypesWall }
	This enum represents panel type. More...

enum	SectionAlignments { SectionAlignmentsCurve, SectionAlignmentsCurveView, SectionAlignmentsSpecifiedDirection }
	This enum represents cross-section alignment type. More...

enum	SectionCurveOptions { SectionCurveOptionsContactCurve, SectionCurveOptionsUserDefined }
	This enum represents Cross Section Curves Options. More...

Public Member Functions
NXOpen::ScCollector *	BasePanelFaces ()
	Returns the Base Panel face selection Created in NX5.0.0.

NXOpen::Section *	BasePanelInnerContactCurves ()
	Returns the Base Panel inner contact section Created in NX5.0.0.

NXOpen::Section *	BasePanelOuterContactCurves ()
	Returns the Base Panel outer contact section Created in NX5.0.0.

NXOpen::GeometricAnalysis::GapFlushnessBuilder::PanelTypes	BasePanelType ()
	Returns the Base Panel type Created in NX5.0.0.

NXOpen::GeometricAnalysis::GapFlushnessBuilder::SectionCurveOptions	CrossSectionCurveOption ()
	Returns the cross section curve option Created in NX5.0.0.

NXOpen::Section *	CrossSectionCurves ()
	Returns the Cross Section Curves Created in NX5.0.0.

NXOpen::GeometricAnalysis::GapFlushnessBuilder::EvaluationModes	EvaluationMode ()
	Returns the evaluation Method Created in NX5.0.0.

NXOpen::Point *	EvaluationPoint ()
	Returns the evaluation point Created in NX5.0.0.

NXOpen::GeometricAnalysis::GapFlushnessBuilder::EvaluationTypes	EvaluationType ()
	Returns the evaluation type Created in NX5.0.0.

bool	IsNegativeToleranceLabelDisplayed ()
	Returns the Label Display negative tolerance Created in NX5.0.0.

bool	IsNominalLabelDisplayed ()
	Returns the Label Display Nominal Created in NX5.0.0.

bool	IsPositiveToleranceLabelDisplayed ()
	Returns the Label Display positive tolerance Created in NX5.0.0.

NXOpen::GeometricAnalysis::GapFlushnessBuilder::DisplayOptions	LabelDisplayOption ()
	Returns the display option type Created in NX5.0.0.

double	NegativeFlushnessTolerance ()
	Returns the negative tolerance for flushness Created in NX5.0.0.

double	NegativeGapTolerance ()
	Returns the negative tolerance for gap Created in NX5.0.0.

double	NominalFlushness ()
	Returns the nominal value for flushness Created in NX5.0.0.

double	NominalGap ()
	Returns the nominal value for gap Created in NX5.0.0.

double	PositiveFlushnessTolerance ()
	Returns the positive tolerance for flushness Created in NX5.0.0.

double	PositiveGapTolerance ()
	Returns the positive tolerance for gap Created in NX5.0.0.

bool	PreviewOption ()
	Returns the preview option Created in NX5.0.0.

NXOpen::Expression *	SampleDistance ()
	Returns the Sample Distance Created in NX5.0.0.

int	SampleNumber ()
	Returns the sample number Created in NX5.0.0.

NXOpen::ScCollector *	SecondPanelFaces ()
	Returns the Second Panel face selection Created in NX5.0.0.

NXOpen::Section *	SecondPanelInnerContactCurves ()
	Returns the Second Panel inner contact section Created in NX5.0.0.

NXOpen::Section *	SecondPanelOuterContactCurves ()
	Returns the Second Panel outer contact section Created in NX5.0.0.

NXOpen::GeometricAnalysis::GapFlushnessBuilder::PanelTypes	SecondPanelType ()
	Returns the Second Panel type Created in NX5.0.0.

NXOpen::GeometricAnalysis::GapFlushnessBuilder::SectionAlignments	SectionAlignment ()
	Returns the Section Alignment Created in NX5.0.0.

NXOpen::Direction *	SectionAlignmentDirection ()
	Returns the section alignment vector Created in NX5.0.0.

void	SetBasePanelType (NXOpen::GeometricAnalysis::GapFlushnessBuilder::PanelTypes panelType)
	Sets the Base Panel type Created in NX5.0.0.

void	SetCrossSectionCurveOption (NXOpen::GeometricAnalysis::GapFlushnessBuilder::SectionCurveOptions sectionCurveOption)
	Sets the cross section curve option Created in NX5.0.0.

void	SetEvaluationMode (NXOpen::GeometricAnalysis::GapFlushnessBuilder::EvaluationModes evaluationMode)
	Sets the evaluation Method Created in NX5.0.0.

void	SetEvaluationPoint (NXOpen::Point *evaluationPoint)
	Sets the evaluation point Created in NX5.0.0.

void	SetEvaluationType (NXOpen::GeometricAnalysis::GapFlushnessBuilder::EvaluationTypes evaluationType)
	Sets the evaluation type Created in NX5.0.0.

void	SetLabelDisplayOption (NXOpen::GeometricAnalysis::GapFlushnessBuilder::DisplayOptions displayOption)
	Sets the display option type Created in NX5.0.0.

void	SetNegativeFlushnessTolerance (double negativeTolFlush)
	Sets the negative tolerance for flushness Created in NX5.0.0.

void	SetNegativeGapTolerance (double negativeTolGap)
	Sets the negative tolerance for gap Created in NX5.0.0.

void	SetNegativeToleranceLabelDisplayed (bool showlabelNegative)
	Sets the Label Display negative tolerance Created in NX5.0.0.

void	SetNominalFlushness (double nominalFlush)
	Sets the nominal value for flushness Created in NX5.0.0.

void	SetNominalGap (double nominalGap)
	Sets the nominal value for gap Created in NX5.0.0.

void	SetNominalLabelDisplayed (bool showlabelNominal)
	Sets the Label Display Nominal Created in NX5.0.0.

void	SetPositiveFlushnessTolerance (double positiveTolFlush)
	Sets the positive tolerance for flushness Created in NX5.0.0.

void	SetPositiveGapTolerance (double positiveTolGap)
	Sets the positive tolerance for gap Created in NX5.0.0.

void	SetPositiveToleranceLabelDisplayed (bool showlabelPositive)
	Sets the Label Display positive tolerance Created in NX5.0.0.

void	SetPreviewOption (bool previewOption)
	Sets the preview option Created in NX5.0.0.

void	SetSampleNumber (int sampleNumber)
	Sets the sample number Created in NX5.0.0.

void	SetSecondPanelType (NXOpen::GeometricAnalysis::GapFlushnessBuilder::PanelTypes panelType)
	Sets the Second Panel type Created in NX5.0.0.

void	SetSectionAlignment (NXOpen::GeometricAnalysis::GapFlushnessBuilder::SectionAlignments sectionAlignment)
	Sets the Section Alignment Created in NX5.0.0.

void	SetSectionAlignmentDirection (NXOpen::Direction *sectionAlignmentDirection)
	Sets the section alignment vector Created in NX5.0.0.

void	SetShowOutRangeLabels (bool showOutRangeLabels)
	Sets the show out of range labels Created in NX5.0.0.

bool	ShowOutRangeLabels ()
	Returns the show out of range labels Created in NX5.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

GapFlushnessBuilder class   <br> To create a new instance of this class, use @link GeometricAnalysis::AnalysisObjectCollection::CreateGapFlushnessBuilder  GeometricAnalysis::AnalysisObjectCollection::CreateGapFlushnessBuilder @endlink  <br>

Default values.

Property

Value

SampleNumber

10

Created in NX5.0.0.

Member Enumeration Documentation

enum NXOpen::GeometricAnalysis::GapFlushnessBuilder::DisplayOptions

This enum represents Label Display Option type.

Enumerator:

DisplayOptionsGapOnly	gap only
DisplayOptionsFlushnessOnly	flushness only
DisplayOptionsBoth	both

enum NXOpen::GeometricAnalysis::GapFlushnessBuilder::EvaluationModes

This enum represents evaluation mode.

Enumerator:

EvaluationModesPoint	at point
EvaluationModesCurveNumber	along curve and number
EvaluationModesCurve	along curve and distance

enum NXOpen::GeometricAnalysis::GapFlushnessBuilder::EvaluationTypes

This enum represents the Gap and Flushness Analysis Object evaluation types.

Enumerator:

EvaluationTypesAbsolute	absolute
EvaluationTypesVisual	visual

enum NXOpen::GeometricAnalysis::GapFlushnessBuilder::PanelTypes

This enum represents panel type.

Enumerator:

PanelTypesHem	type hem
PanelTypesFlange	type flange
PanelTypesWall	type wall

enum NXOpen::GeometricAnalysis::GapFlushnessBuilder::SectionAlignments

This enum represents cross-section alignment type.

Enumerator:

SectionAlignmentsCurve	curve
SectionAlignmentsCurveView	curve in view
SectionAlignmentsSpecifiedDirection	specified direction

enum NXOpen::GeometricAnalysis::GapFlushnessBuilder::SectionCurveOptions

This enum represents Cross Section Curves Options.

Enumerator:

SectionCurveOptionsContactCurve	use contact curve
SectionCurveOptionsUserDefined	use user defined curve
