NXOpen::Features::VehicleDesign::WindshieldDatumBuilder Class Reference

Represents a Features::VehicleDesign::WindshieldDatum builder used to create or edit a Windshield Datum. More...

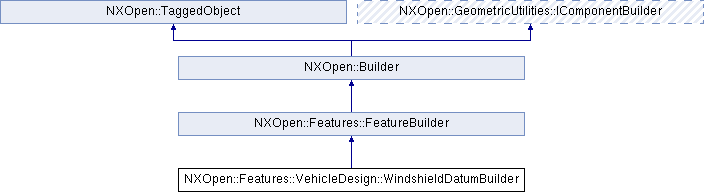

Inheritance diagram for NXOpen::Features::VehicleDesign::WindshieldDatumBuilder:

Public Types
enum	CustomVisionAngle { CustomVisionAngleStandard, CustomVisionAngleCustom }
	Represents the vision angle type to define the Windshield Datum. More...
enum	EnumEyeType { EnumEyeTypeEyeFeature, EnumEyeTypeV1Point, EnumEyeTypeV2Point }
	Represents the eye definition type to define the Windshield Datum. More...

Public Member Functions
bool	AssoToggle ()
	Returns the associative option that determines whether to create feature or not.
NXOpen::Expression *	BottomAngle ()
	Returns the bottom inclined angle.
NXOpen::Features::SelectFeature *	EyeFeature ()
	Returns the eye feature; select eec feature when eye type specified.
NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::EnumEyeType	EyeType ()
	Returns the eye type to determine which type of v points to be used.
NXOpen::Expression *	HorizontalAngle ()
	Returns the horizontal inclined angle.
NXString	LoadingName ()
	Returns the name of the used loading in the Windshield Datum.
NXOpen::Point *	PointV1 ()
	Returns the point v1; select one point when eye type specified.
NXOpen::Point *	PointV2 ()
	Returns the point v2; select one point when eye type specified.
NXOpen::Expression *	RayLength ()
	Returns the ray length.
NXOpen::ScCollector *	SelectWindshield ()
	Returns the windshield collector which the v points will be projected onto.
void	SetAssoToggle (bool assoToggle)
	Sets the associative option that determines whether to create feature or not.
void	SetEyeType (NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::EnumEyeType eyeType)
	Sets the eye type to determine which type of v points to be used.
void	SetLoadingName (const NXString &loadingName)
	Sets the name of the used loading in the Windshield Datum.
void	SetLoadingName (const char *loadingName)
	Sets the name of the used loading in the Windshield Datum.
void	SetPointV1 (NXOpen::Point *pointV1)
	Sets the point v1; select one point when eye type specified.
void	SetPointV2 (NXOpen::Point *pointV2)
	Sets the point v2; select one point when eye type specified.
void	SetShowPoints (bool showPoints)
	Sets the show points to determine whether to create points or not.
void	SetShowRays (bool showRays)
	Sets the show rays to determine whether to create ray lines or not.
void	SetUseStandardLoading (bool useStandardLoading)
	Sets the option that determines whether to use the loading specified by standard or not.
void	SetVisionType (NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::CustomVisionAngle visionType)
	Sets the vision type; standard or customer defined.
bool	ShowPoints ()
	Returns the show points to determine whether to create points or not.
bool	ShowRays ()
	Returns the show rays to determine whether to create ray lines or not.
NXOpen::Expression *	TopAngle ()
	Returns the top inclined angle.
bool	UseStandardLoading ()
	Returns the option that determines whether to use the loading specified by standard or not.
NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::CustomVisionAngle	VisionType ()
	Returns the vision type; standard or customer defined.
Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.
NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.
void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.
bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.
bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.
NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.
void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.
void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.
void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.
void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.
void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.
void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.
void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.
void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.
NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.
void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::VehicleDesign::WindshieldDatum builder used to create or edit a Windshield Datum.

     <br> To create a new instance of this class, use @link Features::VehicleDesignCollection::CreateWindshieldDatumBuilder  Features::VehicleDesignCollection::CreateWindshieldDatumBuilder @endlink  <br>

Default values.

Property	Value
AssoToggle	1
BottomAngle.Value	5
EyeType	EyeFeature
HorizontalAngle.Value	17
RayLength.Value	3000 (millimeters part), 0 (inches part)
ShowPoints	1
ShowRays	1
TopAngle.Value	7
UseStandardLoading	1
VisionType	Standard

Created in NX6.0.0.

Member Enumeration Documentation

enum NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::CustomVisionAngle

Represents the vision angle type to define the Windshield Datum.

Enumerator:

CustomVisionAngleStandard	standard
CustomVisionAngleCustom	customized

enum NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::EnumEyeType

Represents the eye definition type to define the Windshield Datum.

Enumerator:

EnumEyeTypeEyeFeature	eye feature
EnumEyeTypeV1Point	v1 point
EnumEyeTypeV2Point	v2 point

Member Function Documentation

bool NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::AssoToggle

(

)

Returns the associative option that determines whether to create feature or not.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::BottomAngle

(

)

Returns the bottom inclined angle.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::SelectFeature* NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::EyeFeature

(

)

Returns the eye feature; select eec feature when eye type specified.

Created in NX6.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::EnumEyeType NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::EyeType

(

)

Returns the eye type to determine which type of v points to be used.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::HorizontalAngle

(

)

Returns the horizontal inclined angle.

Created in NX6.0.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::LoadingName

(

)

Returns the name of the used loading in the Windshield Datum.

Created in NX9.0.0.

License requirements : None

NXOpen::Point* NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::PointV1

(

)

Returns the point v1; select one point when eye type specified.

Created in NX6.0.0.

License requirements : None

NXOpen::Point* NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::PointV2

(

)

Returns the point v2; select one point when eye type specified.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::RayLength

(

)

Returns the ray length.

Created in NX6.0.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::SelectWindshield

(

)

Returns the windshield collector which the v points will be projected onto.

Created in NX6.0.0.

License requirements : None

void NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::SetAssoToggle

(

bool

assoToggle

)

Sets the associative option that determines whether to create feature or not.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

assoToggle

assotoggle

void NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::SetEyeType

(

NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::EnumEyeType

eyeType

)

Sets the eye type to determine which type of v points to be used.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

eyeType

eyetype

void NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::SetLoadingName

(

const NXString &

loadingName

)

Sets the name of the used loading in the Windshield Datum.

Created in NX9.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

loadingName

loadingname

void NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::SetLoadingName

(

const char *

loadingName

)

Sets the name of the used loading in the Windshield Datum.

Created in NX9.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

loadingName

loadingname

void NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::SetPointV1

(

NXOpen::Point *

pointV1

)

Sets the point v1; select one point when eye type specified.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

pointV1

pointv1

void NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::SetPointV2

(

NXOpen::Point *

pointV2

)

Sets the point v2; select one point when eye type specified.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

pointV2

pointv2

void NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::SetShowPoints

(

bool

showPoints

)

Sets the show points to determine whether to create points or not.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

showPoints

showpoints

void NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::SetShowRays

(

bool

showRays

)

Sets the show rays to determine whether to create ray lines or not.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

showRays

showrays

void NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::SetUseStandardLoading

(

bool

useStandardLoading

)

Sets the option that determines whether to use the loading specified by standard or not.

Created in NX9.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

useStandardLoading

usestandardloading

void NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::SetVisionType

(

NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::CustomVisionAngle

visionType

)

Sets the vision type; standard or customer defined.

Created in NX6.0.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

visionType

visiontype

bool NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::ShowPoints

(

)

Returns the show points to determine whether to create points or not.

Created in NX6.0.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::ShowRays

(

)

Returns the show rays to determine whether to create ray lines or not.

Created in NX6.0.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::TopAngle

(

)

Returns the top inclined angle.

Created in NX6.0.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::UseStandardLoading

(

)

Returns the option that determines whether to use the loading specified by standard or not.

Created in NX9.0.0.

License requirements : None

NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::CustomVisionAngle NXOpen::Features::VehicleDesign::WindshieldDatumBuilder::VisionType

(

)

Returns the vision type; standard or customer defined.

Created in NX6.0.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Features_VehicleDesign_WindshieldDatumBuilder.hxx
