Represents a Features::VehicleDesign::WheelCovering feature builder for wheel covering surface section checking. More...

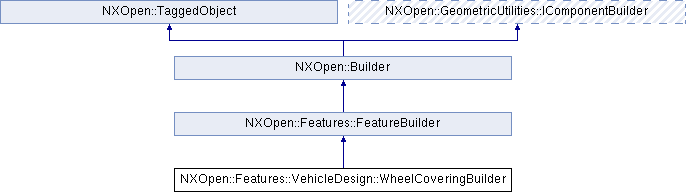

Inheritance diagram for NXOpen::Features::VehicleDesign::WheelCoveringBuilder:

Public Types
enum	PositionType { PositionTypeFront, PositionTypeRear, PositionTypeBoth }
	Represents the wheel covering positions. More...

enum	RequirementsControlType { RequirementsControlTypeStandardDriven, RequirementsControlTypeUserDefined }
	Represents the requirements control types to define the wheel covering. More...

enum	SurfacePlaneType { SurfacePlaneTypeWheelPlane, SurfacePlaneTypePerpendiculartoLoading }
	Represents the type of the surface plane. More...

enum	SurfaceSectionType { SurfaceSectionTypeCircleSection, SurfaceSectionTypeAdr42, SurfaceSectionTypeExtrudeSection }
	Represents the type of the surface section. More...

Public Member Functions
bool	DisplayIntersectionCurves ()
	Returns the display of the intersection curves.

NXOpen::Expression *	FrontBottomOffset ()
	Returns the bottom offset of the front surface section when the front surface section type is Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionTypeAdr42 .

NXOpen::Expression *	FrontClearance ()
	Returns the clearance of the front surface section.

NXOpen::Expression *	FrontFrontAngle ()
	Returns the front angle of the front surface section.

NXOpen::Expression *	FrontFrontOffset ()
	Returns the front offset of the front surface section when the front surface section type is Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionTypeAdr42 .

NXOpen::Expression *	FrontHeight ()
	Returns the height of the front surface section when front the surface section type is Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionTypeAdr42 .

NXOpen::ScCollector *	FrontHubcapSelection ()
	Returns the front hub cap selection.

NXOpen::ScCollector *	FrontObjectSelection ()
	Returns the front object selection.

NXOpen::Expression *	FrontRadius ()
	Returns the radius of the front surface section when the front surface section type is Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionTypeCircleSection .

NXOpen::Expression *	FrontRearAngle ()
	Returns the rear angle of the front surface section.

NXOpen::Expression *	FrontRearOffset ()
	Returns the rear offset of the front surface section when the front surface section type is Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionTypeAdr42 .

NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SurfacePlaneType	FrontSurfacePlane ()
	Returns the surface plane type of the front surface section.

NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionType	FrontSurfaceSection ()
	Returns the surface section type of the front surface section.

NXString	Loading ()
	Returns the loading used in the wheel covering.

NXOpen::Features::VehicleDesign::WheelCoveringBuilder::PositionType	Position ()
	Returns the wheel covering position.

NXOpen::Expression *	RearBottomOffset ()
	Returns the bottom offset of the rear surface section when the rear surface section type is Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionTypeAdr42 .

NXOpen::Expression *	RearClearance ()
	Returns the clearance of the rear surface section.

NXOpen::Expression *	RearDisToWheelCenter ()
	Returns the distance to the wheel center when rear surface section type is Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionTypeCircleSection .

NXOpen::Expression *	RearFrontAngle ()
	Returns the front angle of the rear surface section.

NXOpen::Expression *	RearFrontOffset ()
	Returns the front offset of the rear surface section when the rear surface section type is Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionTypeAdr42 .

NXOpen::Expression *	RearHeight ()
	Returns the height of the rear surface section when the rear surface section type is Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionTypeAdr42 .

NXOpen::ScCollector *	RearHubcapSelection ()
	Returns the rear hub cap selection.

NXOpen::ScCollector *	RearObjectSelection ()
	Returns the rear object selection.

NXOpen::Expression *	RearRadius ()
	Returns the radius of the rear surface section when the rear surface section type is Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionTypeCircleSection .

NXOpen::Expression *	RearRearAngle ()
	Returns the rear angle of the rear surface section.

NXOpen::Expression *	RearRearOffset ()
	Returns the rear offset of the rear surface section when the rear surface section type is Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionTypeAdr42 .

NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SurfacePlaneType	RearSurfacePlane ()
	Returns the surface plane type of the rear surface section.

NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionType	RearSurfaceSection ()
	Returns the surface section type of the rear surface section.

NXOpen::Features::VehicleDesign::WheelCoveringBuilder::RequirementsControlType	RequirementsControl ()
	Returns the requirements control for standard driven or user defined.

void	SetDisplayIntersectionCurves (bool displayIntersectionCurves)
	Sets the display of the intersection curves.

void	SetFrontSurfacePlane (NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SurfacePlaneType frontSurfacePlane)
	Sets the surface plane type of the front surface section.

void	SetFrontSurfaceSection (NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionType frontSurfaceSection)
	Sets the surface section type of the front surface section.

void	SetLoading (const NXString &loading)
	Sets the loading used in the wheel covering.

void	SetLoading (const char *loading)
	Sets the loading used in the wheel covering.

void	SetPosition (NXOpen::Features::VehicleDesign::WheelCoveringBuilder::PositionType position)
	Sets the wheel covering position.

void	SetRearSurfacePlane (NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SurfacePlaneType rearSurfacePlane)
	Sets the surface plane type of the rear surface section.

void	SetRearSurfaceSection (NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionType rearSurfaceSection)
	Sets the surface section type of the rear surface section.

void	SetRequirementsControl (NXOpen::Features::VehicleDesign::WheelCoveringBuilder::RequirementsControlType requirement)
	Sets the requirements control for standard driven or user defined.

void	SetStandard (const NXString &standard)
	Sets the standard used to define the wheel covering.

void	SetStandard (const char *standard)
	Sets the standard used to define the wheel covering.

NXString	Standard ()
	Returns the standard used to define the wheel covering.

Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.

NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.

void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.

bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.

NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.

void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.

void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.

void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.

void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.

void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.

NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.

void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.

Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.

void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.

std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.

NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.

void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.

virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.

Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br> Use Tag instead.

tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a Features::VehicleDesign::WheelCovering feature builder for wheel covering surface section checking.

<br> To create a new instance of this class, use @link Features::VehicleDesignCollection::CreateWheelCoveringBuilder  Features::VehicleDesignCollection::CreateWheelCoveringBuilder @endlink  <br>

Created in NX8.5.0.

Member Enumeration Documentation

enum NXOpen::Features::VehicleDesign::WheelCoveringBuilder::PositionType

Represents the wheel covering positions.

Enumerator:

PositionTypeFront	Creates checking surface for front wheel only.
PositionTypeRear	Creates checking surface for rear wheel only.
PositionTypeBoth	Creates checking surface for both front and rear wheels.

enum NXOpen::Features::VehicleDesign::WheelCoveringBuilder::RequirementsControlType

Represents the requirements control types to define the wheel covering.

Enumerator:

RequirementsControlTypeStandardDriven	Represents the option for reading parameters from the config file.
RequirementsControlTypeUserDefined	Represents the option for input of user defined parameters.

enum NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SurfacePlaneType

Represents the type of the surface plane.

Enumerator:

SurfacePlaneTypeWheelPlane	The checking surface is coplanar to the ourside of the wheels.
SurfacePlaneTypePerpendiculartoLoading	The checking surface is perpendicular to the active loading plane.

enum NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionType

Represents the type of the surface section.

Enumerator:

SurfaceSectionTypeCircleSection	The checking surface is created as circle section type.
SurfaceSectionTypeAdr42	The checking surface is created as ADR 42 type.
SurfaceSectionTypeExtrudeSection	The checking surface is created as extrude section type.

Member Function Documentation

bool NXOpen::Features::VehicleDesign::WheelCoveringBuilder::DisplayIntersectionCurves ( )

Returns the display of the intersection curves.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::WheelCoveringBuilder::FrontBottomOffset ( )

Returns the bottom offset of the front surface section when the front surface section type is Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionTypeAdr42 .

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::WheelCoveringBuilder::FrontClearance ( )

Returns the clearance of the front surface section.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::WheelCoveringBuilder::FrontFrontAngle ( )

Returns the front angle of the front surface section.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::WheelCoveringBuilder::FrontFrontOffset ( )

Returns the front offset of the front surface section when the front surface section type is Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionTypeAdr42 .

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::WheelCoveringBuilder::FrontHeight ( )

Returns the height of the front surface section when front the surface section type is Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionTypeAdr42 .

Created in NX8.5.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::WheelCoveringBuilder::FrontHubcapSelection ( )

Returns the front hub cap selection.

   The collector contains the hub cap faces used to create the front surface section shape.

Created in NX8.5.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::WheelCoveringBuilder::FrontObjectSelection ( )

Returns the front object selection.

   The collector contains the faces used to create the front intersection curves with the front surface section shape.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::WheelCoveringBuilder::FrontRadius ( )

Returns the radius of the front surface section when the front surface section type is Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionTypeCircleSection .

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::WheelCoveringBuilder::FrontRearAngle ( )

Returns the rear angle of the front surface section.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::WheelCoveringBuilder::FrontRearOffset ( )

Returns the rear offset of the front surface section when the front surface section type is Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionTypeAdr42 .

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SurfacePlaneType NXOpen::Features::VehicleDesign::WheelCoveringBuilder::FrontSurfacePlane ( )

Returns the surface plane type of the front surface section.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionType NXOpen::Features::VehicleDesign::WheelCoveringBuilder::FrontSurfaceSection ( )

Returns the surface section type of the front surface section.

Created in NX8.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::WheelCoveringBuilder::Loading ( )

Returns the loading used in the wheel covering.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::WheelCoveringBuilder::PositionType NXOpen::Features::VehicleDesign::WheelCoveringBuilder::Position ( )

Returns the wheel covering position.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::WheelCoveringBuilder::RearBottomOffset ( )

Returns the bottom offset of the rear surface section when the rear surface section type is Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionTypeAdr42 .

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::WheelCoveringBuilder::RearClearance ( )

Returns the clearance of the rear surface section.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::WheelCoveringBuilder::RearDisToWheelCenter ( )

Returns the distance to the wheel center when rear surface section type is Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionTypeCircleSection .

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::WheelCoveringBuilder::RearFrontAngle ( )

Returns the front angle of the rear surface section.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::WheelCoveringBuilder::RearFrontOffset ( )

Returns the front offset of the rear surface section when the rear surface section type is Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionTypeAdr42 .

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::WheelCoveringBuilder::RearHeight ( )

Returns the height of the rear surface section when the rear surface section type is Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionTypeAdr42 .

Created in NX8.5.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::WheelCoveringBuilder::RearHubcapSelection ( )

Returns the rear hub cap selection.

   The collector contains the hub cap faces used to create the rear surface section shape.

Created in NX8.5.0.

License requirements : None

NXOpen::ScCollector* NXOpen::Features::VehicleDesign::WheelCoveringBuilder::RearObjectSelection ( )

Returns the rear object selection.

   The collector contains the faces used to create the rear intersection curves with the rear surface section shape.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::WheelCoveringBuilder::RearRadius ( )

Returns the radius of the rear surface section when the rear surface section type is Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionTypeCircleSection .

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::WheelCoveringBuilder::RearRearAngle ( )

Returns the rear angle of the rear surface section.

Created in NX8.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::WheelCoveringBuilder::RearRearOffset ( )

Returns the rear offset of the rear surface section when the rear surface section type is Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionTypeAdr42 .

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SurfacePlaneType NXOpen::Features::VehicleDesign::WheelCoveringBuilder::RearSurfacePlane ( )

Returns the surface plane type of the rear surface section.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionType NXOpen::Features::VehicleDesign::WheelCoveringBuilder::RearSurfaceSection ( )

Returns the surface section type of the rear surface section.

Created in NX8.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::WheelCoveringBuilder::RequirementsControlType NXOpen::Features::VehicleDesign::WheelCoveringBuilder::RequirementsControl ( )

Returns the requirements control for standard driven or user defined.

Created in NX8.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SetDisplayIntersectionCurves ( bool displayIntersectionCurves )

Sets the display of the intersection curves.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

displayIntersectionCurves displayintersectioncurves

void NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SetFrontSurfacePlane ( NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SurfacePlaneType frontSurfacePlane )

Sets the surface plane type of the front surface section.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

frontSurfacePlane frontsurfaceplane

void NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SetFrontSurfaceSection ( NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionType frontSurfaceSection )

Sets the surface section type of the front surface section.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

frontSurfaceSection frontsurfacesection

void NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SetLoading ( const NXString & loading )

Sets the loading used in the wheel covering.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

loading loading

void NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SetLoading ( const char * loading )

Sets the loading used in the wheel covering.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

loading loading

void NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SetPosition ( NXOpen::Features::VehicleDesign::WheelCoveringBuilder::PositionType position )

Sets the wheel covering position.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

position position

void NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SetRearSurfacePlane ( NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SurfacePlaneType rearSurfacePlane )

Sets the surface plane type of the rear surface section.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

rearSurfacePlane rearsurfaceplane

void NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SetRearSurfaceSection ( NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SurfaceSectionType rearSurfaceSection )

Sets the surface section type of the rear surface section.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

rearSurfaceSection rearsurfacesection

void NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SetRequirementsControl ( NXOpen::Features::VehicleDesign::WheelCoveringBuilder::RequirementsControlType requirement )

Sets the requirements control for standard driven or user defined.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

requirement requirement

void NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SetStandard ( const NXString & standard )

Sets the standard used to define the wheel covering.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

standard standard

void NXOpen::Features::VehicleDesign::WheelCoveringBuilder::SetStandard ( const char * standard )

Sets the standard used to define the wheel covering.

Created in NX8.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

standard standard

NXString NXOpen::Features::VehicleDesign::WheelCoveringBuilder::Standard ( )

Returns the standard used to define the wheel covering.

Created in NX8.5.0.

License requirements : None

The documentation for this class was generated from the following file:

Features_VehicleDesign_WheelCoveringBuilder.hxx

Public Types

Public Member Functions

Detailed Description

Member Enumeration Documentation

Member Function Documentation
