NXOpen::Features::VehicleDesign::TireEnvelopeBuilder Class Reference

Represents a builder that is used to edit or create a Features::VehicleDesign::TireEnvelope . More...

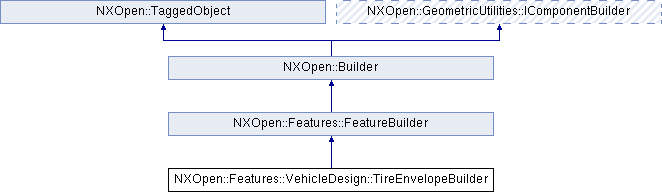

Inheritance diagram for NXOpen::Features::VehicleDesign::TireEnvelopeBuilder:

Public Types
enum	DriverGraphOption {   DriverGraphOptionRectangularJounceRebound, DriverGraphOptionRectangularTaperedY, DriverGraphOptionRectangularTaperedX, DriverGraphOptionTaperedOneSide,   DriverGraphOptionBySketch, DriverGraphOptionTwoDriversOneFixed }
	Settings to indicate the driver definition to use with the MacPherson Strut suspension template. More...
enum	EnvelopeOffsetMethod { EnvelopeOffsetMethodFixedSections, EnvelopeOffsetMethodCustomerDefinedData, EnvelopeOffsetMethodFromOffsetFile }
	Settings to indicate how the offset will be defined. More...
enum	MotionMethod { MotionMethodExistingSpindleFile, MotionMethodFromSpindleLines, MotionMethodExistingScenarioMotionModel, MotionMethodSuspensionTemplate }
	Settings to indicate how the suspension system motion will be defined. More...
enum	SpindleFileLocationOption { SpindleFileLocationOptionInNative, SpindleFileLocationOptionInTeamcenter }
	Settings to indicate the location to select the spindle file. More...
enum	SuspensionTemplateType { SuspensionTemplateTypeMacPhersonStrut, SuspensionTemplateTypeShortLongArmwithSteering, SuspensionTemplateTypeShortLongArmwithoutSteering, SuspensionTemplateTypeFiveLinkSolidAxlewithoutSteering }
	Settings to indicate the defined suspension template to use. More...
enum	TireDefinitionOption { TireDefinitionOptionSolidBody, TireDefinitionOptionProfileCurves, TireDefinitionOptionSketchfromOtherPart, TireDefinitionOptionProfilePointFile }
	Settings to indicate how the tire profile will be defined. More...

Public Member Functions
bool	AddMasterComponentPart ()
	Returns the option to specify whether or not the master component part will be added.
void	AddMasterPart (const NXString &partName)
	Add the master part to the work part as one component by the given part name.
void	AddMasterPart (const char *partName)
	Add the master part to the work part as one component by the given part name.
void	AddMasterPart (NXOpen::Part *partObject)
	Add the master part to the work part as one component by the given part object.
bool	ApplyOffset ()
	Returns the option to specify whether or not the offset will be applied for the envelope.
void	BuildMotionTemplate ()
	Open the motion simulation and build the motion template.
bool	BushingJointAsymmetric ()
	Returns the option to specify whether or not the Bushing Joint is asymmetric.
void	CalculateProfilePoints ()
	Calculate the points of the tire profile.
NXOpen::SelectBodyList *	ClearanceAnalysisBodies ()
	Returns the selection list containing the solid objects used in the clearance analysis.
NXOpen::Assemblies::SelectComponentList *	ClearanceAnalysisComponents ()
	Returns the selection list containing the components used in the clearance analysis.
NXOpen::Expression *	ClearanceValue ()
	Returns the expression containing the clearance value used in the clearance analysis.
void	CreateLinkedProfiles ()
	Create linked curves of the profiles in the sketch from the other part.
bool	CreateTireEnvelopeFeature ()
	Returns the option to specify whether or not the tire envelope feature will be created.
NXOpen::SelectCurve *	DesignPositionSpindle ()
	Returns the selection list containing spindle line in design position .
NXOpen::Expression *	DistanceTolerance ()
	Returns the distance tolerance that will be used in constructing the motion envelope.
NXOpen::Expression *	DownOffsetValue ()
	Returns the expression containing the offset value of the down section(at 270 degrees).
NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::DriverGraphOption	DriverGraph ()
	Returns the option to specify which driver definition is used in the suspension template.
NXOpen::SelectSketch *	DriverGraphSketch ()
	Returns the sketch defining the driver for the suspension template.
double	EnvelopeConcavity ()
	Returns the concavity factor that is used in constructing the motion envelope.
NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::EnvelopeOffsetMethod	EnvelopeOffset ()
	Returns the option to specify which offset method is used in the envelope creation.
double	FirstDriverJointLowerLimit ()
	Returns the lower limit value for the first joint of the suspension template.
int	FirstDriverJointSteps ()
	Returns the step number for the first joint of the suspension template.
double	FirstDriverJointUpperLimit ()
	Returns the upper limit value for the first joint of the suspension template.
double	FixedLocationPercentage ()
	Returns the fixed location percentage that is used for the fixed driver definition for two drivers.
NXOpen::Expression *	FrontOffsetValue ()
	Returns the expression containing the offset value of the front section(at 0 degrees).
std::vector< NXString >	GetSessionNotes ()
	Get the notes that are to be stored with the tire envelope feature.
NXOpen::Expression *	InboardOffsetValue ()
	Returns the expression containing the offset value of the inboard position.
bool	InnerJointAsymmetric ()
	Returns the option to specify whether or not the Inner Joint is asymmetric.
double	JounceDistance ()
	Returns the jounce distance that is used for the Five Link Solid Axle without steering suspension template.
NXOpen::SelectDisplayableObjectList *	LeftStabilizerBar ()
	Returns the selection list containing the left stabilizer bar definition data.
bool	MirrorProfile ()
	Returns the option to specify whether or not the tire profile is to be mirrored.
NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::MotionMethod	Motion ()
	Returns the option to specify how the suspension system motion will be defined.
NXString	OffsetFileName ()
	Returns the name of the file containing the offset data of the envelope sections.
NXOpen::Expression *	OutboardOffsetValue ()
	Returns the expression containing the offset value of the outboard position.
void	PerformClearanceAnalysis ()
	Perform clearance analysis between the tire envelope and the clearance objects.
void	ProcessFromSpindleLines ()
	Read the spindle data and write the data into the motion file.
NXString	ProfileName ()
	Returns the name of the tire profile in the tire file.
NXString	ProfilePointFile ()
	Returns the name of the file containing the tire profile points.
int	ProfileSplineLayer ()
	Returns the layer of the tire profile.
NXOpen::Expression *	RadialEndAngle ()
	Returns the expression containing the radial angle at which the envelope body will end.
NXOpen::Expression *	RadialStartAngle ()
	Returns the expression containing the radial angle at which the envelope body will start.
NXString	ReadSuspensionTemplate (const NXString &fileName)
	Read the file containing the suspension template points.
NXString	ReadSuspensionTemplate (const char *fileName)
	Read the file containing the suspension template points.
NXOpen::Expression *	RearOffsetValue ()
	Returns the expression containing the offset value of the rear section(at 180 degrees).
void	ReassembleTireBodyComponent ()
	Re-assemble the part containing the tire body defining tire profile to work part as the moving component used for the clearance analysis.
double	ReboundDistance ()
	Returns the rebound distance that is used for the Five Link Solid Axle without steering suspension template.
NXOpen::SelectCurveList *	RightStabilizerBar ()
	Returns the selection list containing the right stabilizer bar definition data.
NXOpen::Expression *	RollAngle ()
	Returns the roll angle that is used for the Five Link Solid Axle without steering suspension template.
bool	RunClearanceAnalysis ()
	Returns the option to specify whether or not the clearance analysis will be performed.
void	RunMotionArticulation ()
	Run the motion articulation, output the motion file and then exit the motion simulation.
bool	SaveMasterPart ()
	Returns the option to specify whether or not the master part will be saved before entering the scenario.
bool	SaveScenario ()
	Returns the option to specify whether or not the scenario will be saved.
NXString	ScenarioName ()
	Returns the name of the scenario model containing the suspension template.
double	SecondDriverJointLowerLimit ()
	Returns the lower limit value for the second joint of the suspension template.
int	SecondDriverJointSteps ()
	Returns the step number for the second joint of the suspension template.
double	SecondDriverJointUpperLimit ()
	Returns the upper limit value for the second joint of the suspension template.
int	SectionLayer ()
	Returns the layer of the tire envelope sections.
void	SetAddMasterComponentPart (bool addMasterPart)
	Sets the option to specify whether or not the master component part will be added.
void	SetApplyOffset (bool applyOffset)
	Sets the option to specify whether or not the offset will be applied for the envelope.
void	SetBushingJointAsymmetric (bool bushingJointAsymmetric)
	Sets the option to specify whether or not the Bushing Joint is asymmetric.
void	SetClearanceValues (const std::vector< double > &clearanceValues)
	Set the clearance values for the components used in the clearance analysis.
void	SetCreateTireEnvelopeFeature (bool createTireEnvelopeFeature)
	Sets the option to specify whether or not the tire envelope feature will be created.
void	SetDriverGraph (NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::DriverGraphOption driverGraphOption)
	Sets the option to specify which driver definition is used in the suspension template.
void	SetDriverJoints (NXOpen::NXObject *steerJoint, NXOpen::NXObject *jounceJoint)
	Set the driver steering joint and jounce joint.
void	SetEnvelopeConcavity (double envelopeConcavity)
	Sets the concavity factor that is used in constructing the motion envelope.
void	SetEnvelopeOffset (NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::EnvelopeOffsetMethod offsetMethod)
	Sets the option to specify which offset method is used in the envelope creation.
void	SetFirstDriverJointLowerLimit (double firstDriverJointLowerLimit)
	Sets the lower limit value for the first joint of the suspension template.
void	SetFirstDriverJointSteps (int firstDriverJointSteps)
	Sets the step number for the first joint of the suspension template.
void	SetFirstDriverJointUpperLimit (double firstDriverJointUpperLimit)
	Sets the upper limit value for the first joint of the suspension template.
void	SetFixedLocationPercentage (double fixedLocationPercentage)
	Sets the fixed location percentage that is used for the fixed driver definition for two drivers.
void	SetInnerJointAsymmetric (bool innerJointAsymmetric)
	Sets the option to specify whether or not the Inner Joint is asymmetric.
void	SetJounceDistance (double jounceDistance)
	Sets the jounce distance that is used for the Five Link Solid Axle without steering suspension template.
void	SetMirrorProfile (bool mirror)
	Sets the option to specify whether or not the tire profile is to be mirrored.
void	SetMotion (NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::MotionMethod motionMethod)
	Sets the option to specify how the suspension system motion will be defined.
void	SetOffsetFileName (const NXString &filename)
	Sets the name of the file containing the offset data of the envelope sections.
void	SetOffsetFileName (const char *filename)
	Sets the name of the file containing the offset data of the envelope sections.
void	SetOffsetSections (const std::vector< double > &sectionAngle)
	Indicate the sections that should be offset.
void	SetOffsetValues (int sectionIndex, const std::vector< double > &offsetValues)
	Set the values of the offset for the specified section.
void	SetProfileName (const NXString &profileName)
	Sets the name of the tire profile in the tire file.
void	SetProfileName (const char *profileName)
	Sets the name of the tire profile in the tire file.
void	SetProfilePointFile (const NXString &profilePointFile)
	Sets the name of the file containing the tire profile points.
void	SetProfilePointFile (const char *profilePointFile)
	Sets the name of the file containing the tire profile points.
void	SetProfileSplineLayer (int profileSplineLayer)
	Sets the layer of the tire profile.
void	SetReboundDistance (double reboundDistance)
	Sets the rebound distance that is used for the Five Link Solid Axle without steering suspension template.
void	SetRunClearanceAnalysis (bool runClearanceAnalysis)
	Sets the option to specify whether or not the clearance analysis will be performed.
void	SetSaveMasterPart (bool saveMasterpart)
	Sets the option to specify whether or not the master part will be saved before entering the scenario.
void	SetSaveScenario (bool saveScenario)
	Sets the option to specify whether or not the scenario will be saved.
void	SetScenarioName (const NXString &scenarioName)
	Sets the name of the scenario model containing the suspension template.
void	SetScenarioName (const char *scenarioName)
	Sets the name of the scenario model containing the suspension template.
void	SetSecondDriverJointLowerLimit (double secondDriverJointLowerLimit)
	Sets the lower limit value for the second joint of the suspension template.
void	SetSecondDriverJointSteps (int secondDriverJointSteps)
	Sets the step number for the second joint of the suspension template.
void	SetSecondDriverJointUpperLimit (double secondDriverJointUpperLimit)
	Sets the upper limit value for the second joint of the suspension template.
void	SetSectionLayer (int sectionLayer)
	Sets the layer of the tire envelope sections.
void	SetSessionNotes (const std::vector< NXString > &sessionNotes)
	Set the notes that are to be stored with the tire envelope feature.
void	SetSheetBodyLayer (int sheetBodyLayer)
	Sets the layer of the tire envelope sheet body.
void	SetShockDriverJointSteps (int shockDriverJointSteps)
	Sets the step number of the shock driver joint of the Five Link Solid Axle without steering suspension template.
void	SetSpindleEndPoint (NXOpen::Point *spindleEndPoint)
	Sets the end point of the spindle line, the other end point is the wheel point.
void	SetSpindleFileLocation (NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SpindleFileLocationOption spindleFileLocation)
	Sets the option to specify the location of the spindle file.
void	SetSpindleFileName (const NXString &spindleFileName)
	Sets the name of the file containing the spindle definition.
void	SetSpindleFileName (const char *spindleFileName)
	Sets the name of the file containing the spindle definition.
void	SetSpindleLinesLayer (int spindleLinesLayer)
	Sets the layer of the spindle lines.
void	SetSuspensionTemplate (NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SuspensionTemplateType suspensionTemplate)
	Sets the option to specify which suspension template will be used.
void	SetSuspensionTemplateFileName (const NXString &filename)
	Sets the name of the file containing points defining a suspension template.
void	SetSuspensionTemplateFileName (const char *filename)
	Sets the name of the file containing points defining a suspension template.
void	SetSuspentionTemplatePoint (NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SuspensionTemplateType templateType, int jointIndex, const NXOpen::Point3d &pnt)
	Change the location of a joint in the suspension template.
void	SetTaperLocationAY (double taperLocationAY)
	Sets the taper location along the Y axis that is used for the rectangular driver definition with taper on one side (at A point).
void	SetTaperLocationBX (double taperLocationBX)
	Sets the taper location along the X axis that is used for the rectangular driver definition with taper on one side (at B point).
void	SetTaperLocationXAxis (double taperLocationXAxis)
	Sets the taper location that is used for the rectangular driver definition with taper in the X direction.
void	SetTaperLocationYAxis (double taperLocationYAxis)
	Sets the taper location that is used for the rectangular driver definition with taper in the Y direction.
void	SetTireBodyOutputFileName (const NXString &filename)
	Sets the name of the the output part file for the tire body.
void	SetTireBodyOutputFileName (const char *filename)
	Sets the name of the the output part file for the tire body.
void	SetTireDefinition (NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOption tireDefinition)
	Sets the option to specify the method of tire profile definition.
void	SetTireProfileSketch (const NXString &partname, const NXString &sketchname)
	Set the sketch containing the tire profiles by the given part name and sketch name.
void	SetTireProfileSketch (const char *partname, const char *sketchname)
	Set the sketch containing the tire profiles by the given part name and sketch name.
void	SetTireProfileSketch (NXOpen::Sketch *sketchObject)
	Set the sketch containing the tire profiles by the given sketch object.
void	SetUseStabilizerBar (bool useStabilizerBar)
	Sets the option to specify whether or not the stabilizer bar is used.
void	SetVehicleCoordinateSystem (int type, const NXOpen::Point3d &origin, const NXOpen::Matrix3x3 &matrix)
	Set the vehicle coordinate system.
void	SetWheelCsys (NXOpen::CoordinateSystem *wheelCsys)
	Sets the coordinate system defining the orientation of the wheel.
int	SheetBodyLayer ()
	Returns the layer of the tire envelope sheet body.
int	ShockDriverJointSteps ()
	Returns the step number of the shock driver joint of the Five Link Solid Axle without steering suspension template.
NXOpen::Point *	SpindleEndPoint ()
	Returns the end point of the spindle line, the other end point is the wheel point.
NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SpindleFileLocationOption	SpindleFileLocation ()
	Returns the option to specify the location of the spindle file.
NXString	SpindleFileName ()
	Returns the name of the file containing the spindle definition.
NXOpen::SelectCurveList *	SpindleLines ()
	Returns the selection list containing the spindle lines in all positions.
int	SpindleLinesLayer ()
	Returns the layer of the spindle lines.
NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SuspensionTemplateType	SuspensionTemplate ()
	Returns the option to specify which suspension template will be used.
NXString	SuspensionTemplateFileName ()
	Returns the name of the file containing points defining a suspension template.
void	SwitchDrivers ()
	Switch the order of the two drivers.
double	TaperLocationAY ()
	Returns the taper location along the Y axis that is used for the rectangular driver definition with taper on one side (at A point).
double	TaperLocationBX ()
	Returns the taper location along the X axis that is used for the rectangular driver definition with taper on one side (at B point).
double	TaperLocationXAxis ()
	Returns the taper location that is used for the rectangular driver definition with taper in the X direction.
double	TaperLocationYAxis ()
	Returns the taper location that is used for the rectangular driver definition with taper in the Y direction.
NXString	TireBodyOutputFileName ()
	Returns the name of the the output part file for the tire body.
NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOption	TireDefinition ()
	Returns the option to specify the method of tire profile definition.
NXOpen::SelectBodyList *	TireDefinitionBody ()
	Returns the selection list for tire body.
NXOpen::SelectCurveList *	TireDefinitionProfile ()
	Returns the selection list for tire profile.
NXOpen::SelectCurve *	TracedSpindleLine ()
	Returns the line that specifies the traced spindle line in the scenario model.
NXOpen::Expression *	TrimRadius ()
	Returns the expression containing the radius that specifies the distance from the tire section to the spindle at which the tire section will be trimmed.
void	UpdateTireBodyFeature ()
	Update the tire body feature in the tire body output part file.
NXOpen::Expression *	UpOffsetValue ()
	Returns the expression containing the offset value of the up section(at 90 degrees).
bool	UseStabilizerBar ()
	Returns the option to specify whether or not the stabilizer bar is used.
NXOpen::Expression *	WheelCenterlineShift ()
	Returns the expression containing the wheel centerline shift.
NXOpen::CoordinateSystem *	WheelCsys ()
	Returns the coordinate system defining the orientation of the wheel.
NXOpen::Expression *	WheelRimDiameter ()
	Returns the expression containing the diameter of the wheel rim.
Public Member Functions inherited from NXOpen::Features::FeatureBuilder
NXOpen::Features::Feature *	CommitFeature ()
	Commits the feature parameters and creates the feature.
NXOpen::Features::Feature *	GetFeature ()
	Returns the feature currently being edited by this builder.
void	HideInternalParentFeatureAfterEdit (NXOpen::Features::Feature *parentFeature)
	Re-suppress an internal parent feature (a slave feature) after it has been edited.
bool	ParentFeatureInternal ()
	Returns whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.
bool	PatchSolutionFlag ()
	Returns the patch solution flag Created in NX8.0.1.
NXString	PatchSurfaceFilename ()
	Returns the patch surface filename Created in NX8.0.1.
void	SetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the parent features which would be internal or slaves to the feature being created or commited Created in NX6.0.0.
void	SetParentFeatureInternal (bool isInternal)
	Sets whether or not the latest timestamped parent feature of this feature should be made internal Created in NX5.0.0.
void	SetPatchSolutionFlag (bool optionValue)
	Sets the patch solution flag Created in NX8.0.1.
void	SetPatchSurfaceFilename (const NXString &surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.
void	SetPatchSurfaceFilename (const char *surfaceFilename)
	Sets the patch surface filename Created in NX8.0.1.
void	SetSurroundingPatchSurfaceFilename (const NXString &surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.
void	SetSurroundingPatchSurfaceFilename (const char *surroundingSurfaceFilename)
	Sets the surrounding patch surface filename Created in NX8.0.1.
void	ShowInternalParentFeatureForEdit (NXOpen::Features::Feature *parentFeature)
	Unsuppress an internal parent feature (a slave feature) so it can be edited.
NXString	SurroundingPatchSurfaceFilename ()
	Returns the surrounding patch surface filename Created in NX8.0.1.
void	UnsetParentFeatureInternal (NXOpen::Features::Feature *parentFeature)
	Set the internal parent feature of the feature being edited to external Created in NX6.0.0.
Public Member Functions inherited from NXOpen::Builder
NXOpen::NXObject *	Commit ()
	Commits any edits that have been applied to the builder.
void	Destroy ()
	Deletes the builder, and cleans up any objects created by the builder.
std::vector< NXOpen::NXObject * >	GetCommittedObjects ()
	For builders that create more than one object, this method returns the objects that are created by commit.
NXOpen::NXObject *	GetObject ()
	Returns the object currently being edited by this builder.
void	ShowResults ()
	Updates the model to reflect the result of an edit to the model for all builders that support showing results.
virtual bool	Validate ()
	Validate whether the inputs to the component are sufficient for commit to be called.
Public Member Functions inherited from NXOpen::TaggedObject
tag_t	GetTag () const
	<b>Deprecated</b>:<br>    Use Tag instead.
tag_t	Tag () const
	Returns the tag of this object.

Detailed Description

Represents a builder that is used to edit or create a Features::VehicleDesign::TireEnvelope .

 <br> To create a new instance of this class, use @link Features::VehicleDesignCollection::CreateTireEnvelopeBuilder  Features::VehicleDesignCollection::CreateTireEnvelopeBuilder @endlink  <br>

Default values.

Property	Value
AddMasterComponentPart	0
ApplyOffset	0
BushingJointAsymmetric	0
ClearanceValue.Value	20 (millimeters part), 0.75 (inches part)
CreateTireEnvelopeFeature	1
DistanceTolerance.Value	0 (millimeters part), 0 (inches part)
DownOffsetValue.Value	6 (millimeters part), 0 (inches part)
DriverGraph	RectangularJounceRebound
EnvelopeConcavity	0.5
FirstDriverJointLowerLimit	0
FirstDriverJointSteps	0
FirstDriverJointUpperLimit	0
FixedLocationPercentage	40
FrontOffsetValue.Value	20 (millimeters part), 0 (inches part)
InboardOffsetValue.Value	10 (millimeters part), 0 (inches part)
InnerJointAsymmetric	0
JounceDistance	0
MirrorProfile	1
Motion	ExistingSpindleFile
OutboardOffsetValue.Value	10 (millimeters part), 0 (inches part)
ProfileSplineLayer	1
RadialEndAngle.Value	0
RadialStartAngle.Value	0
RearOffsetValue.Value	15 (millimeters part), 0 (inches part)
ReboundDistance	0
RollAngle.Value	7
RunClearanceAnalysis	1
SaveScenario	1
SecondDriverJointLowerLimit	0
SecondDriverJointSteps	0
SecondDriverJointUpperLimit	0
SectionLayer	1
SheetBodyLayer	1
ShockDriverJointSteps	0
SpindleFileLocation	InNative
SpindleLinesLayer	1
SuspensionTemplate	MacPhersonStrut
TaperLocationAY	40
TaperLocationBX	40
TaperLocationXAxis	100
TaperLocationYAxis	100
TireDefinition	SolidBody
TrimRadius.Value	0 (millimeters part), 0 (inches part)
UpOffsetValue.Value	6 (millimeters part), 0 (inches part)
UseStabilizerBar	0
WheelCenterlineShift.Value	20 (millimeters part), 1 (inches part)
WheelRimDiameter.Value	430 (millimeters part), 15 (inches part)

Created in NX7.5.0.

Member Enumeration Documentation

enum NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::DriverGraphOption

Settings to indicate the driver definition to use with the MacPherson Strut suspension template.

Enumerator:

DriverGraphOptionRectangularJounceRebound	Use the rectangular jounce rebound definition.
DriverGraphOptionRectangularTaperedY	Use the rectangular definition with taper in the Y direction.
DriverGraphOptionRectangularTaperedX	Use the rectangular definition with taper in the X direction.
DriverGraphOptionTaperedOneSide	Use the rectangular definition with taper on one side.
DriverGraphOptionBySketch	Use a sketch to define the driver.
DriverGraphOptionTwoDriversOneFixed	Use a fixed definition for two drivers.

enum NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::EnvelopeOffsetMethod

Settings to indicate how the offset will be defined.

Enumerator:

EnvelopeOffsetMethodFixedSections	Use the values in the fixed sections.
EnvelopeOffsetMethodCustomerDefinedData	Use the data that the user defines.
EnvelopeOffsetMethodFromOffsetFile	From the offset file.

enum NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::MotionMethod

Settings to indicate how the suspension system motion will be defined.

Enumerator:

MotionMethodExistingSpindleFile	From an existing spindle file.
MotionMethodFromSpindleLines	From lines that define the locations of the suspension components.
MotionMethodExistingScenarioMotionModel	From an existing scenario motion model.
MotionMethodSuspensionTemplate	From a defined suspension template.

enum NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SpindleFileLocationOption

Settings to indicate the location to select the spindle file.

Enumerator:

SpindleFileLocationOptionInNative	In Native.
SpindleFileLocationOptionInTeamcenter	In Teamcenter.

enum NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SuspensionTemplateType

Settings to indicate the defined suspension template to use.

Enumerator:

SuspensionTemplateTypeMacPhersonStrut	Use the MacPherson Strut suspension template.
SuspensionTemplateTypeShortLongArmwithSteering	Use the Short-Long Arm with steering suspension template.
SuspensionTemplateTypeShortLongArmwithoutSteering	Use the Short-Long Arm without steering suspension template.
SuspensionTemplateTypeFiveLinkSolidAxlewithoutSteering	Use the Five Link Solid Axle without steering suspension template.

enum NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOption

Settings to indicate how the tire profile will be defined.

Enumerator:

TireDefinitionOptionSolidBody	Use a solid body.
TireDefinitionOptionProfileCurves	Use curves in the current work part.
TireDefinitionOptionSketchfromOtherPart	Use curves from a sketch in another part.
TireDefinitionOptionProfilePointFile	Read a text file with tire profile points.

Member Function Documentation

bool NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::AddMasterComponentPart

(

)

Returns the option to specify whether or not the master component part will be added.

       true indicates the part will be added,
       false indicates the part will not be added.

Created in NX7.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::AddMasterPart

(

const NXString &

partName

)

Add the master part to the work part as one component by the given part name.

       The master part contains suspension information.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

partName

the master part name NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::AddMasterPart

(

const char *

partName

)

Add the master part to the work part as one component by the given part name.

       The master part contains suspension information.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

partName

the master part name NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::AddMasterPart

(

NXOpen::Part *

partObject

)

Add the master part to the work part as one component by the given part object.

       The master part contains suspension information.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

partObject

the master part object

bool NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::ApplyOffset

(

)

Returns the option to specify whether or not the offset will be applied for the envelope.

       true indicates the offset will be applied,
       false indicates the offset will not be applied.

Created in NX7.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::BuildMotionTemplate

(

)

Open the motion simulation and build the motion template.

       Only used when the motion method option is  is @link Features::VehicleDesign::TireEnvelopeBuilder::MotionMethodExistingScenarioMotionModel Features::VehicleDesign::TireEnvelopeBuilder::MotionMethodExistingScenarioMotionModel@endlink
       or @link Features::VehicleDesign::TireEnvelopeBuilder::MotionMethodExistingScenarioMotionModel Features::VehicleDesign::TireEnvelopeBuilder::MotionMethodExistingScenarioMotionModel@endlink .

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

bool NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::BushingJointAsymmetric

(

)

Returns the option to specify whether or not the Bushing Joint is asymmetric.

       true indicates the Bushing Joint is asymmetric,
       false indicates the Bushing Joint is symmetric.

Created in NX7.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::CalculateProfilePoints

(

)

Calculate the points of the tire profile.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

NXOpen::SelectBodyList* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::ClearanceAnalysisBodies

(

)

Returns the selection list containing the solid objects used in the clearance analysis.

Created in NX7.5.0.

License requirements : None

NXOpen::Assemblies::SelectComponentList* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::ClearanceAnalysisComponents

(

)

Returns the selection list containing the components used in the clearance analysis.

Created in NX7.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::ClearanceValue

(

)

Returns the expression containing the clearance value used in the clearance analysis.

Created in NX7.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::CreateLinkedProfiles

(

)

Create linked curves of the profiles in the sketch from the other part.

       Only used when the tire profile option is @link Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOptionSketchfromOtherPart Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOptionSketchfromOtherPart@endlink .

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

bool NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::CreateTireEnvelopeFeature

(

)

Returns the option to specify whether or not the tire envelope feature will be created.

       true indicates the feature will be created,
       false indicates the feature will not be created.

Created in NX7.5.0.

License requirements : None

NXOpen::SelectCurve* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::DesignPositionSpindle

(

)

Returns the selection list containing spindle line in design position .

Created in NX7.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::DistanceTolerance

(

)

Returns the distance tolerance that will be used in constructing the motion envelope.

Created in NX7.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::DownOffsetValue

(

)

Returns the expression containing the offset value of the down section(at 270 degrees).

       Only used when the offset method is @link Features::VehicleDesign::TireEnvelopeBuilder::EnvelopeOffsetMethodFixedSections Features::VehicleDesign::TireEnvelopeBuilder::EnvelopeOffsetMethodFixedSections@endlink .

Created in NX7.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::DriverGraphOption NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::DriverGraph

(

)

Returns the option to specify which driver definition is used in the suspension template.

Created in NX7.5.0.

License requirements : None

NXOpen::SelectSketch* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::DriverGraphSketch

(

)

Returns the sketch defining the driver for the suspension template.

Created in NX7.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::EnvelopeConcavity

(

)

Returns the concavity factor that is used in constructing the motion envelope.

       The value ranges between 0.0 and 1.0.

Created in NX7.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::EnvelopeOffsetMethod NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::EnvelopeOffset

(

)

Returns the option to specify which offset method is used in the envelope creation.

Created in NX7.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::FirstDriverJointLowerLimit

(

)

Returns the lower limit value for the first joint of the suspension template.

Created in NX7.5.0.

License requirements : None

int NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::FirstDriverJointSteps

(

)

Returns the step number for the first joint of the suspension template.

Created in NX7.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::FirstDriverJointUpperLimit

(

)

Returns the upper limit value for the first joint of the suspension template.

Created in NX7.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::FixedLocationPercentage

(

)

Returns the fixed location percentage that is used for the fixed driver definition for two drivers.

Created in NX7.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::FrontOffsetValue

(

)

Returns the expression containing the offset value of the front section(at 0 degrees).

       Only used when the offset method is @link Features::VehicleDesign::TireEnvelopeBuilder::EnvelopeOffsetMethodFixedSections Features::VehicleDesign::TireEnvelopeBuilder::EnvelopeOffsetMethodFixedSections@endlink .

Created in NX7.5.0.

License requirements : None

std::vector<NXString> NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::GetSessionNotes

(

)

Get the notes that are to be stored with the tire envelope feature.

Returns

user comments
Created in NX7.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::InboardOffsetValue

(

)

Returns the expression containing the offset value of the inboard position.

       Only used when the offset method is @link Features::VehicleDesign::TireEnvelopeBuilder::EnvelopeOffsetMethodFixedSections Features::VehicleDesign::TireEnvelopeBuilder::EnvelopeOffsetMethodFixedSections@endlink .

Created in NX7.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::InnerJointAsymmetric

(

)

Returns the option to specify whether or not the Inner Joint is asymmetric.

       true indicates the Inner Joint is asymmetric,
       false indicates the Inner Joint is symmetric.

Created in NX7.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::JounceDistance

(

)

Returns the jounce distance that is used for the Five Link Solid Axle without steering suspension template.

Created in NX7.5.0.

License requirements : None

NXOpen::SelectDisplayableObjectList* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::LeftStabilizerBar

(

)

Returns the selection list containing the left stabilizer bar definition data.

Created in NX7.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::MirrorProfile

(

)

Returns the option to specify whether or not the tire profile is to be mirrored.

       true indicates the tire profile will be mirrored,
       false indicates the tire profile will not be mirrored.

Created in NX7.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::MotionMethod NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::Motion

(

)

Returns the option to specify how the suspension system motion will be defined.

Created in NX7.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::OffsetFileName

(

)

Returns the name of the file containing the offset data of the envelope sections.

       The file must contain comma separated values.

Created in NX7.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::OutboardOffsetValue

(

)

Returns the expression containing the offset value of the outboard position.

       Only used when the offset method is @link Features::VehicleDesign::TireEnvelopeBuilder::EnvelopeOffsetMethodFixedSections Features::VehicleDesign::TireEnvelopeBuilder::EnvelopeOffsetMethodFixedSections@endlink .

Created in NX7.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::PerformClearanceAnalysis

(

)

Perform clearance analysis between the tire envelope and the clearance objects.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::ProcessFromSpindleLines

(

)

Read the spindle data and write the data into the motion file.

       Only used when the motion method option is @link Features::VehicleDesign::TireEnvelopeBuilder::MotionMethodFromSpindleLines Features::VehicleDesign::TireEnvelopeBuilder::MotionMethodFromSpindleLines@endlink .

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

NXString NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::ProfileName

(

)

Returns the name of the tire profile in the tire file.

       Only used when the tire profile option is @link Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOptionProfilePointFile Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOptionProfilePointFile@endlink .

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

NXString NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::ProfilePointFile

(

)

Returns the name of the file containing the tire profile points.

Created in NX7.5.0.

License requirements : None

int NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::ProfileSplineLayer

(

)

Returns the layer of the tire profile.

Created in NX7.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::RadialEndAngle

(

)

Returns the expression containing the radial angle at which the envelope body will end.

Created in NX7.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::RadialStartAngle

(

)

Returns the expression containing the radial angle at which the envelope body will start.

Created in NX7.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::ReadSuspensionTemplate

(

const NXString &

fileName

)

Read the file containing the suspension template points.

       Only used when the motion method option is @link Features::VehicleDesign::TireEnvelopeBuilder::MotionMethodSuspensionTemplate Features::VehicleDesign::TireEnvelopeBuilder::MotionMethodSuspensionTemplate@endlink .  @return  the missing point name

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

fileName

the name of the file containing the suspension template points. NOTE: The full Unicode character set is not supported for this parameter.

NXString NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::ReadSuspensionTemplate

(

const char *

fileName

)

Read the file containing the suspension template points.

       Only used when the motion method option is @link Features::VehicleDesign::TireEnvelopeBuilder::MotionMethodSuspensionTemplate Features::VehicleDesign::TireEnvelopeBuilder::MotionMethodSuspensionTemplate@endlink .  @return  the missing point name

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

fileName

the name of the file containing the suspension template points. NOTE: The full Unicode character set is not supported for this parameter.

NXOpen::Expression* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::RearOffsetValue

(

)

Returns the expression containing the offset value of the rear section(at 180 degrees).

       Only used when the offset method is @link Features::VehicleDesign::TireEnvelopeBuilder::EnvelopeOffsetMethodFixedSections Features::VehicleDesign::TireEnvelopeBuilder::EnvelopeOffsetMethodFixedSections@endlink .

Created in NX7.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::ReassembleTireBodyComponent

(

)

Re-assemble the part containing the tire body defining tire profile to work part as the moving component used for the clearance analysis.

        Only used when the tire profile option is @link Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOptionSolidBody Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOptionSolidBody@endlink .

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

double NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::ReboundDistance

(

)

Returns the rebound distance that is used for the Five Link Solid Axle without steering suspension template.

Created in NX7.5.0.

License requirements : None

NXOpen::SelectCurveList* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::RightStabilizerBar

(

)

Returns the selection list containing the right stabilizer bar definition data.

Created in NX7.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::RollAngle

(

)

Returns the roll angle that is used for the Five Link Solid Axle without steering suspension template.

Created in NX7.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::RunClearanceAnalysis

(

)

Returns the option to specify whether or not the clearance analysis will be performed.

       true indicates the analysis will be performed,
       false indicates the analysis will not be performed.

Created in NX7.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::RunMotionArticulation

(

)

Run the motion articulation, output the motion file and then exit the motion simulation.

       Only used when the motion method option is @link Features::VehicleDesign::TireEnvelopeBuilder::MotionMethodExistingScenarioMotionModel Features::VehicleDesign::TireEnvelopeBuilder::MotionMethodExistingScenarioMotionModel@endlink
       or @link Features::VehicleDesign::TireEnvelopeBuilder::MotionMethodExistingScenarioMotionModel Features::VehicleDesign::TireEnvelopeBuilder::MotionMethodExistingScenarioMotionModel@endlink .
       It must be paired with a call to @link Features::VehicleDesign::TireEnvelopeBuilder::BuildMotionTemplate Features::VehicleDesign::TireEnvelopeBuilder::BuildMotionTemplate@endlink .

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

bool NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SaveMasterPart

(

)

Returns the option to specify whether or not the master part will be saved before entering the scenario.

       true indicates the master part will be saved,
       false indicates the master part will not be saved.

Created in NX7.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SaveScenario

(

)

Returns the option to specify whether or not the scenario will be saved.

       true indicates the scenario will be saved,
       false indicates the scenario will not be saved.

Created in NX7.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::ScenarioName

(

)

Returns the name of the scenario model containing the suspension template.

       Only used when the motion method option is @link Features::VehicleDesign::TireEnvelopeBuilder::MotionMethodExistingScenarioMotionModel Features::VehicleDesign::TireEnvelopeBuilder::MotionMethodExistingScenarioMotionModel@endlink .

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

double NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SecondDriverJointLowerLimit

(

)

Returns the lower limit value for the second joint of the suspension template.

Created in NX7.5.0.

License requirements : None

int NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SecondDriverJointSteps

(

)

Returns the step number for the second joint of the suspension template.

Created in NX7.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SecondDriverJointUpperLimit

(

)

Returns the upper limit value for the second joint of the suspension template.

Created in NX7.5.0.

License requirements : None

int NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SectionLayer

(

)

Returns the layer of the tire envelope sections.

Created in NX7.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetAddMasterComponentPart

(

bool

addMasterPart

)

Sets the option to specify whether or not the master component part will be added.

       true indicates the part will be added,
       false indicates the part will not be added.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

addMasterPart

addmasterpart

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetApplyOffset

(

bool

applyOffset

)

Sets the option to specify whether or not the offset will be applied for the envelope.

       true indicates the offset will be applied,
       false indicates the offset will not be applied.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

applyOffset

applyoffset

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetBushingJointAsymmetric

(

bool

bushingJointAsymmetric

)

Sets the option to specify whether or not the Bushing Joint is asymmetric.

       true indicates the Bushing Joint is asymmetric,
       false indicates the Bushing Joint is symmetric.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

bushingJointAsymmetric

bushingjointasymmetric

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetClearanceValues

(

const std::vector< double > &

clearanceValues

)

Set the clearance values for the components used in the clearance analysis.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

clearanceValues

offset values

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetCreateTireEnvelopeFeature

(

bool

createTireEnvelopeFeature

)

Sets the option to specify whether or not the tire envelope feature will be created.

       true indicates the feature will be created,
       false indicates the feature will not be created.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

createTireEnvelopeFeature

createtireenvelopefeature

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetDriverGraph

(

NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::DriverGraphOption

driverGraphOption

)

Sets the option to specify which driver definition is used in the suspension template.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

driverGraphOption

drivergraphoption

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetDriverJoints	(	NXOpen::NXObject *	steerJoint,
		NXOpen::NXObject *	jounceJoint
	)

Set the driver steering joint and jounce joint.

       Only used when the motion method option is @link Features::VehicleDesign::TireEnvelopeBuilder::MotionMethodExistingScenarioMotionModel Features::VehicleDesign::TireEnvelopeBuilder::MotionMethodExistingScenarioMotionModel@endlink .

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

steerJoint	the steering joint
jounceJoint	the jounce joint

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetEnvelopeConcavity

(

double

envelopeConcavity

)

Sets the concavity factor that is used in constructing the motion envelope.

       The value ranges between 0.0 and 1.0.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

envelopeConcavity

envelopeconcavity

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetEnvelopeOffset

(

NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::EnvelopeOffsetMethod

offsetMethod

)

Sets the option to specify which offset method is used in the envelope creation.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

offsetMethod

offsetmethod

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetFirstDriverJointLowerLimit

(

double

firstDriverJointLowerLimit

)

Sets the lower limit value for the first joint of the suspension template.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

firstDriverJointLowerLimit

firstdriverjointlowerlimit

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetFirstDriverJointSteps

(

int

firstDriverJointSteps

)

Sets the step number for the first joint of the suspension template.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

firstDriverJointSteps

firstdriverjointsteps

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetFirstDriverJointUpperLimit

(

double

firstDriverJointUpperLimit

)

Sets the upper limit value for the first joint of the suspension template.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

firstDriverJointUpperLimit

firstdriverjointupperlimit

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetFixedLocationPercentage

(

double

fixedLocationPercentage

)

Sets the fixed location percentage that is used for the fixed driver definition for two drivers.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

fixedLocationPercentage

fixedlocationpercentage

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetInnerJointAsymmetric

(

bool

innerJointAsymmetric

)

Sets the option to specify whether or not the Inner Joint is asymmetric.

       true indicates the Inner Joint is asymmetric,
       false indicates the Inner Joint is symmetric.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

innerJointAsymmetric

innerjointasymmetric

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetJounceDistance

(

double

jounceDistance

)

Sets the jounce distance that is used for the Five Link Solid Axle without steering suspension template.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

jounceDistance

jouncedistance

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetMirrorProfile

(

bool

mirror

)

Sets the option to specify whether or not the tire profile is to be mirrored.

       true indicates the tire profile will be mirrored,
       false indicates the tire profile will not be mirrored.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

mirror

mirror

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetMotion

(

NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::MotionMethod

motionMethod

)

Sets the option to specify how the suspension system motion will be defined.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

motionMethod

motionmethod

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetOffsetFileName

(

const NXString &

filename

)

Sets the name of the file containing the offset data of the envelope sections.

       The file must contain comma separated values.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

filename

filename

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetOffsetFileName

(

const char *

filename

)

Sets the name of the file containing the offset data of the envelope sections.

       The file must contain comma separated values.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

filename

filename

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetOffsetSections

(

const std::vector< double > &

sectionAngle

)

Indicate the sections that should be offset.

       Only used when the motion method option is @link Features::VehicleDesign::TireEnvelopeBuilder::EnvelopeOffsetMethodCustomerDefinedData Features::VehicleDesign::TireEnvelopeBuilder::EnvelopeOffsetMethodCustomerDefinedData@endlink .

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

sectionAngle

The radial angle of the sections that are to have an offset applied.

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetOffsetValues	(	int	sectionIndex,
		const std::vector< double > &	offsetValues
	)

Set the values of the offset for the specified section.

       Only used when the motion method option is @link Features::VehicleDesign::TireEnvelopeBuilder::EnvelopeOffsetMethodCustomerDefinedData Features::VehicleDesign::TireEnvelopeBuilder::EnvelopeOffsetMethodCustomerDefinedData@endlink .

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

sectionIndex	The index of the section to apply the offset values.
offsetValues	The offset values to apply to the specified section.

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetProfileName

(

const NXString &

profileName

)

Sets the name of the tire profile in the tire file.

       Only used when the tire profile option is @link Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOptionProfilePointFile Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOptionProfilePointFile@endlink .

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

profileName

profilename

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetProfileName

(

const char *

profileName

)

Sets the name of the tire profile in the tire file.

       Only used when the tire profile option is @link Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOptionProfilePointFile Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOptionProfilePointFile@endlink .

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

profileName

profilename

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetProfilePointFile

(

const NXString &

profilePointFile

)

Sets the name of the file containing the tire profile points.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

profilePointFile

profilepointfile

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetProfilePointFile

(

const char *

profilePointFile

)

Sets the name of the file containing the tire profile points.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

profilePointFile

profilepointfile

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetProfileSplineLayer

(

int

profileSplineLayer

)

Sets the layer of the tire profile.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

profileSplineLayer

profilesplinelayer

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetReboundDistance

(

double

reboundDistance

)

Sets the rebound distance that is used for the Five Link Solid Axle without steering suspension template.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

reboundDistance

rebounddistance

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetRunClearanceAnalysis

(

bool

runClearanceAnalysis

)

Sets the option to specify whether or not the clearance analysis will be performed.

       true indicates the analysis will be performed,
       false indicates the analysis will not be performed.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

runClearanceAnalysis

runclearanceanalysis

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetSaveMasterPart

(

bool

saveMasterpart

)

Sets the option to specify whether or not the master part will be saved before entering the scenario.

       true indicates the master part will be saved,
       false indicates the master part will not be saved.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

saveMasterpart

savemasterpart

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetSaveScenario

(

bool

saveScenario

)

Sets the option to specify whether or not the scenario will be saved.

       true indicates the scenario will be saved,
       false indicates the scenario will not be saved.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

saveScenario

savescenario

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetScenarioName

(

const NXString &

scenarioName

)

Sets the name of the scenario model containing the suspension template.

       Only used when the motion method option is @link Features::VehicleDesign::TireEnvelopeBuilder::MotionMethodExistingScenarioMotionModel Features::VehicleDesign::TireEnvelopeBuilder::MotionMethodExistingScenarioMotionModel@endlink .

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

scenarioName

scenarioname

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetScenarioName

(

const char *

scenarioName

)

Sets the name of the scenario model containing the suspension template.

       Only used when the motion method option is @link Features::VehicleDesign::TireEnvelopeBuilder::MotionMethodExistingScenarioMotionModel Features::VehicleDesign::TireEnvelopeBuilder::MotionMethodExistingScenarioMotionModel@endlink .

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

scenarioName

scenarioname

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetSecondDriverJointLowerLimit

(

double

secondDriverJointLowerLimit

)

Sets the lower limit value for the second joint of the suspension template.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

secondDriverJointLowerLimit

seconddriverjointlowerlimit

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetSecondDriverJointSteps

(

int

secondDriverJointSteps

)

Sets the step number for the second joint of the suspension template.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

secondDriverJointSteps

seconddriverjointsteps

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetSecondDriverJointUpperLimit

(

double

secondDriverJointUpperLimit

)

Sets the upper limit value for the second joint of the suspension template.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

secondDriverJointUpperLimit

seconddriverjointupperlimit

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetSectionLayer

(

int

sectionLayer

)

Sets the layer of the tire envelope sections.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

sectionLayer

sectionlayer

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetSessionNotes

(

const std::vector< NXString > &

sessionNotes

)

Set the notes that are to be stored with the tire envelope feature.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

sessionNotes

user comments

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetSheetBodyLayer

(

int

sheetBodyLayer

)

Sets the layer of the tire envelope sheet body.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

sheetBodyLayer

sheetbodylayer

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetShockDriverJointSteps

(

int

shockDriverJointSteps

)

Sets the step number of the shock driver joint of the Five Link Solid Axle without steering suspension template.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

shockDriverJointSteps

shockdriverjointsteps

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetSpindleEndPoint

(

NXOpen::Point *

spindleEndPoint

)

Sets the end point of the spindle line, the other end point is the wheel point.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

spindleEndPoint

spindleendpoint

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetSpindleFileLocation

(

NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SpindleFileLocationOption

spindleFileLocation

)

Sets the option to specify the location of the spindle file.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

spindleFileLocation

spindlefilelocation

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetSpindleFileName

(

const NXString &

spindleFileName

)

Sets the name of the file containing the spindle definition.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

spindleFileName

spindlefilename

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetSpindleFileName

(

const char *

spindleFileName

)

Sets the name of the file containing the spindle definition.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

spindleFileName

spindlefilename

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetSpindleLinesLayer

(

int

spindleLinesLayer

)

Sets the layer of the spindle lines.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

spindleLinesLayer

spindlelineslayer

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetSuspensionTemplate

(

NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SuspensionTemplateType

suspensionTemplate

)

Sets the option to specify which suspension template will be used.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

suspensionTemplate

suspensiontemplate

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetSuspensionTemplateFileName

(

const NXString &

filename

)

Sets the name of the file containing points defining a suspension template.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

filename

filename

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetSuspensionTemplateFileName

(

const char *

filename

)

Sets the name of the file containing points defining a suspension template.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

filename

filename

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetSuspentionTemplatePoint	(	NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SuspensionTemplateType	templateType,
		int	jointIndex,
		const NXOpen::Point3d &	pnt
	)

Change the location of a joint in the suspension template.

       Only used when the motion method option is @link Features::VehicleDesign::TireEnvelopeBuilder::MotionMethodSuspensionTemplate Features::VehicleDesign::TireEnvelopeBuilder::MotionMethodSuspensionTemplate@endlink .

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

templateType	template type
jointIndex	joint index
pnt	joint point coordinate

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetTaperLocationAY

(

double

taperLocationAY

)

Sets the taper location along the Y axis that is used for the rectangular driver definition with taper on one side (at A point).

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

taperLocationAY

taperlocationay

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetTaperLocationBX

(

double

taperLocationBX

)

Sets the taper location along the X axis that is used for the rectangular driver definition with taper on one side (at B point).

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

taperLocationBX

taperlocationbx

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetTaperLocationXAxis

(

double

taperLocationXAxis

)

Sets the taper location that is used for the rectangular driver definition with taper in the X direction.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

taperLocationXAxis

taperlocationxaxis

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetTaperLocationYAxis

(

double

taperLocationYAxis

)

Sets the taper location that is used for the rectangular driver definition with taper in the Y direction.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

taperLocationYAxis

taperlocationyaxis

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetTireBodyOutputFileName

(

const NXString &

filename

)

Sets the name of the the output part file for the tire body.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

filename

filename

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetTireBodyOutputFileName

(

const char *

filename

)

Sets the name of the the output part file for the tire body.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

filename

filename

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetTireDefinition

(

NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOption

tireDefinition

)

Sets the option to specify the method of tire profile definition.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

tireDefinition

tiredefinition

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetTireProfileSketch	(	const NXString &	partname,
		const NXString &	sketchname
	)

Set the sketch containing the tire profiles by the given part name and sketch name.

       Only used when the tire profile option is @link Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOptionSketchfromOtherPart Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOptionSketchfromOtherPart@endlink .

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

partname	the part name of the sketch NOTE: The full Unicode character set is not supported for this parameter.
sketchname	the sketch name NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetTireProfileSketch	(	const char *	partname,
		const char *	sketchname
	)

Set the sketch containing the tire profiles by the given part name and sketch name.

       Only used when the tire profile option is @link Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOptionSketchfromOtherPart Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOptionSketchfromOtherPart@endlink .

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

partname	the part name of the sketch NOTE: The full Unicode character set is not supported for this parameter.
sketchname	the sketch name NOTE: The full Unicode character set is not supported for this parameter.

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetTireProfileSketch

(

NXOpen::Sketch *

sketchObject

)

Set the sketch containing the tire profiles by the given sketch object.

       Only used when the tire profile option is @link Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOptionSketchfromOtherPart Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOptionSketchfromOtherPart@endlink .

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

sketchObject

the sketch object from other part

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetUseStabilizerBar

(

bool

useStabilizerBar

)

Sets the option to specify whether or not the stabilizer bar is used.

       true indicates a stabilizer bar is used,
       false indicates a stabilizer bar is not used.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

useStabilizerBar

usestabilizerbar

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetVehicleCoordinateSystem	(	int	type,
		const NXOpen::Point3d &	origin,
		const NXOpen::Matrix3x3 &	matrix
	)

Set the vehicle coordinate system.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

type	type
origin	CSYS origin
matrix	CSYS matrix

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SetWheelCsys

(

NXOpen::CoordinateSystem *

wheelCsys

)

Sets the coordinate system defining the orientation of the wheel.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

Parameters

wheelCsys

wheelcsys

int NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SheetBodyLayer

(

)

Returns the layer of the tire envelope sheet body.

Created in NX7.5.0.

License requirements : None

int NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::ShockDriverJointSteps

(

)

Returns the step number of the shock driver joint of the Five Link Solid Axle without steering suspension template.

Created in NX7.5.0.

License requirements : None

NXOpen::Point* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SpindleEndPoint

(

)

Returns the end point of the spindle line, the other end point is the wheel point.

Created in NX7.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SpindleFileLocationOption NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SpindleFileLocation

(

)

Returns the option to specify the location of the spindle file.

Created in NX7.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SpindleFileName

(

)

Returns the name of the file containing the spindle definition.

Created in NX7.5.0.

License requirements : None

NXOpen::SelectCurveList* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SpindleLines

(

)

Returns the selection list containing the spindle lines in all positions.

Created in NX7.5.0.

License requirements : None

int NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SpindleLinesLayer

(

)

Returns the layer of the spindle lines.

Created in NX7.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SuspensionTemplateType NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SuspensionTemplate

(

)

Returns the option to specify which suspension template will be used.

Created in NX7.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SuspensionTemplateFileName

(

)

Returns the name of the file containing points defining a suspension template.

Created in NX7.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::SwitchDrivers

(

)

Switch the order of the two drivers.

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

double NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::TaperLocationAY

(

)

Returns the taper location along the Y axis that is used for the rectangular driver definition with taper on one side (at A point).

Created in NX7.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::TaperLocationBX

(

)

Returns the taper location along the X axis that is used for the rectangular driver definition with taper on one side (at B point).

Created in NX7.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::TaperLocationXAxis

(

)

Returns the taper location that is used for the rectangular driver definition with taper in the X direction.

Created in NX7.5.0.

License requirements : None

double NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::TaperLocationYAxis

(

)

Returns the taper location that is used for the rectangular driver definition with taper in the Y direction.

Created in NX7.5.0.

License requirements : None

NXString NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::TireBodyOutputFileName

(

)

Returns the name of the the output part file for the tire body.

Created in NX7.5.0.

License requirements : None

NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOption NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::TireDefinition

(

)

Returns the option to specify the method of tire profile definition.

Created in NX7.5.0.

License requirements : None

NXOpen::SelectBodyList* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionBody

(

)

Returns the selection list for tire body.

Created in NX7.5.0.

License requirements : None

NXOpen::SelectCurveList* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionProfile

(

)

Returns the selection list for tire profile.

Created in NX7.5.0.

License requirements : None

NXOpen::SelectCurve* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::TracedSpindleLine

(

)

Returns the line that specifies the traced spindle line in the scenario model.

Created in NX7.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::TrimRadius

(

)

Returns the expression containing the radius that specifies the distance from the tire section to the spindle at which the tire section will be trimmed.

Created in NX7.5.0.

License requirements : None

void NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::UpdateTireBodyFeature

(

)

Update the tire body feature in the tire body output part file.

       The tire body part will be added to the work part assembly as the moving component used for the clearance analysis.
       Only used when the tire profile option is @link Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOptionProfileCurves Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOptionProfileCurves@endlink
        or @link Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOptionSketchfromOtherPart Features::VehicleDesign::TireEnvelopeBuilder::TireDefinitionOptionSketchfromOtherPart@endlink .

Created in NX7.5.0.

License requirements : nx_general_packaging ("NX General Packaging")

NXOpen::Expression* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::UpOffsetValue

(

)

Returns the expression containing the offset value of the up section(at 90 degrees).

       Only used when the offset method  is @link Features::VehicleDesign::TireEnvelopeBuilder::EnvelopeOffsetMethodFixedSections Features::VehicleDesign::TireEnvelopeBuilder::EnvelopeOffsetMethodFixedSections@endlink .

Created in NX7.5.0.

License requirements : None

bool NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::UseStabilizerBar

(

)

Returns the option to specify whether or not the stabilizer bar is used.

       true indicates a stabilizer bar is used,
       false indicates a stabilizer bar is not used.

Created in NX7.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::WheelCenterlineShift

(

)

Returns the expression containing the wheel centerline shift.

Created in NX7.5.0.

License requirements : None

NXOpen::CoordinateSystem* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::WheelCsys

(

)

Returns the coordinate system defining the orientation of the wheel.

Created in NX7.5.0.

License requirements : None

NXOpen::Expression* NXOpen::Features::VehicleDesign::TireEnvelopeBuilder::WheelRimDiameter

(

)

Returns the expression containing the diameter of the wheel rim.

Created in NX7.5.0.

License requirements : None

---

The documentation for this class was generated from the following file:

• Features_VehicleDesign_TireEnvelopeBuilder.hxx
